Continuing my series of how-to articles for CDP, today we explore how to connect to Impala via JDBC in JSON. In my example, I will use a Jupyter notebook running in CML, but this can be generalized.

This process is actually fairly easy, so let's dive in.

Step 1: Setup Impala JDBC drivers

1. First, download the latest impala JDBC drivers from Cloudera JDBC Driver 2.6.17 for Impala.

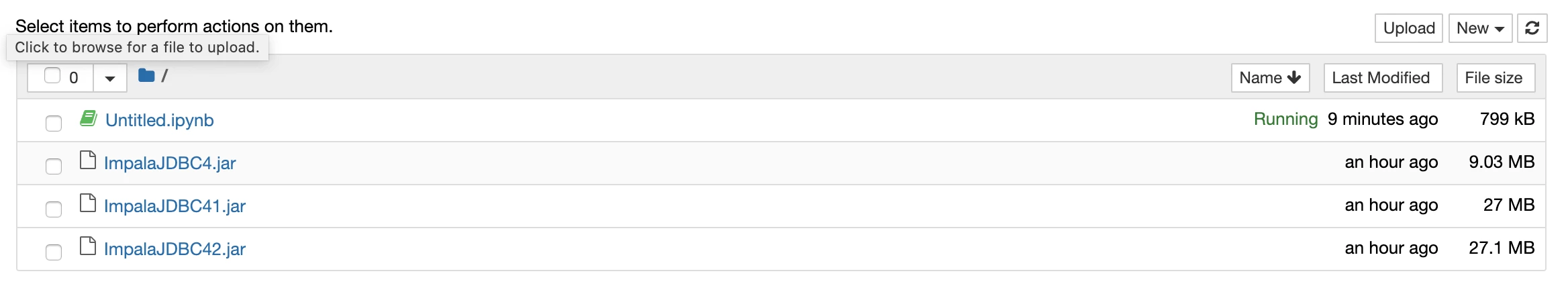

2. Then, upload them to your machine. Here is an example of a CML Jupyter sessions with the jars uploaded:

3. Finally, make sure that you set up your CLASSPATH properly by opening a terminal session and typing the following:

   CLASSPATH=.:/home/cdsw/ImpalaJDBC4.jar:/home/cdsw/ImpalaJDBC41.jar:/home/cdsw/ImpalaJDBC42.jar
   export CLASSPATH​

Step 2: Install JayDeBeApi

1. To install JayDeBeApi, run the following:

   pip3 install JayDeBeApi ​

2. A recommended step to avoid getting an error along the lines of "AttributeError: type object 'java.sql.Types' has no attribute '__javaclass__'", would be to downgrade your jpype by running the following:

   pip3 install --upgrade jpype1==0.6.3 --user​

3. Restart your kernel when you perform the downgrade.

Step 3: Connect to Impala

1. Finally, connect to your impala, using the following sample code:

   import jaydebeapi
   conn = jaydebeapi.connect("com.cloudera.impala.jdbc.DataSource",
                             "jdbc:impala://[your_host]:443/;ssl=1;transportMode=http;httpPath=icml-data-mart/cdp-proxy-api/impala;AuthMech=3;",
                             {'UID': "[your_cdp_user]", 'PWD': "[your_workload_pwd]"},
                             '/home/cdsw/ImpalaJDBC41.jar')
   curs = conn.cursor()

   curs.execute("select * from default.locations")
   curs.fetchall()

   curs.close()
   conn.close()​


   Note: You can get your impala JDBC string either from the Datahub endpoint path or from the JDBC URL from CDW.

The following is a screenshot of my code in action:
