Capacity Scheduler Ordering Policy Not Reflecting

Capacity Scheduler Ordering Policy Not Reflecting

Hi Team,

I have changed scheduling policy to "fair" for capacity scheduler in capacity-scheduler.xml but it is not reflecting in resource manager UI. I am not using any distribution and using simple plain vanilla hadoop version 2.7.3. Kindly help to resolve.



capacity-scheduler.xml:



<configuration>

<property>
<name>yarn.scheduler.capacity.maximum-am-resource-percent</name>
<value>0.2</value>
</property>

<property>
<name>yarn.scheduler.capacity.maximum-applications</name>
<value>10000</value>
</property>

<property>
<name>yarn.scheduler.capacity.node-locality-delay</name>
<value>40</value>
</property>

<property>
<name>yarn.scheduler.capacity.queue-mappings-override.enable</name>
<value>false</value>
</property>

<property>
<name>yarn.scheduler.capacity.resource-calculator</name>
<value>org.apache.hadoop.yarn.util.resource.DefaultResourceCalculator</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.accessible-node-labels</name>
<value>*</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.acl_administer_queue</name>
<value>*</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.capacity</name>
<value>100</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.acl_submit_applications</name>
<value>*</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.capacity</name>
<value>100</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.maximum-capacity</name>
<value>100</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.ordering-policy</name>
<value>fair</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.ordering-policy.fair.enable-size-based-weight</name>
<value>false</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.priority</name>
<value>0</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.state</name>
<value>RUNNING</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.default.user-limit-factor</name>
<value>1</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.priority</name>
<value>0</value>
</property>

<property>
<name>yarn.scheduler.capacity.root.queues</name>
<value>default</value>
</property>

</configuration>

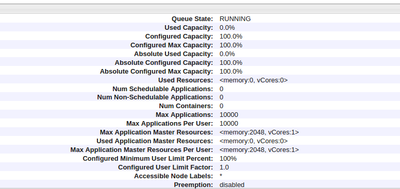

Resource Manager UI:
