Getting "Job cancelled because SparkContext was shut down" when running a Job using YARN

Solved Go to solution

Getting "Job cancelled because SparkContext was shut down" when running a Job using YARN

New Contributor

I'm following this example using Java:

http://blog.cloudera.com/blog/2014/04/how-to-run-a-simple-apache-spark-app-in-cdh-5/



Everything works fine when using "-master local" option, but I'm getting error when trying to run on YARN ("-master yarn").

I'm running a CDH 5.2.0 cluster with 4 VMs (8GB RAM in master node and 2GB on the others).



Am I running the Job in correct way to have it running over the four nodes? What's the differece to use ("-master spark://IP:Port") and what is the default port to run this way?



Here is the full console output when trying to run on YARN:



root@hadoop1:~# spark-submit --class testesVitor.JavaWordCounter --master yarn sparkwordcount-0.0.1-SNAPSHOT.jar /user/vitor/Posts.xml 2 > output.txt
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/usr/lib/spark/assembly/lib/spark-assembly-1.1.0-cdh5.2.0-hadoop2.5.0-cdh5.2.0.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/usr/lib/zookeeper/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
14/11/18 16:26:49 INFO SecurityManager: Changing view acls to: root
14/11/18 16:26:49 INFO SecurityManager: Changing modify acls to: root
14/11/18 16:26:49 INFO SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(root); users with modify permissions: Set(root)
14/11/18 16:26:51 INFO Slf4jLogger: Slf4jLogger started
14/11/18 16:26:51 INFO Remoting: Starting remoting
14/11/18 16:26:52 INFO Remoting: Remoting started; listening on addresses :[akka.tcp://sparkDriver@hadoop1.example.com:58545]
14/11/18 16:26:52 INFO Remoting: Remoting now listens on addresses: [akka.tcp://sparkDriver@hadoop1.example.com:58545]
14/11/18 16:26:52 INFO Utils: Successfully started service 'sparkDriver' on port 58545.
14/11/18 16:26:52 INFO SparkEnv: Registering MapOutputTracker
14/11/18 16:26:52 INFO SparkEnv: Registering BlockManagerMaster
14/11/18 16:26:52 INFO DiskBlockManager: Created local directory at /tmp/spark-local-20141118162652-0ff3
14/11/18 16:26:52 INFO Utils: Successfully started service 'Connection manager for block manager' on port 46763.
14/11/18 16:26:52 INFO ConnectionManager: Bound socket to port 46763 with id = ConnectionManagerId(hadoop1.example.com,46763)
14/11/18 16:26:52 INFO MemoryStore: MemoryStore started with capacity 267.3 MB
14/11/18 16:26:52 INFO BlockManagerMaster: Trying to register BlockManager
14/11/18 16:26:52 INFO BlockManagerMasterActor: Registering block manager hadoop1.example.com:46763 with 267.3 MB RAM
14/11/18 16:26:52 INFO BlockManagerMaster: Registered BlockManager
14/11/18 16:26:52 INFO HttpFileServer: HTTP File server directory is /tmp/spark-cfde3cf0-024a-47db-b97d-374710b989fc
14/11/18 16:26:52 INFO HttpServer: Starting HTTP Server
14/11/18 16:26:52 INFO Utils: Successfully started service 'HTTP file server' on port 40252.
14/11/18 16:26:54 INFO Utils: Successfully started service 'SparkUI' on port 4040.
14/11/18 16:26:54 INFO SparkUI: Started SparkUI at http://hadoop1.example.com:4040
14/11/18 16:27:00 WARN NativeCodeLoader: Unable to load native-hadoop library for your platform... using builtin-java classes where applicable
14/11/18 16:27:00 INFO EventLoggingListener: Logging events to hdfs://hadoop1.example.com:8020/user/spark/applicationHistory/spark-count-1416335217999
14/11/18 16:27:01 INFO SparkContext: Added JAR file:/root/sparkwordcount-0.0.1-SNAPSHOT.jar at http://192.168.56.101:40252/jars/sparkwordcount-0.0.1-SNAPSHOT.jar with timestamp 1416335221103
14/11/18 16:27:01 INFO RMProxy: Connecting to ResourceManager at hadoop1.example.com/192.168.56.101:8032
14/11/18 16:27:02 INFO Client: Got cluster metric info from ResourceManager, number of NodeManagers: 3
14/11/18 16:27:02 INFO Client: Max mem capabililty of a single resource in this cluster 1029
14/11/18 16:27:02 INFO Client: Preparing Local resources
14/11/18 16:27:02 INFO Client: Uploading file:/usr/lib/spark/assembly/lib/spark-assembly-1.1.0-cdh5.2.0-hadoop2.5.0-cdh5.2.0.jar to hdfs://hadoop1.example.com:8020/user/root/.sparkStaging/application_1415718283355_0004/spark-assembly-1.1.0-cdh5.2.0-hadoop2.5.0-cdh5.2.0.jar
14/11/18 16:27:08 INFO Client: Prepared Local resources Map(__spark__.jar -> resource { scheme: "hdfs" host: "hadoop1.example.com" port: 8020 file: "/user/root/.sparkStaging/application_1415718283355_0004/spark-assembly-1.1.0-cdh5.2.0-hadoop2.5.0-cdh5.2.0.jar" } size: 95567637 timestamp: 1416335228534 type: FILE visibility: PRIVATE)
14/11/18 16:27:08 INFO Client: Setting up the launch environment
14/11/18 16:27:08 INFO Client: Setting up container launch context
14/11/18 16:27:08 INFO Client: Yarn AM launch context:
14/11/18 16:27:08 INFO Client:   class:   org.apache.spark.deploy.yarn.ExecutorLauncher
14/11/18 16:27:08 INFO Client:   env:     Map(CLASSPATH -> $PWD:$PWD/__spark__.jar:$HADOOP_CLIENT_CONF_DIR:$HADOOP_CONF_DIR:$HADOOP_COMMON_HOME/*:$HADOOP_COMMON_HOME/lib/*:$HADOOP_HDFS_HOME/*:$HADOOP_HDFS_HOME/lib/*:$HADOOP_YARN_HOME/*:$HADOOP_YARN_HOME/lib/*:$HADOOP_MAPRED_HOME/*:$HADOOP_MAPRED_HOME/lib/*:$MR2_CLASSPATH:$PWD/__app__.jar:$PWD/*, SPARK_YARN_CACHE_FILES_FILE_SIZES -> 95567637, SPARK_YARN_STAGING_DIR -> .sparkStaging/application_1415718283355_0004/, SPARK_YARN_CACHE_FILES_VISIBILITIES -> PRIVATE, SPARK_USER -> root, SPARK_YARN_MODE -> true, SPARK_YARN_CACHE_FILES_TIME_STAMPS -> 1416335228534, SPARK_YARN_CACHE_FILES -> hdfs://hadoop1.example.com:8020/user/root/.sparkStaging/application_1415718283355_0004/spark-assembly-1.1.0-cdh5.2.0-hadoop2.5.0-cdh5.2.0.jar#__spark__.jar)
14/11/18 16:27:08 INFO Client:   command: $JAVA_HOME/bin/java -server -Xmx512m -Djava.io.tmpdir=$PWD/tmp '-Dspark.tachyonStore.folderName=spark-ea602029-5871-4097-b72f-d2bd46c74054' '-Dspark.yarn.historyServer.address=http://hadoop1.example.com:18088' '-Dspark.eventLog.enabled=true' '-Dspark.yarn.secondary.jars=' '-Dspark.driver.host=hadoop1.example.com' '-Dspark.driver.appUIHistoryAddress=http://hadoop1.example.com:18088/history/spark-count-1416335217999' '-Dspark.app.name=Spark Count' '-Dspark.driver.appUIAddress=hadoop1.example.com:4040' '-Dspark.jars=file:/root/sparkwordcount-0.0.1-SNAPSHOT.jar' '-Dspark.fileserver.uri=http://192.168.56.101:40252' '-Dspark.eventLog.dir=hdfs://hadoop1.example.com:8020/user/spark/applicationHistory' '-Dspark.master=yarn-client' '-Dspark.driver.port=58545' org.apache.spark.deploy.yarn.ExecutorLauncher --class 'notused' --jar  null  --arg  'hadoop1.example.com:58545' --executor-memory 1024 --executor-cores 1 --num-executors  2 1> <LOG_DIR>/stdout 2> <LOG_DIR>/stderr
14/11/18 16:27:08 INFO SecurityManager: Changing view acls to: root
14/11/18 16:27:08 INFO SecurityManager: Changing modify acls to: root
14/11/18 16:27:08 INFO SecurityManager: SecurityManager: authentication disabled; ui acls disabled; users with view permissions: Set(root); users with modify permissions: Set(root)
14/11/18 16:27:08 INFO Client: Submitting application to ResourceManager
14/11/18 16:27:08 INFO YarnClientImpl: Submitted application application_1415718283355_0004
14/11/18 16:27:09 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:10 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:11 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:12 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:13 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:14 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:15 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:16 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:17 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:18 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:19 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:20 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:21 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: -1
         appStartTime: 1416335228936
         yarnAppState: ACCEPTED

14/11/18 16:27:22 INFO YarnClientSchedulerBackend: Application report from ASM:
         appMasterRpcPort: 0
         appStartTime: 1416335228936
         yarnAppState: RUNNING

14/11/18 16:27:31 INFO YarnClientSchedulerBackend: SchedulerBackend is ready for scheduling beginning after waiting maxRegisteredResourcesWaitingTime: 30000(ms)
14/11/18 16:27:31 INFO MemoryStore: ensureFreeSpace(258371) called with curMem=0, maxMem=280248975
14/11/18 16:27:31 INFO MemoryStore: Block broadcast_0 stored as values in memory (estimated size 252.3 KB, free 267.0 MB)
14/11/18 16:27:31 INFO MemoryStore: ensureFreeSpace(20625) called with curMem=258371, maxMem=280248975
14/11/18 16:27:31 INFO MemoryStore: Block broadcast_0_piece0 stored as bytes in memory (estimated size 20.1 KB, free 267.0 MB)
14/11/18 16:27:31 INFO BlockManagerInfo: Added broadcast_0_piece0 in memory on hadoop1.example.com:46763 (size: 20.1 KB, free: 267.2 MB)
14/11/18 16:27:31 INFO BlockManagerMaster: Updated info of block broadcast_0_piece0
14/11/18 16:27:31 INFO FileInputFormat: Total input paths to process : 1
14/11/18 16:27:31 INFO NetworkTopology: Adding a new node: /default/192.168.56.104:50010
14/11/18 16:27:31 INFO NetworkTopology: Adding a new node: /default/192.168.56.103:50010
14/11/18 16:27:31 INFO NetworkTopology: Adding a new node: /default/192.168.56.102:50010
14/11/18 16:27:32 INFO SparkContext: Starting job: collect at JavaWordCounter.java:84
14/11/18 16:27:32 INFO DAGScheduler: Registering RDD 3 (mapToPair at JavaWordCounter.java:30)
14/11/18 16:27:32 INFO DAGScheduler: Registering RDD 7 (mapToPair at JavaWordCounter.java:68)
14/11/18 16:27:32 INFO DAGScheduler: Got job 0 (collect at JavaWordCounter.java:84) with 228 output partitions (allowLocal=false)
14/11/18 16:27:32 INFO DAGScheduler: Final stage: Stage 0(collect at JavaWordCounter.java:84)
14/11/18 16:27:32 INFO DAGScheduler: Parents of final stage: List(Stage 2)
14/11/18 16:27:32 INFO DAGScheduler: Missing parents: List(Stage 2)
14/11/18 16:27:32 INFO DAGScheduler: Submitting Stage 1 (MappedRDD[3] at mapToPair at JavaWordCounter.java:30), which has no missing parents
14/11/18 16:27:32 INFO MemoryStore: ensureFreeSpace(4096) called with curMem=278996, maxMem=280248975
14/11/18 16:27:32 INFO MemoryStore: Block broadcast_1 stored as values in memory (estimated size 4.0 KB, free 267.0 MB)
14/11/18 16:27:32 INFO MemoryStore: ensureFreeSpace(2457) called with curMem=283092, maxMem=280248975
14/11/18 16:27:32 INFO MemoryStore: Block broadcast_1_piece0 stored as bytes in memory (estimated size 2.4 KB, free 267.0 MB)
14/11/18 16:27:32 INFO BlockManagerInfo: Added broadcast_1_piece0 in memory on hadoop1.example.com:46763 (size: 2.4 KB, free: 267.2 MB)
14/11/18 16:27:32 INFO BlockManagerMaster: Updated info of block broadcast_1_piece0
14/11/18 16:27:32 INFO DAGScheduler: Submitting 228 missing tasks from Stage 1 (MappedRDD[3] at mapToPair at JavaWordCounter.java:30)
14/11/18 16:27:32 INFO YarnClientClusterScheduler: Adding task set 1.0 with 228 tasks
14/11/18 16:27:32 INFO RackResolver: Resolved 192.168.56.104 to /default
14/11/18 16:27:32 INFO RackResolver: Resolved 192.168.56.103 to /default
14/11/18 16:27:32 INFO RackResolver: Resolved 192.168.56.102 to /default
14/11/18 16:27:32 INFO RackResolver: Resolved hadoop2.example.com to /default
14/11/18 16:27:32 INFO RackResolver: Resolved hadoop3.example.com to /default
14/11/18 16:27:32 INFO RackResolver: Resolved hadoop4.example.com to /default
14/11/18 16:27:36 ERROR YarnClientSchedulerBackend: Yarn application already ended: FAILED
14/11/18 16:27:36 INFO SparkUI: Stopped Spark web UI at http://hadoop1.example.com:4040
14/11/18 16:27:36 INFO DAGScheduler: Stopping DAGScheduler
14/11/18 16:27:36 INFO YarnClientSchedulerBackend: Shutting down all executors
14/11/18 16:27:36 INFO YarnClientSchedulerBackend: Asking each executor to shut down
14/11/18 16:27:36 INFO YarnClientSchedulerBackend: Stopped
14/11/18 16:27:36 INFO DAGScheduler: Failed to run collect at JavaWordCounter.java:84
Exception in thread "main" org.apache.spark.SparkException: Job cancelled because SparkContext was shut down
        at org.apache.spark.scheduler.DAGScheduler$$anonfun$cleanUpAfterSchedulerStop$1.apply(DAGScheduler.scala:694)
        at org.apache.spark.scheduler.DAGScheduler$$anonfun$cleanUpAfterSchedulerStop$1.apply(DAGScheduler.scala:693)
        at scala.collection.mutable.HashSet.foreach(HashSet.scala:79)
        at org.apache.spark.scheduler.DAGScheduler.cleanUpAfterSchedulerStop(DAGScheduler.scala:693)
        at org.apache.spark.scheduler.DAGSchedulerEventProcessActor.postStop(DAGScheduler.scala:1399)
        at akka.actor.dungeon.FaultHandling$class.akka$actor$dungeon$FaultHandling$$finishTerminate(FaultHandling.scala:201)
        at akka.actor.dungeon.FaultHandling$class.terminate(FaultHandling.scala:163)
        at akka.actor.ActorCell.terminate(ActorCell.scala:338)
        at akka.actor.ActorCell.invokeAll$1(ActorCell.scala:431)
        at akka.actor.ActorCell.systemInvoke(ActorCell.scala:447)
        at akka.dispatch.Mailbox.processAllSystemMessages(Mailbox.scala:262)
        at akka.dispatch.Mailbox.run(Mailbox.scala:218)
        at akka.dispatch.ForkJoinExecutorConfigurator$AkkaForkJoinTask.exec(AbstractDispatcher.scala:386)
        at scala.concurrent.forkjoin.ForkJoinTask.doExec(ForkJoinTask.java:260)
        at scala.concurrent.forkjoin.ForkJoinPool$WorkQueue.runTask(ForkJoinPool.java:1339)
        at scala.concurrent.forkjoin.ForkJoinPool.runWorker(ForkJoinPool.java:1979)
        at scala.concurrent.forkjoin.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:107)
root@hadoop1:~#

1 ACCEPTED SOLUTION

Accepted Solutions

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

Master Collaborator

This isn't the problem. It's just a symptom of the app failing for another reason:



14/11/18 16:27:36 ERROR YarnClientSchedulerBackend: Yarn application already ended: FAILED



You'd have to look at the actual app worker logs to see why it's failing.

5 REPLIES 5

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

Master Collaborator

This isn't the problem. It's just a symptom of the app failing for another reason:



14/11/18 16:27:36 ERROR YarnClientSchedulerBackend: Yarn application already ended: FAILED



You'd have to look at the actual app worker logs to see why it's failing.

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

New Contributor

Where can I get this log?

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

Master Collaborator

You're running on YARN, so you should see the application as a "FAILED" application in the Resource Manager UI. Click through and you can find the logs of individual containers, which should show some failure.

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

New Contributor

Hi Srowen, thanks for the reply. I discovered the problem and its was related with memory limits in YARN configuration. Now I can run my job, but I still having a doult:



I  have four nodes on the cluster, but the job is running in only two of them. Why is that? I'm firing the job from hadoop1 shell and the job is running only with nodes 3 and 4. Node 2 became the driver. How can I better use my resources?

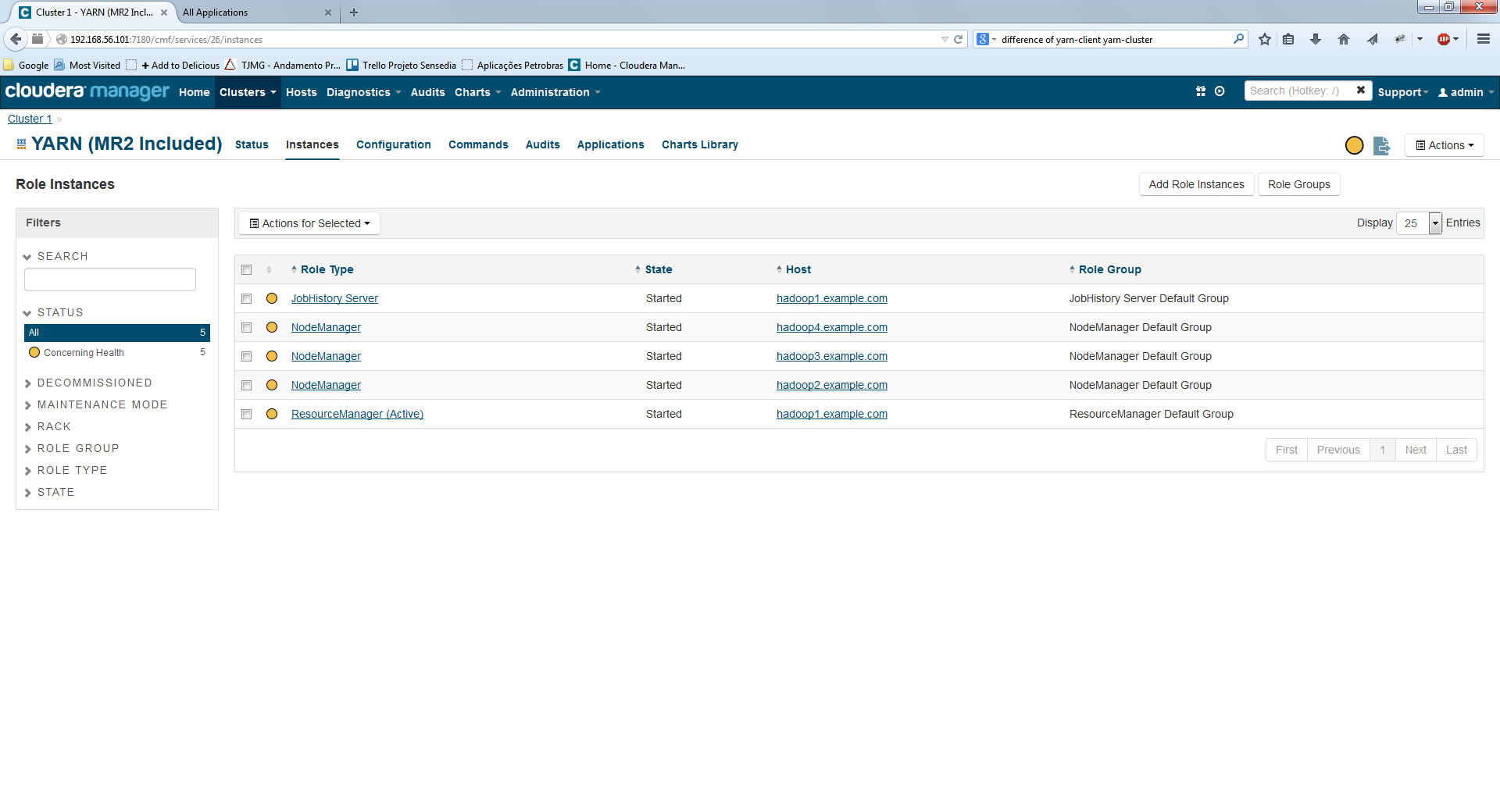

Here is my YARN instances:

yarn instances.png



And here is my Job running:

spark execution.png

Re: Getting "Job cancelled because SparkContext was shut down" when running a Job using YA

New Contributor

I'll post this in different thread.

Don't have an account?
Coming from Hortonworks? Activate your account here
