Install zeppelin on HDP (not Sandbox)

[#1]

Hi all,

i'm trying to install & start apache zeppelin on an Ambari managed cluster (IAAS on Azure), without success.

I'm using the ambari service from github, the installation goes fine, and I can start Zeppelin successfully. But when I try to connect, I see no welcome page neither notes, and if I try to add a note nothing happens. Either ports 9995 and 9996 are open and reachable.

This is my configuration:

Edge node (just zeppelin and clients):

Centos (OpenLogic) 7.2

HDP 2.3.4

Ambari 2.2.0

Apache Zeppelin 0.5 (pre-built)

No errors in zeppelin's logs, except for this 4 warnings in the *.out log:

WARNING: The following warnings have been detected with resource and/or provider classes:

WARNING: A HTTP GET method, public javax.ws.rs.core.Response org.apache.zeppelin.rest.InterpreterRestApi.listInterpreter(java.lang.String), should not consume any entity.

WARNING: A sub-resource method, public javax.ws.rs.core.Response org.apache.zeppelin.rest.NotebookRestApi.createNote(java.lang.String) throws java.io.IOException, with URI template, "/", is treated as a resource method

WARNING: A sub-resource method, public javax.ws.rs.core.Response org.apache.zeppelin.rest.NotebookRestApi.getNotebookList() throws java.io.IOException, with URI template, "/", is treated as a resource method

I attach the zeppelin-env.sh and the zeppelin-site.xml files.

Thank you in advance!

zeppelin-conf.tar.gz

[#2]

did you try this tutorial? @Davide Vergari link

[#3]

Hi @Artem Ervits,

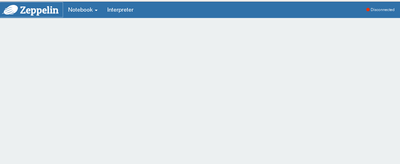

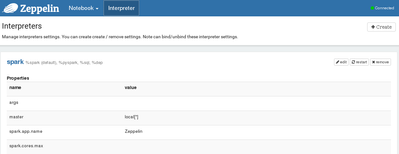

thank you for the response. I tried the tutorial you posted, but get the same issue. Following, there are the print screen, in which you can see that in the interpreter page all is fine, but I get a "Disconnected" status on the Notebook tab

Thank you,

D.

[#4]

@Davide Vergari try to restart zepplin service. @vshukla

[#5]

@Artem Ervits same issue, either after a "restart" and a "stop-and-start"

[zeppelin@hdpedge01 zeppelin-0.6.0-incubating-SNAPSHOT]$ ./bin/zeppelin-daemon.sh restart
Zeppelin stop  [  OK  ]
Zeppelin start  [  OK  ]
[zeppelin@hdpedge01 zeppelin-0.6.0-incubating-SNAPSHOT]$ ./bin/zeppelin-daemon.sh stop
Zeppelin stop  [  OK  ]
[zeppelin@hdpedge01 zeppelin-0.6.0-incubating-SNAPSHOT]$ ./bin/zeppelin-daemon.sh start
Zeppelin start  [  OK  ]
[zeppelin@hdpedge01 zeppelin-0.6.0-incubating-SNAPSHOT]$

[#6]

@Davide Vergari ok, I tagged an expert in previous comment. Let's see what he says. Check back soon, if you don't get a response within a couple of days, tag me again.

[#7]

@Davide Vergari can you look at this thread as a possible solution? link

[#8]

Can you double check that the ports Zeppelin requires are open? (Eg by trying to telnet from your laptop) I installed Zeppelin last night via Ambari on 2.3.4 cluster and it worked fine. You can confirm Zeppelin is running on that port by running below from the node it's running on

netstat -tulpn | grep 9995

[#9]

Hi @Ali Bajwa,

yes, zeppelin is up & running on port 9995

[root@hdpedge01 ~]# netstat -natupl | grep 9995
tcp        0      0 0.0.0.0:9995            0.0.0.0:*               LISTEN      3307/java
[root@hdpedge01 ~]# ps -efa | grep -i 3307
zeppelin  3307     1  0 Feb03 ?        00:01:29 java -Dhdp.version=2.3.4.0-3485 -Dfile.encoding=UTF-8 -Xmx1024m -XX:MaxPermSize=512m -Dzeppelin.log.file=/opt/zeppelin-0.6.0-incubating-SNAPSHOT/logs/zeppelin-zeppelin-hdpedge01.ecubecenter.net.log -cp :/opt/zeppelin-0.6.0-incubating-SNAPSHOT/lib/*:/opt/zeppelin-0.6.0-incubating-SNAPSHOT/*::/opt/zeppelin-0.6.0-incubating-SNAPSHOT/conf org.apache.zeppelin.server.ZeppelinServer
root     30192 26125  0 11:49 pts/0    00:00:00 grep --color=auto -i 3307
[root@hdpedge01 ~]#

Also, port 9995 is reachable from my local machine:

root@lavoro:~# telnet hdpedge01.ecubecenter.net 9995
Trying 40.112.76.49...
Connected to hdpedge01.northeurope.cloudapp.azure.com.
Escape character is '^]'.
^CConnection closed by foreign host.
root@lavoro:~# hping3 -S -c 2 -p 9995 hdpedge01.ecubecenter.net
HPING hdpedge01.ecubecenter.net (eth0 40.112.76.49): S set, 40 headers + 0 data bytes
len=46 ip=40.112.76.49 ttl=64 id=47909 sport=9995 flags=SA seq=0 win=65535 rtt=52.9 ms
len=46 ip=40.112.76.49 ttl=64 id=47914 sport=9995 flags=SA seq=1 win=65535 rtt=47.7 ms

--- hdpedge01.ecubecenter.net hping statistic ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 47.7/50.3/52.9 ms
root@lavoro:~#

Nobody is listening on port 9996 (should zeppelin does?) by the way it is reachable from my laptop

[root@hdpedge01 ~]# nc -l -p 9996

test

root@lavoro:~# telnet hdpedge01.ecubecenter.net 9996

Trying 40.112.76.49...Connected to hdpedge01.northeurope.cloudapp.azure.com.

Escape character is '^]'

test

Thank you,

D.

[#10]

@Artem Ervits I don't think this is the same case, nss is installed on my edge node

[root@hdpedge01 ~]# yum list installed nss
Loaded plugins: fastestmirror
Loading mirror speeds from cached hostfile
 * epel: mirror.bytemark.co.uk
Installed Packages
nss.x86_64                                                                      3.19.1-19.el7_2                                                                       @updates
[root@hdpedge01 ~]#

Thank you,

D.
