Output Port: Port X is invalid because Output Connection for port X is not defined

Solved Go to solution

Output Port: Port X is invalid because Output Connection for port X is not defined

Contributor

Hello All,

I dragged an Output Port in canvas inside a Process Group and I am getting error that - Port X is invalid because Output Connection for port X is not defined.

What configuration am I missing?

Thanks!!

1 ACCEPTED SOLUTION

Accepted Solutions

Re: Output Port: Port X is invalid because Output Connection for port X is not defined

@M R

You need to connect the output port to some other object outside of the process group the output port is in.

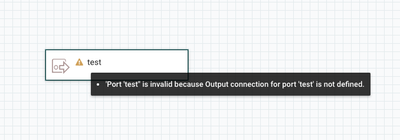

For example, I have a output port in a process group

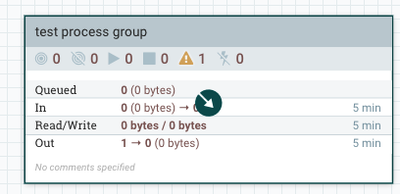

In the level above the process group, if I hover the cursor over the process group an icon appears

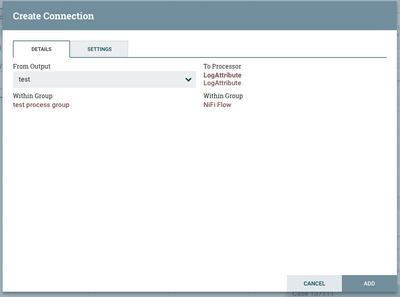

Now, I left click, hold and drag the cursor over to a processor, funnel or another process group with an input port, another window will pop up with the name of the output port


Select ADD and then you'll see a connection to the object, if you go back into the original process group, you'll see the output port is ready to be started and there you go.


View solution in original post

2 REPLIES 2

Re: Output Port: Port X is invalid because Output Connection for port X is not defined

@M R

You need to connect the output port to some other object outside of the process group the output port is in.

For example, I have a output port in a process group


In the level above the process group, if I hover the cursor over the process group an icon appears


Now, I left click, hold and drag the cursor over to a processor, funnel or another process group with an input port, another window will pop up with the name of the output port


Select ADD and then you'll see a connection to the object, if you go back into the original process group, you'll see the output port is ready to be started and there you go.


View solution in original post

Re: Output Port: Port X is invalid because Output Connection for port X is not defined

Contributor

Thanks. My issue is resolved now.
