Creating Hive Table on S3A bucket + Ranger

Steps to Create Table in Hive on S3A with Ranger

• Create a bucket with a unique name, I've used "myhivebucket" and do not change any details in the permissions
• Complete the "Create bucket" wizard by clicking on "create bucket" button
• Make the following entries in custom hdfs-site.xml
  • fs.s3a.access.key = <access key>
  • fs.s3a.secret.key = <access secret>
  • fs.s3a.impl = org.apache.hadoop.fs.s3a.S3AFileSystem
• To retrieve the value for access key and secret, follow these steps:
  • Login to https://aws.amazon.com/console
  • Click on "Sign in to the console" tab
  • Login with appropriate credentials
  • Once logged in, you should see your login name on the top right corner of the AWS page
  • Click on the drop-down arrow beside your login name and select "My Security Credentials"
  • This should take you to a page titled "Your Security Credentials"
  • From this page, collapse the option that says "Access Keys(Access Key ID and Secret Access Key)"
  • You have to click on "create a new access key" because of Amazon limitation described here
  • This lets you download the key/secret in this format (this is not case sensitive)
    • AWSAccessKeyId=XXXXXXXXXXXXXXXXXXXXX
    • AWSSecretKey=XXXXXxxxxxXXXXXxxxxxXXXXX/xxxxx
  • Value for "fs.s3a.access.key" will be the value for "AWSAccessKeyId"
  • Value for "fs.s3a.secret.key" will be the value for "AWSSecretKey"

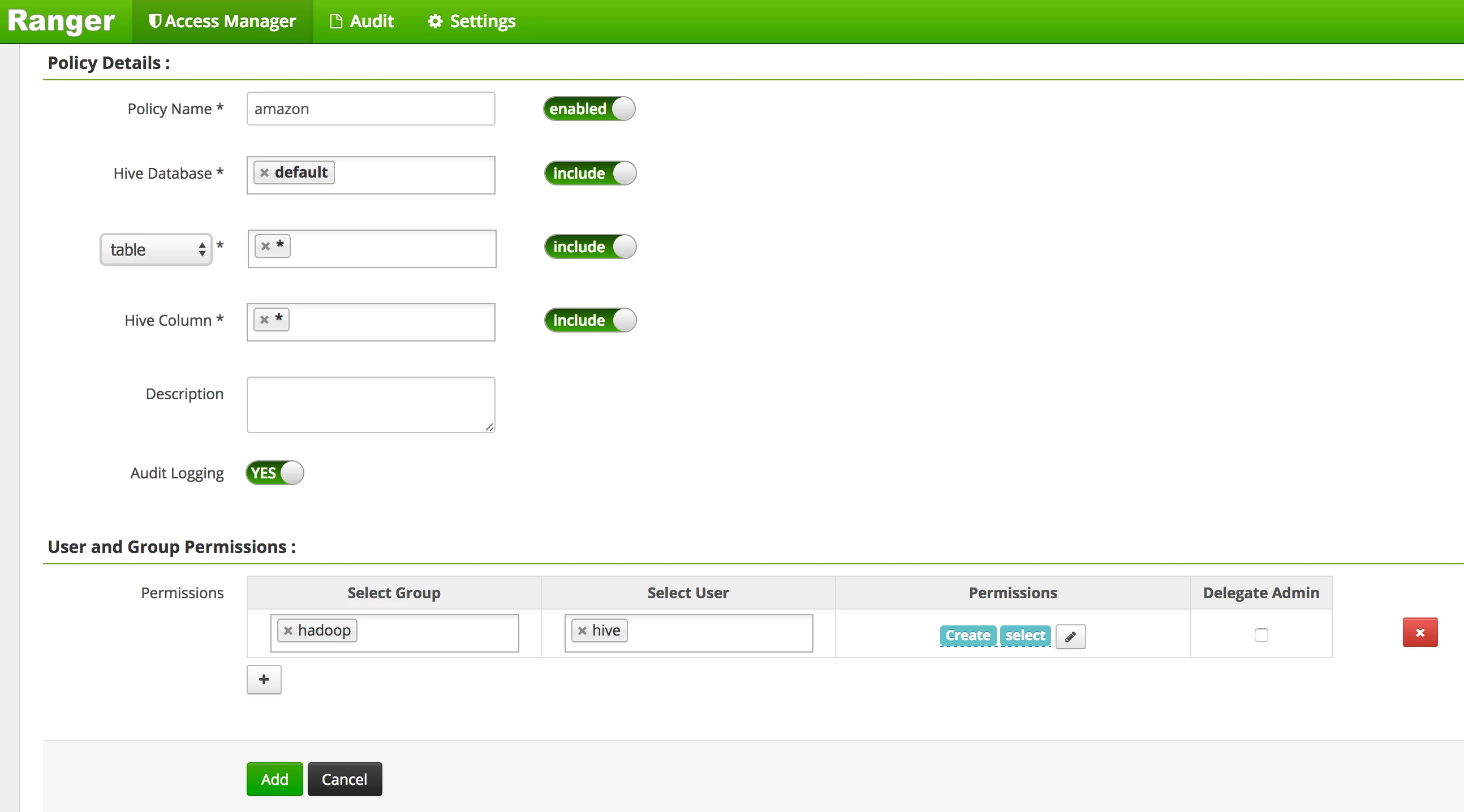

• Login to ranger admin interface and create a policy for hive/desired user to allow the desired permissions

• Now login to hive with the kerberos credentials, as required via beeline and create table ensuring that the location is on s3a

[hive@xlnode-standalone ~]$ beeline -u "jdbc:hive2://xlnode-standalone.hwx.com:2181/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2"
WARNING: Use "yarn jar" to launch YARN applications.
Connecting to jdbc:hive2://xlnode-standalone.hwx.com:2181/;serviceDiscoveryMode=zooKeeper;zooKeeperNamespace=hiveserver2
Connected to: Apache Hive (version 1.2.1000.2.4.3.0-227)
Driver: Hive JDBC (version 1.2.1000.2.4.3.0-227)
Transaction isolation: TRANSACTION_REPEATABLE_READ
Beeline version 1.2.1000.2.4.3.0-227 by Apache Hive
0: jdbc:hive2://xlnode-standalone.hwx.com:218> create table mys3test (col1 int, col2 string) row format delimited fields terminated by ',' stored as textfile location 's3a://myhivebucket/test';
No rows affected (12.04 seconds)
0: jdbc:hive2://xlnode-standalone.hwx.com:218>


• Now try and insert some rows

0: jdbc:hive2://xlnode-standalone.hwx.com:218> insert into mys3test values (1,'test'),(2,'test');
Error: Error while compiling statement: FAILED: HiveAccessControlException Permission denied: user [hive] does not have [UPDATE] privilege on [default/mys3test] (state=42000,code=40000)
0: jdbc:hive2://xlnode-standalone.hwx.com:218>

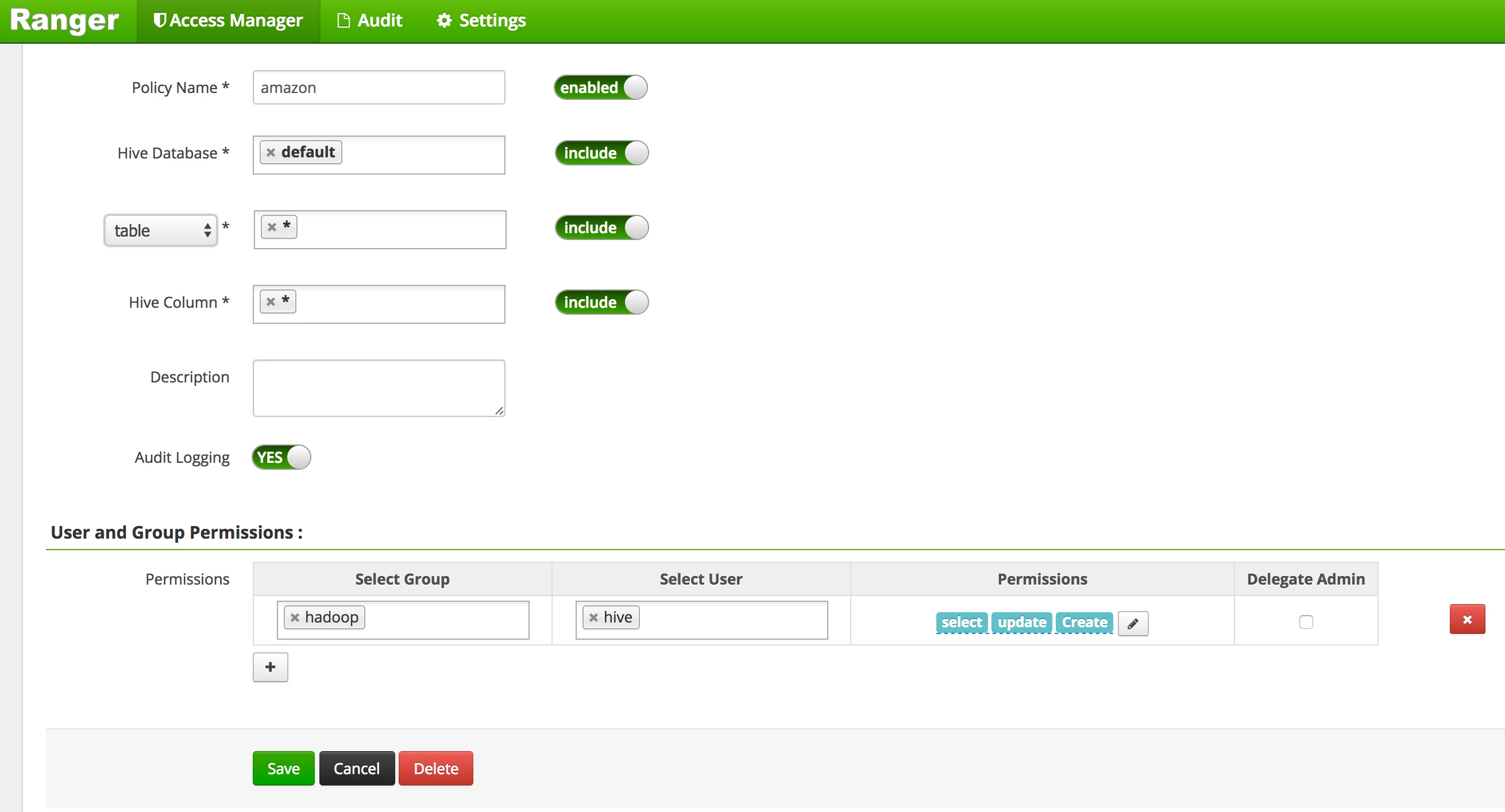

• The above error is intentional, since we do not have "UPDATE" privilege assigned via ranger, we cannot insert the values yet, allow the permission and INSERT again

• Validate INSERT/UPDATE and SELECT

0: jdbc:hive2://xlnode-standalone.hwx.com:218> insert into mys3test values (1,'test'),(2,'test');
INFO : Tez session hasn't been created yet. Opening session
INFO : Dag name: insert into mys3test ...1,'test'),(2,'test')(Stage-1)
INFO :
INFO : Status: Running (Executing on YARN cluster with App id application_1492107639289_0002)
INFO : Map 1: -/-
INFO : Map 1: 0/1
INFO : Map 1: 0(+1)/1
INFO : Map 1: 0(+1)/1
INFO : Map 1: 0(+1)/1
INFO : Map 1: 0(+1)/1
INFO : Map 1: 0/1
INFO : Map 1: 1/1
INFO : Loading data to table default.mys3test from s3a://myhivebucket/test/.hive-staging_hive_2017-04-13_19-27-13_226_6105571528298793138-1/-ext-10000
INFO : Table default.mys3test stats: [numFiles=1, numRows=2, totalSize=14, rawDataSize=12]
No rows affected (53.854 seconds)
0: jdbc:hive2://xlnode-standalone.hwx.com:218> select * from mys3test;
+----------------+----------------+--+
| mys3test.col1 | mys3test.col2 |
+----------------+----------------+--+
| 1 | test |
| 2 | test |
+----------------+----------------+--+
2 rows selected (3.554 seconds)
0: jdbc:hive2://xlnode-standalone.hwx.com:218>
