NiFi ConvertCSVToAvro Processor for clickstream data quality

Background

When we use NiFi flow to load Adobe ClickStream tsv file into hive, we found around 3% rows are in wrong format or missed.

Source Data Quality

$ awk -F "\t" '{print NF}' 01-weblive_20161014-150000.tsv | sort | uniq -c | sort
1 154
1 159
1 162
1 164
1 167
1 198
1 201
1 467
2 446
2 449
2 569
6 13
10 3
13 146
13 185
15 151
16 54
18 433
21 432
22 238
23 102
26 2
34 138
179 1
319412 670


After clean the tsv

$ awk -F "\t" 'NF == 670' 01-weblive_20161014-150000.tsv >> cleaned.tsv
$ awk -F "\t" '{print NF}' cleaned.tsv | sort | uniq -c | sort
319412 670


Still missed a few percent rows.

Root Cause and Solution

We are using ConvertCSVToAvro and ConvertAvroToORC.

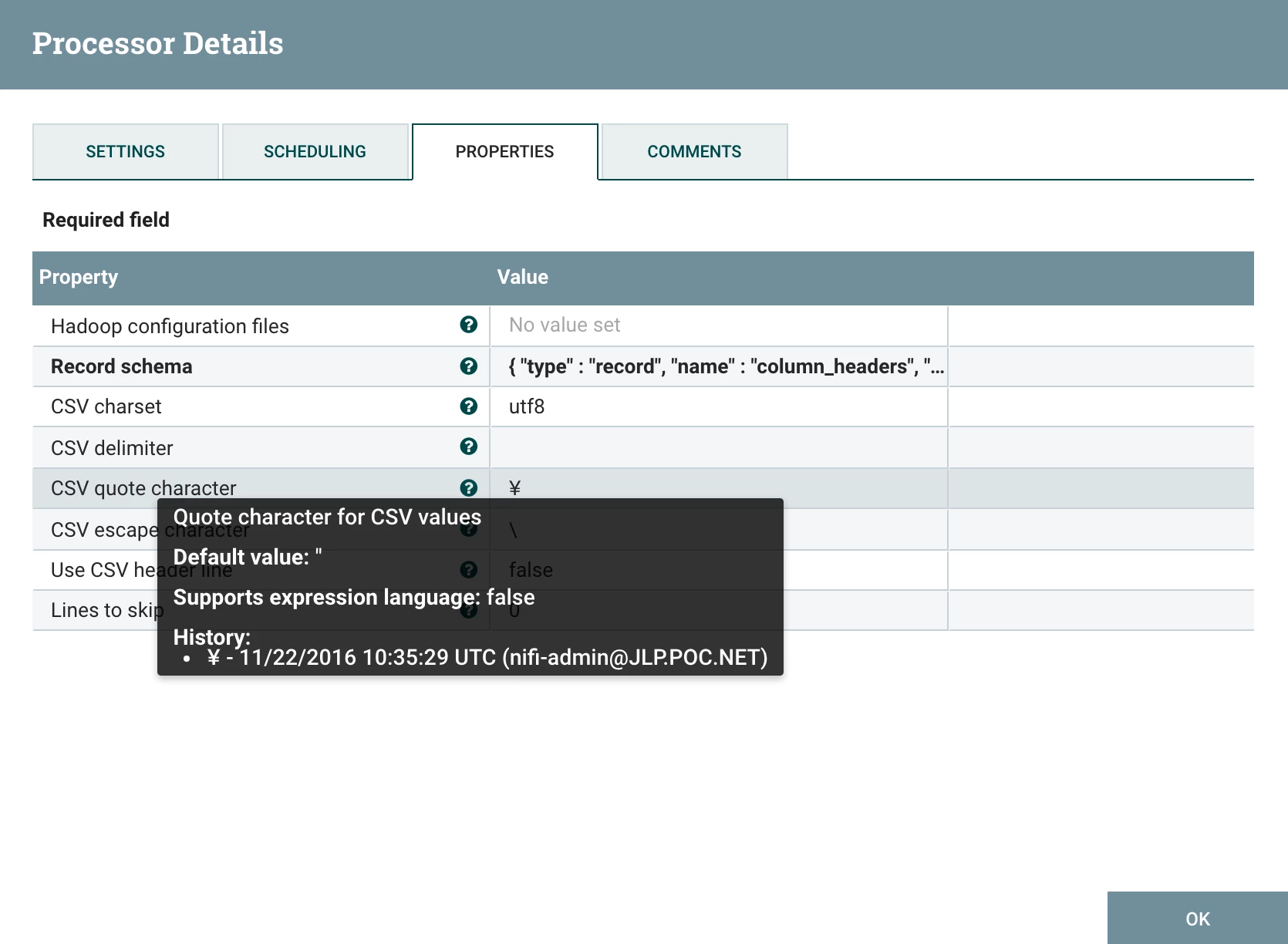

The clickstrem tsv files have " in them and the ConvertCSVtoAvro processor uses " as the value for the "CSV quote Character" processor configuration property by default. As a result many tabbed fields end up in the same record. We can get good output by changing this configuration property to another character that is not used in input files anywhere. We used ¥

So when use CSV related processor, double check the contents don't have the quote character.
