Oozie coordinator and based on input data events

Here is an example of scheduling Oozie co-ordinator based on input data events. it starts Oozie workflow when input data is available.

In this example coordinator will start at 2016-04-10, 6:00 GMT and will keep running till 2017-02-26, 23:25GMT (please note start and end time in xml file)

start="2016-04-10T06:00Z" end="2017-02-26T23:25Z" timezone="GMT"


Frequency is 1 day

frequency="${coord:days(1)}"


Below ETL function gives same value as start time which means coordinator will look for input data which has value same as start data in /user/root/output/YYYYMMDD format

<instance>${coord:current(0)}</instance>


Below are the working configuration files.

coordinator.xml:

<coordinator-app name="test"
frequency="${coord:days(1)}"
start="2016-04-10T06:00Z" end="2017-02-26T23:25Z" timezone="GMT"
xmlns="uri:oozie:coordinator:0.2">
<datasets>
<dataset name="inputdataset" frequency="${coord:days(1)}"
initial-instance="2016-04-10T06:00Z" timezone="GMT">
<uri-template>${nameNode}/user/root/input/${YEAR}${MONTH}${DAY}</uri-template>
<done-flag></done-flag>
</dataset>
<dataset name="outputdataset" frequency="${coord:days(1)}"
initial-instance="2016-04-10T06:00Z" timezone="GMT">
<uri-template>${nameNode}/user/root/output/${YEAR}${MONTH}${DAY}</uri-template>
<done-flag></done-flag>
</dataset>
</datasets>
<input-events>
<data-in name="inputevent" dataset="inputdataset">
<instance>${coord:current(0)}</instance>
</data-in>
</input-events>
<output-events>
<data-out name="outputevent" dataset="outputdataset">
<instance>${coord:current(0)}</instance>
</data-out>
</output-events>
<action>
<workflow>
<app-path>${workflowAppUri}</app-path>
<configuration>
<property>
<name>inputDir</name>
<value>${coord:dataIn('inputevent')}</value>
</property>
<property>
<name>outputDir</name>
<value>${coord:dataOut('outputevent')}</value>
</property>
</configuration>
</workflow>
</action>
</coordinator-app>

workflow.xml

<workflow-app xmlns="uri:oozie:workflow:0.4" name="shell-wf">
<start to="shell-node"/>
<action name="shell-node">
<shell xmlns="uri:oozie:shell-action:0.2">
<job-tracker>${jobTracker}</job-tracker>
<name-node>${nameNode}</name-node>
<configuration>
<property>
<name>mapred.job.queue.name</name>
<value>${queueName}</value>
</property>
</configuration>
<exec>${myscript}</exec>
<argument>${inputDir}</argument>
<argument>${outputDir}</argument>
<file>${myscriptPath}</file>
<capture-output/>
</shell>
<ok to="end"/>
<error to="fail"/>
</action>
<kill name="fail">
<message>Shell action failed, error message[${wf:errorMessage(wf:lastErrorNode())}]</message>
</kill>
<kill name="fail-output">
<message>Incorrect output, expected [Hello Oozie] but was [${wf:actionData('shell-node')['my_output']}]</message>
</kill>
<end name="end"/>
</workflow-app>

job.properties

nameNode=hdfs://sandbox.hortonworks.com:8020
start=2016-04-12T06:00Z
end=2017-02-26T23:25Z
jobTracker=sandbox.hortonworks.com:8050
queueName=default
examplesRoot=examples
oozie.coord.application.path=${nameNode}/user/root
workflowAppUri=${oozie.coord.application.path}
myscript=myscript.sh
myscriptPath=${oozie.wf.application.path}/myscript.sh

myscript.sh

#!/bin/bash
echo "I'm receiving input as $1" > /tmp/output
echo "I can store my output at $2" >> /tmp/output

How to schedule this?

1. Edit above files as per your environment.

2. Validate your workflow.xml and cordinator.xml files using below command

#oozie validate workflow.xml
#oozie validate cordinator.xml

3. Upload your script and these xml files to oozie.coord.application.path and workflowAppUri mentioned in the job.properties

4. Submit coordinator using below command.

oozie job -oozie

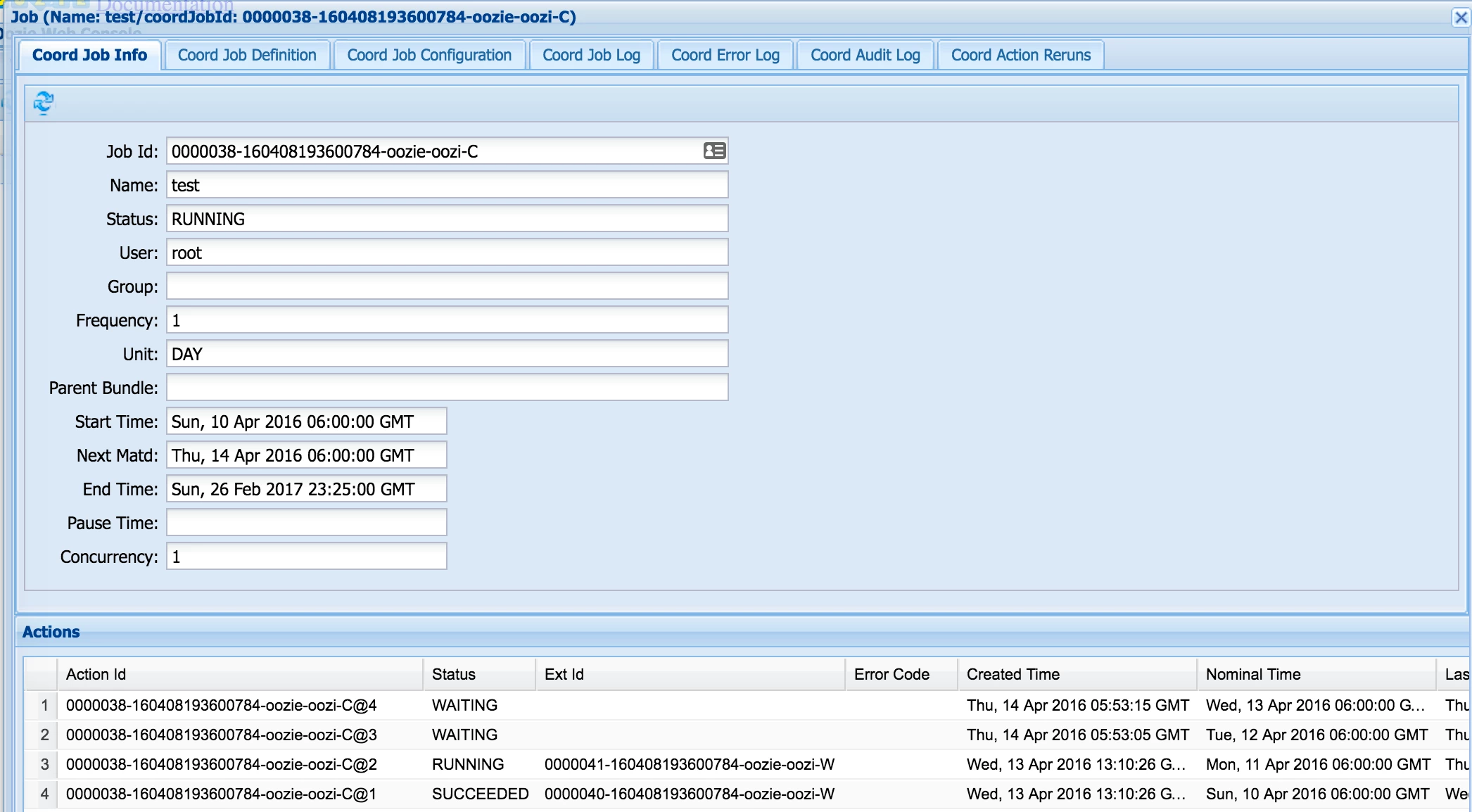

Note - You will see that some coordinator actions are in WAITING state, that's because they are still waiting for input data to be available on hdfs

If you check /var/log/oozie.log and grep for WAITING coordinator actions:

2016-04-14 05:54:05,850 INFO CoordActionInputCheckXCommand:520 - SERVER[sandbox.hortonworks.com] USER[-] GROUP[-] TOKEN[-] APP[-] JOB[0000038-160408193600784-oozie-oozi-C] ACTION[0000038-160408193600784-oozie-oozi-C@3] [0000038-160408193600784-oozie-oozi-C@3]::ActionInputCheck:: In checkListOfPaths: hdfs://sandbox.hortonworks.com:8020/user/root/input/20160412 is Missing.

[..]

2016-04-14 05:54:15,601 INFO CoordActionInputCheckXCommand:520 - SERVER[sandbox.hortonworks.com] USER[-] GROUP[-] TOKEN[-] APP[-] JOB[0000038-160408193600784-oozie-oozi-C] ACTION[0000038-160408193600784-oozie-oozi-C@4] [0000038-160408193600784-oozie-oozi-C@4]::ActionInputCheck:: In checkListOfPaths: hdfs://sandbox.hortonworks.com:8020/user/root/input/20160413 is Missing.

On HDFS:

[root@sandbox coord]# hadoop fs -ls /user/root/input/
Found 3 items
-rw-r--r-- 3 root hdfs 0 2016-04-13 13:16 /user/root/input/20160410
drwxr-xr-x - root hdfs 0 2016-04-13 13:07 /user/root/input/20160411

Output:

[root@sandbox coord]# cat /tmp/output
I'm receiving input as hdfs://sandbox.hortonworks.com:8020/user/root/input/20160411
I can store my output at hdfs://sandbox.hortonworks.com:8020/user/root/output/20160411
