Cannot Insert Data from Text File Format Table to Parquet Format Table, MapRedTask Error

Hi,



After Multi Delimiter Issue is solved. I got an error with data insertion.

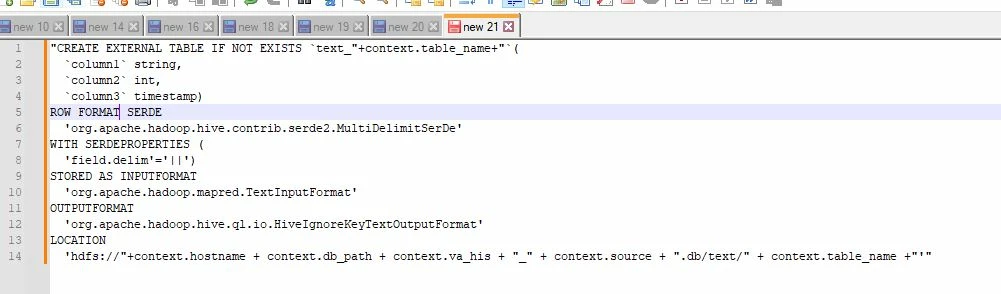

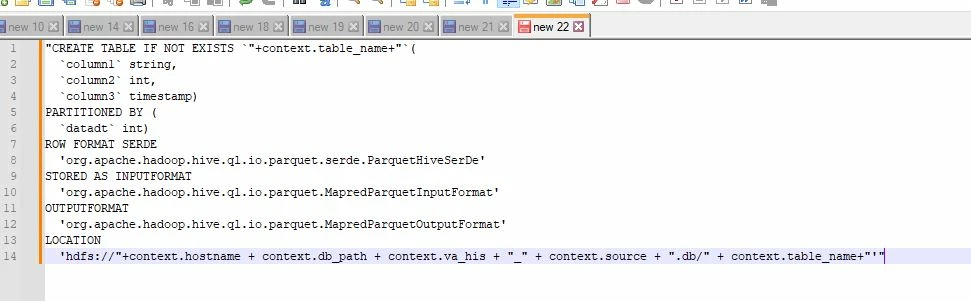

So, after the data successfully inserted to text file format table with rowserde hive.contrib.serde2.MultiDelimitSerDe. Then i need to insert those data to parquet format table.

But when i ran the query to insert data, it failed.

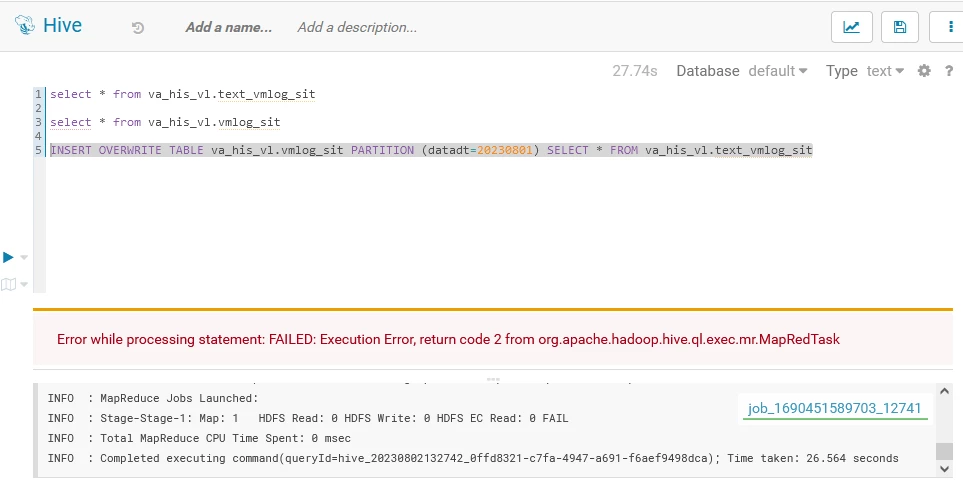

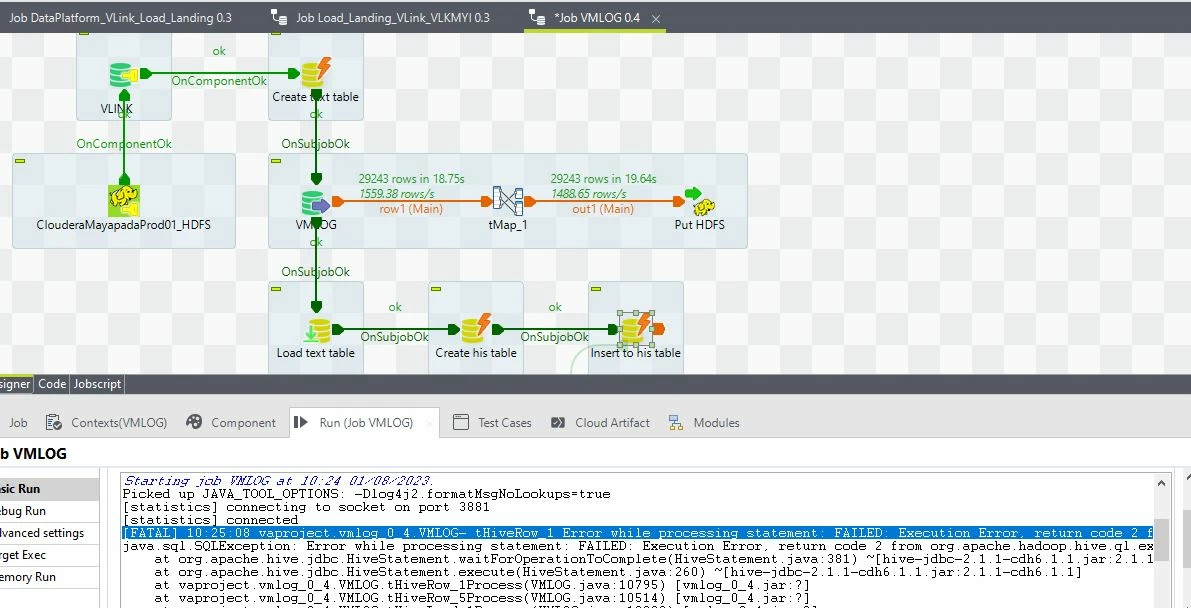

Error message: "[FATAL] 10:25:08 vaproject.xxx tHiveRow_1 Error while processing statement: FAILED: Execution Error, return code 2 from org.apache.hadoop.hive.ql.exec.mr.MapRedTask".



I used this script:

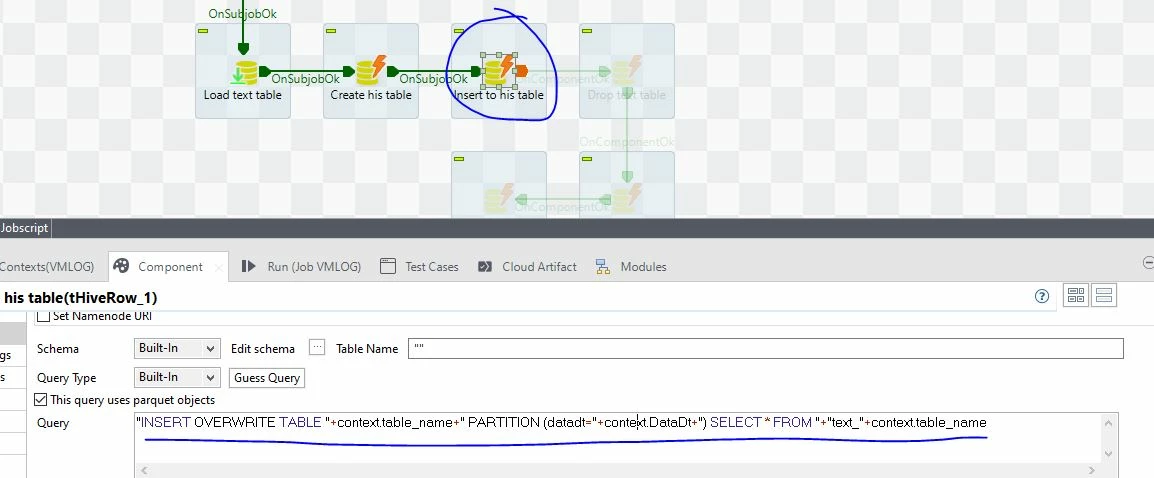

"INSERT OVERWRITE TABLE ParquetTable PARTITION (datadt=dateint) SELECT * FROM TextFileTable"




What is wrong or what am i missing? Please need your help. Thank you.





Sincerely,





Gideon Maruli

IT Data Management


Error MapRedTask.JPGText File Table, Error MapRedTask.JPGParquet Table, Error MapRedTask.JPGInsert Data Query, Error MapRedTask.JPG
smruti
smrutiAnswer
Gold ⭐️⭐️⭐️
August 21, 2023

@itdm_bmi We are still seeing the error "java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe"

This means, you have not uploaded the "hive-contrib" jar to Hive classpath as mentioned here.

If you are on CDP(>7.1.5 onward) then, we will not have to upload hive-contrib jar to the class path. This serde class is already added to Hive native serde list.

You just need to alter the original table, and change the serde(Note: only applies to CDP version > 7.1.5)

ALTER TABLE <table name> SET SERDE 'org.apache.hadoop.hive.serde2.MultiDelimitSerDe'

If you are on an older version, do consider uploading to hive-contrib jar to hive classpath by uploading this to aux jar path location.

View in thread

4 replies

smruti
Gold ⭐️⭐️⭐️
smruti
Gold ⭐️⭐️⭐️
August 2, 2023

@itdm_bmi This error message is very generic. We could not say what caused the job to fail. Is it possible for you to share the YARN application log of application_1690451589703_12741 ?

You may collect it using the command :

yarn logs -applicationId application_1690451589703_12741 > /tmp/application_1690451589703_12741.log

Attach this application_1690451589703_12741.log file. If you are not comfortable sharing the log files here, you may file a support case. We'll be happy to assist.

Translate
itdm_bmi
itdm_bmiAuthor
Silver ⭐️⭐️⭐️
August 14, 2023

Sorry took a long time to reply,

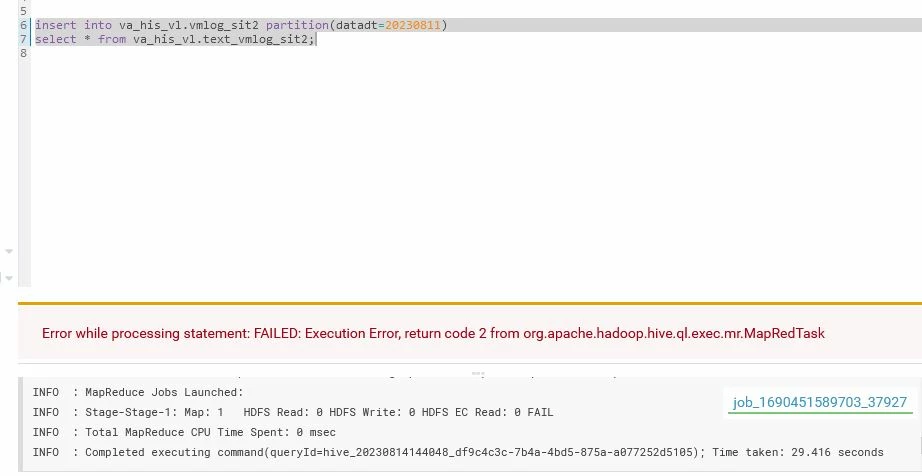

I couldn't find that application_id anymore. So i try new task, just simply data insertion query with application_id = application_1690451589703_37927



In log file i think i found the error. It is written

"Caused by: java.lang.RuntimeException: Map operator initialization failed
at org.apache.hadoop.hive.ql.exec.mr.ExecMapper.configure(ExecMapper.java:137)
... 22 more
Caused by: org.apache.hadoop.hive.ql.metadata.HiveException: java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe not found
at org.apache.hadoop.hive.ql.exec.MapOperator.getConvertedOI(MapOperator.java:326)
at org.apache.hadoop.hive.ql.exec.MapOperator.setChildren(MapOperator.java:361)
at org.apache.hadoop.hive.ql.exec.mr.ExecMapper.configure(ExecMapper.java:106)
... 22 more
Caused by: java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe not found
at org.apache.hadoop.conf.Configuration.getClassByName(Configuration.java:2409)
at org.apache.hadoop.hive.ql.plan.PartitionDesc.getDeserializer(PartitionDesc.java:170)
at org.apache.hadoop.hive.ql.exec.MapOperator.getConvertedOI(MapOperator.java:292)
... 24 more

2023-08-14 14:41:08,061 INFO [IPC Server handler 11 on 42850] org.apache.hadoop.mapred.TaskAttemptListenerImpl: Diagnostics report from attempt_1690451589703_37927_m_000000_1: Error: java.lang.RuntimeException: Error in configuring object
at org.apache.hadoop.util.ReflectionUtils.setJobConf(ReflectionUtils.java:113)
at org.apache.hadoop.util.ReflectionUtils.setConf(ReflectionUtils.java:79)
at org.apache.hadoop.util.ReflectionUtils.newInstance(ReflectionUtils.java:137)
at org.apache.hadoop.mapred.MapTask.runOldMapper(MapTask.java:462)
at org.apache.hadoop.mapred.MapTask.run(MapTask.java:349)
at org.apache.hadoop.mapred.YarnChild$2.run(YarnChild.java:174)
at java.security.AccessController.doPrivileged(Native Method)
at javax.security.auth.Subject.doAs(Subject.java:422)
at org.apache.hadoop.security.UserGroupInformation.doAs(UserGroupInformation.java:1731)
at org.apache.hadoop.mapred.YarnChild.main(YarnChild.java:168)
Caused by: java.lang.reflect.InvocationTargetException
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.hadoop.util.ReflectionUtils.setJobConf(ReflectionUtils.java:110)
... 9 more
Caused by: java.lang.RuntimeException: Error in configuring object
at org.apache.hadoop.util.ReflectionUtils.setJobConf(ReflectionUtils.java:113)
at org.apache.hadoop.util.ReflectionUtils.setConf(ReflectionUtils.java:79)
at org.apache.hadoop.util.ReflectionUtils.newInstance(ReflectionUtils.java:137)
at org.apache.hadoop.mapred.MapRunner.configure(MapRunner.java:38)
... 14 more
Caused by: java.lang.reflect.InvocationTargetException
at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:498)
at org.apache.hadoop.util.ReflectionUtils.setJobConf(ReflectionUtils.java:110)
... 17 more
Caused by: java.lang.RuntimeException: Map operator initialization failed
at org.apache.hadoop.hive.ql.exec.mr.ExecMapper.configure(ExecMapper.java:137)
... 22 more
Caused by: org.apache.hadoop.hive.ql.metadata.HiveException: java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe not found
at org.apache.hadoop.hive.ql.exec.MapOperator.getConvertedOI(MapOperator.java:326)
at org.apache.hadoop.hive.ql.exec.MapOperator.setChildren(MapOperator.java:361)
at org.apache.hadoop.hive.ql.exec.mr.ExecMapper.configure(ExecMapper.java:106)
... 22 more
Caused by: java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe not found
at org.apache.hadoop.conf.Configuration.getClassByName(Configuration.java:2409)
at org.apache.hadoop.hive.ql.plan.PartitionDesc.getDeserializer(PartitionDesc.java:170)
at org.apache.hadoop.hive.ql.exec.MapOperator.getConvertedOI(MapOperator.java:292)
... 24 more"



Sorry i cant share the log file.


Insert Data Query, Error MapRedTask.JPG
Translate
smruti
Gold ⭐️⭐️⭐️
smrutiAnswer
Gold ⭐️⭐️⭐️
August 21, 2023

@itdm_bmi We are still seeing the error "java.lang.ClassNotFoundException: Class org.apache.hadoop.hive.contrib.serde2.MultiDelimitSerDe"

This means, you have not uploaded the "hive-contrib" jar to Hive classpath as mentioned here.

If you are on CDP(>7.1.5 onward) then, we will not have to upload hive-contrib jar to the class path. This serde class is already added to Hive native serde list.

You just need to alter the original table, and change the serde(Note: only applies to CDP version > 7.1.5)

ALTER TABLE <table name> SET SERDE 'org.apache.hadoop.hive.serde2.MultiDelimitSerDe'

If you are on an older version, do consider uploading to hive-contrib jar to hive classpath by uploading this to aux jar path location.

Translate
VidyaSargur
Community Manager
VidyaSargur
Community Manager
August 28, 2023

@itdm_bmi, Have the replies helped resolve your issue? If so, please mark the appropriate reply as the solution, as it will make it easier for others to find the answer in the future.
