Gubbi
Gold ⭐️
September 10, 2020
Solved

Convert Parquet file to CSV using NiFi

I haven't worked on Parquet file but i have requirement to convert Parquet file to CSV using NiFi.

Appreciate if you could guide me on this.

stevenmatison
Platinum ⭐️⭐️
September 11, 2020

@Gubbi



The solution you are looking for is ConvertRecord + ParquetRecordReader + CSVRecordWriter.  The ParquetRecordReader is included in NiFi 1.10 and up.  If you have an older nifi, here is a post where I talk about adding the required jar files to nifi 1.9 (older version doesn't have parquet):



https://community.cloudera.com/t5/Support-Questions/Can-I-put-the-NiFi-1-10-Parquet-Record-Reader-in-NiFi-1-9/td-p/286465



Another suggestion: If you are working with nifi and hadoop/hdfs/hive,  you could store the raw parquet, create external hive table on parquet, then select results and insert them into similar table of csv format.  Then you select the csv table results and create csv file.





Also in order to validate/inspect your parquet, or to read the schema (if you need it for controller services) you use parquet tools:

https://community.cloudera.com/t5/Community-Articles/Build-and-use-Parquet-tools-to-read-parquet-files/ta-p/248629





If this answer resolves your issue or allows you to move forward, please choose to ACCEPT this solution and close this topic. If you have further dialogue on this topic please comment here or feel free to private message me. If you have new questions related to your Use Case please create separate topic and feel free to tag me in your post.



Thanks,


Steven @ DFHZ

3 replies

stevenmatison
Platinum ⭐️⭐️
September 11, 2020

@Gubbi



The solution you are looking for is ConvertRecord + ParquetRecordReader + CSVRecordWriter.  The ParquetRecordReader is included in NiFi 1.10 and up.  If you have an older nifi, here is a post where I talk about adding the required jar files to nifi 1.9 (older version doesn't have parquet):



https://community.cloudera.com/t5/Support-Questions/Can-I-put-the-NiFi-1-10-Parquet-Record-Reader-in-NiFi-1-9/td-p/286465



Another suggestion: If you are working with nifi and hadoop/hdfs/hive,  you could store the raw parquet, create external hive table on parquet, then select results and insert them into similar table of csv format.  Then you select the csv table results and create csv file.





Also in order to validate/inspect your parquet, or to read the schema (if you need it for controller services) you use parquet tools:

https://community.cloudera.com/t5/Community-Articles/Build-and-use-Parquet-tools-to-read-parquet-files/ta-p/248629





If this answer resolves your issue or allows you to move forward, please choose to ACCEPT this solution and close this topic. If you have further dialogue on this topic please comment here or feel free to private message me. If you have new questions related to your Use Case please create separate topic and feel free to tag me in your post.



Thanks,


Steven @ DFHZ

Translate
Gubbi
GubbiAuthor
Gold ⭐️
September 11, 2020

@stevenmatison : I tried below flow and getting this error.

ConvertRecord[id=7d5d0bb5-0174-1000-1a76-dc9d3a7b1b35] Failed to process StandardFlowFileRecord[uuid=4d10880f-3ce2-475a-ac53-cca01f190600,claim=,offset=0,name=userdata1.parquet,size=0]; will route to failure: org.apache.nifi.parquet.stream.NifiParquetInputFile@17badbbc is not a Parquet file (too small length: 0)

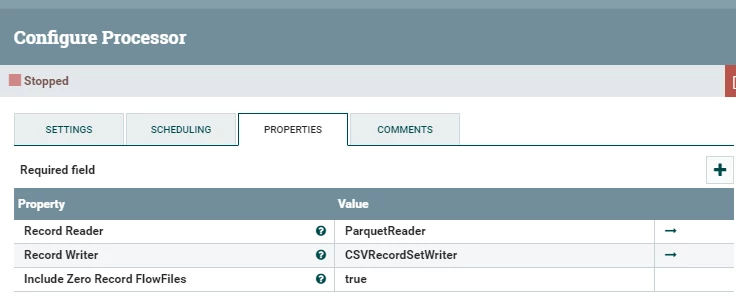

Below is my ConvertRecord settings.




For reading file from location and i want to convert into CSV and transfer to other location,  i have built flow ListFile-->ConvertRecord-->FetchFile-->PutFile. Can you please check if the above settings is correct and flow is correct for my requirement



Translate
stevenmatison
Platinum ⭐️⭐️
September 11, 2020

@Gubbi   use this:



ListFile -> FetchFile -> ConvertRecord
