Disable/remove auto TLS certificates and create self signed certificate

How to disable/remove auto TLS certificates and create self-signed certificate in Cloudera version 6.2. The Cloudera version I am using is 6.2 having self-signed certificates that expired a few days back. now the Cloudera manager is not restarting. I want to remove the existing ones and create a new self-signed certificate and apply it to the cluster. can anyone help?

GangWar
GangWarAnswer
Platinum ⭐️⭐️
September 10, 2020

@vaibhavm You need two steps process.



1. Disable TLS for CM so that you can access Web UI, for this follow below instruction.

Disable TLS for the CM:

1. Determine Cloudera Manager Database

cat /etc/cloudera-scm-server/db.properties

2. Make database backup

3. get inside the DB.
#mysql --user=cm --password=cm
#mysql> show databases;
#mysql> use cm;

4. Show TLS related rows
select * from CONFIGS where attr like '%tls%';

5. Update TLS for web_tls
update CONFIGS set value = 'false' where attr = 'web_tls';

6. Update TLS for agent_tls
update CONFIGS set value = 'false' where attr = 'agent_tls';

7. Show TLS related rows
select * from CONFIGS where attr like '%tls%';

8. Restart Cloudera Manager server process
service cloudera-scm-server restart

2. At this stage you will be able to successfully login into CM Web UI. Now you can disable Auto-TLS (If already enabled) using below method.

--remove the line in /etc/default/cloudera-scm-server that loads cm_init.txt on startup
--then you can turn off TLS in the web UI and remove the TLS configs from the agent config.ini

 3. Then you can follow the doc which @Mike in Austin refereed in his comment to enable TLS again from fresh.

Cheers! Was your question answered? Make sure to mark the answer as the accepted solution. If you find a reply useful, say thanks by clicking on the thumbs up button.

12 replies

Mike in Austin
Gold ⭐️
Gold ⭐️
September 9, 2020

According to this link, you should renew and replace the certificates and points to the procedure just above the link.





Translate
vaibhavm
vaibhavmAuthor
Silver ⭐️⭐️⭐️
September 10, 2020

@Mike in Austin Thanks for the reply. how can I completely disable the SSL in the cluster? SSL was configured with auto-tls enabled

Translate
GangWar
Platinum ⭐️⭐️
GangWarAnswer
Platinum ⭐️⭐️
September 10, 2020

@vaibhavm You need two steps process.



1. Disable TLS for CM so that you can access Web UI, for this follow below instruction.

Disable TLS for the CM:

1. Determine Cloudera Manager Database

cat /etc/cloudera-scm-server/db.properties

2. Make database backup

3. get inside the DB.
#mysql --user=cm --password=cm
#mysql> show databases;
#mysql> use cm;

4. Show TLS related rows
select * from CONFIGS where attr like '%tls%';

5. Update TLS for web_tls
update CONFIGS set value = 'false' where attr = 'web_tls';

6. Update TLS for agent_tls
update CONFIGS set value = 'false' where attr = 'agent_tls';

7. Show TLS related rows
select * from CONFIGS where attr like '%tls%';

8. Restart Cloudera Manager server process
service cloudera-scm-server restart

2. At this stage you will be able to successfully login into CM Web UI. Now you can disable Auto-TLS (If already enabled) using below method.

--remove the line in /etc/default/cloudera-scm-server that loads cm_init.txt on startup
--then you can turn off TLS in the web UI and remove the TLS configs from the agent config.ini

 3. Then you can follow the doc which @Mike in Austin refereed in his comment to enable TLS again from fresh.

Translate
Cheers! Was your question answered? Make sure to mark the answer as the accepted solution. If you find a reply useful, say thanks by clicking on the thumbs up button.
vaibhavm
vaibhavmAuthor
Silver ⭐️⭐️⭐️
September 10, 2020

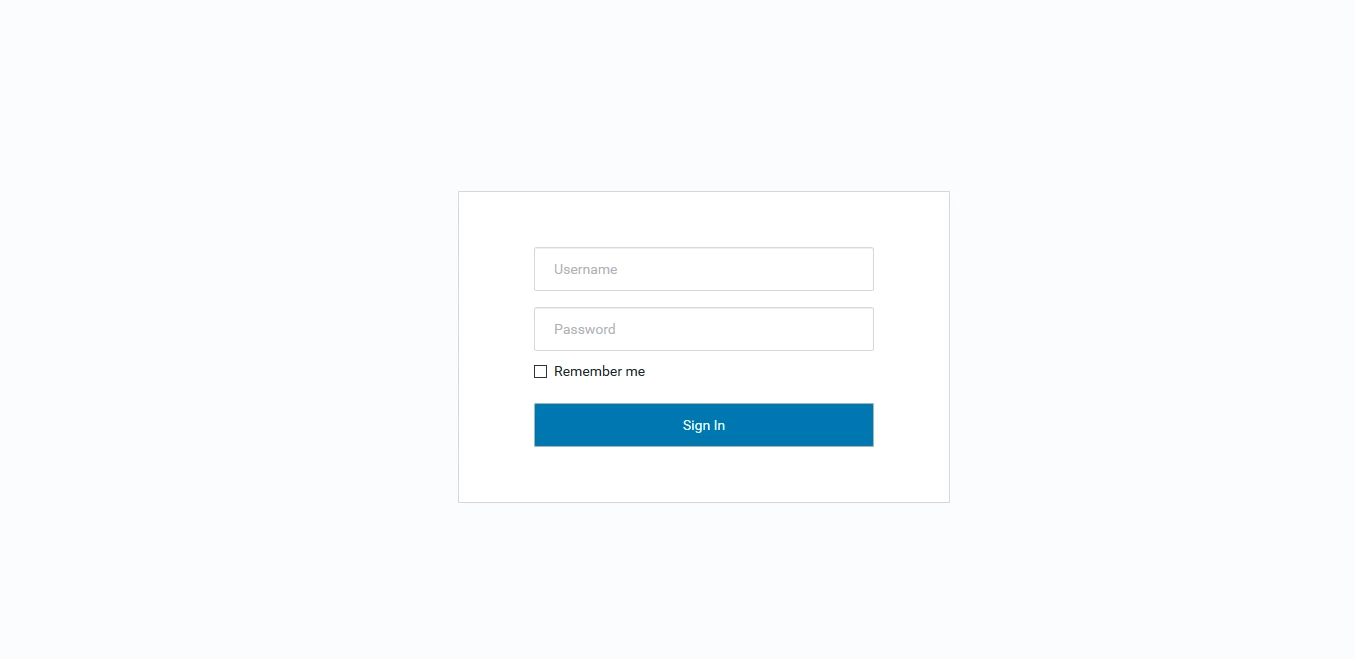

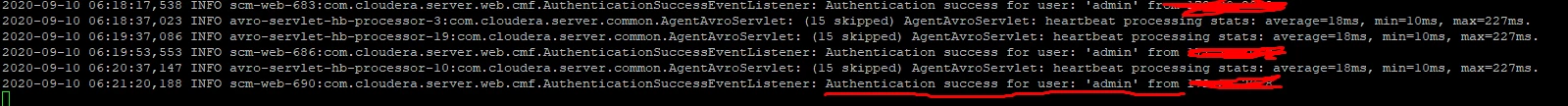

@GangWardone what you said. but now I am not able to login with the default username password admin/admin. can you please help with this?clouderaloginpage.pngclouderalogs.png

Translate
GangWar
Platinum ⭐️⭐️
Platinum ⭐️⭐️
September 10, 2020

@vaibhavm Log says it's successful. Try with another browser else you might need to reset the password for local user. Also worth to see if you are using LDAP with CM.

Translate
Cheers! Was your question answered? Make sure to mark the answer as the accepted solution. If you find a reply useful, say thanks by clicking on the thumbs up button.
lvazquez
Gold ⭐️
June 21, 2022

The solution above has been the accepted answer for a long time (since CM 6.x), but the procedure is not complete, at least for Cloudera Manager 7.6 with CDP Base 7.1.6 or above.

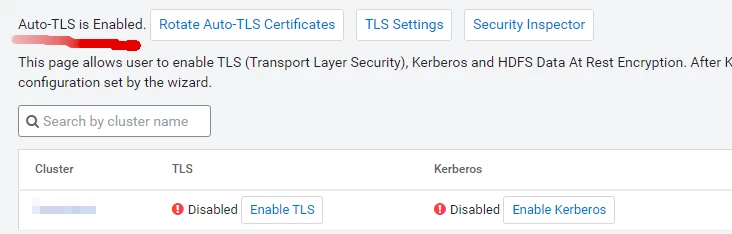

After using Auto-TLS and needing to disable it because I needed to rename some nodes, I changed the web_tls and agent_tls settings in the Database, and changed the config.ini to disable TLS in all the agents' config and restarted all the cloudera-scm-* daemons (server/agents) and I was able to log to the UI and reach the hosts, but in "Management >> Security" the Cloudera Manager UI keeps showing "Auto-TLS is Enabled" in the menu bar, and if I try to add a new host it will fail with an error like "Unable to deploy host certificates" ... so it seems CM still has Auto-TLS enable somewhere/somehow.



I have made a dump and double checked there isn't any TLS config parameter enabled in the DB, but there should be some other place from where CM assumes this is enabled.

Translate
BdE-Big
Silver ⭐️
July 8, 2022

Remove all TLS related config in CM UI. CM > Settings search for TLS and uncheck everything and delete jks files and password configs

Translate
lvazquez
Gold ⭐️
July 8, 2022

I thought it was something like this, but it was hard to believe!

After 2 full installation of CDP base, it seems clear that CDP may have been a big step for the final user, but still has a lot of room for improvement in the sysadmin and devops side of the platform, specially in the way-back or recovery of many central configuration changes (kerberos, TLS) where it really sucks, even when compared with the now ancient HDP3.
