Facing problem while extracting the data from json flow file using EvaluateJsonPath in NiFi

Hi,

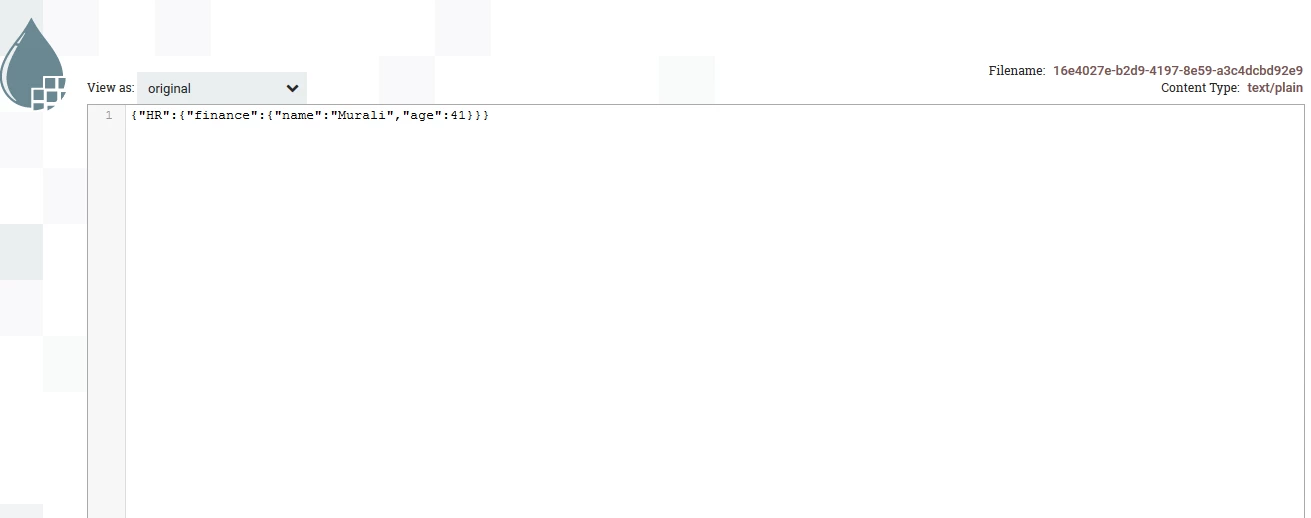

I am receiving the flowfile from ConsumerKafka in json form.

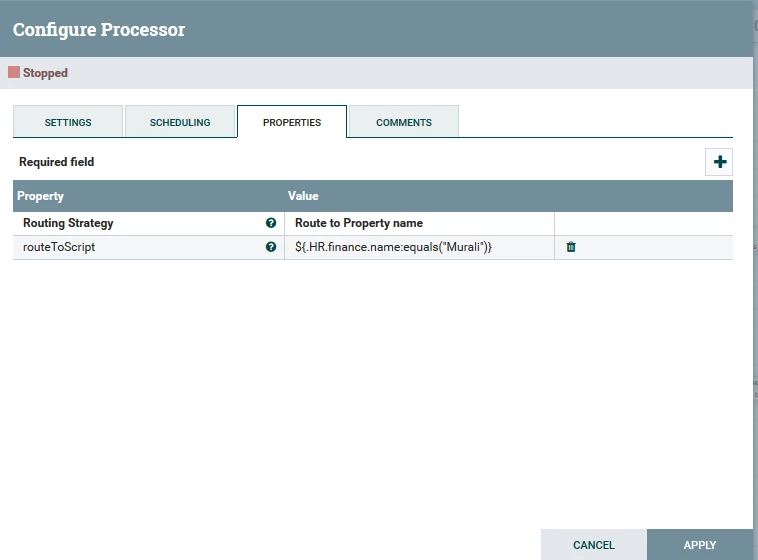

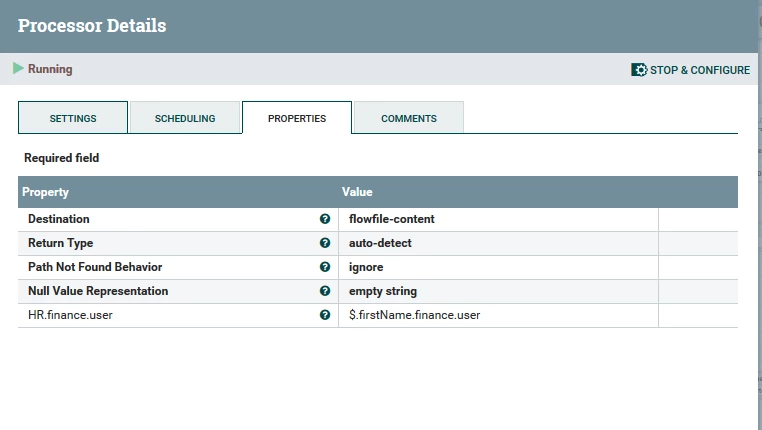

Then I am using EvaluateJsonPath to extract the json data once the data matched, i want call RouteOnAttribute to call script, but the expression which i have used  in EvaluateJsonPath   processor looks to be wrong and throwing out unmatched info.


Plz help me out to add right expression to extract  the fields



stevenmatison
stevenmatisonAnswer
Platinum ⭐️⭐️
January 9, 2020

Based on your content, the values are accessed as follows:



$.HR.finance.name

$.HR.finance.age

View in thread

7 replies

stevenmatison
stevenmatisonAnswer
Platinum ⭐️⭐️
January 9, 2020

Based on your content, the values are accessed as follows:



$.HR.finance.name

$.HR.finance.age

Translate
    murali2425
    murali2425Author
    Gold ⭐️
    January 9, 2020

    ohh my BAD, thank you Steven.

    Translate
    murali2425
    murali2425Author
    Gold ⭐️
    January 9, 2020

    Hi Steven,

    I doing a poc(learning nifi and doing it),  getting the data successfully from EvaluteJasonPath its going to matched processor with the only extracted data, but the flow file is missing when it is going to RouteOnAttribute, I could see only data extracted present but total flow file is missing, because of this my condition is not getting validated and going to unmatched status.
