HDF 3.4 NIFI & NIFI Registry Integration (secured)

@MattWho please let me know what is missing



HDF 3.4 NIFI & NIFI Registry Integration (secured)



2 node (nifi1.abc.com, nifi2.abc.com) nifi cluster is secured

1 node (registry.abc.com) nifi registry is secured



generated client certs / server certs for nifi & registtry as below



sh /usr/hdf/current/nifi-toolkit/bin/tls-toolkit.sh standalone -B passwd-C 'CN=nifiadmin, OU=NIFI' -n 'nifi1.abc.com,nifi2.abc.com,registry.abc.com' --nifiDnPrefix 'CN=' --nifiDnSuffix ', OU=NIFI' -o /tmp/certs_ssl/ -K passwd -P passwd-S passwd



able to access registry with client cert (CN=nifiadmin, OU=NIFI)

able to access nifi cluster with client cert (CN=nifiadmin, OU=NIFI)



created a bucket in the registry

Added Registry to nifi, but when versioning a processor group getting the below error





2020-03-27 19:31:22,367 INFO [NiFi Registry Web Server-19] o.a.n.r.w.s.NiFiRegistrySecurityConfig Identity in proxy chain not trusted to act as a proxy: org.apache.nifi.registry.web.security.authentication.exception.UntrustedProxyException: Untrusted proxy [CN=nifi1.abc.com, OU=NIFI]. Returning 403 response.



MattWho
MattWhoAnswer
Titanium ⭐️⭐️⭐️
March 30, 2020

@venkii



You need to login to your secured NiFi-Registry and make sure all your NiFi nodes have been authorized for both the following "Special Privileges":

1. "Read" for "Can Manage Buckets"
2. "Can proxy user requests"

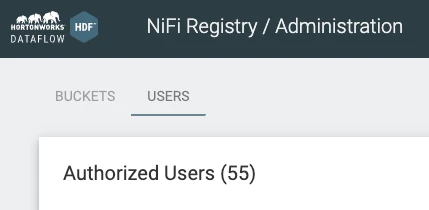

Click on wrench icon in upper right corner to manage your users in NiFi-Registry.
Screen Shot 2020-03-30 at 4.17.30 PM.png

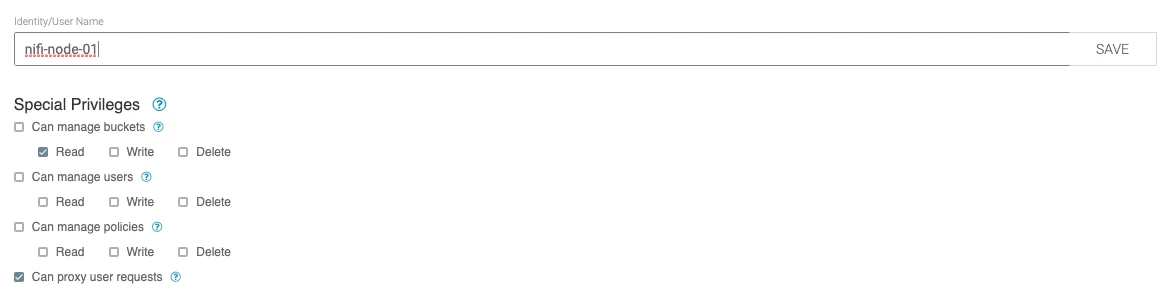

Then find your NiFi nodes in the list of USERS and click on the "manage user" pencil icon to the far right side.
Screen Shot 2020-03-30 at 4.17.16 PM.png



Hope this helps,

Matt

View in thread

4 replies

venkii
venkiiAuthor
Gold ⭐️
March 28, 2020

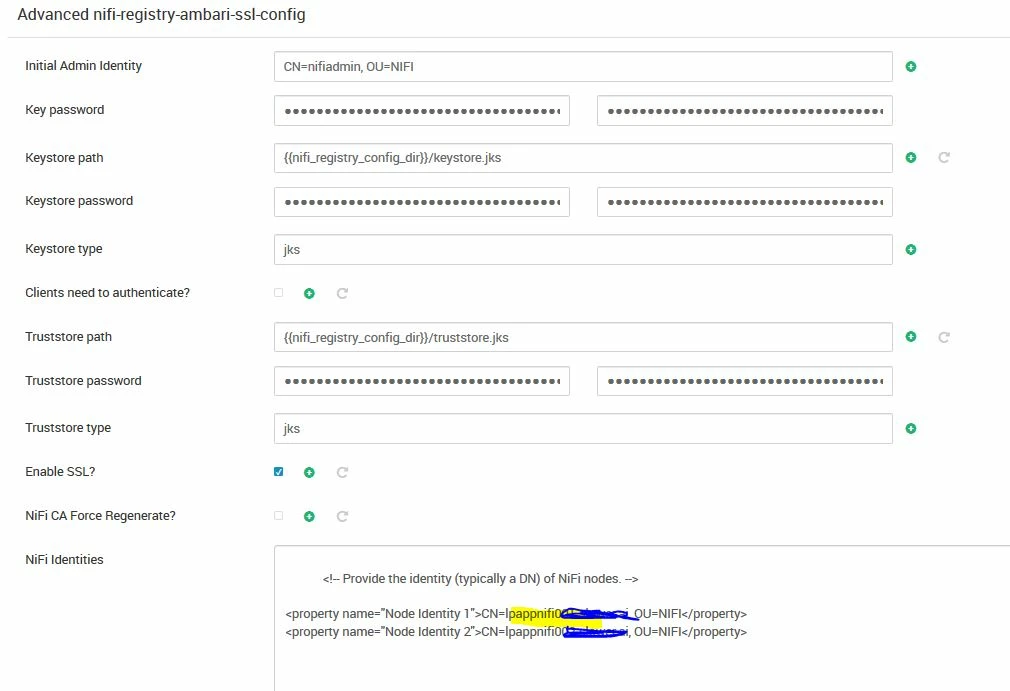

@MattWho i have added both nifi nodes identities, still same error



2020-03-28 03:01:45,150 INFO [NiFi Registry Web Server-12] o.a.n.r.w.s.NiFiRegistrySecurityConfig Identity in proxy chain not trusted to act as a proxy: org.apache.nifi.registry.web.security.authentication.exception.UntrustedProxyException: Untrusted proxy [CN=nifi-node1, OU=NIFI]. Returning 403 response.









Translate
venkii
venkiiAuthor
Gold ⭐️
March 30, 2020

@MattWho

I am able to add the SSL registry to nifi [nifi controller settings -> Registry Clients -> added registry URL ]

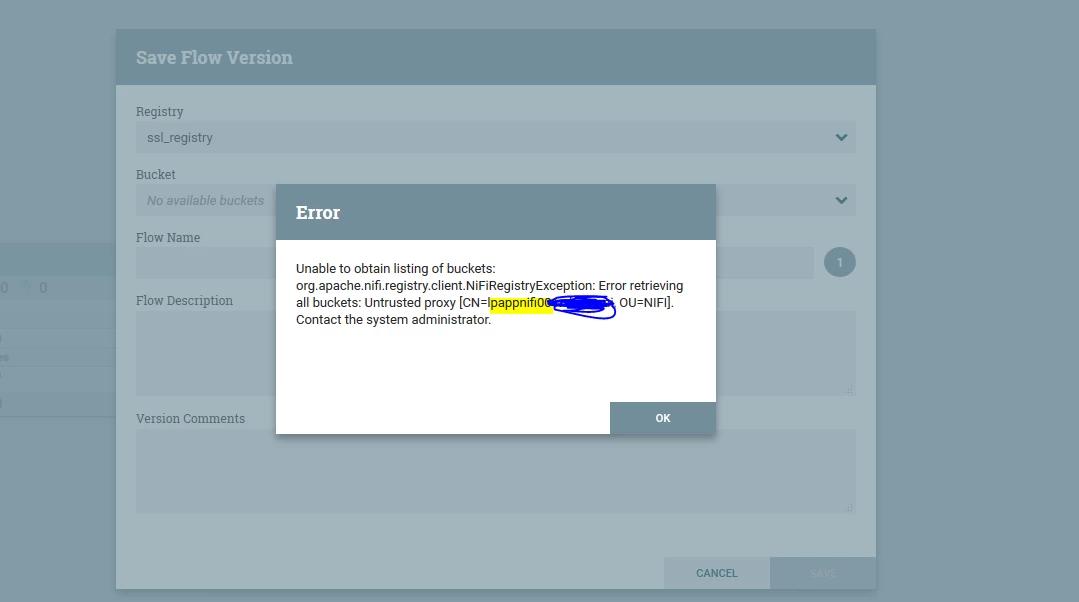

but when i am trying to version a PG, encountering the below error, screenshot attached



please advice






Translate
MattWho
Titanium ⭐️⭐️⭐️
MattWhoAnswer
Titanium ⭐️⭐️⭐️
March 30, 2020

@venkii



You need to login to your secured NiFi-Registry and make sure all your NiFi nodes have been authorized for both the following "Special Privileges":

1. "Read" for "Can Manage Buckets"
2. "Can proxy user requests"



Click on wrench icon in upper right corner to manage your users in NiFi-Registry.
Screen Shot 2020-03-30 at 4.17.30 PM.png
Then find your NiFi nodes in the list of USERS and click on the "manage user" pencil icon to the far right side.
Screen Shot 2020-03-30 at 4.17.16 PM.png



Hope this helps,

Matt
