HIVESERVER2 doesn't work CDP 7.0.3 Fresh install

Hi guys



I just install a fresh cluster with CDP 7.0.3 (7.0.3-1.cdh7.0.3.p0.1635019) in "Trial period" to practice and probe the environment...



The cluster has 3 masters and 5 workers and only has HDFS (no HA mode), Hive, Impala, Zookeeper, Spark and Yarn services installed with integrated postgre database, no ldap, no tls...



All works fine except HIVESERVER2 that doesn't start... i try to debug the error but i can't



The messages from /var/log/hive/hadoop-cmf-hive-HIVESERVER2-hostname.log





2020-03-13 13:15:54,948 INFO  org.apache.hadoop.hive.conf.HiveConf: [main]: Found configuration file file:/run/cloudera-scm-agent/process/1546333137-hive-HIVESERVER2/hive-site.xml
2020-03-13 13:15:55,681 WARN  org.apache.hadoop.hive.conf.HiveConf: [main]: HiveConf of name hive.query.redaction.rules does not exist
2020-03-13 13:16:02,898 INFO  org.apache.hadoop.hive.conf.HiveConf: [main]: Found configuration file file:/run/cloudera-scm-agent/process/1546333137-hive-HIVESERVER2/hive-site.xml
2020-03-13 13:16:03,546 WARN  org.apache.hadoop.hive.conf.HiveConf: [main]: HiveConf of name hive.query.redaction.rules does not exist
2020-03-13 13:16:11,600 INFO  org.apache.hadoop.hive.conf.HiveConf: [main]: Found configuration file file:/run/cloudera-scm-agent/process/1546333137-hive-HIVESERVER2/hive-site.xml
2020-03-13 13:16:12,226 WARN  org.apache.hadoop.hive.conf.HiveConf: [main]: HiveConf of name hive.query.redaction.rules does not exist
2020-03-13 13:16:21,776 INFO  org.apache.hadoop.hive.conf.HiveConf: [main]: Found configuration file file:/run/cloudera-scm-agent/process/1546333137-hive-HIVESERVER2/hive-site.xml
2020-03-13 13:16:22,400 WARN  org.apache.hadoop.hive.conf.HiveConf: [main]: HiveConf of name hive.query.redaction.rules does not exist





And this message from ClouderaManager UI:



stderr



SLF4J: See <a href="http://www.slf4j.org/codes.html#multiple_bindings" target="_blank">http://www.slf4j.org/codes.html#multiple_bindings</a> for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]
ERROR StatusLogger No log4j2 configuration file found. Using default configuration: logging only errors to the console. Set system property 'log4j2.debug' to show Log4j2 internal initialization logging.
2020-03-13 12:54:09: Starting HiveServer2
WARNING: Use "yarn jar" to launch YARN applications.
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/opt/cloudera/parcels/CDH-7.0.3-1.cdh7.0.3.p0.1635019/jars/log4j-slf4j-impl-2.10.0.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/opt/cloudera/parcels/CDH-7.0.3-1.cdh7.0.3.p0.1635019/jars/slf4j-log4j12-1.7.25.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See <a href="http://www.slf4j.org/codes.html#multiple_bindings" target="_blank">http://www.slf4j.org/codes.html#multiple_bindings</a> for an explanation.
SLF4J: Actual binding is of type [org.apache.logging.slf4j.Log4jLoggerFactory]
Exception in thread "main" java.lang.IllegalArgumentException: mr execution engine is not supported!
	at org.apache.hadoop.hive.conf.HiveConf.validateExecutionEngine(HiveConf.java:5594)
	at org.apache.hadoop.hive.conf.HiveConf.initialize(HiveConf.java:5578)
	at org.apache.hadoop.hive.conf.HiveConf.<init>(HiveConf.java:5434)
	at org.apache.hadoop.hive.common.LogUtils.initHiveLog4jCommon(LogUtils.java:100)
	at org.apache.hadoop.hive.common.LogUtils.initHiveLog4j(LogUtils.java:84)
	at org.apache.hive.service.server.HiveServer2.main(HiveServer2.java:1130)
	at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
	at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62)
	at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
	at java.lang.reflect.Method.invoke(Method.java:498)
	at org.apache.hadoop.util.RunJar.run(RunJar.java:318)
	at org.apache.hadoop.util.RunJar.main(RunJar.java:232)



stdout



Fri Mar 13 12:54:06 UTC 2020
JAVA_HOME=/usr/java/jdk1.8.0_232-cloudera
using /usr/java/jdk1.8.0_232-cloudera as JAVA_HOME
using 7 as CDH_VERSION
using /opt/cloudera/parcels/CDH-7.0.3-1.cdh7.0.3.p0.1635019/lib/hive as HIVE_HOME
using /var/run/cloudera-scm-agent/process/1546333106-hive-HIVESERVER2 as HIVE_CONF_DIR
using /opt/cloudera/parcels/CDH-7.0.3-1.cdh7.0.3.p0.1635019/lib/hadoop as HADOOP_HOME
using /var/run/cloudera-scm-agent/process/1546333106-hive-HIVESERVER2/yarn-conf as HADOOP_CONF_DIR
CONF_DIR=/var/run/cloudera-scm-agent/process/1546333106-hive-HIVESERVER2
CMF_CONF_DIR=
using /etc/spark/conf as SPARK_CONF_DIR
WARN: spark-defaults.conf already exists in /var/run/cloudera-scm-agent/process/1546333106-hive-HIVESERVER2. Skipping symlink creation.





I try to search the messages on Internet but i can't find something to help me.



Can help me?



So many thanks.

Bender
BenderAnswer
Gold ⭐️⭐️⭐️
May 4, 2020

Hello @Sergiete ,



thank you for raising our attention that there was an improvement point in Cloudera CDP documentation.

We have added clarification in our CDP documentation about "Installing Hive on Tez" [1] and that the Spark execution engine is not supported, as it's been replaced by Tez [2].



Based on our updated documentation [1] the correct order of installing the Hive service is:

  1. Install the Hive service, designated Hive on Tez in CDP.
    HiveServer is installed automatically during this process.
  2. Install HMS, which is designated Hive.

Best regards:

Ferenc



[1] https://docs.cloudera.com/runtime/7.0.3/hive-introduction/topics/hive_installing_on_tez.html

[2] https://docs.cloudera.com/runtime/7.0.3/hive-introduction/topics/hive-unsupported.html

Ferenc Erdelyi, Technical Solutions Manager Was your question answered? Make sure to mark the answer as the accepted solution. If you find a reply useful, say thanks by clicking on the thumbs up button. Learn more about the Cloudera Community: - Community Guidelines (https://community.cloudera.com/t5/custom/page/page-id/Community_Guidelines) - How to use the forum (/t5/help/faqpage)
View in thread

6 replies

Sergiete
SergieteAuthor
Gold ⭐️
March 16, 2020

Hi again...



I continue researching... i was tryed to find this config into the service configuration on cloudera manager -> hive -> configuration but i can't find:



hive.query.redaction.rules



After that i tryed to add another instance of hiveserver2 because i only have one.. the new instance present the same behaviour.



Finally i went to the /var/run/cloudera-scm-agent/process/ directory and found this in the hive-site.xml:



[user@host 1546333361-hive-HIVESERVER2]# cat hive-site.xml | grep redaction
    <name>hive.query.redaction.rules</name>
    <value>/var/run/cloudera-scm-agent/process/1546333361-hive-HIVESERVER2/redaction-rules.json</value>



And the file:





[user@host 1546333361-hive-HIVESERVER2]# cat redaction-rules.json
{
  "version": 1,
  "rules": [
    {
      "description": "Redact passwords from json files",
      "trigger": "password",
      "search": "\"password\"[ ]*:[ ]*\"[^\"]+\"",
      "caseSensitive": false,
      "replace": "\"password\": \"LOG-REDACTED\""
    },
    {
      "description": "Redact password= and password:",
      "trigger": "password",
      "search": "password[:=][^ \"\\\\]+",
      "caseSensitive": false,
      "replace": "password=LOG-REDACTED"
    },
    {
      "description": "Redact passwd= and passwd:",
      "trigger": "passwd",
      "search": "passwd[:=][^ \"\\\\]+",
      "caseSensitive": false,
      "replace": "passwd=LOG-REDACTED"
    },
    {
      "description": "Redact pass= and pass:",
      "trigger": "pass",
      "search": "pass[:=][^ \"\\\\]+",
      "caseSensitive": false,
      "replace": "pass=LOG-REDACTED"
    },
    {
      "description": "Redact PASSWORD,",
      "trigger": "PASSWORD,",
      "search": "PASSWORD,[^\"\\\\]+",
      "caseSensitive": false,
      "replace": "PASSWORD, LOG-REDACTED"
    },
    {
      "description": "Redact secret= and secret:",
      "trigger": "secret",
      "search": "secret[:=][^ \"\\\\]+",
      "caseSensitive": false,
      "replace": "secret=LOG-REDACTED"
    },
    {
      "description": "Credit Card numbers (with separator)",
      "search": "\\d{4}[^\\w:]\\d{4}[^\\w:]\\d{4}[^\\w:]\\d{4}",
      "caseSensitive": true,
      "replace": "XXXX-XXXX-XXXX-XXXX"
    },
    {
      "description": "Social Security numbers (with separator)",
      "search": "\\d{3}[^\\w:]\\d{2}[^\\w:]\\d{4}",
      "caseSensitive": true,
      "replace": "XXX-XX-XXXX"
    }
  ]
}



Any suggest?

Translate
silvan
silvan
Silver ⭐️
March 16, 2020

Hi Sergiete



The error is described here:

Exception in thread "main" java.lang.IllegalArgumentException: mr execution engine is not supported!

mr execution engine stands for "MapReduce Execution Engine".

In Hive3 there is only Hive on Tez or Hive on Spark as an execution engine available:

https://docs.cloudera.com/runtime/7.0.3/hive-introduction/topics/hive_whats_new_in_this_release_hive.html



You need to change your execution engine!



Translate
    Sergiete
    SergieteAuthor
    Gold ⭐️
    March 17, 2020

    Hi..



    So many thanks Silvan... i think that i found the "issue" is in the traslation to Spanish of the interface:

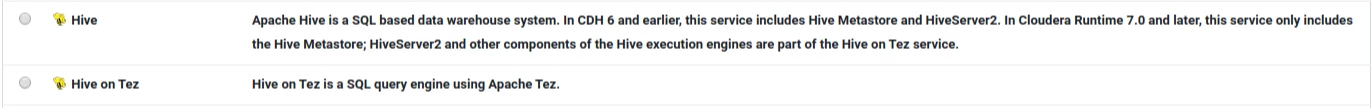

    In English the interface inform about hiveserver2 on Hive and Hive on Tez




    But in Spanish not...




    Any way i'll read the refered documentation... like i said is my first CDP... i intalled so many CDH in the pass... but is my first time with CDP.



    Regards.

    Translate
    Bender
    Gold ⭐️⭐️⭐️
    BenderAnswer
    Gold ⭐️⭐️⭐️
    May 4, 2020

    Hello @Sergiete ,



    thank you for raising our attention that there was an improvement point in Cloudera CDP documentation.

    We have added clarification in our CDP documentation about "Installing Hive on Tez" [1] and that the Spark execution engine is not supported, as it's been replaced by Tez [2].



    Based on our updated documentation [1] the correct order of installing the Hive service is:

    1. Install the Hive service, designated Hive on Tez in CDP.
      HiveServer is installed automatically during this process.
    2. Install HMS, which is designated Hive.

    Best regards:

    Ferenc



    [1] https://docs.cloudera.com/runtime/7.0.3/hive-introduction/topics/hive_installing_on_tez.html

    [2] https://docs.cloudera.com/runtime/7.0.3/hive-introduction/topics/hive-unsupported.html

    Translate
    Ferenc Erdelyi, Technical Solutions Manager Was your question answered? Make sure to mark the answer as the accepted solution. If you find a reply useful, say thanks by clicking on the thumbs up button. Learn more about the Cloudera Community: - Community Guidelines (https://community.cloudera.com/t5/custom/page/page-id/Community_Guidelines) - How to use the forum (/t5/help/faqpage)
