how to print log message after a flow file is expired in a self loop processor

Hi @Rohit1997jio ,

Not sure if this can be done using the FlowFile Expiration. However, if you are using Nifi 1.16 or higher you can take advantage of another methodology using the  "retry" option on the target processor failure relationship as follows:

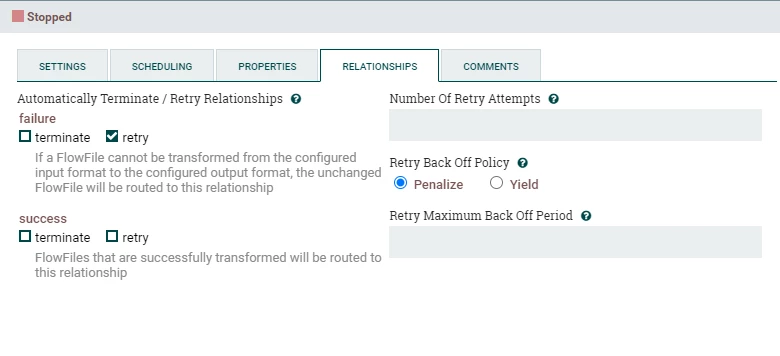

The concept here is to use the settings for "Number of Retry Attempts" , " Retry Back Off Policy" & "Retry Max Back off Period" to configure how often and for how long the file is retried before it gets pushed to the failure relationship queue where you can then log the needed message. Every failed retry, the flowfile will be pushed back to the upstream queue and wait the designated time before its tried again. The challenge here is how to set those values so that the flowfile is only kept for certain period of time ( 1 hour in your case) specially the file will wait in the queue before its tried again depending wither you set the policy to Penalize or Yield, which is a good thing because you want to have some delay before the flowfile is tried again to avoid a lot of overhead. For example if you want the file to expire in an hour , and you want to try it 60 times where each time you wait 1 min before the next retry then you can set the values as follows:

Number Of Retry Attempts:  60

Retry Back Off Policy : Penalize ( Set the Penalty Duration under Settings Tab to  1 min)

Retry Maximum Back Off Period: 1 min ( this to ensure that the wait time in the queue doesnt exceed the initial penalty duration because every subsequent retry the duration penalty time is doubled - not sure why- )

In this case the flowfile will be retried 60 times upon failure , where each time the flowfile is pushed back to upstream queue an wait only max 1 min  before the next retry , which makes the total time flowfile is retried = 60  * 1 min  = 60 mins = 1 hour

Depending how often you want to retry and how long you want to wait before the next retry, you can adjust those numbers accordingly.

Once done with all the retries the flowfile will be moved to failure relationship where you can log the final message.

If that helps please accept solution.

Thanks

 Since you said that my proposed solution work for the first part can you accept the solution and then open new ticket for the latest question because its a little different from your first question. Also regarding your requirement in the latest post, I'm having a hard time understanding what you are trying to do and  I have the following questions that I hope you can answer or clarify better if you decide to open new ticket:

1- What do you mean by max queue size is 250? how do you set that ? Is it a batch process where each batch you process total of 250 or at a given time you should not have more than 250 flowfiles

2- You say that you want them to Retire in 24 hours, is this for the 250 flowfile ? if that is true then how is this going to work when you say that you want to retire a flowfile every hour for 24?! This is so confusing to me

3- Are you saying that after you retire  (completed 24 )all the files in the queue then you want to log a message? Do you mean if all the 250 flowfiles fail and retire? then how this is going to work when there some files succeed and other failed ?

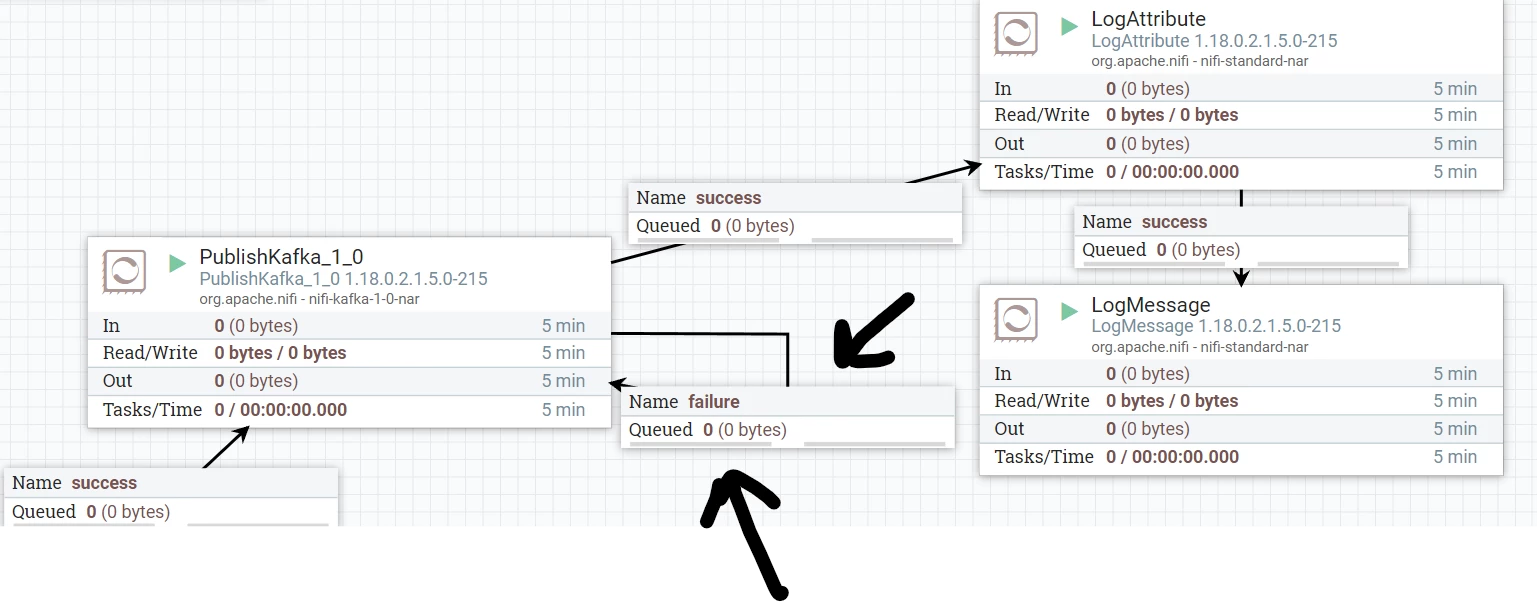

It would help also if you post screenshot of the complete flow and highlight what you want to do in each process and which part of the  flow you are having problem with detailing clearly what the problem is related to the target processor (publishkafka in your case ) and what is the expectation

Thanks
