Hi @drewski7 ,
I tried the code you have posted and it worked for me !
Here are the steps I followed:
1- Create Main Folder called TransformOpenskyStates-nar
2- Created TransformOpenskyStates.py with the code you posted under the main folder above.

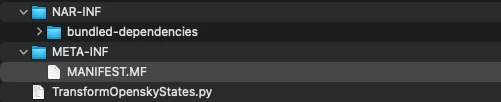

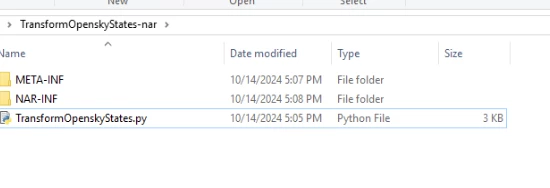

3- Created the folder structure as follows:
3 - Under the META-INF I have created the MANIFEST.FM and add the following text:
Manifest-Version: 1.0
Build-Timestamp: 2024-10-07T16:22:20Z
Nar-Id: TransformOpenskyStates-nar
Nar-Group: nifi.py.processors
Nar-Version: 0.0.2
4- Under NAR-INF I have created an Empty folder of "bundled-dependencies" since you dont seem to have any external dependencies.

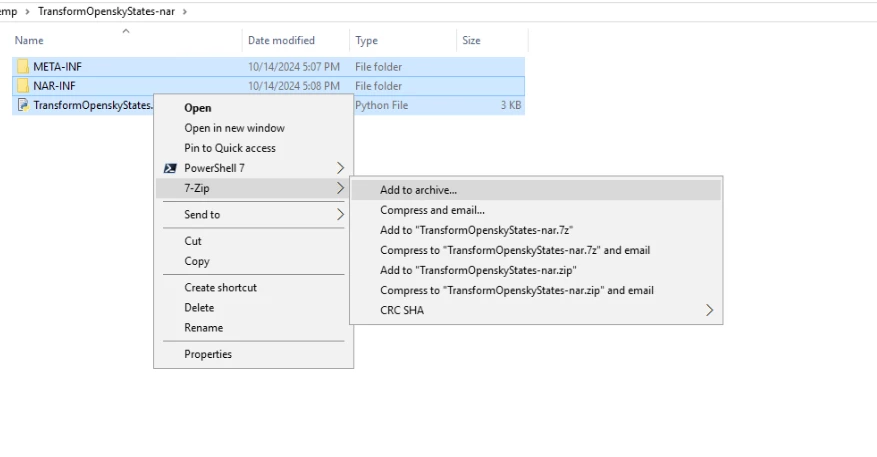

5- I have downloaded and installed 7-zip then I went inside the main directory created at step 1 , selected all (2 folders and 1 py file) , right click , select 7-Zip menu item and then select Add to Archive

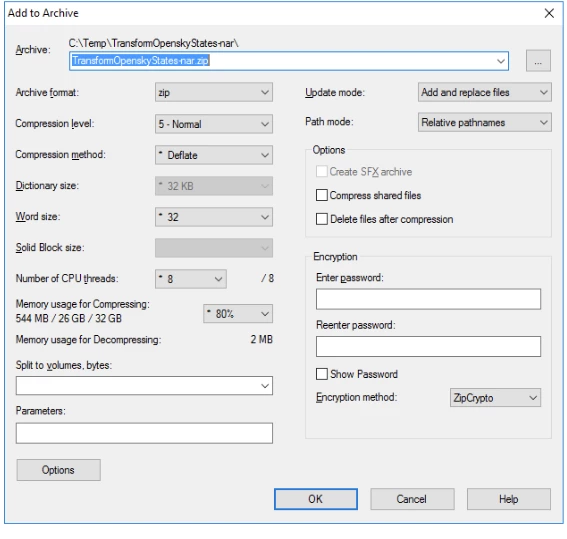

6- In the 7-Zip Add To Archive window, type the name of your package and save as .zip. No need to change any configuration. If you create a zip file on the main folder level then it will add the main folder to the package and that might cause problem as nifi expects the py file to be on the root level and that could be your probelm.

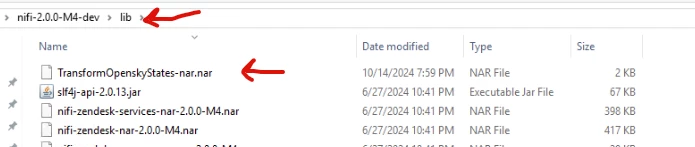

7- rename the .zip to .nar and then I would try first to place it under the lib folder and if it works you can move it to others.
8 - Restart Nifi and in my case the log file had the following entries regarding this processor:
2024-10-14 20:10:00,495 INFO [main] org.apache.nifi.nar.NarClassLoaders Loaded NAR file: \nifi-2.0.0-M4-dev\.\work\nar\extensions\TransformOpenskyStates-nar.nar-unpacked as class loader org.apache.nifi.nar.NarClassLoader[.\work\nar\extensions\TransformOpenskyStates-nar.nar-unpacked]
...
2024-10-14 20:10:02,036 INFO [main] o.a.n.n.StandardExtensionDiscoveringManager Loaded extensions for nifi.py.processors:TransformOpenskyStates-nar:0.0.2 in 3 millis
...
2024-10-14 20:10:14,316 INFO [main] o.a.n.n.StandardExtensionDiscoveringManager Discovered Python Processor TransformOpenskyStates

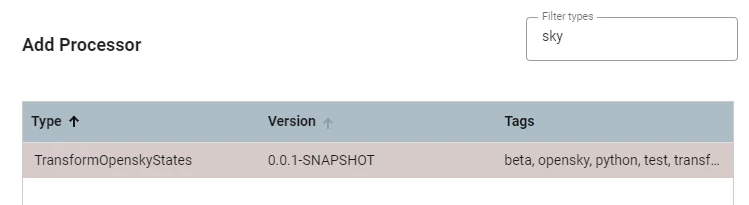

9- Once UI is up and running , I m able to see and select the processor:

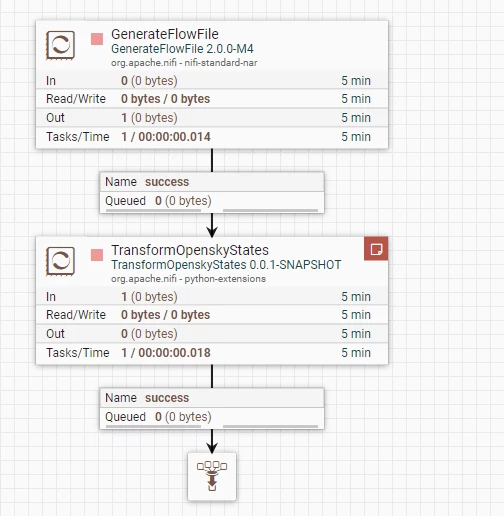

When I ran it however I got an error but that is a different story 🙂
Error Message:
20:14:13 EDT
ERROR
8d85ee2d-0192-1000-7594-fe7475f52c1d
PythonProcessor[type=TransformOpenskyStates, id=8d85ee2d-0192-1000-7594-fe7475f52c1d] Failed to transform FlowFile[filename=e8370eae-8bdd-4867-91dc-1416fd5d4727]: py4j.Py4JException: An exception was raised by the Python Proxy. Return Message: Traceback (most recent call last):
File "F:\nifi-2.0.0-M4-dev\python\framework\py4j\java_gateway.py", line 2466, in _call_proxy
return_value = getattr(self.pool[obj_id], method)(*params)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "F:\nifi-2.0.0-M4-dev\python\api\nifiapi\flowfiletransform.py", line 33, in transformFlowFile
return self.transform(self.process_context, flowfile)
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "F:\nifi-2.0.0-M4-dev\.\work\nar\extensions\TransformOpenskyStates-nar.nar-unpacked\TransformOpenskyStates.py", line 49, in transform
contents = json.loads(flow_file.getContentsAsBytes())
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "C:\Program Files\Python\311\Lib\json\__init__.py", line 346, in loads
return _default_decoder.decode(s)
^^^^^^^^^^^^^^^^^^^^^^^^^^
File "C:\Program Files\Python\311\Lib\json\decoder.py", line 337, in decode
obj, end = self.raw_decode(s, idx=_w(s, 0).end())
^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^^
File "C:\Program Files\Python\311\Lib\json\decoder.py", line 355, in raw_decode
raise JSONDecodeError("Expecting value", s, err.value) from None
json.decoder.JSONDecodeError: Expecting value: line 1 column 1 (char 0)
Im emailing you a copy of the zip file . Try to change it to nar and see if that works. Im suspecting that the way you package (zip) the folder structure is causing the issue.
Hope that helps.
