February 11, 2022
Question

Nifi - MergeContent - Multiple CSV files - counter

Hi

I want to merge 6 CSV files into 1

I use

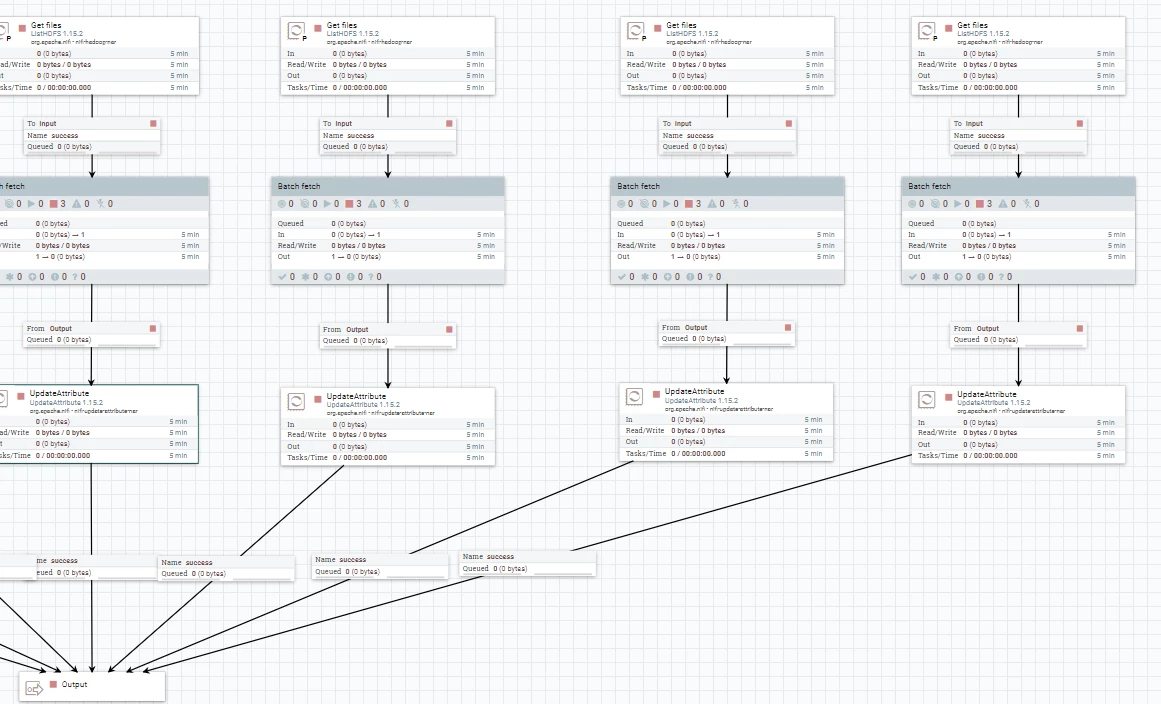

ListHDFS >> FechHDFS >> UpdateAttribute >> MergeContent >> QueryRecord >> ...



ListHDFS >> FechHDFS >> UpdateAttribute is repeated as the number of files to merge ( 6 times)

because I shoud to give for each file the fragment.index parameter and an allias ( used later for the join query in QueryRecord )

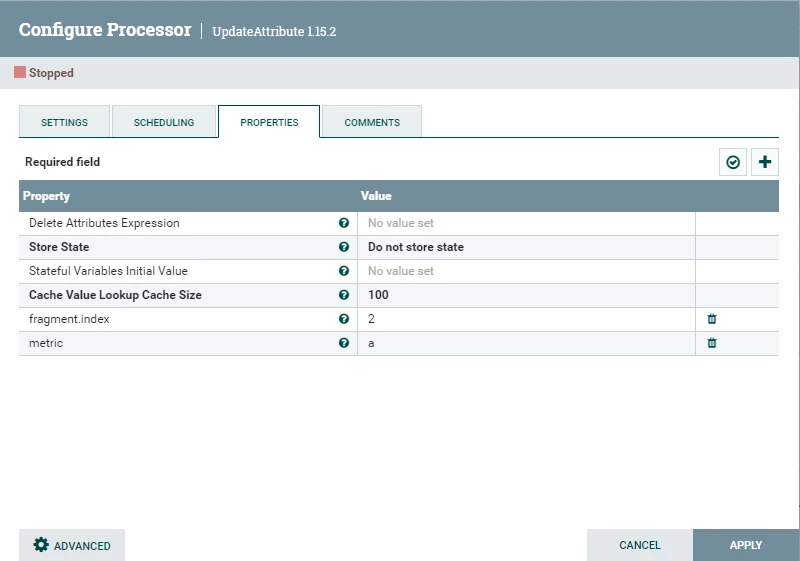

The UpdateAttribute for one of the files:






Is there a way to avoid multiple processors to get the files ListHDFS >> FechHDFS >>  UpdateAttribute

How to reduce is into one ListHDFS >> FechHDFS >> UpdateAttribute and give a different fragment.index for each different file which shloud be between 0 and 6 (max number of files) ?



I tried NextInt() to attribute a new fragment.index value but it is incremental, not suitable for multiple executions.



Thanks in advance.

7 replies

araujo
Platinum ⭐️⭐️⭐️
araujo
Platinum ⭐️⭐️⭐️
February 13, 2022

Are all the files similar and you assign the fragment indexes in a round robin fashion? (1,2,3,4,5,6,1,2,3,...)

Or do the different index numbers identify different types of files?

When you merge, can you merge as many files as possible or do they always need to be merged 6 by 6?

Can you give an example of how you are going to use the index in the QueryRecord processor?

Translate
-- Was your question answered? Please take some time to click on "Accept as Solution" below this post. If you find a reply useful, say thanks by clicking on the thumbs up button.
yamaga
yamagaAuthor
Gold ⭐️
February 13, 2022

Hi @araujo thanks for your reply



This an example:



I have six csv files:.

file1.csv, file2.csv, file3.csv, file4.csv have the same structure

file5.csv, file6.csv have a different structure but the have some common columns that I will use in the QueryRecord



In order to use The MergeContent, I should give a different.index attribute to each filename, it should be between 0 and 5 (as I have 6 files ).



Before the MergeContent, I use ListHDFS >> FechHDFS >> UpdateAttribute 6 times (for each file) which is not a good design as I can have more than 6 files in the future, UpdateAttribute is where I assign the frangment.index attribute for each file.



My question is, is there a way to have ONE ListHDFS >> FechHDFS >> UpdateAttribute that get all files and assign a different frangment.index for each file (between 0 and 5) in one UpdateAttribute processor



For your question about the QueryRecord:

I give a "metric"parameter for the 4 first files and another to two others in UpdateAttribute processor

then in the QueryRecord I use this kind of query:



select file1.col1, file1.col2, file2.col3, file2.col4,file3.col5,file3.col6
 from (
   select ID, file1.col1, file1.col2 where m = 'a'
 ) file1
 left join (
   select ID, file2.col3, file2.col4 from FLOWFILE where m = 'b'
 ) file2 on file1.ID_ART = file2.ID_ART
 left join (
   select ID, file3.col5,file3.col6 from FLOWFILE where m = 'c'
) file3 on file1.ID = file3.ID
Translate
araujo
Platinum ⭐️⭐️⭐️
araujo
Platinum ⭐️⭐️⭐️
February 13, 2022

How do you differentiate the files in HDFS? Are they in different directories? Have different filenames?

Translate
-- Was your question answered? Please take some time to click on "Accept as Solution" below this post. If you find a reply useful, say thanks by clicking on the thumbs up button.
