Nifi ReplaceText, escapeCsv does not return anything

Hello!

The general task is to transform xml to csv

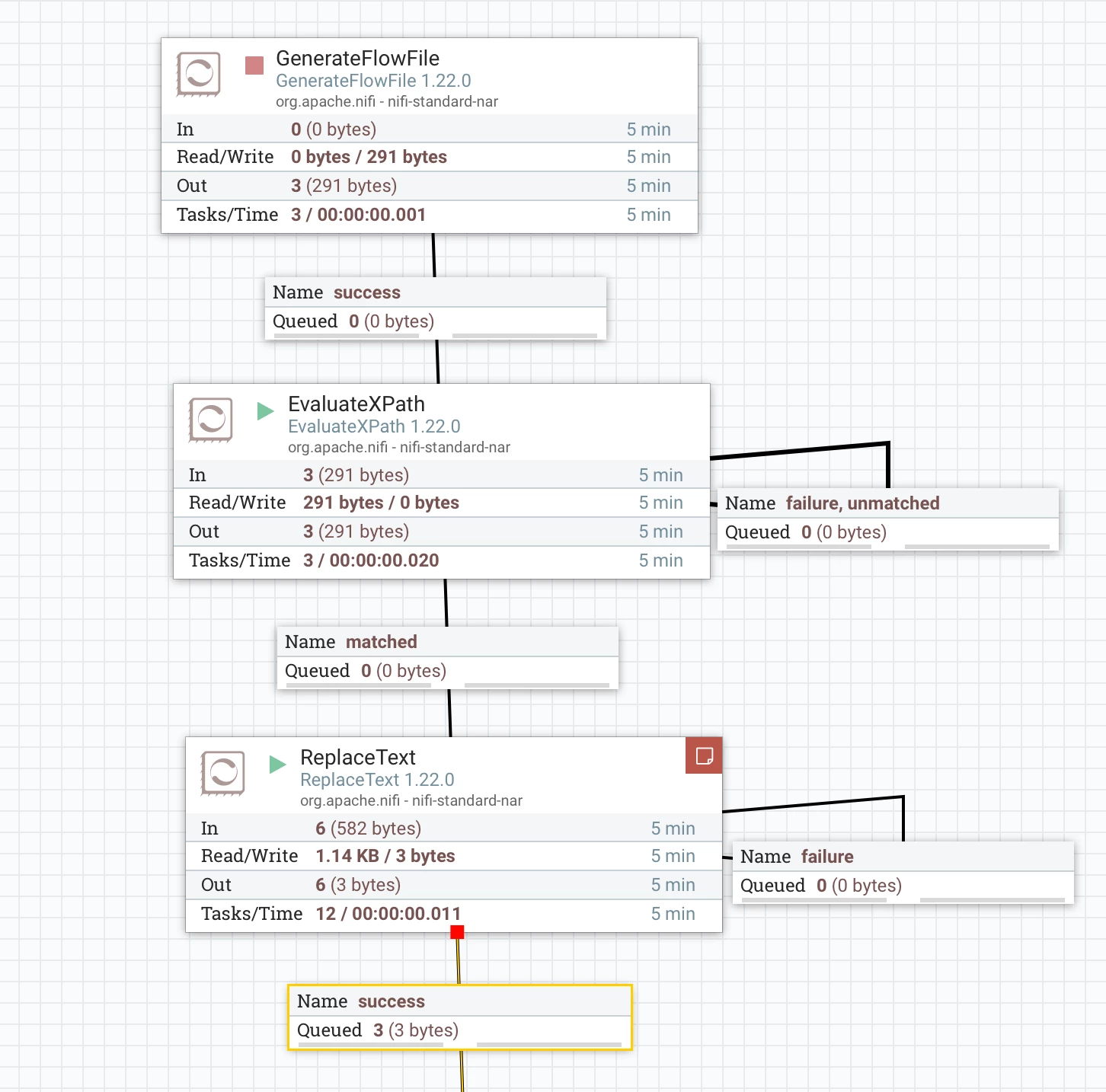

For this aim I created following pipeline:


Source xml content is:

     <Email E-mail="AR-BIK@GMAIL.COM"> <Data GRN="3214600023849" Date="2024-07-28"></Data></Email>

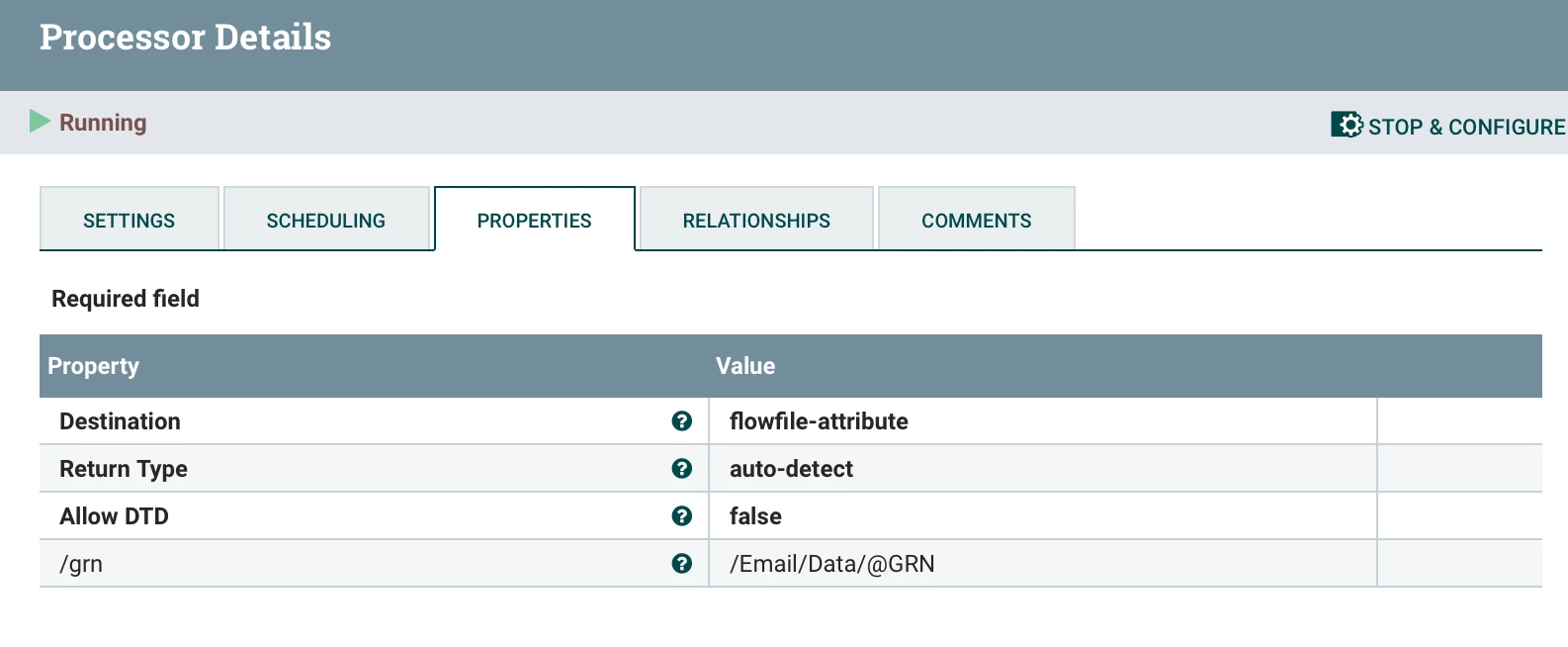

Parameters of EvaluateXPath are:

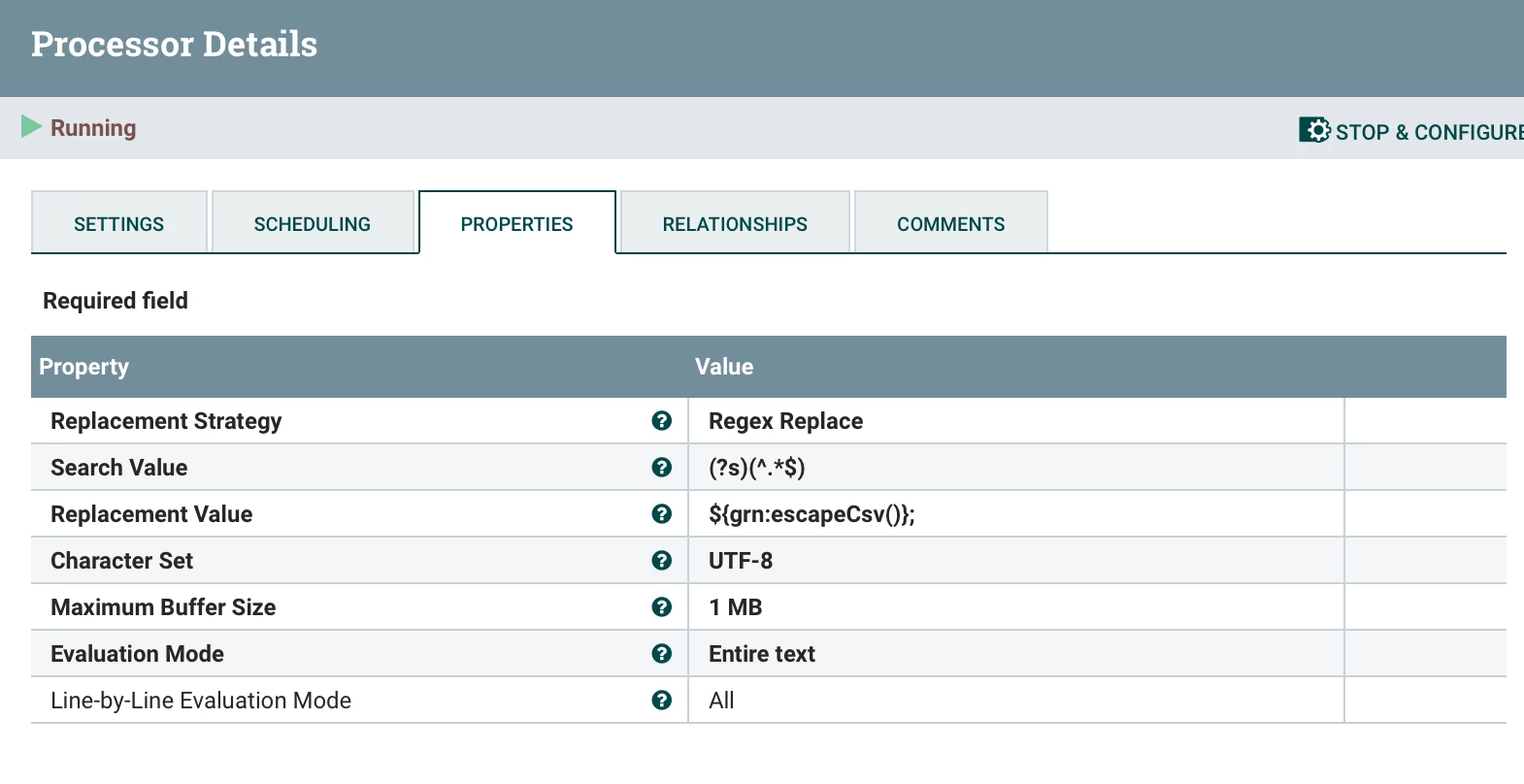

      ReplaceText parameters:

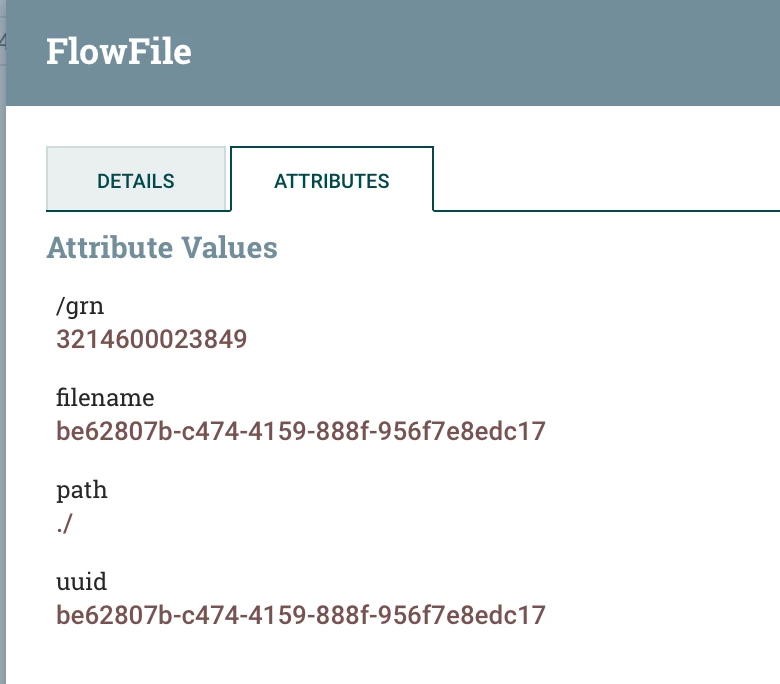

   Attribute grn successfully produced with expected value:

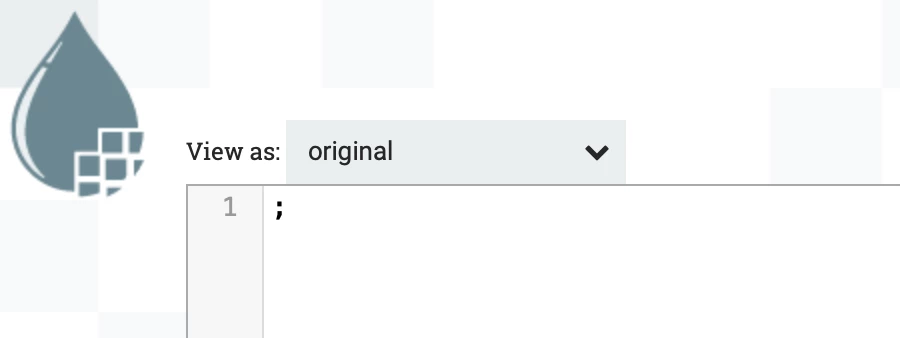

But value "3214600023849" is not translated to csv. Only ; delimiter.




Encoding is UTF-8

What am I doing wrong?

MattWho
MattWhoAnswer
Titanium ⭐️⭐️⭐️
October 23, 2024

@AndreyDE

Post your EvaluateXPath processor you have a FlowFile that now has a FlowFile Attribute "/grn" with a value of "3214600023849".

In ReplaceText, it appears you intent is to replace the entire content of the FlowFile with the value returned by the NiFi Expression Language (NEL) statement:

${grn:escapeCsv()};

Your expression language statement grabs the value from FlowFile Attribute "grn", passes it the escapeCsv NEL function and then appends a ";" to the returned result.

Problem 1 is your FlowFile has no attribute "grn", it has an attribute "/grn"
Since "/grn" contains special character "/", it will need to be quoted in the NEL statement as follows:

${"/grn":escapeCsv()};

 reference: Structure of a NiFi Expression

Above would output content with:

3214600023849;

This content would not require being surrounded by quotes under RFC 4180

 reference: escapeCSV function



Please help our community thrive. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.

Thank you,
Matt

View in thread

2 replies

MattWho
Titanium ⭐️⭐️⭐️
MattWhoAnswer
Titanium ⭐️⭐️⭐️
October 23, 2024

@AndreyDE

Post your EvaluateXPath processor you have a FlowFile that now has a FlowFile Attribute "/grn" with a value of "3214600023849".

In ReplaceText, it appears you intent is to replace the entire content of the FlowFile with the value returned by the NiFi Expression Language (NEL) statement:

${grn:escapeCsv()};

Your expression language statement grabs the value from FlowFile Attribute "grn", passes it the escapeCsv NEL function and then appends a ";" to the returned result.

Problem 1 is your FlowFile has no attribute "grn", it has an attribute "/grn"
Since "/grn" contains special character "/", it will need to be quoted in the NEL statement as follows:

${"/grn":escapeCsv()};

 reference: Structure of a NiFi Expression

Above would output content with:

3214600023849;

This content would not require being surrounded by quotes under RFC 4180

 reference: escapeCSV function



Please help our community thrive. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.

Thank you,
Matt

Translate
AndreyDE
AndreyDEAuthor
Silver ⭐️⭐️⭐️
October 23, 2024

Thank you, the matter was in "/", indeed ))
