Ranger doesn't recognize HDFS and Hive

I am trying to use Ranger for Authorization with Hive and HDFS. But somehow Ranger doesn't recognize Hive or HDFS. I don't see the default policies in Ranger for Hive and HDFS. I activated the Ranger Plugins for Hive and HDFS and checked the Advanced ranger-hive-plugin-properties and Advanced ranger-hdfs-plugin-properties. For me everything seems fine, but the services don't appear in Ranger. I also activated Ranger as authorization method for Hive. But that also didn't help
This is how my configuration looks:
Ranger Services:

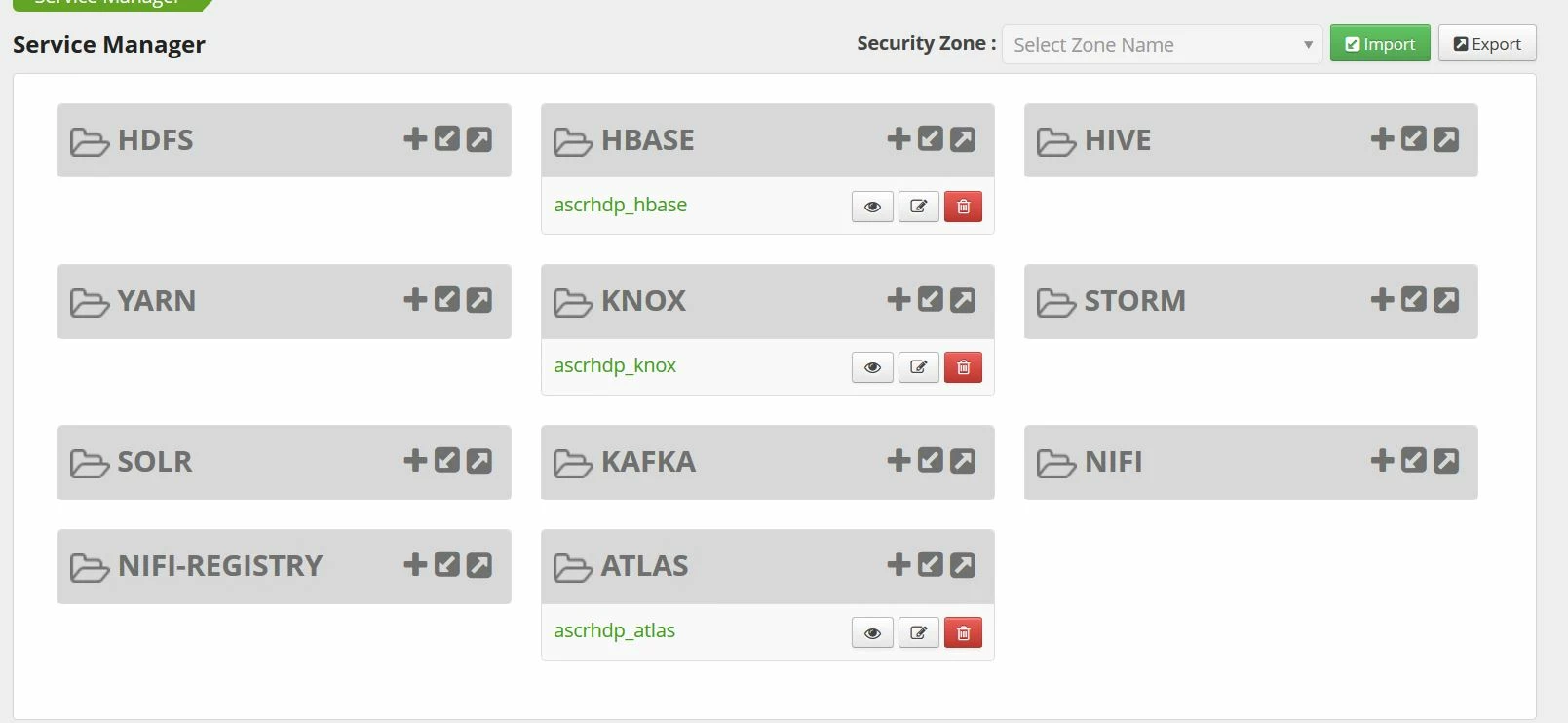

Ranger Services.JPG

Ranger Plugins:

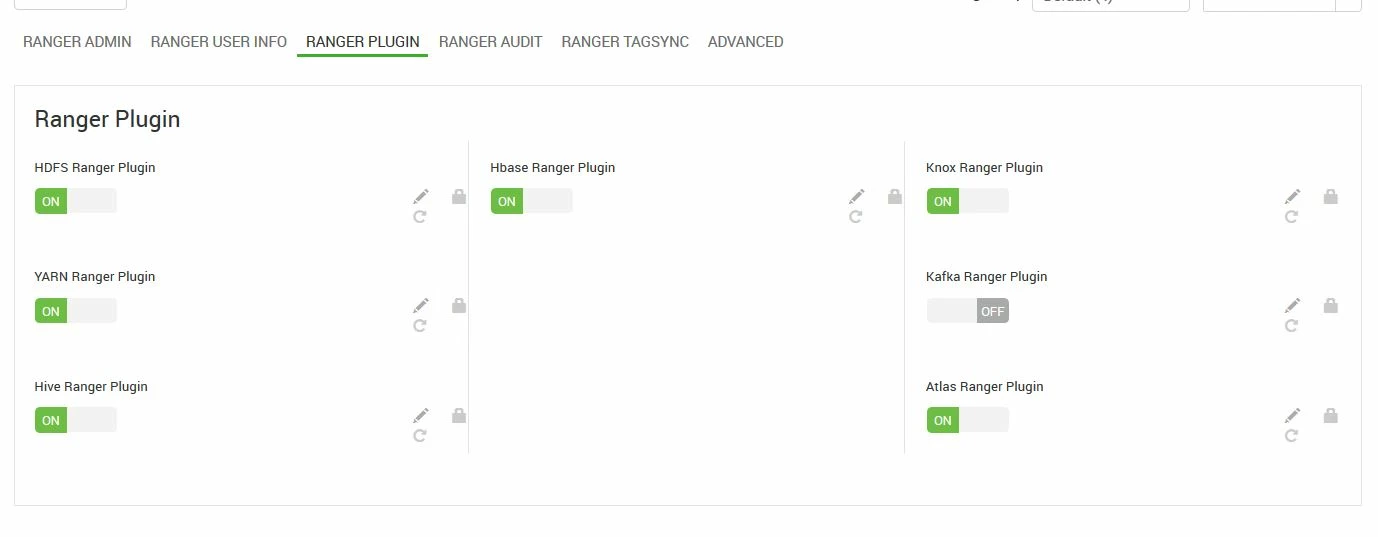

Ranger plugin conf.JPG

Advanced ranger-hdfs-plugin-properties.

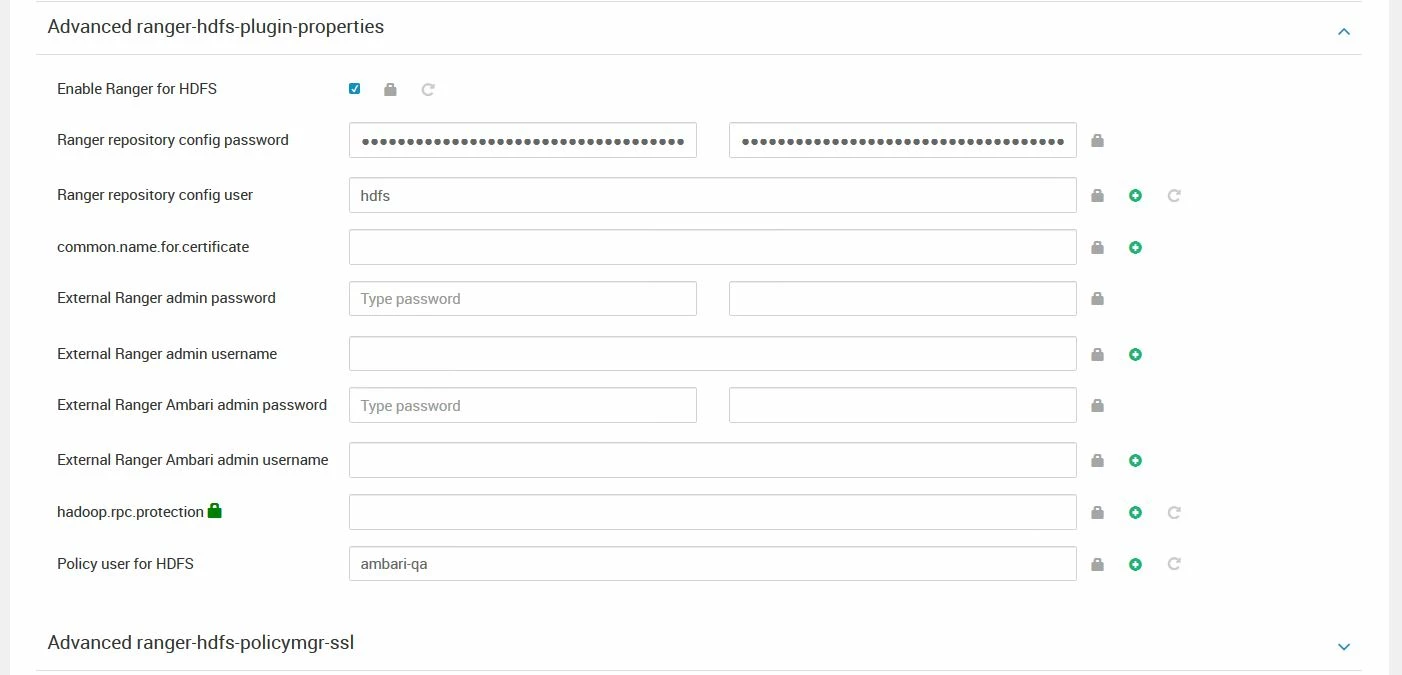

advanced hdfs plugin.JPG



Advanced ranger-hive-plugin-properties

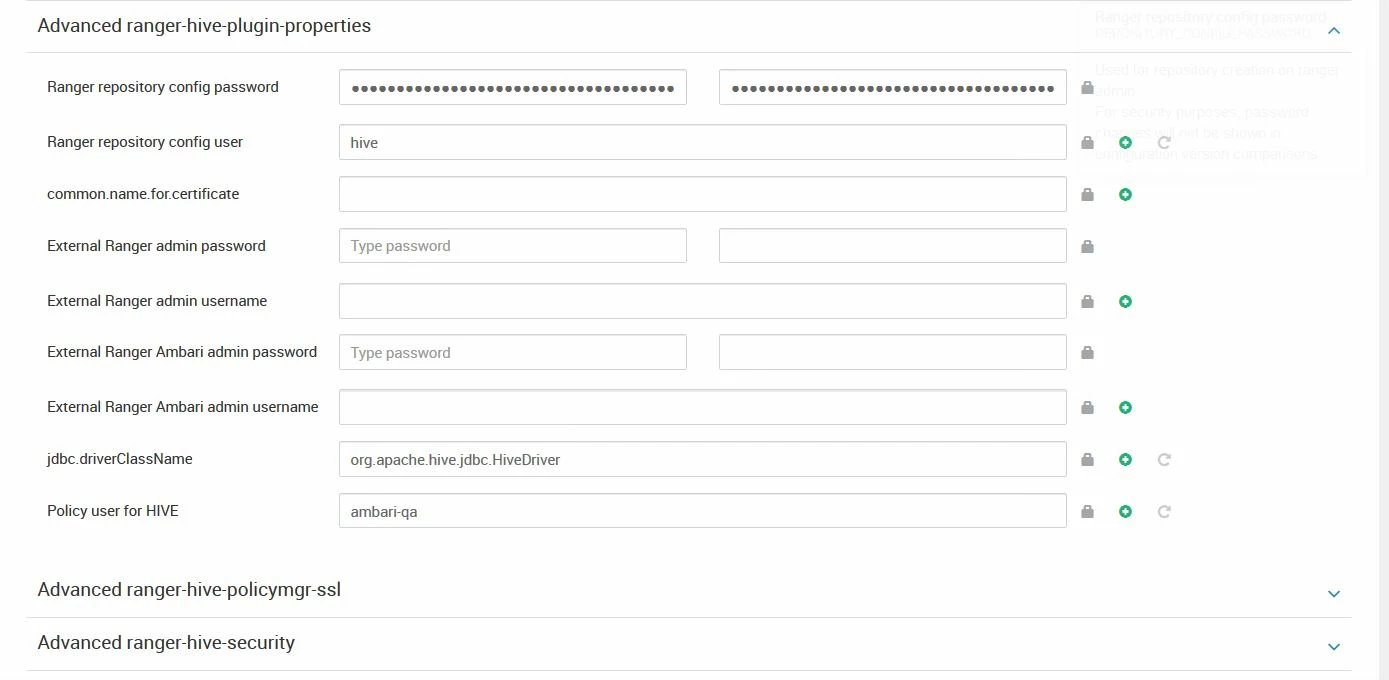

advanced hive plugin.JPG



What am I missing here? I would be happy about hints!
Thanks

sagarshimpi
sagarshimpiAnswer
Gold ⭐️
November 26, 2019

Hi @Caranthir

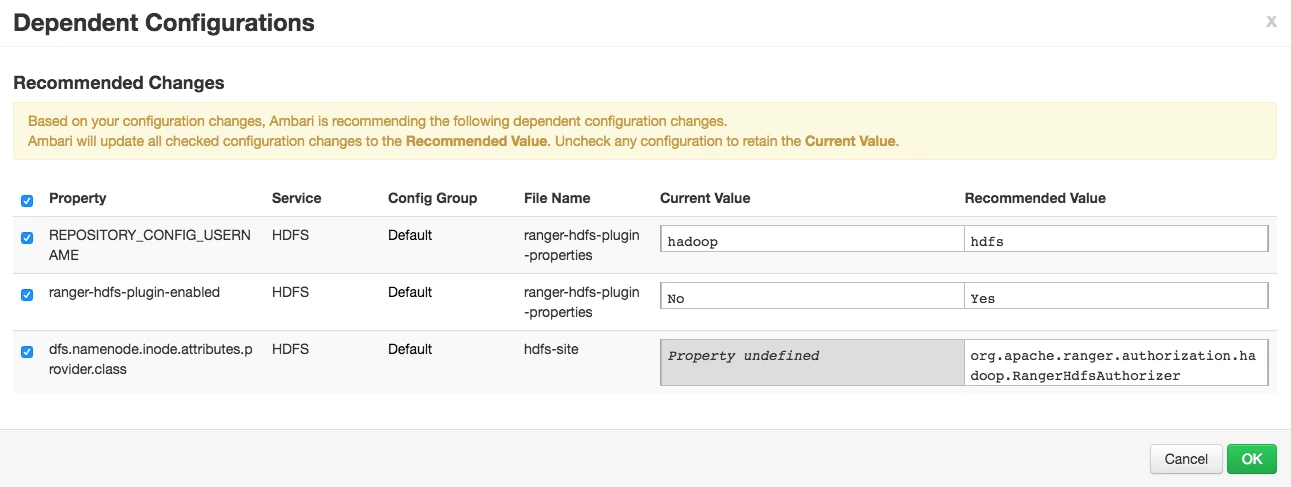

  1. Can you try disabling and enabling the plugin again ? While you enable the plugin it adds/modifies below properties -
    Can you check if those properties are set properly after you enable ranger plugin for hdfs again?
  2. Also as already mentioned by @Shelton the repository config user must be configured if you are working in kerberized environment.

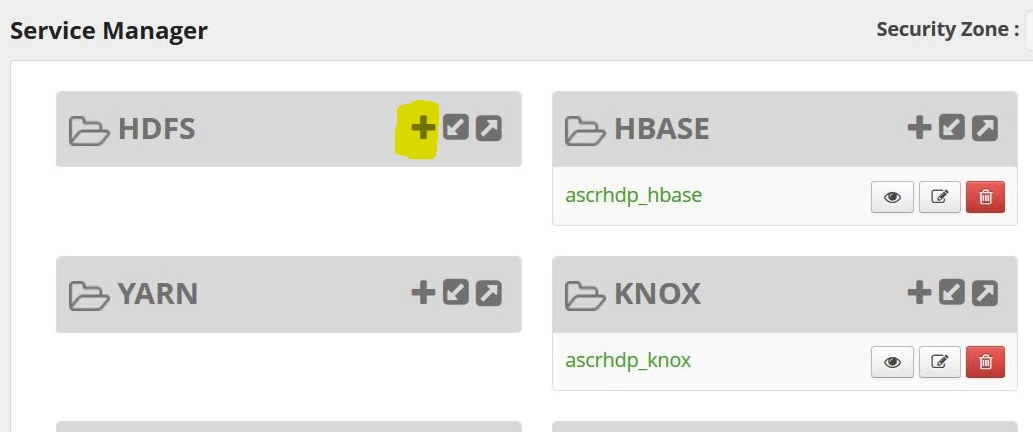

  3. If still you are not able to see the repository in Ranger UI then you can click on add symbol as shown below to add repository manually -
    You can specify details of namenode and other and "test connection"
  4. Monitor the logs of ranger and namenode while you test connection. If connection fails you can see errors in logs.



Please post for further updates.

View in thread

3 replies

Shelton
Shelton
Gold ⭐️⭐️⭐️
November 25, 2019

@Caranthir

I came across this have you seen this document additional Ranger Plugin Configuration Steps for Kerberos Clusters if you are running HDP 3.1.4 on the same page you will also find some specific configs for hive.

You will need to create a Kerberos principal and the below values are different with your screenshot

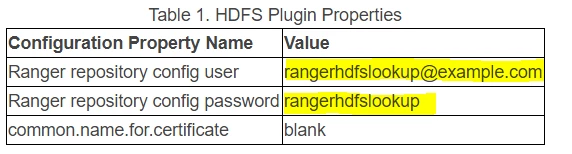

HDFS Plugin.PNG

 Values to Change

  •  Ranger service config user
  • Ranger service config password

For hive

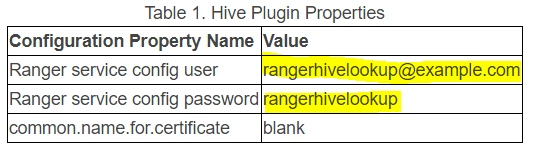

HIVE Plugin.PNG

The above steps are for HDP 3.1.4

Hope that helps







Translate
sagarshimpi
sagarshimpiAnswer
Gold ⭐️
November 26, 2019

Hi @Caranthir



  1. Can you try disabling and enabling the plugin again ? While you enable the plugin it adds/modifies below properties -
    Can you check if those properties are set properly after you enable ranger plugin for hdfs again?
  2. Also as already mentioned by @Shelton the repository config user must be configured if you are working in kerberized environment.
  3. If still you are not able to see the repository in Ranger UI then you can click on add symbol as shown below to add repository manually -
    You can specify details of namenode and other and "test connection"
  4. Monitor the logs of ranger and namenode while you test connection. If connection fails you can see errors in logs.



Please post for further updates.

Translate
Caranthir
CaranthirAuthor
Silver ⭐️
November 27, 2019

Thanks for the answers. I don't use Kerberos. Adding the services manually to Ranger worked out. It can connect successfully. I don't know why it didn't add the services automatically to Ranger. Anyway my problem is solved.
