S3 integration in Hue error : ValueError: Invalid S3 URI: S3A

Question

Hello,

I've set a cluster with CDH 6.20, 1 master 4 slaves, with the parcels way. Everything is working quite good, except the connection between Hue and S3.

I've followed the instructions from this guide

The hosts are running on Ubuntu 18.04, Python version is 2.7.15rc1S

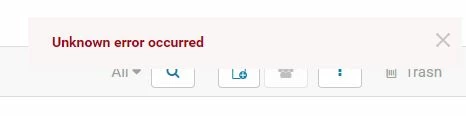

When I try to navigate my buckets in Hue filebrowser, I get this error in the GUI : "Unknown error occurred".

On the Hue server logs, here is the complete error :

Internal Server Error: /filebrowser/view=S3A:/ Traceback (most recent call last): File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/build/env/lib/python2.7/site-packages/Django-1.11-py2.7.egg/django/core/handlers/exception.py", line 41, in inner response = get_response(request) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/build/env/lib/python2.7/site-packages/Django-1.11-py2.7.egg/django/core/handlers/base.py", line 249, in _legacy_get_response response = self._get_response(request) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/build/env/lib/python2.7/site-packages/Django-1.11-py2.7.egg/django/core/handlers/base.py", line 187, in _get_response response = self.process_exception_by_middleware(e, request) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/build/env/lib/python2.7/site-packages/Django-1.11-py2.7.egg/django/core/handlers/base.py", line 185, in _get_response response = wrapped_callback(request, *callback_args, **callback_kwargs) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/build/env/lib/python2.7/site-packages/Django-1.11-py2.7.egg/django/utils/decorators.py", line 185, in inner return func(*args, **kwargs) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/apps/filebrowser/src/filebrowser/views.py", line 201, in view stats = request.fs.stats(path) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/core/src/desktop/lib/fs/proxyfs.py", line 119, in stats return self._get_fs(path).stats(path) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/libs/aws/src/aws/s3/__init__.py", line 52, in wrapped return fn(*args, **kwargs) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/libs/aws/src/aws/s3/s3fs.py", line 256, in stats stats = self._stats(path) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/libs/aws/src/aws/s3/s3fs.py", line 157, in _stats key = self._get_key(path, validate=True) File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/libs/aws/src/aws/s3/s3fs.py", line 131, in _get_key bucket_name, key_name = s3.parse_uri(path)[:2] File "/opt/cloudera/parcels/CDH-6.2.0-1.cdh6.2.0.p0.967373/lib/hue/desktop/libs/aws/src/aws/s3/__init__.py", line 68, in parse_uri raise ValueError("Invalid S3 URI: %s" % uri) ValueError: Invalid S3 URI: S3A:

S3A seems to be the root URI. Here is the ajax URL requested by Hue, giving this error : http://*****.com:8889/filebrowser/view=S3A://?format=json&sortby=name&descending=false&pagesize=100&pagenum=1&_=1557827867345

I know the credentials setup is okay, for 2 reasons :

I'm able to list a bucket content with hadoop fs -ls
I can browse my buckets on Hue through an other cluster running CDH 5.13, with the same API access. This very same URL, except the hostname, is working fine on my other cluster.

I've tried :

to disable / enable S3guard.
to disable / enable the S3 connect for this cluster, in Administration > External accounts
to force the S3 endpoint in the S3Connect configuration. In my case, s3.eu-west-1.amazonaws.com
to disable the firewall on the server running Hue
to change the node where Hue server is running
to play with the URL by setting differents paths, including a bucket, and a resource.
to add key id / secret in the safety valve, as explained here

I'm running out of ideas, I wasn't able to find anything on the forum, stackoverflow, Jira.

Any help or suggestion would be appreciated

Thank you

Edit (1)

As the error is suggesting, the problem seems to be coming from the S3 URI, where a slash is missing.

No matter URI I test, the double slash in S3A:// is transformed to a single slash (/). As a result, the resquested URI, the root node, is S3A:/. It doesn't match the variables S3_ROOT and S3A_ROOT, in the __init__.py

I've noticed that the Django framework version is different between CDH 5.13 and 6.20. I don't know if it's related, I'm not a python developper, but I'll continue to investigate and hopefully find some workaround.

weixia · Accepted Answer

Hi @jmarcopoulos ,

Do you have Cloudera Manager for your cluster? If yes, you can update following config.

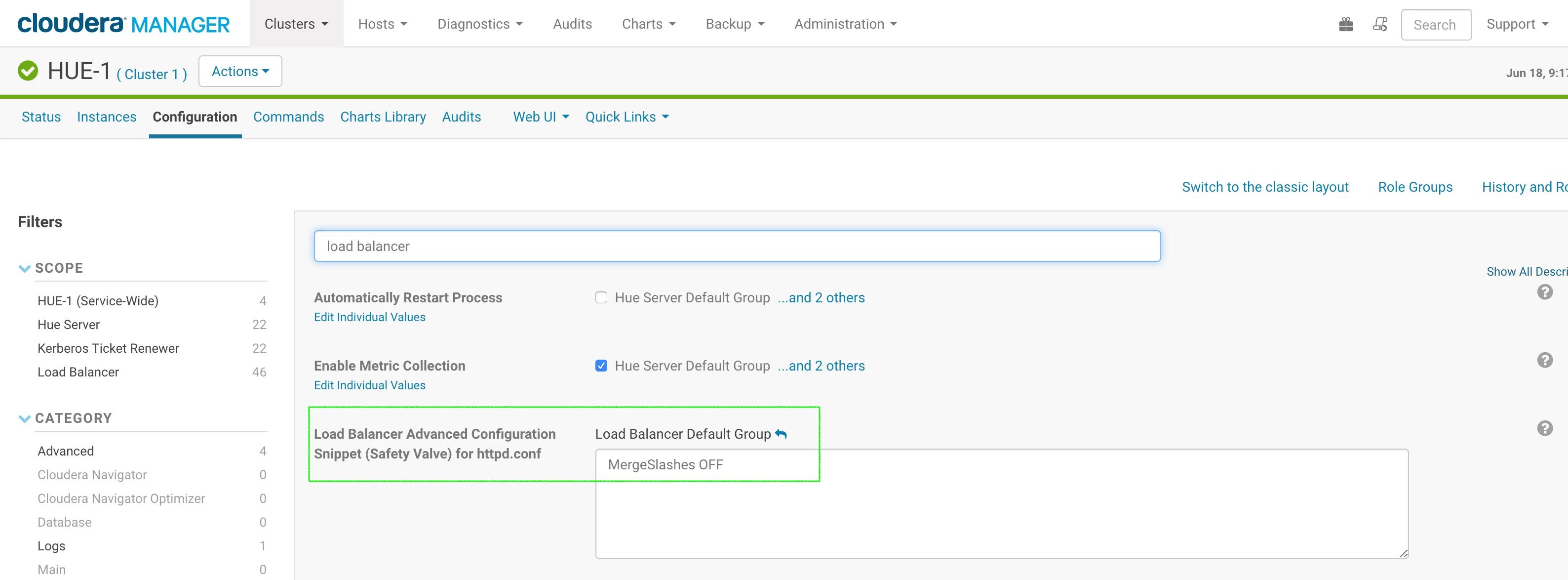

It turned out that for Debian or Ubuntu OSs, we need configure Hue's Load Balancer Advanced Configuration Snippet (Safety Valve) for httpd.conf with "MergeSlashes OFF", "Save Change" and restart Hue to avoid this missing slash error for s3 file browser.

Or you can use hue's server port: 8888 instead of hue's load balancer port:8889 to work around this issue.

This issue seems only happening for Debian and Ubuntu env. Centos/Redhat, Slesus are working fine.

Hope this helps!

Weixia

jmarcopoulos · Answer

I've put a dirty workaround, which is to add a slash, in case the path is beginning with s3a:/, so at the end the path contains 2 slashes.

I can now use the filebrowser with S3.

File apps/filebrowser/src/filebrowser/views.py, Line 183 :

path = path.replace("s3a:/", "s3a://").replace("S3A:/", "S3A://")

I would prefer a cleaner solution, because the day Hue get updated, my workaround will probably disappear.
