Gold ⭐️

Question

SplitJson for nested json content

7 replies
6165 views
Translate All

Hello, unfortunately I couldn't find an answer for this question, although it seems to be easy enough. I have a json file of this format, which I want to generate separate flowfiles from singularizing the values in NestedKey2:

My input:

{
"Key1" : [ {
"NestedKey1" : "Value1",
"NestedKey2" : [ "Value2", "Value3", "Value4", "Value5"],
"NestedKey3" : "Value6"
} ]
}

Desired output:

Flowfile 1:

{
"Key1" : [ {
"NestedKey1" : "Value1",
"NestedKey2" : "Value2",
"NestedKey3" : "Value6"
} ]
}

Flowfile 2:

{
"Key1" : [ {
"NestedKey1" : "Value1",
"NestedKey2" : "Value3",
"NestedKey3" : "Value6"
} ]
} ...

and so on. Thanks for any suggestions.

Apache NiFi

Green_

Gold ⭐️⭐️

Hi @Fredi ,

The processor 'ForkRecord' is exactly what you are looking for. However, I am currently trying to configure it to split exactly as you have described and am having trouble getting it to work...

I am attempting to use the 'extract' mode, with a fork path of "/Key1[*]/NestedKey2" which, according to the documentation, is supposed to do exactly what you described (split on nested json). For some reason the output is coming out empty though. Perhaps someone more familiar with the processor could reply and explain how to use it correctly for your use-case.

Translate

SAMSAL

Platinum ⭐️⭐️⭐️

Hi @Green_ @Fredi ,

I just tried it out of the box with the example mentioned in documentation:

https://nifi.apache.org/docs/nifi-docs/components/org.apache.nifi/nifi-standard-nar/1.17.0/org.apache.nifi.processors.standard.ForkRecord/additionalDetails.html

It seems to only produce correct result when you provide the schema for the record writer service. Not sure if that is related but when I tried without providing schema in the json record writer it gave me all the values as null!

Translate

Green_

Gold ⭐️⭐️

That's correct. I believe my earlier tests were failing because I used the "inherit record schema" setting, which obviously wouldn't work on the writer if the schema changes after forking.

Here is an avro schema I generated that should describe the output exactly as @Fredi described (generated using this website), however even when using this schema in my record writer, the output still comes out empty.

{
  "name": "MyClass",
  "type": "record",
  "namespace": "myNamespace",
  "fields": [
    {
      "name": "Key1",
      "type": {
        "type": "array",
        "items": {
          "name": "Key1_record",
          "type": "record",
          "fields": [
            {
              "name": "NestedKey1",
              "type": "string"
            },
            {
              "name": "NestedKey2",
              "type": "string"
            },
            {
              "name": "NestedKey3",
              "type": "string"
            }
          ]
        }
      }
    }
  ]
}

I believe at this point the challenge is simply writing an accurate avro schema for the output data.

Translate

SAMSAL

Platinum ⭐️⭐️⭐️

Hi @Green_

After farther investigation I found the reason the result is coming as blank is because we are missing the point from the processor description itself:

"..The user must specify at least one Record Path, as a dynamic property, pointing to a field of type ARRAY containing RECORD objects..."

Since the values in the array are just actual values and not a record its probably not working as expected. When I make the input looks like below , it works with the path specified:

{
	"Key1": [
		{
			"NestedKey1": "Value1",
			"NestedKey2": [
				{
					"nestedValue": "Value2"
				},
				{
					"nestedValue": "Value3"
				},
				{
					"nestedValue": "Value4"
				},
				{
					"nestedValue": "Value5"
				}
			],
			"NestedKey3": "Value6"
		}
	]
}

As suggestion - if that works with @Fredi - is to use Jolt transformation to convert the array into records as seen above and then use the Fork processor to achieve the desired result. The schema for the Json recrod writer can be as simple as the following :

{
    "type": "record",
    "name": "TestObject",
    "namespace": "ca.dataedu",
    "fields": [{
        "name": "NestedKey1",
        "type": ["null", "string"],
        "default": null
    }, {
        "name": "NestedKey3",
        "type": ["null", "string"],
        "default": null
    }, {
        "name": "nestedValue",
        "type": ["null", "string"],
        "default": null
    }]
}

Hope that helps.

Thanks

Translate

SAMSAL

Platinum ⭐️⭐️⭐️

Hi,

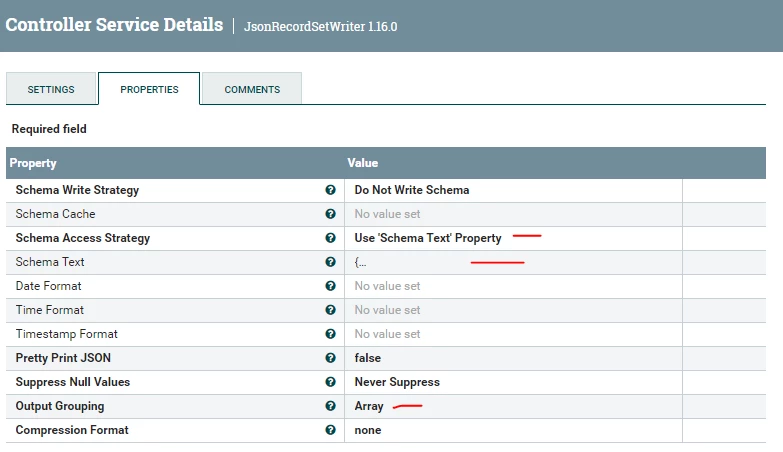

If you are able to do the jolt transformation to have the out put as specified above then in the ForkRecord ReocrdWriter should be set to "JsonRecordWriter" and the JsonRecordWriter can be set as follows:

The Schema Text property can be set to the following:

{
    "type": "record",
    "name": "TestObject",
    "namespace": "ca.dataedu",
    "fields": [{
        "name": "NestedKey1",
        "type": ["null", "string"],
        "default": null
    }, {
        "name": "NestedKey3",
        "type": ["null", "string"],
        "default": null
    }, {
        "name": "NestedKey2",
        "type": ["null", "string"],
        "default": null
    }]
}

This should give you the desired output you specified above.

For more information on the JsonRecorWriter please refer to :

https://nifi.apache.org/docs/nifi-docs/components/org.apache.nifi/nifi-record-serialization-services-nar/1.13.0/org.apache.nifi.json.JsonRecordSetWriter/index.html

Hope that helps, if it does please accept solution.

Thanks

Translate

FrediAuthor

Gold ⭐️

Hi, thanks for the details. Unfortunately it is not working. I get an empty array [] as output. I have tried it with extract and split mode. I applied the schema text property as suggested with "NestedKey" and "nestedValue" as name. None gives me an output.

Meanwhile I have achieved what I wanted using SplitContent and then again another jolt processor. Of course it would be more elegant if I could make it work with ForkRecord.

Translate
