Moving data from your local machine to the cloud has never been easier using NiFi site to site protocol and CDP Datahub. In this article, I will focus on how to set up a site to site communication between your local machine and CDP Cloud, without using the default Knox CDP Proxy.

This configuration assumes that you already have a local instance of NiFi (or MiNiFi) and a CDP Datahub Cluster running NiFi. If you want to learn how to use CDP Public Cloud, please visit our overview page and documentation.

This setup will be executed in 4 steps:

• Step 1: Open CDP to your local IP
• Step 2: Download and configure stores on your local machine
• Step 3: Configure a simple site-to-site flow
• Step 4: Authorize this flow in Ranger

Step 1: Open CDP to your local IP

1. Go to your CDP Management Console, and find your datahub (here pvn-nifi).

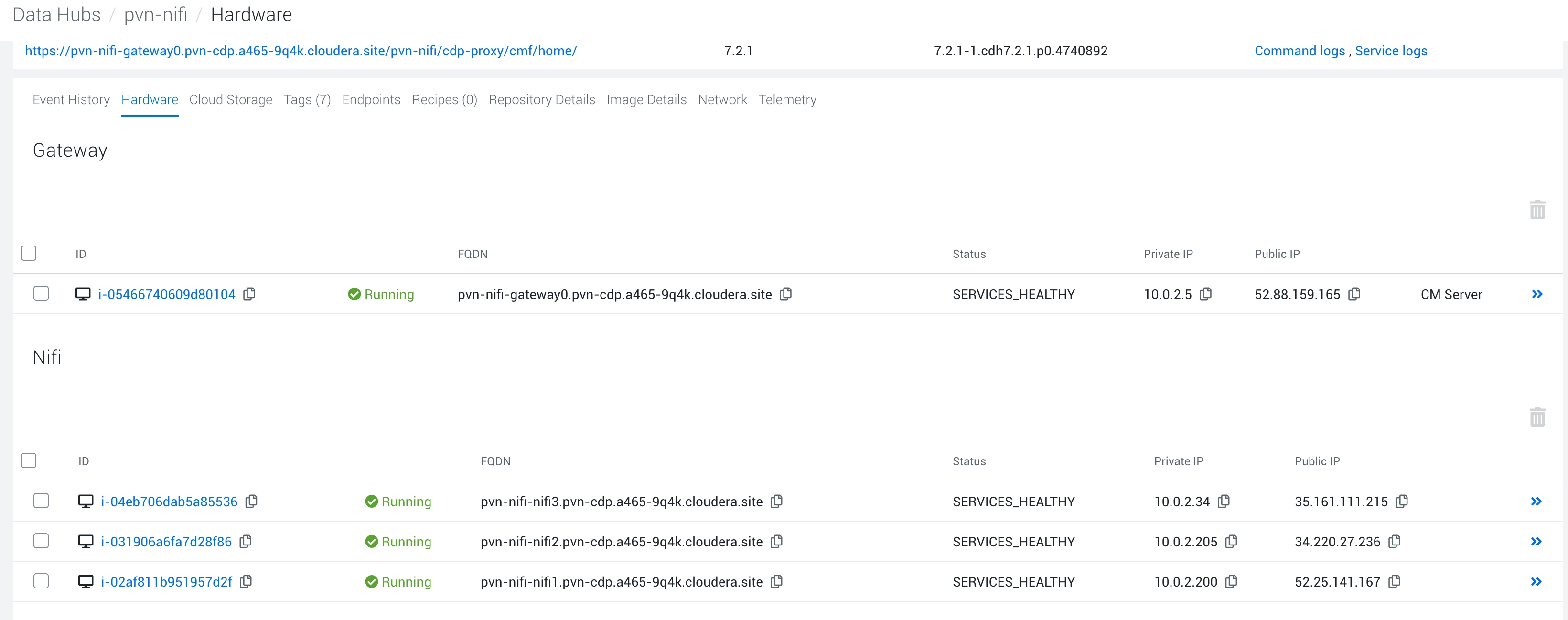

2. At the bottom of the datahub page, click on Hardware and locate one of the instances running NiFi:

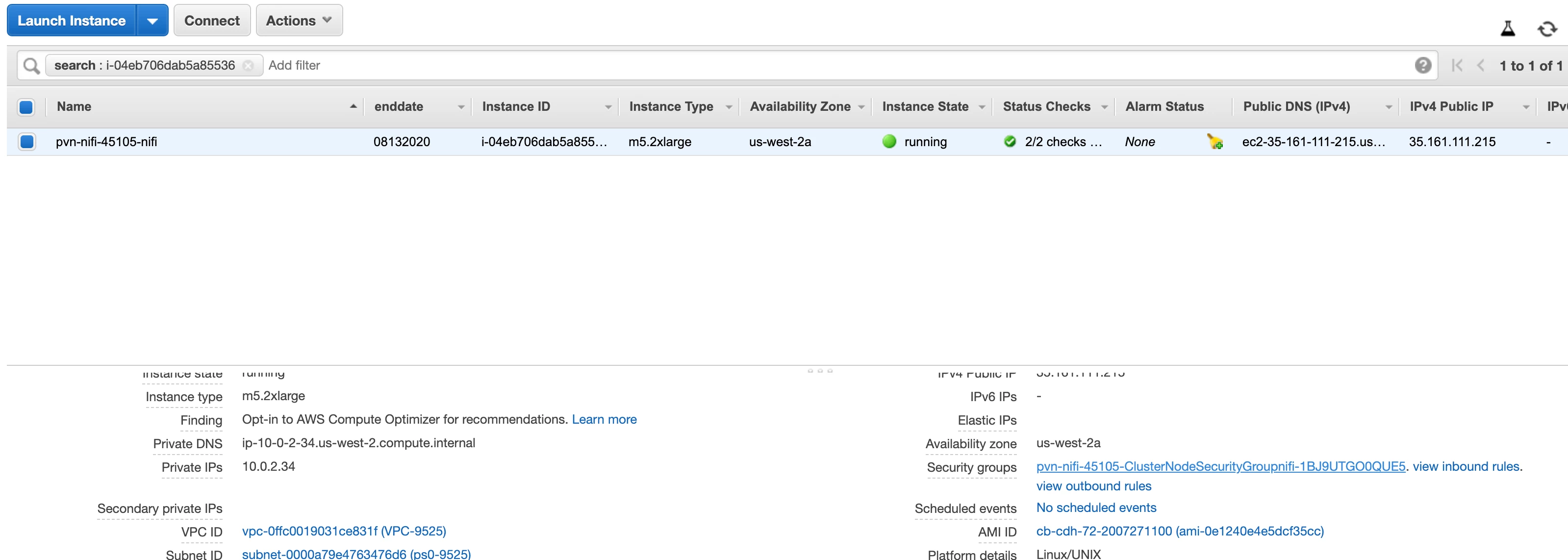

3. Click on the instances and you will be redirected to your cloud provider (here AWS😞

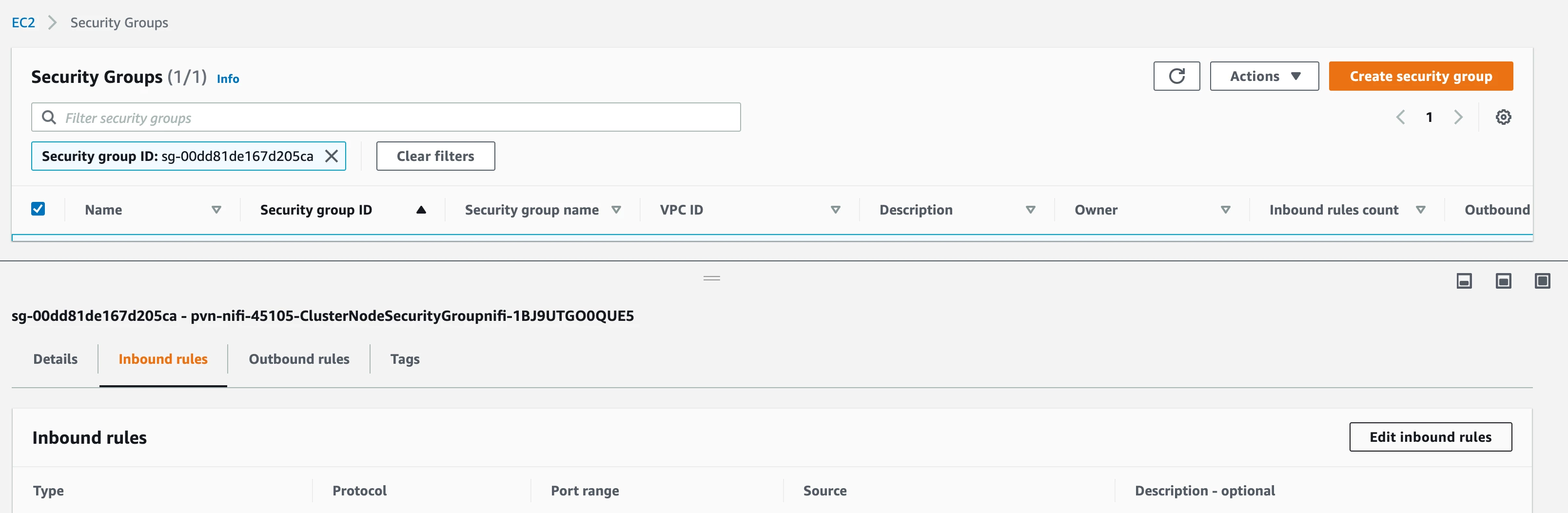

4. At the bottom of the screen, click on the security group associated with your instance, and you will be redirected to that security group config page:

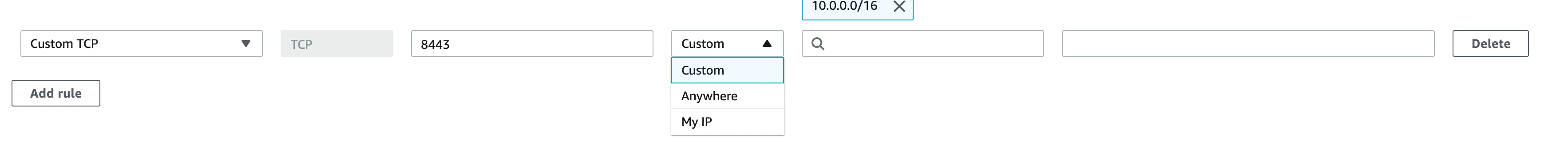

5. Click on Edit inbound rules and add a rule opening TCP port 8443 to your local IP:
6. Save these changes. 

Step 2: Download and configure stores on your local machine

1. Connect to one of the NiFi machines with the Cloudbreak user and the key you used at deployment:

   $ ssh -i [path_to_private_key] cloudbreak@[your_nifi_host]​

2. Copy and authorize the key and trust stores:

   $ sudo su
   $ cp /var/lib/cloudera-scm-agent/agent-cert/cm-auto-host_keystore.jks /tmp
   $ cp /var/lib/cloudera-scm-agent/agent-cert/cm-auto-global_truststore.jks /tmp
   $ chmod a+rw /tmp/cm-auto-host_keystore.jks
   $ chmod a+rw /tmp/cm-auto-global_truststore.jks​

3. Disconnect from the remote machine and copy these stores:

   $ cd ~/Desktop
   $ scp -i [path_to_private_key] cloudbreak@[your_nifi_host]:/tmp/cm-auto-host_keystore.jks cm-auto-host_keystore.jks
   $ scp -i [path_to_private_key] cloudbreak@[your_nifi_host]:/tmp/cm-auto-global_truststore.jks cm-auto-global_truststore.jks ​

4. Configure your local NiFi with these stores, by modifying your nifi.properties:

   nifi.security.keystore=/Users/pvidal/Desktop/cm-auto-host_keystore.jks
   nifi.security.keystoreType=JKS
   nifi.security.keystorePasswd=[keystore_pw]
   nifi.security.keyPasswd=[keystore_pw]
   nifi.security.truststore=/Users/pvidal/Desktop/cm-auto-global_truststore.jks
   nifi.security.truststoreType=JKS
   nifi.security.truststorePasswd=[truststore_pw]

   Note: To know the passwords of these stores, please connect with your Cloudera team.
5. Restart your local NiFi instance:

   nifi restart​

Step 3: Configure a simple site-to-site flow

Local instance

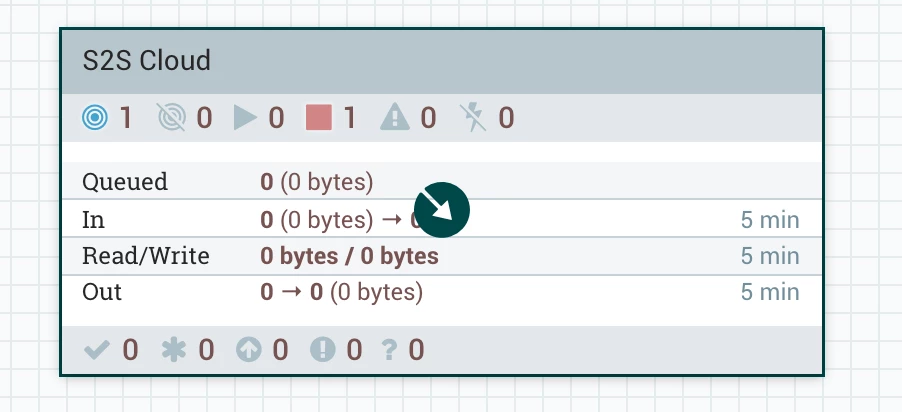

1. Create a process group to host your flow (here called S2S Cloud:

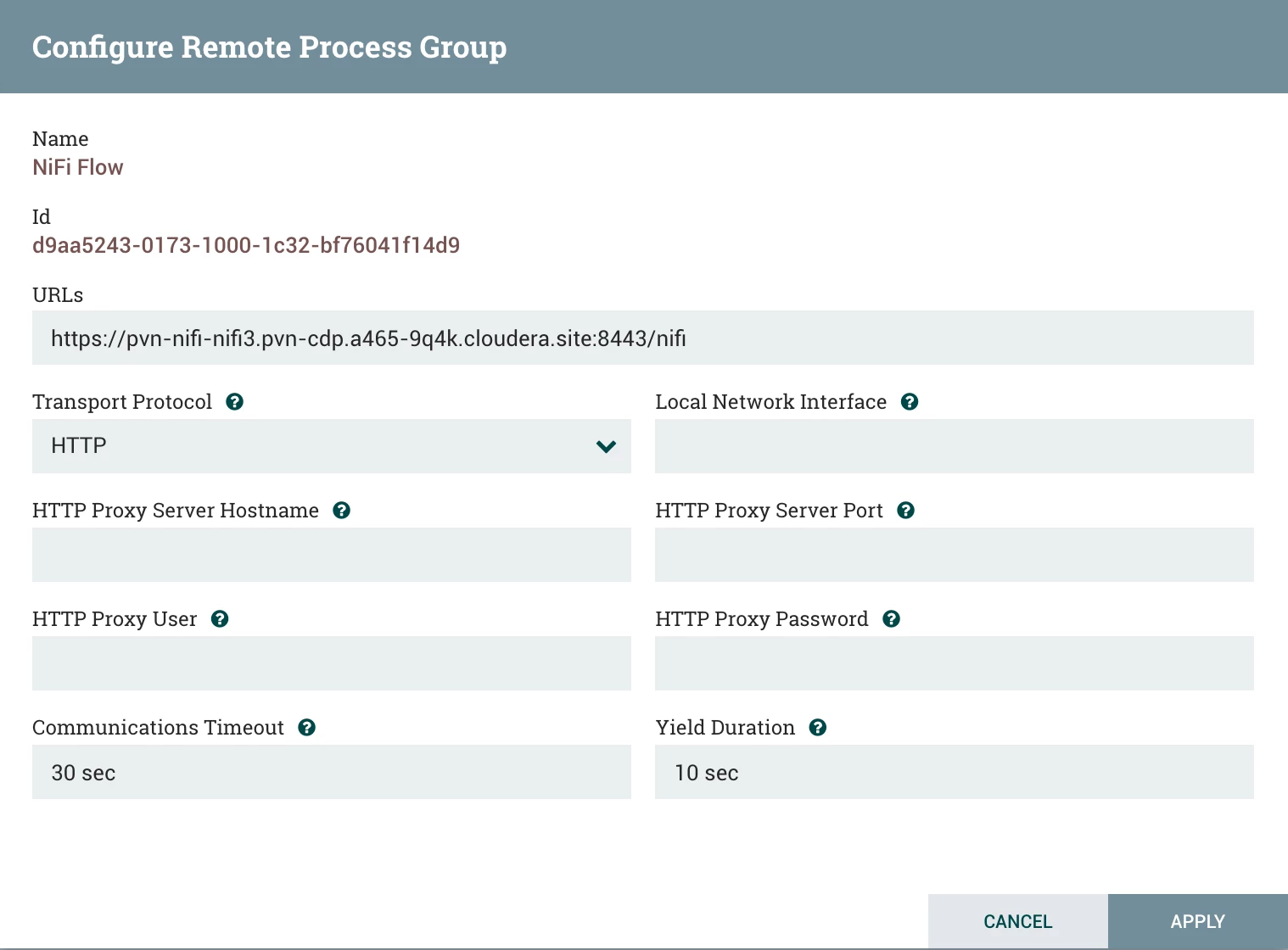

2. In this process group, create a remote process group instance and configure it with one of your cloud NiFi instances address, and the HTTP protocol:
3. Create a simple Generate flow file processor and connect it to the remote processor:
   Note: Without configuring Ranger, you will get a Forbidden warning (see step 4).

CDP Public Instance

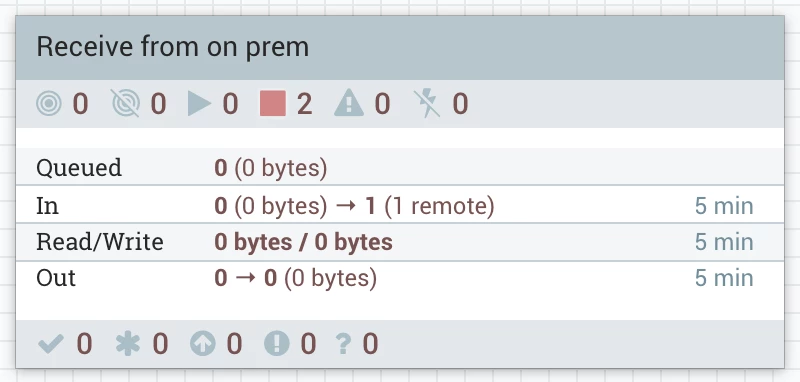

1. Create a process group to host your flow (here called Receive from on prem):

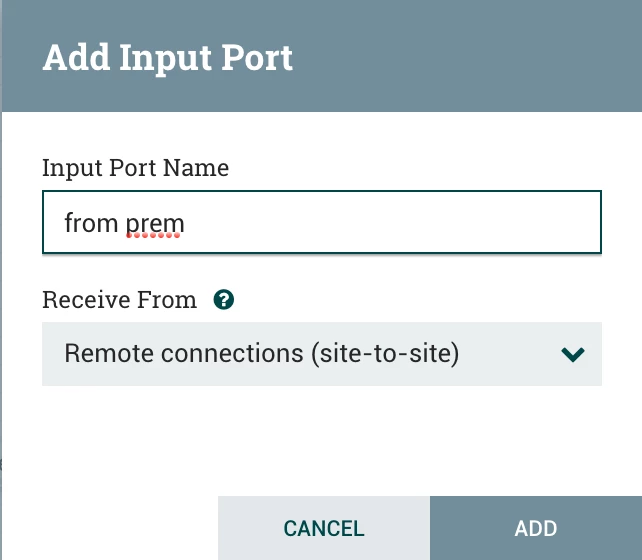

2. In this process group, create an input port accepting remote connections:

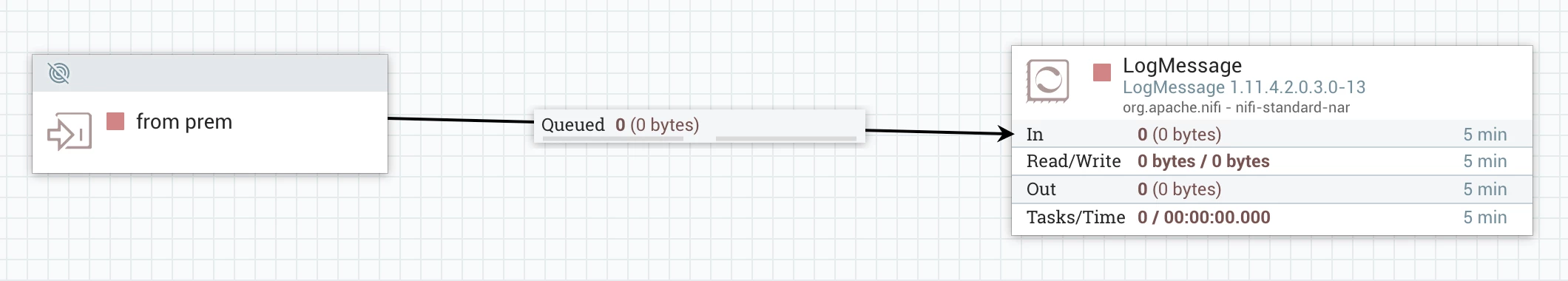

3. Finally, create a flow that takes the data and logs it:
4. Start your flow.

Step 4: Authorize this flow in Ranger

1. From the Cloudera Management console, go to Ranger and your NiFi service:

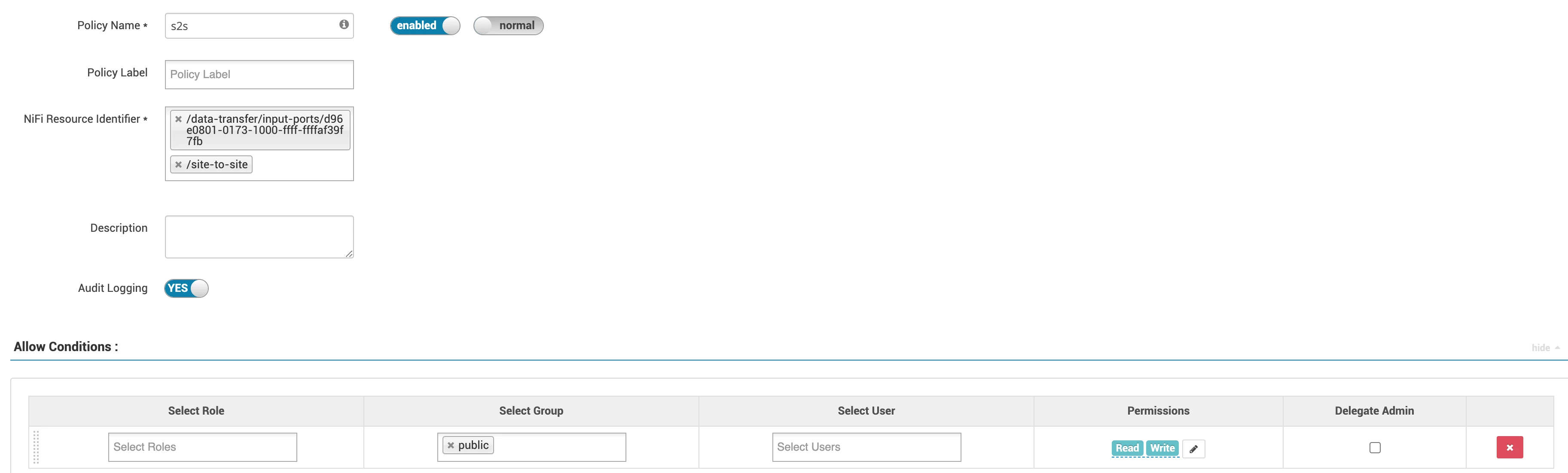

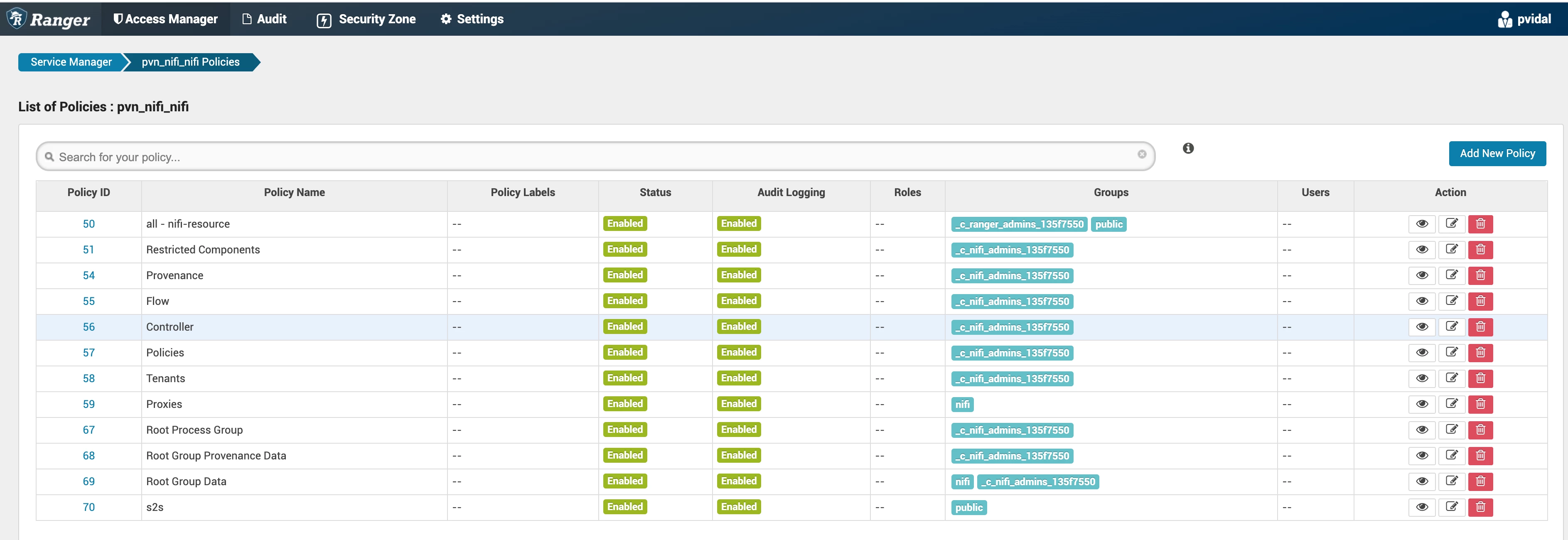

2. From the list of policies, create a new policy (here called s2s) that will allow access to your specific process group and the site-to-site protocol (Ranger does auto completion): 
3. Save this policy, and go back to your local machine; you can now enable the remote process group and start sending files!

Example of successful flows

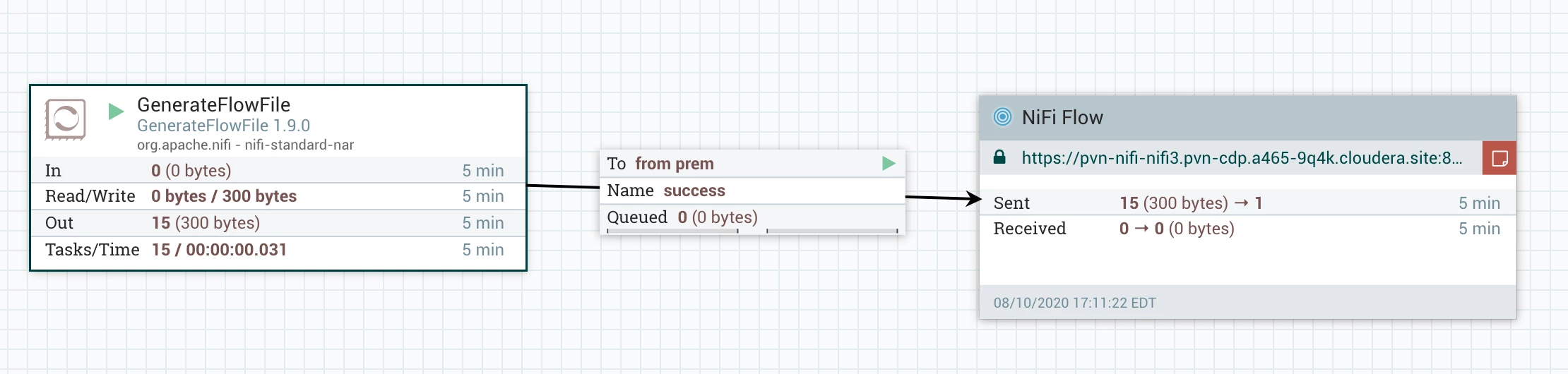

Local Flow
