Nifi : Failed to register with Flow Registry due to Error creating snapshot:

9 replies
6731 views
Translate All

Hello ,

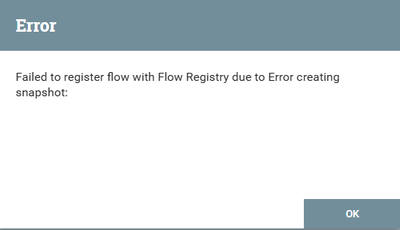

After importing flows from my Registry in Nifi , while I try to commit Local changes , I get this below error:

The logs for Nifi show the following :

Caused by: org.apache.nifi.registry.flow.FlowRegistryException: Error creating snapshot:
	at org.apache.nifi.registry.flow.NifiRegistryFlowRegistryClient.registerFlowSnapshot(NifiRegistryFlowRegistryClient.java:263)
	at org.apache.nifi.registry.flow.StandardFlowRegistryClientNode.lambda$registerFlowSnapshot$7(StandardFlowRegistryClientNode.java:254)
	at org.apache.nifi.registry.flow.StandardFlowRegistryClientNode.execute(StandardFlowRegistryClientNode.java:289)
	at org.apache.nifi.registry.flow.StandardFlowRegistryClientNode.registerFlowSnapshot(StandardFlowRegistryClientNode.java:254)
	at org.apache.nifi.web.StandardNiFiServiceFacade.registerVersionedFlowSnapshot(StandardNiFiServiceFacade.java:5306)
	... 142 common frames omitted
Caused by: org.apache.nifi.registry.client.NiFiRegistryException: Error creating snapshot:
	at org.apache.nifi.registry.client.impl.AbstractJerseyClient.executeAction(AbstractJerseyClient.java:117)
	at org.apache.nifi.registry.client.impl.JerseyFlowSnapshotClient.create(JerseyFlowSnapshotClient.java:74)
	at org.apache.nifi.registry.client.impl.JerseyFlowSnapshotClient.create(JerseyFlowSnapshotClient.java:55)
	at org.apache.nifi.registry.flow.NifiRegistryFlowRegistryClient.registerFlowSnapshot(NifiRegistryFlowRegistryClient.java:248)
	... 146 common frames omitted
Caused by: javax.ws.rs.NotAuthorizedException: HTTP 401 Unauthorized
	at org.glassfish.jersey.client.JerseyInvocation.convertToException(JerseyInvocation.java:942)
	at org.glassfish.jersey.client.JerseyInvocation.translate(JerseyInvocation.java:755)
	at org.glassfish.jersey.client.JerseyInvocation.lambda$invoke$1(JerseyInvocation.java:675)
	at org.glassfish.jersey.client.JerseyInvocation.call(JerseyInvocation.java:697)
	at org.glassfish.jersey.client.JerseyInvocation.lambda$runInScope$3(JerseyInvocation.java:691)
	at org.glassfish.jersey.internal.Errors.process(Errors.java:292)
	at org.glassfish.jersey.internal.Errors.process(Errors.java:274)
	at org.glassfish.jersey.internal.Errors.process(Errors.java:205)
	at org.glassfish.jersey.process.internal.RequestScope.runInScope(RequestScope.java:390)
	at org.glassfish.jersey.client.JerseyInvocation.runInScope(JerseyInvocation.java:691)
	at org.glassfish.jersey.client.JerseyInvocation.invoke(JerseyInvocation.java:674)
	at org.glassfish.jersey.client.JerseyInvocation$Builder.method(JerseyInvocation.java:450)
	at org.glassfish.jersey.client.JerseyInvocation$Builder.post(JerseyInvocation.java:351)
	at org.apache.nifi.registry.client.impl.JerseyFlowSnapshotClient.lambda$create$0(JerseyFlowSnapshotClient.java:81)
	at org.apache.nifi.registry.client.impl.AbstractJerseyClient.executeAction(AbstractJerseyClient.java:103)
	... 149 common frames omitted

Not sure what is missing .

Please let me know what information is needed so that it can make the issue more clear.

Thanks!

MattWhoAnswer

Titanium ⭐️⭐️⭐️

@sha257

Reviewing all your configuration files is not the first step here. I suspect your MutualTLS exchange between your NiFi and NiFi-Registry is not successful resulting in that connection resulting as "anonymous" user. (the user you see in the NIFi-Registry UI in upper right corner before you click login to access as a different authenticated user.

Put the following class in DEBUG on your NiFi-Registry via the logback.xml:org.apache.nifi.registry.web.security.authentication

Start tailing the nifi-registry-app.log
You'll start seeing some DEBUG log lines (will be noisy)

Then attempt to start version control on some process group in NiFi which will open the version control UI n NiFi.

In the nifi-registry-app.log at that moment in time you will see one of two things:

2025-04-10 13:54:53,360 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using X509IdentityProvider
2025-04-10 13:54:53,361 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Adding credentials claim to SecurityContext to be authenticated. Credentials extracted by X509IdentityProvider: AuthenticationRequest{username='<NIFI certificate DN>', credentials=[PROTECTED], details=org.apache.nifi.registry.web.security.authentication.x509.X509AuthenticationRequestDetails@713e0007}

above tells you NiFi presented a trusted and clientAuth certificate at you will see that certificate's DN. In this case make sure that DN exists as a user in NiFi-Registry (case sensitive) and give that user read on "Can manage Buckets" and read, write, delete on "Can proxy user requests".

or you'll see....

2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using X509IdentityProvider
2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.x509.X509CertificateExtractor: No client certificate found in request.
2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using JwtIdentityProvider
2025-04-10 14:01:24,163 DEBUG org.apache.nifi.registry.web.security.authentication.AnonymousIdentityFilter: Set SecurityContextHolder to anonymous SecurityContext

Above tells you the mutualTLS exchange was not successful and the connection was established as the "anonymous" user. In this case you need to address your certificate issue so that mutualTLS can be successful.

Please help our community grow. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.

Thank you,
Matt

MattWho

Titanium ⭐️⭐️⭐️

@sha257

You should always share your NiFi and NiFi-Registry versions when asking questions to help narrow focus.

From the exception you shared it shows a 401 unauthorized exception as reason why you can not commit your local changes as a new version in NiFi-Registry bucket

This indicates that your NiFi user only has read access on that bucket allowing that user to import the dataflow from NiFi-Registry to NiFi but not authorized to commit (write) new version back to NiFi-Registry for that dataflow.

If the bucket was added as a publicly visible bucket, all users can import flows from that bucket to the NiFi canvas. A publicly visible bucket allows everyone including anonymous user read access.

A public bucket still requires proper authorizations are setup in order to Write (start version control or commit new version of an already version controlled flow) to it.

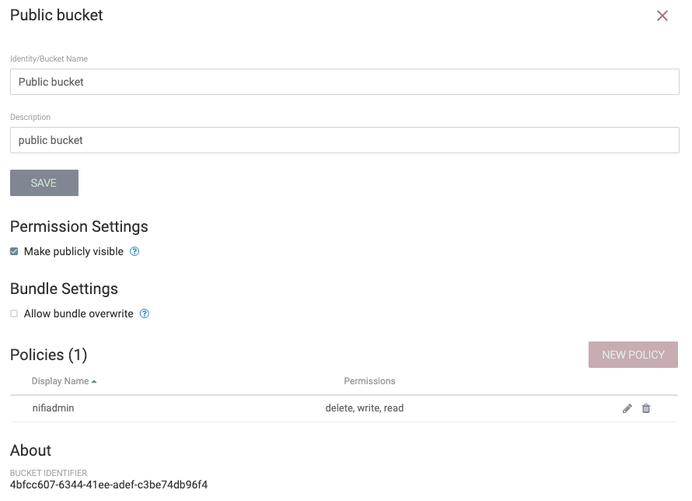

When the "make publicly visible" option os NOT checked on the bucket. Explicit policies must exist for any user to Read (download flows from bucket), Write (start version control or commit new version of a flow to the bucket), or DELETE (delete a flow from the bucket).

Thank you,
Matt

Translate

sha257Author

Gold ⭐️

Hello @MattWho ,

Thank you for your response . My Nifi Registry and Nifi Versions are as follows :

Nifi - 1.26.0
Nifi Registry - 1.27.0

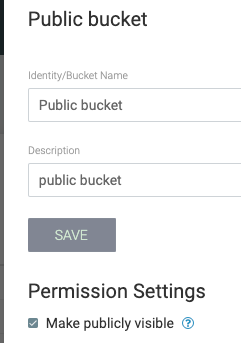

The bucket I have is publicly visible :

and I am still not able to make any commits to it .

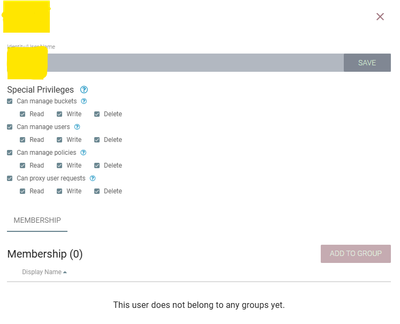

The user that I am logged in with in my Nifi Registry also has these privliges :

and I am not sure why I still can't make any changes or commits.

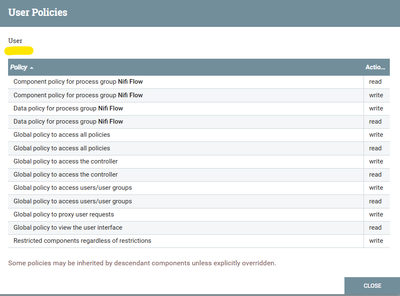

and here are the permissions for the same user for Nifi

Could you please help me identify what exactly I might be missing ?

Thanks!

Translate

MattWho

Titanium ⭐️⭐️⭐️

@sha257

Your bucket having "Make Publicly Visible" checked is why you can load flows from this bucket on to your NiFi canvas.

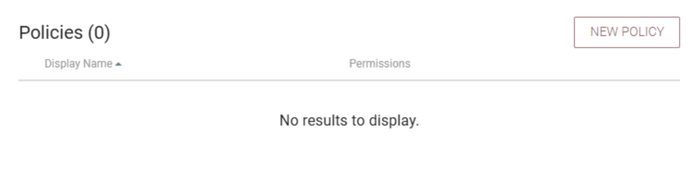

I see from that same screenshot you have not defined any policies on that bucket yet:

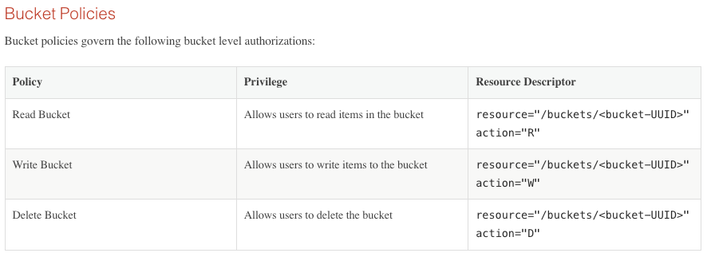

Refer to NiFi-Registry Access Policies to understand more about the policies setup on buckets and globally within NiFi-Registry.

The fact that this bucket is marked as publicly visible ONLY gives all users/clients "READ". So your user is still not allowed to Write to the bucket which would be required to commit a new version of a flow which you are trying to do.

I also see that you gave your user all the global Special Privilege Polices. A NiFi user would never "Proxy Requests". The NiFi nodes/instances themselves will proxy requests to NiFi-Registry on-behalf of the NiFi user identity authenticated in NiFi that is attempting to facilitate any version control action in NiFi directed at this NiFi-Registry client. So make sure your NiFi nodes are properly added to "Can proxy Requests" Special Privilege Policy.

The next question is when you log into your NiFi as your user and log into your NiFi-Registry as the same user, is the EXACT same user identity string displayed in the upper right corner of the UI? If they are different in any way (including case sensitivity), then they would be treated as different users by each service. If different, you'll need to make adjustments to your configurations so that they are the same.

Please help our community grow and thrive. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.

Thank you,
Matt

Translate

sha257Author

Gold ⭐️

Hello @MattWho ,

Here are some changes and details that I would like to mention after your above answer.

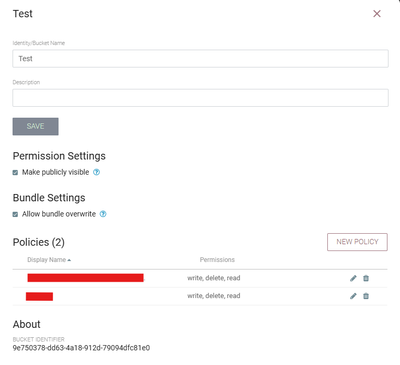

In this screenshot , the second user is the user that I am logged in as - let's say the user is abc123.

and I do see in my authorizations.xml that this user has the correct permissions assigned to the bucket policy :

$ cat users.xml
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<tenants>
    <groups/>
    <users>
        <user identifier="71b266f5-7764-3ff5-a812-80112278b50c" identity="abc123"/>
        <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7" identity="CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net"/>
    </users>
</tenants>
$ cat authorizations.xml
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<authorizations>
    <policies>
        <policy identifier="3ee4703f-94ca-33c2-8060-17f5d313f560" resource="/actuator" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="15e4e0bd-cb28-34fd-8587-f8d15162cba5" resource="/tenants" action="W">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="6dbdbffd-8a7d-32e1-ba3e-f600e6c69791" resource="/proxy" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="627410be-1717-35b4-a06f-e9362b89e0b7" resource="/tenants" action="R">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="01b87cb5-c0b6-342d-b108-d8bc03ab5cde" resource="/policies" action="D">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="dfbf3c51-fdec-3328-b169-3b54eb033147" resource="/buckets" action="W">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="d59a54f7-6dd6-34ad-a279-a26ffdb9eef8" resource="/proxy" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="2f470357-e82c-38ee-8062-ab6388d6ec75" resource="/actuator" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="ad99ea98-3af6-3561-ae27-5bf09e1d969d" resource="/policies" action="W">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="05b96464-9ec8-312a-8459-67812a8b48c1" resource="/buckets" action="D">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="287edf48-da72-359b-8f61-da5d4c45a270" resource="/proxy" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="2fd3fcf5-b10f-33fa-8d8e-b262fa34815e" resource="/actuator" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="cf4d8390-5ac7-3ff0-82ce-a274b5f88b21" resource="/swagger" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="2dbc92a2-b091-3616-8e88-5078b9103b04" resource="/tenants" action="D">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="ff96062a-fa99-36dc-9942-0f6442ae7212" resource="/policies" action="R">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="9d182b11-ebe3-3a7a-8731-98ce6d6e44fd" resource="/buckets" action="R">
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="0eaa47b9-e409-304e-8682-30d1b0d86d05" resource="/swagger" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="ac587f43-6e1c-3890-81fd-83b4df2e678e" resource="/swagger" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="8c131406-609c-4a52-b4bf-d25687dd5085" resource="/buckets/087b5af2-4e50-4eb9-abc5-6f99cd0af51b" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="522d7a96-b401-4ea7-a70b-4d2fbd76a83d" resource="/buckets/087b5af2-4e50-4eb9-abc5-6f99cd0af51b" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="4b8c71d6-6d4a-43ee-b893-13239fea0876" resource="/buckets/087b5af2-4e50-4eb9-abc5-6f99cd0af51b" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="c7ed56c5-36ad-4a3d-9c07-d47ef2589867" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="de95d93c-78d3-4697-b833-cee96771dbfd" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="7bde6e0b-3b04-4748-b864-87b04e5b41c3" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
    </policies>
</authorizations>

2. Checked the Nifi user as well to ensure case sensitivity and it is the same user i.e. abc123.

Even after this I am getting the same error 😞

Is there something else I might need to check or verify ?

Thanks for all you help and suggestions on this topic , in advance.

Translate

MattWho

Titanium ⭐️⭐️⭐️

@sha257

It appears from the authorizations.xml file you shared, your issue is also affected by your NiFi node(s) not being authorized to /proxy (Read, Write, Delete) in NiFi-Registry that I mentioned in my earlier response.

I see only user identifier:

71b266f5-7764-3ff5-a812-80112278b50c

Which from your users.xml is your "abc123" user identity.

So when the NiFi node attempts to proxy a request on behalf of the user identity authenticated in NiFi, the NiFi node's clientAuth certificate is passed in the connection to NiFi-Registry to authenticate the node and the is checked fro proxy. If that mutual TLS exchange is not successful. the node connects as anonymous (which only has read on public buckets).

There are multiple layers here. When you setup the NiFi Flow Registry in NiFi, It gives you the option to define a StandardSSL Context Service. The keystore and truststore defined are used in that mutualTLS exchange. When you don't define a StandardSSLContext Service, NiFi will default t using the keystore and truststore defined in the nifi.properties file.

Thank you,
Matt

Translate

sha257Author

Gold ⭐️

Hello @MattWho ,

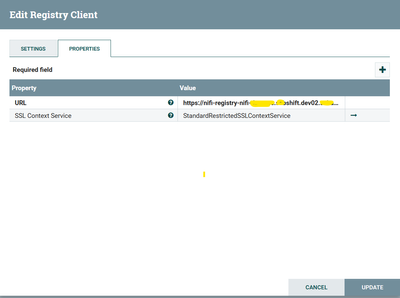

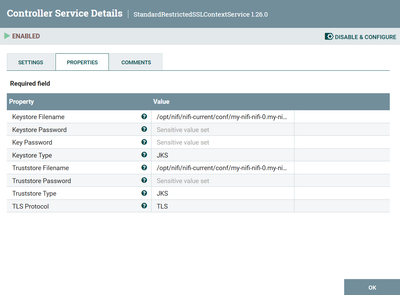

I have the StandardSSLContext Service defined as mentioned and I am unable to pinpoint where exactly I might be lacking the setup .

Do you mind if I send you my properties , users.xml , authorizations.xml and authorizers.xml for both Nifi and Registry for you to review ?

I would really appreciate your help and time on this.

Thanks in advance !

Translate

MattWho

Titanium ⭐️⭐️⭐️

@sha257

You already shared your authorizations.xml file which shows where you are lacking the needed NiFi node certificate authorization for proxy user requests.

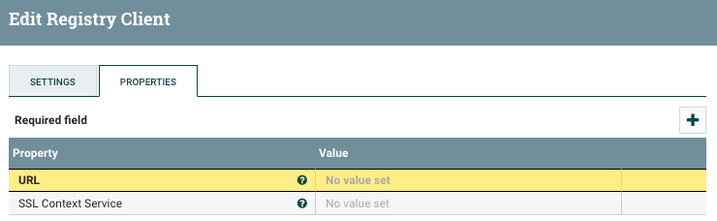

NiFi will attempt connect to NiFi-Registry using the NifiRegistryFlowRegistryClient setup in NiFi. The NifiRegistryFlowRegistryClient has two configuration properties:

The URL is set to "https://<NiFi-Registry Hostname>:<NiFi-Registry-port>/"

The SSL Context Service if NOT set will use the keystore and truststore setup in the nifi.properties file. The keystore and truststore used (whethere defined via an SSL Context Service or using those from nifi.properties file MUST be capable of successfully negotiating a MutualTLS exchange between the NifiRegistryFlowRegistryClient and NiFi-Registry. This means the ClientAuth Private key in the keystore must be trusted by the truststore configured in NiFi-Registry.properties file. This also means the ClientAuth PrivateKey entry in the NiFi-Registtry keystore file must be trusted by the truststore in the NifiRegistryFlowRegistryClient. If this mutualTS exchange is not successful, the connection with your NiFi-Registry will be as the "anonymous" user identity.

You could use the output from openssl to see if mutualTLS connection would be possible by looking at output from both below:

openssl s_client -connect <nifi-registry-hostname>:<nifi-regsitry-port> -showcerts

openssl s_client -connect <nifi-hostname>:<nifi-port> -showcerts

Above assume your NifiRegistryFlowRegistryClient is using the same keystore and truststored used in the nifi.properties file.

Alternatively, you could get the verbose listing from your NifiRegistryFlowRegistryClient configured keystore and trustore and compare those with the openssl output from NiFi-Registry to validate if a mutualTLS connection is possible.

------------------------------

Assuming above is all good, then you need to verify proper authorizations are setup to allow the NifiRegistryFlowRegistryClient client identity (derived from the privateKeyEntry DN from the NifiRegistryFlowRegistryClient keystore) has the proper authorizations setup in NiFi-Registry.

The NifiRegistryFlowRegistryClient keystore PrivateKey DN must eb authorized in NiFi-Registry for the following policies:

"Can Manage buckets" (Read)
"Can proxy user requests" (Read, Write, Delete)

Above allows the NifiRegistryFlowRegistryClient to be able to see all the NiFi-Registry buckets and to make Read, Write, or Delete request on behalf of the user identity (user string shown in upper right corner of NiFi Ui) authenticated in NiFi.

Once above is all good, we move on to what permissions the NiFi user that is being proxied needs in NiFi-Registry.
The user identity need to be authorized on each bucket from which or two which flow definitions will be read or written.

Here is a Sample public bucket ("Make publicly Visible" is checked):

Since this bucket as "Make publicly Visible" checked, any user identity and anonymous users can read all flow definitions added to this bucket (This is what allowed you to import a flow definition from your public bucket to your NiFi canvas).

You'll also notice that I have authorized by "nifiadmin" user identity read, write, delete on this bucket. This allows my "nifiadmin" user identity to add or update (write) flow definitions into this bucket and delete flow definitions from this bucket.

From what you shared via the authorizations.xml, you have authorized "abc123" user identity read, write, delete on your public bucket. So only thing to verify here is that "abc123" user identity is the exact same case sensitive user identity being displayed in the upper right corner of your NiFi UI when you are authenticated into your NiFi. If they don't match then they are treated as different users. It is the user identity shown in your NiFi that is being proxied and needs to be properly authorized in NiFi-Registry as above example. (I know "abc123" is an example, but you get the idea here).

Thank you,
Matt

Translate

sha257Author

Gold ⭐️

Hello @MattWho ,

I have checked all of it that you had mentioned above . I am resending details of settings , xmls and properties from both Nifi and Registry again ( apologies for the spam ), as I am unable to pinpoint again on what must be missing .

Like you mentioned , I had also checked the case sensitivity of the user logged in to Nifi and Registry and they both are lower case - abc123

Here are most of the details :

Nifi users.xml :

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<tenants>
    <groups>
        <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec" name="memberof=CN=AG-X-XYZ-ADMIN,OU=Groups,DC=corp1,DC=ad1,DC=xyz,DC=net">
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8ccd5a2b-0193-1000-4ab1-a90c6292086f"/>
            <user identifier="8cccdcb8-0193-1000-c8ca-fc550eb2368e"/>
            <user identifier="8ccd3e00-0193-1000-f318-d02a5817402c"/>
            <user identifier="8cccbea3-0193-1000-7d5a-790b03ecaa72"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="8ccb756b-0193-1000-36c1-676c733ee3f4"/>
            <user identifier="8ccd0338-0193-1000-5e4e-bc0ad2bf0cc5"/>
            <user identifier="8ccd920f-0193-1000-95fc-afd6e39bd27c"/>
        </group>
    </groups>
    <users>
        <user identifier="63542e71-d360-309e-bbca-29a1f8484f71" identity="CN=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local, OU=NIFI"/>
        <user identifier="71b266f5-7764-3ff5-a812-80112278b50c" identity="abc123"/>
        <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7" identity="CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net"/>
        <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034" identity="xxxx"/>
        <user identifier="8ccb756b-0193-1000-36c1-676c733ee3f4" identity="xxxxx"/>
        <user identifier="8cccbea3-0193-1000-7d5a-790b03ecaa72" identity="xxxxx"/>
        <user identifier="8cccdcb8-0193-1000-c8ca-fc550eb2368e" identity="xxxxx"/>
        <user identifier="8ccd0338-0193-1000-5e4e-bc0ad2bf0cc5" identity="xxxxx"/>
        <user identifier="8ccd3e00-0193-1000-f318-d02a5817402c" identity="xxxx"/>
        <user identifier="8ccd5a2b-0193-1000-4ab1-a90c6292086f" identity="xxxx"/>
        <user identifier="8ccd920f-0193-1000-95fc-afd6e39bd27c" identity="xxxx"/>
    </users>
</tenants>

Nifi authorizations.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<authorizations>
    <policies>
        <policy identifier="f99bccd1-a30e-3e4a-98a2-dbc708edc67f" resource="/flow" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="7c6a8bf7-f3b9-3358-93fa-6fc92946faf0" resource="/data/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="bc9687e9-e400-3faf-a6bc-7c1b832fc5da" resource="/data/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="d20889de-aa8b-3dcc-af5b-c74f2c25b312" resource="/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="02b1a385-2009-3e03-a6d7-75932f74ada6" resource="/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="b8775bd4-704a-34c6-987b-84f2daf7a515" resource="/restricted-components" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="627410be-1717-35b4-a06f-e9362b89e0b7" resource="/tenants" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="15e4e0bd-cb28-34fd-8587-f8d15162cba5" resource="/tenants" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="ff96062a-fa99-36dc-9942-0f6442ae7212" resource="/policies" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="ad99ea98-3af6-3561-ae27-5bf09e1d969d" resource="/policies" action="W">
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="2e1015cb-0fed-3005-8e0d-722311f21a03" resource="/controller" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="c6322e6c-4cc1-3bcc-91b3-2ed2111674cf" resource="/controller" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="287edf48-da72-359b-8f61-da5d4c45a270" resource="/proxy" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="8cb0d156-0193-1000-f1d3-58b578d23034"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="146d0981-0196-1000-dc6e-268a25ba7981" resource="/system" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="146e2f51-0196-1000-06fe-a958f1c51bd8" resource="/operation/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="146e8d91-0196-1000-0a8b-4bdc21fa740e" resource="/provenance-data/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="146ee2a6-0196-1000-aff9-e35ac785ee2d" resource="/policies/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="146f051f-0196-1000-e187-583ca921ef04" resource="/policies/process-groups/6f07a80f-74d5-4afb-af54-33ce83614c77" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="1474e76d-0196-1000-7cf9-4e32bc935836" resource="/site-to-site" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7"/>
        </policy>
        <policy identifier="151f93c6-0196-1000-8780-1704f131b085" resource="/policies/process-groups/8cc5b2d7-0193-1000-36d4-f55e83a2fdae" action="W"/>
        <policy identifier="1a81dafe-0196-1000-0758-350e8775bb16" resource="/process-groups/8cc5b2d7-0193-1000-36d4-f55e83a2fdae" action="R">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="1a82349c-0196-1000-af5b-1921a344af72" resource="/process-groups/8cc5b2d7-0193-1000-36d4-f55e83a2fdae" action="W">
            <group identifier="8cb5071f-0193-1000-db62-10da8b6cddec"/>
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="1a8267d3-0196-1000-347a-f914bff2136f" resource="/operation/process-groups/8cc5b2d7-0193-1000-36d4-f55e83a2fdae" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="1a8564c1-0196-1000-2461-0571b2f24d7c" resource="/counters" action="R"/>
    </policies>
</authorizations>

Nifi Properties :

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Core Properties #
nifi.flow.configuration.file=../data/flow.xml.gz
nifi.flow.configuration.archive.enabled=true
nifi.flow.configuration.archive.dir=../data/archive/
nifi.flow.configuration.archive.max.time=30 days
nifi.flow.configuration.archive.max.storage=500 MB
nifi.flow.configuration.archive.max.count=
nifi.flowcontroller.autoResumeState=true
nifi.flowcontroller.graceful.shutdown.period=10 sec
nifi.flowservice.writedelay.interval=500 ms
nifi.administrative.yield.duration=30 sec
# If a component has no work to do (is "bored"), how long should we wait before checking again for work?
nifi.bored.yield.duration=10 millis

nifi.authorizer.configuration.file=./conf/authorizers.xml
nifi.login.identity.provider.configuration.file=./conf/login-identity-providers.xml
nifi.templates.directory=../data/templates
nifi.ui.banner.text=my-nifi-0
nifi.ui.autorefresh.interval=30 sec
nifi.nar.library.directory=./lib
nifi.nar.library.directory.custom=
nifi.nar.library.autoload.directory=./extensions
nifi.nar.working.directory=./work/nar/
nifi.documentation.working.directory=./work/docs/components

####################
# State Management #
####################
nifi.state.management.configuration.file=./conf/state-management.xml
# The ID of the local state provider
nifi.state.management.provider.local=local-provider
# The ID of the cluster-wide state provider. This will be ignored if NiFi is not clustered but must be populated if running in a cluster.
nifi.state.management.provider.cluster=zk-provider
# Specifies whether or not this instance of NiFi should run an embedded ZooKeeper server
nifi.state.management.embedded.zookeeper.start=false
# Properties file that provides the ZooKeeper properties to use if <nifi.state.management.embedded.zookeeper.start> is set to true
nifi.state.management.embedded.zookeeper.properties=./conf/zookeeper.properties


# H2 Settings
nifi.database.directory=../data/database_repository
nifi.h2.url.append=;LOCK_TIMEOUT=25000;WRITE_DELAY=0;AUTO_SERVER=FALSE

# FlowFile Repository
nifi.flowfile.repository.implementation=org.apache.nifi.controller.repository.WriteAheadFlowFileRepository
nifi.flowfile.repository.directory=../flowfile_repository
nifi.flowfile.repository.partitions=256
nifi.flowfile.repository.checkpoint.interval=2 mins
nifi.flowfile.repository.always.sync=false

nifi.swap.manager.implementation=org.apache.nifi.controller.FileSystemSwapManager
nifi.queue.swap.threshold=20000
nifi.swap.in.period=5 sec
nifi.swap.in.threads=1
nifi.swap.out.period=5 sec
nifi.swap.out.threads=4

# Content Repository
nifi.content.repository.implementation=org.apache.nifi.controller.repository.FileSystemRepository
nifi.content.claim.max.appendable.size=1 MB
nifi.content.claim.max.flow.files=100
nifi.content.repository.directory.default=../content_repository
nifi.content.repository.archive.max.retention.period=3 days
nifi.content.repository.archive.max.usage.percentage=85%
nifi.content.repository.archive.enabled=true
nifi.content.repository.always.sync=false
nifi.content.viewer.url=/nifi-content-viewer/

# Provenance Repository Properties
nifi.provenance.repository.implementation=org.apache.nifi.provenance.WriteAheadProvenanceRepository
nifi.provenance.repository.debug.frequency=1000000
nifi.provenance.repository.encryption.key.provider.implementation=
nifi.provenance.repository.encryption.key.provider.location=
nifi.provenance.repository.encryption.key.id=
nifi.provenance.repository.encryption.key=

# Persistent Provenance Repository Properties
nifi.provenance.repository.directory.default=../provenance_repository
nifi.provenance.repository.max.storage.time=10 days
nifi.provenance.repository.max.storage.size=8 GB
nifi.provenance.repository.rollover.time=30 secs
nifi.provenance.repository.rollover.size=100 MB
nifi.provenance.repository.query.threads=2
nifi.provenance.repository.index.threads=2
nifi.provenance.repository.compress.on.rollover=true
nifi.provenance.repository.always.sync=false
nifi.provenance.repository.journal.count=16
# Comma-separated list of fields. Fields that are not indexed will not be searchable. Valid fields are:
# EventType, FlowFileUUID, Filename, TransitURI, ProcessorID, AlternateIdentifierURI, Relationship, Details
nifi.provenance.repository.indexed.fields=EventType, FlowFileUUID, Filename, ProcessorID, Relationship
# FlowFile Attributes that should be indexed and made searchable.  Some examples to consider are filename, uuid, mime.type
nifi.provenance.repository.indexed.attributes=
# Large values for the shard size will result in more Java heap usage when searching the Provenance Repository
# but should provide better performance
nifi.provenance.repository.index.shard.size=500 MB
# Indicates the maximum length that a FlowFile attribute can be when retrieving a Provenance Event from
# the repository. If the length of any attribute exceeds this value, it will be truncated when the event is retrieved.
nifi.provenance.repository.max.attribute.length=65536

# Volatile Provenance Respository Properties
nifi.provenance.repository.buffer.size=100000

# Component Status Repository
nifi.components.status.repository.implementation=org.apache.nifi.controller.status.history.VolatileComponentStatusRepository
nifi.components.status.repository.buffer.size=1440
nifi.components.status.snapshot.frequency=1 min

# Site to Site properties
nifi.remote.input.host=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local
nifi.remote.input.secure=true
nifi.remote.input.socket.port=10000
nifi.remote.input.http.enabled=true
nifi.remote.input.http.transaction.ttl=30 sec
nifi.remote.contents.cache.expiration=30 secs

# web properties #
nifi.web.war.directory=./lib
nifi.web.proxy.host=my-nifi-nifi-server.xyzshift.dev02.xyz.se:443
nifi.web.https.port=8443
nifi.web.http.host=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local
nifi.web.http.network.interface.default=eth0
nifi.web.https.host=
nifi.web.https.network.interface.default=
nifi.web.jetty.working.directory=./work/jetty
nifi.web.jetty.threads=200
# nifi.web.proxy.context.path=

# security properties #
nifi.sensitive.props.key=xxxxxxxxxxxxxxxxxxxxxx
nifi.sensitive.props.key.protected=
nifi.sensitive.props.algorithm=NIFI_PBKDF2_AES_GCM_256
nifi.sensitive.props.provider=BC
nifi.sensitive.props.additional.keys=


nifi.security.keystore=/opt/nifi/nifi-current/conf/my-nifi-nifi-0.my-nifi-nifi-headless.nifi-server.svc.cluster.local/keystore.jks
nifi.security.keystoreType=jks
nifi.security.keystorePasswd=xxxxxxxxxxx
nifi.security.keyPasswd=xxxxxxxxxxx
nifi.security.truststore=/opt/nifi/nifi-current/conf/my-nifi-nifi-0.my-nifi-nifi-headless.nifi-server.svc.cluster.local/truststore.jks
nifi.security.truststoreType=jks
nifi.security.truststorePasswd=xxxxxxxxxxx
proxiedEntity=CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net
nifi.security.user.authorizer=managed-authorizer
nifi.security.user.login.identity.provider=ldap-provider

nifi.security.needClientAuth=




# Apache Knox SSO Properties #
nifi.security.user.knox.url=
nifi.security.user.knox.publicKey=
nifi.security.user.knox.cookieName=hadoop-jwt
nifi.security.user.knox.audiences=

# Identity Mapping Properties #
# These properties allow normalizing user identities such that identities coming from different identity providers
# (certificates, LDAP, Kerberos) can be treated the same internally in NiFi. The following example demonstrates normalizing
# DNs from certificates and principals from Kerberos into a common identity string:
#
# nifi.security.identity.mapping.pattern.dn=^CN=(.*?), OU=(.*?), O=(.*?), L=(.*?), ST=(.*?), C=(.*?)$
# nifi.security.identity.mapping.value.dn=$1@$2
# nifi.security.identity.mapping.pattern.kerb=^(.*?)/instance@(.*?)$
# nifi.security.identity.mapping.value.kerb=$1@$2

# cluster common properties (all nodes must have same values) #
nifi.cluster.protocol.heartbeat.interval=5 sec
nifi.cluster.protocol.is.secure=true

# cluster node properties (only configure for cluster nodes) #
nifi.cluster.is.node=false
nifi.cluster.node.address=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local
nifi.cluster.node.protocol.port=6007
nifi.cluster.node.protocol.threads=10
nifi.cluster.node.protocol.max.threads=50
nifi.cluster.node.event.history.size=25
nifi.cluster.node.connection.timeout=5 sec
nifi.cluster.node.read.timeout=5 sec
nifi.cluster.node.max.concurrent.requests=100
nifi.cluster.firewall.file=
nifi.cluster.flow.election.max.wait.time=1 mins
nifi.cluster.flow.election.max.candidates=

# zookeeper properties, used for cluster management #
nifi.zookeeper.client.ensembleTracker=false
nifi.zookeeper.connect.string=:2181
nifi.zookeeper.connect.timeout=3 secs
nifi.zookeeper.session.timeout=3 secs
nifi.zookeeper.root.node=/nifi

# Zookeeper properties for the authentication scheme used when creating acls on znodes used for cluster management
# Values supported for nifi.zookeeper.auth.type are "default", which will apply world/anyone rights on znodes
# and "sasl" which will give rights to the sasl/kerberos identity used to authenticate the nifi node
# The identity is determined using the value in nifi.kerberos.service.principal and the removeHostFromPrincipal
# and removeRealmFromPrincipal values (which should align with the kerberos.removeHostFromPrincipal and kerberos.removeRealmFromPrincipal
# values configured on the zookeeper server).
nifi.zookeeper.auth.type=
nifi.zookeeper.kerberos.removeHostFromPrincipal=
nifi.zookeeper.kerberos.removeRealmFromPrincipal=

# kerberos #
nifi.kerberos.krb5.file=/etc/hadoop/krb5.conf

# kerberos service principal #
nifi.kerberos.service.principal=
nifi.kerberos.service.keytab.location=

# kerberos spnego principal #
nifi.kerberos.spnego.principal=
nifi.kerberos.spnego.keytab.location=
nifi.kerberos.spnego.authentication.expiration=12 hours

# external properties files for variable registry
# supports a comma delimited list of file locations
nifi.variable.registry.properties=
nifi.security.identity.mapping.pattern.dn=^cn=(.*?),ou=(Solid Users|Service Users),ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net$
nifi.security.identity.mapping.transform.dn=LOWER
nifi.security.identity.mapping.value.dn=$1
nifi.web.http.network.interface.lo=lo

Registry Clients from Nifi :

SSL context service activated :

Updated Nifi Registry users.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<tenants>
    <groups/>
    <users>
        <user identifier="63542e71-d360-309e-bbca-29a1f8484f71" identity="CN=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local, OU=NIFI"/>
        <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234" identity="CN=localhost, OU=NIFI"/>
        <user identifier="71b266f5-7764-3ff5-a812-80112278b50c" identity="abc123"/>
        <user identifier="702372cd-05d0-3378-98eb-2c263cb0dbb7" identity="CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net"/>
    </users>
</tenants>

Updated Nifi Registry authorizations.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<authorizations>
    <policies>
        <policy identifier="ac587f43-6e1c-3890-81fd-83b4df2e678e" resource="/swagger" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="d59a54f7-6dd6-34ad-a279-a26ffdb9eef8" resource="/proxy" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="9d182b11-ebe3-3a7a-8731-98ce6d6e44fd" resource="/buckets" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="dfbf3c51-fdec-3328-b169-3b54eb033147" resource="/buckets" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="0eaa47b9-e409-304e-8682-30d1b0d86d05" resource="/swagger" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="cf4d8390-5ac7-3ff0-82ce-a274b5f88b21" resource="/swagger" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="627410be-1717-35b4-a06f-e9362b89e0b7" resource="/tenants" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="15e4e0bd-cb28-34fd-8587-f8d15162cba5" resource="/tenants" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="01b87cb5-c0b6-342d-b108-d8bc03ab5cde" resource="/policies" action="D">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="2dbc92a2-b091-3616-8e88-5078b9103b04" resource="/tenants" action="D">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="ff96062a-fa99-36dc-9942-0f6442ae7212" resource="/policies" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="ad99ea98-3af6-3561-ae27-5bf09e1d969d" resource="/policies" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="3ee4703f-94ca-33c2-8060-17f5d313f560" resource="/actuator" action="D">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="05b96464-9ec8-312a-8459-67812a8b48c1" resource="/buckets" action="D">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="287edf48-da72-359b-8f61-da5d4c45a270" resource="/proxy" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="6dbdbffd-8a7d-32e1-ba3e-f600e6c69791" resource="/proxy" action="D">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="2f62b1f7-e822-3d04-b041-b21b3327fc05"/>
            <user identifier="1f645d41-2d46-37fc-83a1-adce75c00913"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="2fd3fcf5-b10f-33fa-8d8e-b262fa34815e" resource="/actuator" action="R">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="2f470357-e82c-38ee-8062-ab6388d6ec75" resource="/actuator" action="W">
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
        </policy>
        <policy identifier="ae834d5f-a5c8-4d44-bdbf-e65c1882d627" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="R">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="4215ba55-dc93-41ad-b145-2921b3575131" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="D">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
        <policy identifier="63c36b1f-48db-4fa8-a480-e9e87eafc4a3" resource="/buckets/9e750378-dd63-4a18-912d-79094dfc81e0" action="W">
            <user identifier="63542e71-d360-309e-bbca-29a1f8484f71"/>
            <user identifier="71b266f5-7764-3ff5-a812-80112278b50c"/>
            <user identifier="c22273fa-7ed3-38a9-8994-3ed5fea5d234"/>
        </policy>
    </policies>
</authorizations>

Nifi Registry properties

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements.  See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License.  You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# web properties #
nifi.registry.web.war.directory=./lib
nifi.registry.web.http.host=
nifi.registry.web.http.port=
nifi.registry.web.https.host=0.0.0.0
nifi.registry.web.https.port=18443
nifi.registry.web.jetty.working.directory=./work/jetty
nifi.registry.web.jetty.threads=200
nifi.registry.web.should.send.server.version=true

# security properties #

nifi.registry.security.keystore=/opt/nifi-registry/nifi-registry-current/conf/keystore.jks
nifi.registry.security.keystoreType=jks
nifi.registry.security.keystorePasswd=xxxxxx
nifi.registry.security.keyPasswd=xxxxxx
nifi.registry.security.truststore=/opt/nifi-registry/nifi-registry-current/conf/truststore.jks
nifi.registry.security.truststoreType=jks
nifi.registry.security.truststorePasswd=xxxxxxx
nifi.registry.security.needClientAuth=false
nifi.registry.security.authorizers.configuration.file=conf/authorizers.xml
nifi.registry.security.authorizer=managed-authorizer
nifi.registry.security.identity.providers.configuration.file=conf/identity-providers.xml
nifi.registry.security.identity.provider=ldap-identity-provider

# sensitive property protection properties #
# nifi.registry.sensitive.props.additional.keys=

# providers properties #
nifi.registry.providers.configuration.file=./conf/providers.xml

# registry alias properties #
nifi.registry.registry.alias.configuration.file=./conf/registry-aliases.xml

# extensions working dir #
nifi.registry.extensions.working.directory=./work/extensions

# legacy database properties, used to migrate data from original DB to new DB below
# NOTE: Users upgrading from 0.1.0 should leave these populated, but new installs after 0.1.0 should leave these empty
nifi.registry.db.directory=
nifi.registry.db.url.append=

# database properties
nifi.registry.db.url=jdbc:h2:./database/nifi-registry-primary;AUTOCOMMIT=OFF;DB_CLOSE_ON_EXIT=FALSE;LOCK_MODE=3;LOCK_TIMEOUT=25000;WRITE_DELAY=0;AUTO_SERVER=FALSE
nifi.registry.db.driver.class=org.h2.Driver
nifi.registry.db.driver.directory=
nifi.registry.db.username=nifireg
nifi.registry.db.password=nifireg
nifi.registry.db.maxConnections=5
nifi.registry.db.sql.debug=false

# extension directories #
# Each property beginning with "nifi.registry.extension.dir." will be treated as location for an extension,
# and a class loader will be created for each location, with the system class loader as the parent
#
#nifi.registry.extension.dir.1=/path/to/extension1
#nifi.registry.extension.dir.2=/path/to/extension2

nifi.registry.extension.dir.aws=./ext/aws/lib

# Identity Mapping Properties #
# These properties allow normalizing user identities such that identities coming from different identity providers
# (certificates, LDAP, Kerberos) can be treated the same internally in NiFi. The following example demonstrates normalizing
# DNs from certificates and principals from Kerberos into a common identity string:
#
# nifi.registry.security.identity.mapping.pattern.dn=^CN=(.*?), OU=(.*?), O=(.*?), L=(.*?), ST=(.*?), C=(.*?)$
# nifi.registry.security.identity.mapping.value.dn=$1@$2
# nifi.registry.security.identity.mapping.transform.dn=NONE

# nifi.registry.security.identity.mapping.pattern.kerb=^(.*?)/instance@(.*?)$
# nifi.registry.security.identity.mapping.value.kerb=$1@$2
# nifi.registry.security.identity.mapping.transform.kerb=UPPER

# Group Mapping Properties #
# These properties allow normalizing group names coming from external sources like LDAP. The following example
# lowercases any group name.
#
# nifi.registry.security.group.mapping.pattern.anygroup=^(.*)$
# nifi.registry.security.group.mapping.value.anygroup=$1
# nifi.registry.security.group.mapping.transform.anygroup=LOWER


# kerberos properties #
nifi.registry.kerberos.krb5.file=
nifi.registry.kerberos.spnego.principal=
nifi.registry.kerberos.spnego.keytab.location=
nifi.registry.kerberos.spnego.authentication.expiration=12 hours

# OIDC #
nifi.registry.security.user.oidc.discovery.url=
nifi.registry.security.user.oidc.connect.timeout=
nifi.registry.security.user.oidc.read.timeout=
nifi.registry.security.user.oidc.client.id=
nifi.registry.security.user.oidc.client.secret=
nifi.registry.security.user.oidc.preferred.jwsalgorithm=

# revision management #
# This feature should remain disabled until a future NiFi release that supports the revision API changes
nifi.registry.revisions.enabled=false
nifi.registry.security.identity.mapping.pattern.dn=^cn=(.*?),ou=(Solid Users|Service Users),ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net$
nifi.registry.security.identity.mapping.transform.dn=LOWER
nifi.registry.security.identity.mapping.value.dn=$1

Nifi registry authorizers.xml

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<!--
  Licensed to the Apache Software Foundation (ASF) under one or more
  contributor license agreements.  See the NOTICE file distributed with
  this work for additional information regarding copyright ownership.
  The ASF licenses this file to You under the Apache License, Version 2.0
  (the "License"); you may not use this file except in compliance with
  the License.  You may obtain a copy of the License at
      http://www.apache.org/licenses/LICENSE-2.0
  Unless required by applicable law or agreed to in writing, software
  distributed under the License is distributed on an "AS IS" BASIS,
  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
  See the License for the specific language governing permissions and
  limitations under the License.
-->
<!--
    This file lists the userGroupProviders, accessPolicyProviders, and authorizers to use when running securely. In order
    to use a specific authorizer it must be configured here and its identifier must be specified in the nifi-registry.properties file.
    If the authorizer is a managedAuthorizer, it may need to be configured with an accessPolicyProvider and an userGroupProvider.
    This file allows for configuration of them, but they must be configured in order:

    ...
    all userGroupProviders
    all accessPolicyProviders
    all Authorizers
    ...
-->
<authorizers>
  <!--
        The FileUserGroupProvider will provide support for managing users and groups which is backed by a file
        on the local file system.

        - Users File - The file where the FileUserGroupProvider will store users and groups.

        - Initial User Identity [unique key] - The identity of a users and systems to seed the Users File. The name of
            each property must be unique, for example: "Initial User Identity A", "Initial User Identity B",
            "Initial User Identity C" or "Initial User Identity 1", "Initial User Identity 2", "Initial User Identity 3"

            NOTE: Any identity mapping rules specified in nifi-registry.properties will also be applied to the user identities,
            so the values should be the unmapped identities (i.e. full DN from a certificate).
    -->
  <userGroupProvider>
    <identifier>file-user-group-provider</identifier>
    <class>org.apache.nifi.registry.security.authorization.file.FileUserGroupProvider</class>
    <property name="Users File">./conf/users.xml</property>
    <property name="Initial User Identity 1">CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net</property>
    <property name="Initial User Identity 2">cn=ABC123,ou=Solid Users,ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net</property>
    <property name="Initial User Identity 3">CN=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local, OU=NIFI</property>
    <property name="Initial User Identity 4">CN=localhost, OU=NIFI</property>
    <property name="Initial User Identity admin">cn=ABC123,ou=Solid Users,ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net</property>
  </userGroupProvider>
  <!--
        The DatabaseUserGroupProvider will provide support for managing users and groups in a relational database. The framework
        will provide a database connection to this provider using the same database information from nifi-registry.properties.

        - Initial User Identity [unique key] - Same as the Initial User Identity in the FileUserGroupProvider
    -->
  <!-- To enable the database-user-group-provider remove 2 lines. This is 1 of 2.
    <userGroupProvider>
        <identifier>database-user-group-provider</identifier>
        <class>org.apache.nifi.registry.security.authorization.database.DatabaseUserGroupProvider</class>
        <property name="Initial User Identity 1"></property>
    </userGroupProvider>
    To enable the database-user-group-provider remove 2 lines. This is 2 of 2. -->
  <!--
        The LdapUserGroupProvider will retrieve users and groups from an LDAP server. The users and groups
        are not configurable.

        'Authentication Strategy' - How the connection to the LDAP server is authenticated. Possible
            values are ANONYMOUS, SIMPLE, LDAPS, or START_TLS.

        'Manager DN' - The DN of the manager that is used to bind to the LDAP server to search for users.
        'Manager Password' - The password of the manager that is used to bind to the LDAP server to
            search for users.

        'TLS - Keystore' - Path to the Keystore that is used when connecting to LDAP using LDAPS or START_TLS.
        'TLS - Keystore Password' - Password for the Keystore that is used when connecting to LDAP
            using LDAPS or START_TLS.
        'TLS - Keystore Type' - Type of the Keystore that is used when connecting to LDAP using
            LDAPS or START_TLS (i.e. JKS or PKCS12).
        'TLS - Truststore' - Path to the Truststore that is used when connecting to LDAP using LDAPS or START_TLS.
        'TLS - Truststore Password' - Password for the Truststore that is used when connecting to
            LDAP using LDAPS or START_TLS.
        'TLS - Truststore Type' - Type of the Truststore that is used when connecting to LDAP using
            LDAPS or START_TLS (i.e. JKS or PKCS12).
        'TLS - Client Auth' - Client authentication policy when connecting to LDAP using LDAPS or START_TLS.
            Possible values are REQUIRED, WANT, NONE.
        'TLS - Protocol' - Protocol to use when connecting to LDAP using LDAPS or START_TLS. (i.e. TLS,
            TLSv1.1, TLSv1.2, etc).
        'TLS - Shutdown Gracefully' - Specifies whether the TLS should be shut down gracefully
            before the target context is closed. Defaults to false.

        'Referral Strategy' - Strategy for handling referrals. Possible values are FOLLOW, IGNORE, THROW.
        'Connect Timeout' - Duration of connect timeout. (i.e. 10 secs).
        'Read Timeout' - Duration of read timeout. (i.e. 10 secs).

        'Url' - Space-separated list of URLs of the LDAP servers (i.e. ldap://<hostname>:<port>).
        'Page Size' - Sets the page size when retrieving users and groups. If not specified, no paging is performed.
        'Sync Interval' - Duration of time between syncing users and groups. (i.e. 30 mins).
        'Group Membership - Enforce Case Sensitivity' - Sets whether group membership decisions are case sensitive. When a user or group
            is inferred (by not specifying or user or group search base or user identity attribute or group name attribute) case sensitivity
            is enforced since the value to use for the user identity or group name would be ambiguous. Defaults to false.

        'User Search Base' - Base DN for searching for users (i.e. ou=users,o=nifi). Required to search users.
        'User Object Class' - Object class for identifying users (i.e. person). Required if searching users.
        'User Search Scope' - Search scope for searching users (ONE_LEVEL, OBJECT, or SUBTREE). Required if searching users.
        'User Search Filter' - Filter for searching for users against the 'User Search Base' (i.e. (memberof=cn=team1,ou=groups,o=nifi) ). Optional.
        'User Identity Attribute' - Attribute to use to extract user identity (i.e. cn). Optional. If not set, the entire DN is used.
        'User Group Name Attribute' - Attribute to use to define group membership (i.e. memberof). Optional. If not set
            group membership will not be calculated through the users. Will rely on group membership being defined
            through 'Group Member Attribute' if set. The value of this property is the name of the attribute in the user ldap entry that
            associates them with a group. The value of that user attribute could be a dn or group name for instance. What value is expected
            is configured in the 'User Group Name Attribute - Referenced Group Attribute'.
        'User Group Name Attribute - Referenced Group Attribute' - If blank, the value of the attribute defined in 'User Group Name Attribute'
            is expected to be the full dn of the group. If not blank, this property will define the attribute of the group ldap entry that
            the value of the attribute defined in 'User Group Name Attribute' is referencing (i.e. name). Use of this property requires that
            'Group Search Base' is also configured.

        'Group Search Base' - Base DN for searching for groups (i.e. ou=groups,o=nifi). Required to search groups.
        'Group Object Class' - Object class for identifying groups (i.e. groupOfNames). Required if searching groups.
        'Group Search Scope' - Search scope for searching groups (ONE_LEVEL, OBJECT, or SUBTREE). Required if searching groups.
        'Group Search Filter' - Filter for searching for groups against the 'Group Search Base'. Optional.
        'Group Name Attribute' - Attribute to use to extract group name (i.e. cn). Optional. If not set, the entire DN is used.
        'Group Member Attribute' - Attribute to use to define group membership (i.e. member). Optional. If not set
            group membership will not be calculated through the groups. Will rely on group membership being defined
            through 'User Group Name Attribute' if set. The value of this property is the name of the attribute in the group ldap entry that
            associates them with a user. The value of that group attribute could be a dn or memberUid for instance. What value is expected
            is configured in the 'Group Member Attribute - Referenced User Attribute'. (i.e. member: cn=User 1,ou=users,o=nifi-registry vs. memberUid: user1)
        'Group Member Attribute - Referenced User Attribute' - If blank, the value of the attribute defined in 'Group Member Attribute'
            is expected to be the full dn of the user. If not blank, this property will define the attribute of the user ldap entry that
            the value of the attribute defined in 'Group Member Attribute' is referencing (i.e. uid). Use of this property requires that
            'User Search Base' is also configured. (i.e. member: cn=User 1,ou=users,o=nifi-registry vs. memberUid: user1)

        NOTE: Any identity mapping rules specified in nifi-registry.properties will also be applied to the user identities.
            Group names are not mapped.
    -->
    <userGroupProvider>
        <identifier>ldap-user-group-provider</identifier>
        <class>org.apache.nifi.registry.security.ldap.tenants.LdapUserGroupProvider</class>
        <property name="Authentication Strategy">LDAPS</property>
        <property name="Manager DN">CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net</property>
        <property name="Manager Password">xxxxx</property>
        <property name="TLS - Keystore">/opt/nifi-registry/nifi-registry-current/conf/keystore.jks</property>
        <property name="TLS - Keystore Password">xxxxxx</property>
        <property name="TLS - Keystore Type">jks</property>
        <property name="TLS - Truststore">/opt/nifi-registry/nifi-registry-current/conf/truststore.jks</property>
        <property name="TLS - Truststore Password">xxxxxx</property>
        <property name="TLS - Truststore Type">JKS</property>
        <property name="TLS - Client Auth">NONE</property>
        <property name="TLS - Protocol">TLS</property>
        <property name="TLS - Shutdown Gracefully">false</property>
        <property name="Referral Strategy">FOLLOW</property>
        <property name="Connect Timeout">10 secs</property>
        <property name="Read Timeout">10 secs</property>
        <property name="Url">ldaps://coredcs-v3-prd.corp1.ad1.xyz.net:636</property>
        <property name="Page Size"></property>
        <property name="Sync Interval">2 mins</property>
        <property name="Group Membership - Enforce Case Sensitivity">false</property>
        <property name="User Search Base">OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net</property>
        <property name="User Object Class">person</property>
        <property name="User Search Scope">SUBTREE</property>
        <property name="User Search Filter">(memberof=CN=AG-X-XYZ-ADMIN,OU=Groups,DC=corp1,DC=ad1,DC=xyz,DC=net)</property>
        <property name="User Identity Attribute">cn</property>
        <property name="User Group Name Attribute"></property>
        <property name="User Group Name Attribute - Referenced Group Attribute"></property>
        <property name="Group Search Base">OU=Groups,DC=corp1,DC=ad1,DC=xyz,DC=net</property>
        <property name="Group Object Class">group</property>
        <property name="Group Search Scope">ONE_LEVEL</property>
        <property name="Group Search Filter">(objectClass=group)</property>
        <property name="Group Name Attribute"></property>
        <property name="Group Member Attribute"></property>
        <property name="Group Member Attribute - Referenced User Attribute"></property>
    </userGroupProvider>
  <!--
        The ShellUserGroupProvider provides support for retrieving users and groups by way of shell commands
        on systems that support `sh`.  Implementations available for Linux and Mac OS, and are selected by the
        provider based on the system property `os.name`.

        'Refresh Delay' - duration to wait between subsequent refreshes.  Default is '5 mins'.
        'Exclude Groups' - regular expression used to exclude groups.  Default is '', which means no groups are excluded.
        'Exclude Users' - regular expression used to exclude users.  Default is '', which means no users are excluded.
        'Command Timeout' - amount of time to wait while executing a command before timing out
    -->
  <!-- To enable the shell-user-group-provider remove 2 lines. This is 1 of 2.
    <userGroupProvider>
        <identifier>shell-user-group-provider</identifier>
        <class>org.apache.nifi.registry.security.authorization.shell.ShellUserGroupProvider</class>
        <property name="Refresh Delay">5 mins</property>
        <property name="Exclude Groups"></property>
        <property name="Exclude Users"></property>
        <property name="Command Timeout">60 seconds</property>
    </userGroupProvider>
    To enable the shell-user-group-provider remove 2 lines. This is 2 of 2. -->
  <!--
        The CompositeUserGroupProvider will provide support for retrieving users and groups from multiple sources.

        - User Group Provider [unique key] - The identifier of user group providers to load from. The name of
            each property must be unique, for example: "User Group Provider A", "User Group Provider B",
            "User Group Provider C" or "User Group Provider 1", "User Group Provider 2", "User Group Provider 3"

            NOTE: Any identity mapping rules specified in nifi-registry.properties are not applied in this implementation. This
            behavior would need to be applied by the base implementation.
    -->
    <userGroupProvider>
        <identifier>composite-user-group-provider</identifier>
        <class>org.apache.nifi.registry.security.authorization.CompositeUserGroupProvider</class>
        <property name="User Group Provider 1">file-user-group-provider</property>
        <property name="User Group Provider 2">ldap-user-group-provider</property>
    </userGroupProvider>
  <!--
        The CompositeConfigurableUserGroupProvider will provide support for retrieving users and groups from multiple sources.
        Additionally, a single configurable user group provider is required. Users from the configurable user group provider
        are configurable, however users loaded from one of the User Group Provider [unique key] will not be.

        - Configurable User Group Provider - A configurable user group provider.

        - User Group Provider [unique key] - The identifier of user group providers to load from. The name of
            each property must be unique, for example: "User Group Provider A", "User Group Provider B",
            "User Group Provider C" or "User Group Provider 1", "User Group Provider 2", "User Group Provider 3"

            NOTE: Any identity mapping rules specified in nifi-registry.properties are not applied in this implementation. This
            behavior would need to be applied by the base implementation.
    -->
  <!-- To enable the composite-configurable-user-group-provider remove 2 lines. This is 1 of 2.
    <userGroupProvider>
        <identifier>composite-configurable-user-group-provider</identifier>
        <class>org.apache.nifi.registry.security.authorization.CompositeConfigurableUserGroupProvider</class>
        <property name="Configurable User Group Provider">file-user-group-provider</property>
        <property name="User Group Provider 1"></property>
    </userGroupProvider>
    To enable the composite-configurable-user-group-provider remove 2 lines. This is 2 of 2. -->
  <!--
        The FileAccessPolicyProvider will provide support for managing access policies which is backed by a file
        on the local file system.

        - User Group Provider - The identifier for an User Group Provider defined above that will be used to access
            users and groups for use in the managed access policies.

        - Authorizations File - The file where the FileAccessPolicyProvider will store policies.

        - Initial Admin Identity - The identity of an initial admin user that will be granted access to the UI and
            given the ability to create additional users, groups, and policies. The value of this property could be
            a DN when using certificates or LDAP. This property will only be used when there
            are no other policies defined.

            NOTE: Any identity mapping rules specified in nifi-registry.properties will also be applied to the initial admin identity,
            so the value should be the unmapped identity. This identity must be found in the configured User Group Provider.

        - NiFi Identity [unique key] - The identity of a NiFi node that will have access to this NiFi Registry and will be able
            to act as a proxy on behalf of a NiFi Registry end user. A property should be created for the identity of every NiFi
            node that needs to access this NiFi Registry. The name of each property must be unique, for example for three
            NiFi clients:
            "NiFi Identity A", "NiFi Identity B", "NiFi Identity C" or "NiFi Identity 1", "NiFi Identity 2", "NiFi Identity 3"

            NOTE: Any identity mapping rules specified in nifi-registry.properties will also be applied to the nifi identities,
            so the values should be the unmapped identities (i.e. full DN from a certificate). This identity must be found
            in the configured User Group Provider.

        - NiFi Group Name - The name of the group, whose members are NiFi instance/node identities,
            that will have access to this NiFi Registry and will be able to act as a proxy on behalf of a NiFi Registry end user.
            The members of this group will be granted permission to proxy user requests, as well as read any bucket to perform synchronization checks.
    -->
  <accessPolicyProvider>
    <identifier>file-access-policy-provider</identifier>
    <class>org.apache.nifi.registry.security.authorization.file.FileAccessPolicyProvider</class>
    <property name="User Group Provider">composite-user-group-provider</property>
    <property name="Authorizations File">./conf/authorizations.xml</property>
    <property name="Initial Admin Identity">cn=ABC123,ou=Solid Users,ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net</property>
    <property name="Nifi Identity 1">CN=DEF456,OU=Service Users,OU=User Accounts,DC=corp1,DC=ad1,DC=xyz,DC=net</property>
    <property name="Nifi Identity 2">cn=ABC123,ou=Solid Users,ou=User Accounts,dc=corp1,dc=ad1,dc=xyz,dc=net</property>
    <property name="Nifi Identity 3">CN=my-nifi-0.my-nifi-headless.nifi-server.svc.cluster.local, OU=NIFI</property>
    <property name="Nifi Identity 4">CN=localhost, OU=NIFI</property>
    <property name="NiFi Group Name"/>
  </accessPolicyProvider>
  <!--
        The DatabaseAccessPolicyProvider will provide support for managing access policies in a relational database. The
        framework will provide a database connection to this provider using the same database information from nifi-registry.properties.

        - User Group Provider - Same as User Group Provider in the FileAccessPolicyProvider

        - Initial Admin Identity - Same as Initial Admin Identity in the FileAccessPolicyProvider

        - NiFi Identity [unique key] - Same as NiFi Identity in the FileAccessPolicyProvider

        - NiFi Group Name - Same as NiFi Group Name in the FileAccessPolicyProvider
    -->
  <!-- To enable the database-access-policy-provider remove 2 lines. This is 1 of 2.
    <accessPolicyProvider>
        <identifier>database-access-policy-provider</identifier>
        <class>org.apache.nifi.registry.security.authorization.database.DatabaseAccessPolicyProvider</class>
        <property name="User Group Provider">database-user-group-provider</property>
        <property name="Initial Admin Identity"></property>
        <property name="NiFi Identity 1"></property>
        <property name="NiFi Group Name"></property>
    </accessPolicyProvider>
    To enable the database-access-policy-provider remove 2 lines. This is 2 of 2. -->
  <!--
        The StandardManagedAuthorizer. This authorizer implementation must be configured with the
        Access Policy Provider which it will use to access and manage users, groups, and policies.
        These users, groups, and policies will be used to make all access decisions during authorization
        requests.

        - Access Policy Provider - The identifier for an Access Policy Provider defined above.
    -->
  <authorizer>
    <identifier>managed-authorizer</identifier>
    <class>org.apache.nifi.registry.security.authorization.StandardManagedAuthorizer</class>
    <property name="Access Policy Provider">file-access-policy-provider</property>
  </authorizer>
</authorizers>

Bucket policy screenshot

The one redacted with yellow is user abc123

Thanks

Translate

MattWhoAnswer

Titanium ⭐️⭐️⭐️

Then attempt to start version control on some process group in NiFi which will open the version control UI n NiFi.

In the nifi-registry-app.log at that moment in time you will see one of two things:

2025-04-10 13:54:53,360 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using X509IdentityProvider
2025-04-10 13:54:53,361 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Adding credentials claim to SecurityContext to be authenticated. Credentials extracted by X509IdentityProvider: AuthenticationRequest{username='<NIFI certificate DN>', credentials=[PROTECTED], details=org.apache.nifi.registry.web.security.authentication.x509.X509AuthenticationRequestDetails@713e0007}

2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using X509IdentityProvider
2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.x509.X509CertificateExtractor: No client certificate found in request.
2025-04-10 14:01:24,162 DEBUG org.apache.nifi.registry.web.security.authentication.IdentityFilter: Attempting to extract user credentials using JwtIdentityProvider
2025-04-10 14:01:24,163 DEBUG org.apache.nifi.registry.web.security.authentication.AnonymousIdentityFilter: Set SecurityContextHolder to anonymous SecurityContext

Thank you,
Matt

Translate

Nifi users.xml :

Nifi authorizations.xml

Nifi Properties :

Registry Clients from Nifi :

SSL context service activated :

Updated Nifi Registry users.xml

Updated Nifi Registry authorizations.xml

Nifi Registry properties

Nifi registry authorizers.xml

Bucket policy screenshot

Sign up

Please use your Cloudera account.

Login to the community

Please use your Cloudera account.
