Websocket connection failed to the Livelog server.

Explorer

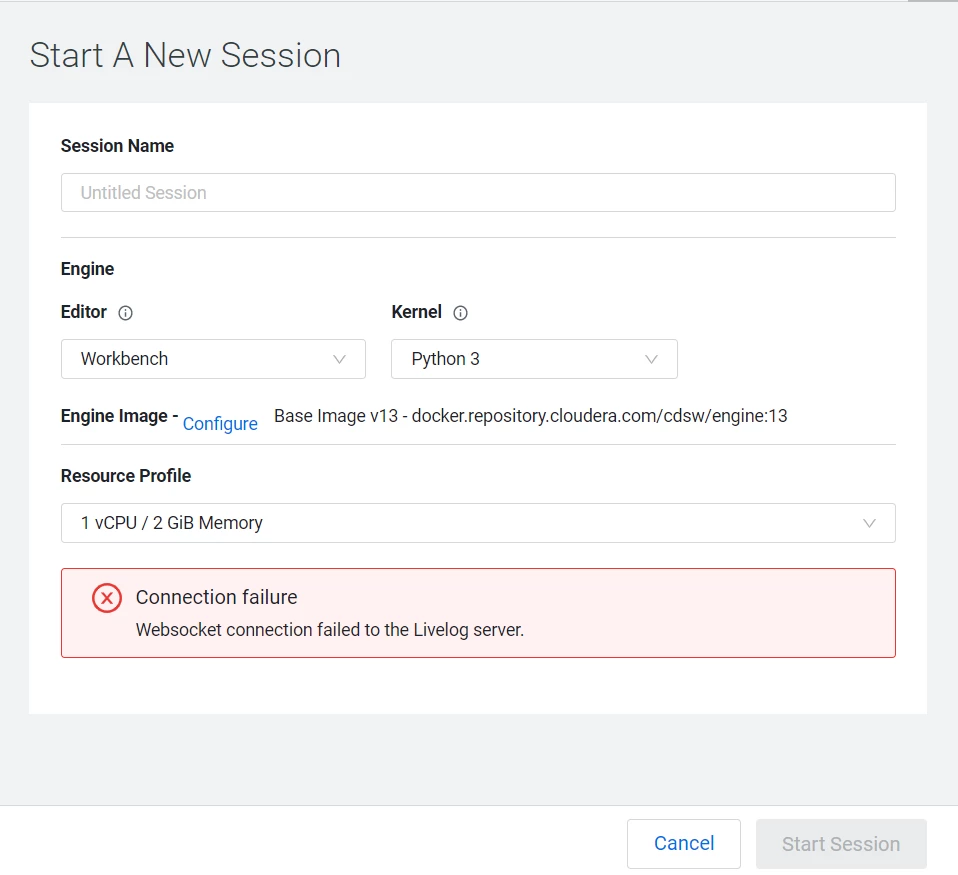

I have installed CDSW in my cluster and created a project. But while launching the session I see the following error.




I'm adding the details of 'cdsw status' here,
 [root@edge ~]# cdsw status
Sending detailed logs to [/tmp/cdsw_status_mrI87T.log] ...
CDSW Version: [1.9.1.10118148:81531c5]
Installed into namespace 'default'
OK: Application running as root check
OK: NFS service check
OK: System process check for CSD install
OK: Sysctl params check
OK: Kernel memory slabs check
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| NAME | STATUS | CREATED-AT | VERSION | EXTERNAL-IP | OS-IMAGE | KERNEL-VERSION | GPU | STATEFUL |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| edge.localdomain.com | True | 2021-09-01 13:42:11+00:00 | v1.16.15 | None | Red Hat Enterprise Linux Server 7.9 (Maipo) | 3.10.0-1160.11.1.el7.x86_64 | 0 | True |
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1/1 nodes are ready.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| NAME | READY | STATUS | RESTARTS | CREATED-AT | POD-IP | HOST-IP | ROLE |
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| etcd-edge.localdomain.com | 1/1 | Running | 0 | 2021-09-01 13:43:07+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| kube-apiserver-edge.localdomain.com | 1/1 | Running | 0 | 2021-09-01 13:43:05+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| kube-controller-manager-edge.localdomain.com | 1/1 | Running | 1 | 2021-09-01 13:43:14+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| kube-dns-78c484fc8c-zqdkh | 3/3 | Running | 0 | 2021-09-01 13:42:32+00:00 | 100.66.0.1 | 2.10.1.74 | None |
| kube-proxy-jggmt | 1/1 | Running | 0 | 2021-09-01 13:43:38+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| kube-scheduler-edge.localdomain.com | 1/1 | Running | 2 | 2021-09-01 13:42:14+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| weave-net-9v6h7 | 2/2 | Running | 0 | 2021-09-01 13:43:38+00:00 | 2.10.1.74 | 2.10.1.74 | None |
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
All required pods are ready in cluster kube-system.
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| NAME | READY | STATUS | RESTARTS | CREATED-AT | POD-IP | HOST-IP | ROLE |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| archiver-f965d8cd7-8f4ld | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.34 | 2.10.1.74 | archiver |
| cdsw-compute-pod-evaluator-849b98f9fd-nlwtc | 1/1 | Running | 0 | 2021-09-01 13:42:33+00:00 | 100.66.0.26 | 2.10.1.74 | None |
| cron-6c69457cc8-rx4xn | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.10 | 2.10.1.74 | cron |
| db-69fcf7b6fc-dhmnm | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.16 | 2.10.1.74 | db |
| db-migrate-81531c5-2rnrb | 0/1 | Succeeded | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.9 | 2.10.1.74 | db-migrate |
| ds-cdh-client-646754d4fc-wgcr7 | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.27 | 2.10.1.74 | ds-cdh-client |
| ds-operator-7d66bcc8b6-db5cz | 1/1 | Running | 0 | 2021-09-01 13:42:33+00:00 | 100.66.0.9 | 2.10.1.74 | ds-operator |
| ds-reconciler-5b94488d96-9nslq | 1/1 | Running | 0 | 2021-09-01 13:42:34+00:00 | 100.66.0.30 | 2.10.1.74 | ds-reconciler |
| ds-vfs-f5868f5f4-2t4n8 | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.23 | 2.10.1.74 | ds-vfs |
| feature-flags-6bf8d694d9-tzpvs | 1/1 | Running | 0 | 2021-09-01 13:42:32+00:00 | 100.66.0.8 | 2.10.1.74 | feature-flags |
| grafana-cml-dashboards-81531c5-74v5v | 0/1 | Succeeded | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.3 | 2.10.1.74 | None |
| grafana-core-855774dbb5-np6nw | 1/1 | Running | 0 | 2021-09-01 13:42:33+00:00 | 100.66.0.17 | 2.10.1.74 | None |
| image-puller-6hznx | 1/1 | Running | 1 | 2021-09-01 13:42:31+00:00 | 100.66.0.25 | 2.10.1.74 | image-puller |
| ingress-controller-7c68cf9557-znvc8 | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.7 | 2.10.1.74 | ingress-controller |
| kube-state-metrics-df5f5677f-mv5zh | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.4 | 2.10.1.74 | None |
| livelog-5bc9f6c9c-qjpfq | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.15 | 2.10.1.74 | livelog |
| livelog-cleaner-1630540800-t57fk | 0/1 | Succeeded | 0 | 2021-09-02 04:18:53+00:00 | 100.66.0.36 | 2.10.1.74 | None |
| livelog-publisher-5vhd4 | 1/1 | Running | 2 | 2021-09-01 13:42:31+00:00 | 100.66.0.5 | 2.10.1.74 | None |
| model-proxy-5d7d546fff-wpn8k | 1/1 | Running | 0 | 2021-09-01 13:42:34+00:00 | 100.66.0.6 | 2.10.1.74 | model-proxy |
| prometheus-core-86c8fdfc5b-6kbth | 1/1 | Running | 0 | 2021-09-01 13:42:32+00:00 | 100.66.0.11 | 2.10.1.74 | None |
| prometheus-node-exporter-kcttt | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 2.10.1.74 | 2.10.1.74 | None |
| runtime-repo-puller-7ff4d5d8fb-fdw4g | 1/1 | Running | 0 | 2021-09-01 13:42:34+00:00 | 100.66.0.19 | 2.10.1.74 | runtime-repo-puller |
| s2i-builder-5b45456b6c-c4dkh | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.29 | 2.10.1.74 | s2i-builder |
| s2i-builder-5b45456b6c-tgpgb | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.28 | 2.10.1.74 | s2i-builder |
| s2i-builder-5b45456b6c-z8jqm | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.24 | 2.10.1.74 | s2i-builder |
| s2i-client-7fc996df48-nd5wp | 1/1 | Running | 0 | 2021-09-01 13:42:32+00:00 | 100.66.0.22 | 2.10.1.74 | s2i-client |
| s2i-git-server-545d845cbd-grv2x | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 100.66.0.13 | 2.10.1.74 | s2i-git-server |
| s2i-queue-59f86fd95c-c9nb9 | 1/1 | Running | 0 | 2021-09-01 13:42:33+00:00 | 100.66.0.14 | 2.10.1.74 | s2i-queue |
| s2i-registry-7fcd8fb64f-8948z | 1/1 | Running | 0 | 2021-09-01 13:42:32+00:00 | 100.66.0.20 | 2.10.1.74 | s2i-registry |
| s2i-registry-auth-5db74dc5c6-dssst | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.18 | 2.10.1.74 | s2i-registry-auth |
| s2i-server-66f6cc5df7-sjz9x | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.3 | 2.10.1.74 | s2i-server |
| secret-generator-687d4c8965-bd6qk | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.12 | 2.10.1.74 | secret-generator |
| spark-port-forwarder-zmjrr | 1/1 | Running | 0 | 2021-09-01 13:42:31+00:00 | 2.10.1.74 | 2.10.1.74 | spark-port-forwarder |
| tcp-ingress-controller-75bfb55546-tgc27 | 1/1 | Running | 0 | 2021-09-01 13:42:34+00:00 | 100.66.0.33 | 2.10.1.74 | tcp-ingress-controller |
| usage-reporter-7567fff596-vtrp9 | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.21 | 2.10.1.74 | usage-reporter |
| web-857b6596d6-sslrd | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.31 | 2.10.1.74 | web |
| web-857b6596d6-t9dhc | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.35 | 2.10.1.74 | web |
| web-857b6596d6-tjvdc | 1/1 | Running | 0 | 2021-09-01 13:42:30+00:00 | 100.66.0.32 | 2.10.1.74 | web |
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
All required pods are ready in cluster default.
All required Application services are configured.
All required secrets are available.
Persistent volumes are ready.
Persistent volume claims are ready.
Ingresses are ready.
Checking web at url: http://cdsw.localdomain.com
OK: HTTP port check
Cloudera Data Science Workbench is ready!

Is it some issue with the live-log cleaner pod or something else?

1 REPLY 1

Cloudera Employee

@sandipkumar



This issue is probably with wildcard DNS and SSL . From the provided output I could see that you are not using SSL. So, it is worth to check wild card DNS on your local machine and cdsw nodes I have give below the URL for your reference. Please take a look.



https://community.cloudera.com/t5/Customer/ERROR-quot-websocket-connection-failed-to-the-Livelog-ser...
