Created 11-11-2024 06:16 PM
Hello,

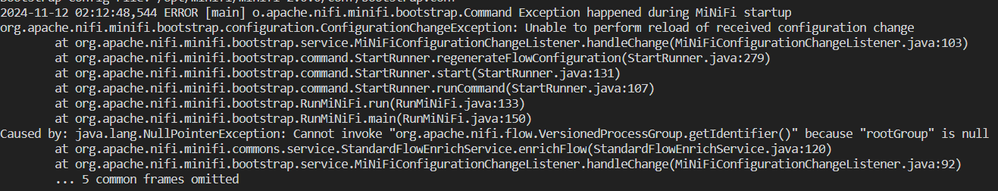

I have exported the json in nifi and renamed it to flow.json.raw, but when I try to start minifi, I get the error like this:
This is my flow in nifi
And this is my json content:
{ "externalControllerServices": { }, "flowContents": { "comments": "", "componentType": "PROCESS_GROUP", "connections": [ { "backPressureDataSizeThreshold": "1 GB", "backPressureObjectThreshold": 10000, "bends": [], "componentType": "CONNECTION", "destination": { "groupId": "4d2e3379-5165-32b0-bf2a-cc36a354aa29", "id": "8dd0c880-1b12-3097-90a0-5f20d488f88a", "instanceIdentifier": "846c8039-231d-353b-b87e-aed9f7408030", "name": "fromMinifi", "type": "REMOTE_INPUT_PORT" }, "flowFileExpiration": "0 sec", "groupIdentifier": "cad6891f-5564-3a61-8a99-bb7be344adc8", "identifier": "b0ca1df7-83e8-314b-bb2f-50735ab0ccd2", "instanceIdentifier": "1e076437-0193-1000-f190-07b262d28ba8", "labelIndex": 0, "loadBalanceCompression": "DO_NOT_COMPRESS", "loadBalanceStrategy": "DO_NOT_LOAD_BALANCE", "name": "", "partitioningAttribute": "", "prioritizers": [], "selectedRelationships": [ "success" ], "source": { "comments": "", "groupId": "cad6891f-5564-3a61-8a99-bb7be344adc8", "id": "39db7913-b310-3485-95fe-6e6e33b1dda8", "instanceIdentifier": "1b72dcd3-0193-1000-4444-cbda1bf29306", "name": "GenerateFlowFile", "type": "PROCESSOR" }, "zIndex": 0 } ], "controllerServices": [], "defaultBackPressureDataSizeThreshold": "1 GB", "defaultBackPressureObjectThreshold": 10000, "defaultFlowFileExpiration": "0 sec", "executionEngine": "INHERITED", "flowFileConcurrency": "UNBOUNDED", "flowFileOutboundPolicy": "STREAM_WHEN_AVAILABLE", "funnels": [], "identifier": "cad6891f-5564-3a61-8a99-bb7be344adc8", "inputPorts": [], "instanceIdentifier": "1e055241-0193-1000-bfce-60069091b1f0", "labels": [], "maxConcurrentTasks": 1, "name": "Mnificonf", "outputPorts": [], "position": { "x": -904, "y": 16 }, "processGroups": [], "processors": [ { "autoTerminatedRelationships": [], "backoffMechanism": "PENALIZE_FLOWFILE", "bulletinLevel": "WARN", "bundle": { "artifact": "nifi-standard-nar", "group": "org.apache.nifi", "version": "2.0.0" }, "comments": "", "componentType": "PROCESSOR", "concurrentlySchedulableTaskCount": 1, "executionNode": "ALL", "groupIdentifier": "cad6891f-5564-3a61-8a99-bb7be344adc8", "identifier": "39db7913-b310-3485-95fe-6e6e33b1dda8", "instanceIdentifier": "1b72dcd3-0193-1000-4444-cbda1bf29306", "maxBackoffPeriod": "10 mins", "name": "GenerateFlowFile", "penaltyDuration": "30 sec", "position": { "x": -888, "y": 24 }, "properties": { "character-set": "UTF-8", "File Size": "1000B", "Batch Size": "1", "Unique FlowFiles": "false", "Data Format": "Text" }, "propertyDescriptors": { "character-set": { "displayName": "Character Set", "dynamic": false, "identifiesControllerService": false, "name": "character-set", "sensitive": false }, "File Size": { "displayName": "File Size", "dynamic": false, "identifiesControllerService": false, "name": "File Size", "sensitive": false }, "mime-type": { "displayName": "Mime Type", "dynamic": false, "identifiesControllerService": false, "name": "mime-type", "sensitive": false }, "generate-ff-custom-text": { "displayName": "Custom Text", "dynamic": false, "identifiesControllerService": false, "name": "generate-ff-custom-text", "sensitive": false }, "Batch Size": { "displayName": "Batch Size", "dynamic": false, "identifiesControllerService": false, "name": "Batch Size", "sensitive": false }, "Unique FlowFiles": { "displayName": "Unique FlowFiles", "dynamic": false, "identifiesControllerService": false, "name": "Unique FlowFiles", "sensitive": false }, "Data Format": { "displayName": "Data Format", "dynamic": false, "identifiesControllerService": false, "name": "Data Format", "sensitive": false } }, "retriedRelationships": [], "retryCount": 10, "runDurationMillis": 0, "scheduledState": "ENABLED", "schedulingPeriod": "5 sec", "schedulingStrategy": "TIMER_DRIVEN", "style": { }, "type": "org.apache.nifi.processors.standard.GenerateFlowFile", "yieldDuration": "1 sec" } ], "remoteProcessGroups": [ { "comments": "", "communicationsTimeout": "30 sec", "componentType": "REMOTE_PROCESS_GROUP", "groupIdentifier": "cad6891f-5564-3a61-8a99-bb7be344adc8", "identifier": "4d2e3379-5165-32b0-bf2a-cc36a354aa29", "inputPorts": [ { "batchSize": { }, "componentType": "REMOTE_INPUT_PORT", "concurrentlySchedulableTaskCount": 1, "groupIdentifier": "4d2e3379-5165-32b0-bf2a-cc36a354aa29", "identifier": "8dd0c880-1b12-3097-90a0-5f20d488f88a", "instanceIdentifier": "846c8039-231d-353b-b87e-aed9f7408030", "name": "fromMinifi", "remoteGroupId": "4d2e3379-5165-32b0-bf2a-cc36a354aa29", "scheduledState": "ENABLED", "targetId": "1e06d5ee-0193-1000-88b2-e6a57607a83c", "useCompression": false } ], "instanceIdentifier": "1b72a1a9-0193-1000-a217-fa7db75fc41a", "name": "NiFi Flow", "outputPorts": [], "position": { "x": -184, "y": 0 }, "proxyHost": "", "proxyUser": "", "targetUris": "http://10.233.150.213:8443/nifi", "transportProtocol": "RAW", "yieldDuration": "10 sec" } ], "scheduledState": "ENABLED", "statelessFlowTimeout": "1 min" }, "flowEncodingVersion": "1.0", "parameterContexts": [], "parameterProviders": [], "snapshotMetadata": { "author": "anonymous", "comments": "", "timestamp": 1731375780091, "version": 1 }
I hope someone can help me
Created 11-12-2024 06:17 AM
@ZNFY
Since you are exporting a flow definition of a process group, you'll need to utilize the MiNiFi toolkit to transform it in to the proper format that can be loaded by MiNiFi. The MiNiFi-toolkit can be downloaded from here: https://nifi.apache.org/download/ (select "MINIFI' and click download link for Toolkit). Execute:
./minifi-toolkit/bin/config.sh transform-nifi <exported flow definition> flow.json.raw
Now edit the flow.json.raw file and edit the following property at start of file (value can not be 0.)
"maxTimerDrivenThreadCount":5
Please help our community thrive. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.
Thank you,
Matt
Created 11-12-2024 01:50 AM
@ZNFY, Welcome to our community! To help you get the best possible answer, I have tagged in our NiFi experts @MattWho @SAMSAL who may be able to assist you further.
Please feel free to provide any additional information or details about your query, and we hope that you will find a satisfactory solution to your question.
Regards,
Vidya Sargur,Created 11-12-2024 06:17 AM
@ZNFY
Since you are exporting a flow definition of a process group, you'll need to utilize the MiNiFi toolkit to transform it in to the proper format that can be loaded by MiNiFi. The MiNiFi-toolkit can be downloaded from here: https://nifi.apache.org/download/ (select "MINIFI' and click download link for Toolkit). Execute:
./minifi-toolkit/bin/config.sh transform-nifi <exported flow definition> flow.json.raw
Now edit the flow.json.raw file and edit the following property at start of file (value can not be 0.)
"maxTimerDrivenThreadCount":5
Please help our community thrive. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.
Thank you,
Matt
