NiFi - How to use JOLT to add json key:value dynamically to the Flowfile content?

avatar
Master Collaborator

Input JSON content -

{ "exampledata": { "name": "Test", "age": null, "ver": null, "payloadType": "Text", "payloadData": "adsadsdsdsdsdsdsdsdsds", "sequenceNum": null, "timeStamp": "2017-09-22T12:07:29.968Z" } }

Output expected -

{ "exampledata": { "name": "Test", "age": null, "ver": null, "payloadType": "Text", "payloadData": "adsadsdsdsdsdsdsdsdsds", "sequenceNum": null, "timeStamp": "2017-09-22T12:07:29.968Z" "company" : "CompanyName" } }

company will be retrieved from Flowfile attribute and should be added to JSON Content.

Any help with JOLT Chain spec is much appreciated.

@Matt Burgess

1 ACCEPTED SOLUTION

avatar
Master Guru

@Mahendra Hegde,

According to jira https://issues.apache.org/jira/browse/NIFI-3010

if you are using NiFi 1.2+ then we can use Attributes from the flowfile and add them to json.

I'm having Company attributes associated with the flowfile and value is also Company.

Input:-

{
"exampledata": {
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z"
}
}

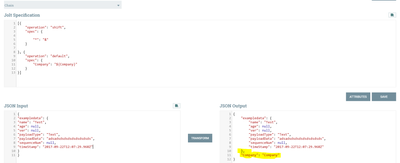

Jolt-spec:-

[{
 "operation": "shift",
 "spec": {
  "*": "&"
 }
}, {
 "operation": "default",
 "spec": {
  "Company": "${Company}"
 }
}]

Output:-

{
"exampledata": {
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z"
},
"Company": "Company"
}

but this spec won't give the expected output as per your question, as we cannot add the attribute into main exampledata list.

Example1:-


by flattening out exampledata then we can add company attribute to the json message as follow.

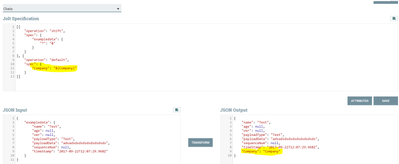

Jolt-spec:-

[{
"operation": "shift",
"spec": {
"exampledata": {
"*": "&"
}
}
}, {
"operation": "default",
"spec": {
"Company": "${Company}"
}
}]

Output:-

{
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z",
"Company": "Company"
}

Example2:-

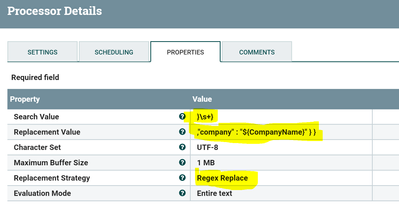

If you are using prior version than NiFi 1.2, Then you need to use Replace text Processor with Below Properties.

Search Value

}\s+}

Replacement Value

,"company" : "${CompanyName}" } }

Replacement Strategy

Regex Replace

Evaluation Mode

Entire text


By using this method also we can add the attribute dynamically based on the flowfile attributes to the json message.

View solution in original post

2 REPLIES 2

avatar
Master Guru

@Mahendra Hegde,

According to jira https://issues.apache.org/jira/browse/NIFI-3010

if you are using NiFi 1.2+ then we can use Attributes from the flowfile and add them to json.

I'm having Company attributes associated with the flowfile and value is also Company.

Input:-

{
"exampledata": {
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z"
}
}

Jolt-spec:-

[{
 "operation": "shift",
 "spec": {
  "*": "&"
 }
}, {
 "operation": "default",
 "spec": {
  "Company": "${Company}"
 }
}]

Output:-

{
"exampledata": {
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z"
},
"Company": "Company"
}

but this spec won't give the expected output as per your question, as we cannot add the attribute into main exampledata list.

Example1:-


by flattening out exampledata then we can add company attribute to the json message as follow.

Jolt-spec:-

[{
"operation": "shift",
"spec": {
"exampledata": {
"*": "&"
}
}
}, {
"operation": "default",
"spec": {
"Company": "${Company}"
}
}]

Output:-

{
"name": "Test",
"age": null,
"ver": null,
"payloadType": "Text",
"payloadData": "adsadsdsdsdsdsdsdsdsds",
"sequenceNum": null,
"timeStamp": "2017-09-22T12:07:29.968Z",
"Company": "Company"
}

Example2:-


If you are using prior version than NiFi 1.2, Then you need to use Replace text Processor with Below Properties.

Search Value

}\s+}

Replacement Value

,"company" : "${CompanyName}" } }

Replacement Strategy

Regex Replace

Evaluation Mode

Entire text


By using this method also we can add the attribute dynamically based on the flowfile attributes to the json message.

avatar
Master Collaborator

@Shu - Thanks a lot, it is really helpful.
