Slow FTP downloads with NiFi

Re: Slow FTP downloads with NiFi

Explorer

Even I have similar issue. My FetchSFTP processor doesn't download large files.



I am trying to download any file that is uploaded to FTP server.

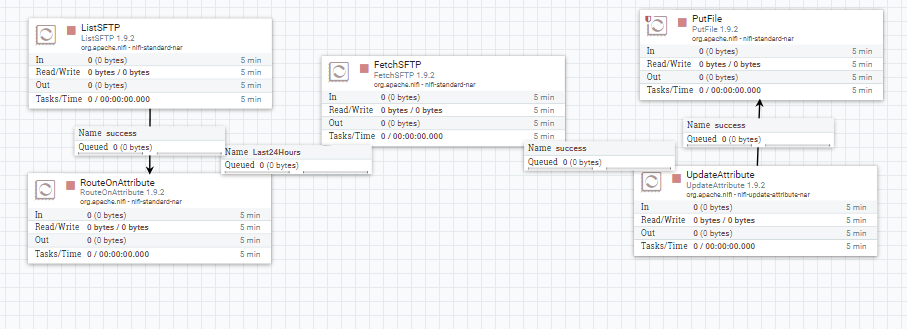

This is what I came up with -






It works perfectly for small files. For large files, the process stops at FectchSFTP processor.



Here is the template -

https://drive.google.com/file/d/1nPz6uUEwdYEopTH_7N1pDsvlX5Qx4uHu/view?usp=sharing



Can someone help please.?

@Wynner @denis_urbanavic



Thanks.





Re: Slow FTP downloads with NiFi

Can you provide information about spec and configuration of NiFi?   Number Nodes, memory settings, disk size, are partitions configured separately?, etc..

Re: Slow FTP downloads with NiFi

Explorer

@stevenmatison

Here you go -



There is only 1 node (Standalone).


# Core Properties #
nifi.flow.configuration.file=./conf/flow.xml.gz
nifi.flow.configuration.archive.enabled=true
nifi.flow.configuration.archive.dir=./conf/archive/
nifi.flow.configuration.archive.max.time=30 days
nifi.flow.configuration.archive.max.storage=500 MB
nifi.flow.configuration.archive.max.count=
nifi.flowcontroller.autoResumeState=true
nifi.flowcontroller.graceful.shutdown.period=10 sec
nifi.flowservice.writedelay.interval=500 ms
nifi.administrative.yield.duration=30 sec
# If a component has no work to do (is "bored"), how long should we wait before checking again for work?
nifi.bored.yield.duration=10 millis
nifi.queue.backpressure.count=10000
nifi.queue.backpressure.size=1 GB

nifi.authorizer.configuration.file=./conf/authorizers.xml
nifi.login.identity.provider.configuration.file=./conf/login-identity-providers.xml
nifi.templates.directory=./conf/templates
nifi.ui.banner.text=
nifi.ui.autorefresh.interval=30 sec
nifi.nar.library.directory=./lib
nifi.nar.library.autoload.directory=./extensions
nifi.nar.working.directory=./work/nar/
nifi.documentation.working.directory=./work/docs/components

####################
# State Management #
####################
nifi.state.management.configuration.file=./conf/state-management.xml
# The ID of the local state provider
nifi.state.management.provider.local=local-provider
# The ID of the cluster-wide state provider. This will be ignored if NiFi is not clustered but must be populated if running in a cluster.
nifi.state.management.provider.cluster=zk-provider
# Specifies whether or not this instance of NiFi should run an embedded ZooKeeper server
nifi.state.management.embedded.zookeeper.start=false
# Properties file that provides the ZooKeeper properties to use if <nifi.state.management.embedded.zookeeper.start> is set to true
nifi.state.management.embedded.zookeeper.properties=./conf/zookeeper.properties


# H2 Settings
nifi.database.directory=./database_repository
nifi.h2.url.append=;LOCK_TIMEOUT=25000;WRITE_DELAY=0;AUTO_SERVER=FALSE

# FlowFile Repository
nifi.flowfile.repository.implementation=org.apache.nifi.controller.repository.WriteAheadFlowFileRepository
nifi.flowfile.repository.wal.implementation=org.apache.nifi.wali.SequentialAccessWriteAheadLog
nifi.flowfile.repository.directory=./flowfile_repository
nifi.flowfile.repository.partitions=256
nifi.flowfile.repository.checkpoint.interval=2 mins
nifi.flowfile.repository.always.sync=false

nifi.swap.manager.implementation=org.apache.nifi.controller.FileSystemSwapManager
nifi.queue.swap.threshold=20000
nifi.swap.in.period=5 sec
nifi.swap.in.threads=1
nifi.swap.out.period=5 sec
nifi.swap.out.threads=4

# Content Repository
nifi.content.repository.implementation=org.apache.nifi.controller.repository.FileSystemRepository
nifi.content.claim.max.appendable.size=1 MB
nifi.content.claim.max.flow.files=100
nifi.content.repository.directory.default=./content_repository
nifi.content.repository.archive.max.retention.period=12 hours
nifi.content.repository.archive.max.usage.percentage=50%
nifi.content.repository.archive.enabled=true
nifi.content.repository.always.sync=false
nifi.content.viewer.url=../nifi-content-viewer/

# Provenance Repository Properties
nifi.provenance.repository.implementation=org.apache.nifi.provenance.WriteAheadProvenanceRepository
nifi.provenance.repository.debug.frequency=1_000_000
nifi.provenance.repository.encryption.key.provider.implementation=
nifi.provenance.repository.encryption.key.provider.location=
nifi.provenance.repository.encryption.key.id=
nifi.provenance.repository.encryption.key=

# Persistent Provenance Repository Properties
nifi.provenance.repository.directory.default=./provenance_repository
nifi.provenance.repository.max.storage.time=24 hours
nifi.provenance.repository.max.storage.size=1 GB
nifi.provenance.repository.rollover.time=30 secs
nifi.provenance.repository.rollover.size=100 MB
nifi.provenance.repository.query.threads=2
nifi.provenance.repository.index.threads=2
nifi.provenance.repository.compress.on.rollover=true
nifi.provenance.repository.always.sync=false
# Comma-separated list of fields. Fields that are not indexed will not be searchable. Valid fields are:
# EventType, FlowFileUUID, Filename, TransitURI, ProcessorID, AlternateIdentifierURI, Relationship, Details
nifi.provenance.repository.indexed.fields=EventType, FlowFileUUID, Filename, ProcessorID, Relationship
# FlowFile Attributes that should be indexed and made searchable. Some examples to consider are filename, uuid, mime.type
nifi.provenance.repository.indexed.attributes=
# Large values for the shard size will result in more Java heap usage when searching the Provenance Repository
# but should provide better performance
nifi.provenance.repository.index.shard.size=500 MB
# Indicates the maximum length that a FlowFile attribute can be when retrieving a Provenance Event from
# the repository. If the length of any attribute exceeds this value, it will be truncated when the event is retrieved.
nifi.provenance.repository.max.attribute.length=65536
nifi.provenance.repository.concurrent.merge.threads=2

Re: Slow FTP downloads with NiFi

@shailuk

How large are the large files?

How many concurrent tasks are configured in the FetchSFTP processor?

Re: Slow FTP downloads with NiFi

Explorer

@Wynner

The file is 3 gb size.

1 concurrent task.

Re: Slow FTP downloads with NiFi

With that big of a file, you are going to need to adjust settings (memory) and evaluate performance of the file repositories.  I would recommend to start with small files, and work your way up.  Complete a benchmark at each stage, then begin testing config changes.  This should be a lengthy evaluation where in the end, you end up with a configuration capable of consuming 3 gb files.
