Sqoop hook doesn't work for atlas?

Explorer

I install atlas and sqoop respectively and haven't used HDP.

After execute this command:

sqoop import -connect
jdbc:mysql://master:3306/hive -username root -password admin -table
TBLS -hive-import -hive-table sqoophook1

It shows that sqoop import data into hive successfully, and never report error.

Then I check the Atlas UI, search the sqoop_process type, but I can't check any information. Why?

`

Here is my configuration process:

Step 1: Set the <sqoop-conf>/sqoop-site.xml

<property>
<name>sqoop.job.data.publish.class</name>
 <value>org.apache.atlas.sqoop.hook.SqoopHook</value>
 </property>

Step 2: Copy the <atlas-conf>/atlas-application.properties to <sqoop-conf>

Step 3: Link <atlas-home>/hook/sqoop/*.jar in sqoop lib.

`

Are these configuration-steps wrong ?

Here is the output

sqoop import -connect jdbc:mysql://zte-1:3306/hive -username root -password admin -table TBLS -hive-import -hive-table sqoophook2
Warning: /var/local/hadoop/sqoop-1.4.6/../hcatalog does not exist! HCatalog jobs will fail.
Please set $HCAT_HOME to the root of your HCatalog installation.
Warning: /var/local/hadoop/sqoop-1.4.6/../accumulo does not exist! Accumulo imports will fail.
Please set $ACCUMULO_HOME to the root of your Accumulo installation.
16/08/23 01:04:04 INFO sqoop.Sqoop: Running Sqoop version: 1.4.6
16/08/23 01:04:04 WARN tool.BaseSqoopTool: Setting your password on the command-line is insecure. Consider using -P instead.
16/08/23 01:04:04 INFO tool.BaseSqoopTool: Using Hive-specific delimiters for output. You can override
16/08/23 01:04:04 INFO tool.BaseSqoopTool: delimiters with --fields-terminated-by, etc.
16/08/23 01:04:05 INFO manager.MySQLManager: Preparing to use a MySQL streaming resultset.
16/08/23 01:04:05 INFO tool.CodeGenTool: Beginning code generation
16/08/23 01:04:05 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:04:06 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:04:06 INFO orm.CompilationManager: HADOOP_MAPRED_HOME is /var/local/hadoop/hadoop-2.6.0
Note: /tmp/sqoop-hdfs/compile/2606be5f25a97674311440065aac302d/TBLS.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
16/08/23 01:04:09 INFO orm.CompilationManager: Writing jar file: /tmp/sqoop-hdfs/compile/2606be5f25a97674311440065aac302d/TBLS.jar
16/08/23 01:04:09 WARN manager.MySQLManager: It looks like you are importing from mysql.
16/08/23 01:04:09 WARN manager.MySQLManager: This transfer can be faster! Use the --direct
16/08/23 01:04:09 WARN manager.MySQLManager: option to exercise a MySQL-specific fast path.
16/08/23 01:04:09 INFO manager.MySQLManager: Setting zero DATETIME behavior to convertToNull (mysql)
16/08/23 01:04:09 INFO mapreduce.ImportJobBase: Beginning import of TBLS
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/var/local/hadoop/hadoop-2.6.0/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/var/local/hadoop/hbase-1.1.5/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/S     taticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
16/08/23 01:04:10 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using  builtin-java classes where applicable
16/08/23 01:04:10 INFO Configuration.deprecation: mapred.jar is deprecated. Instead, use mapreduce.job.jar
16/08/23 01:04:11 INFO Configuration.deprecation: mapred.map.tasks is deprecated. Instead, use mapreduce.job. maps
16/08/23 01:04:11 INFO client.RMProxy: Connecting to ResourceManager at zte-1/192.168.136.128:8032
16/08/23 01:04:16 INFO db.DBInputFormat: Using read commited transaction isolation
16/08/23 01:04:16 INFO db.DataDrivenDBInputFormat: BoundingValsQuery: SELECT MIN(`TBL_ID`), MAX(`TBL_ID`) FROM `TBLS`
16/08/23 01:04:17 INFO mapreduce.JobSubmitter: number of splits:4
16/08/23 01:04:17 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1471882959657_0001
16/08/23 01:04:19 INFO impl.YarnClientImpl: Submitted application application_1471882959657_0001
16/08/23 01:04:19 INFO mapreduce.Job: The url to track the job: http://zte-1:8088/proxy/application_147188295                                                                                                                                9657_0001/
16/08/23 01:04:19 INFO mapreduce.Job: Running job: job_1471882959657_0001
16/08/23 01:04:37 INFO mapreduce.Job: Job job_1471882959657_0001 running in uber mode : false
16/08/23 01:04:37 INFO mapreduce.Job:  map 0% reduce 0%
16/08/23 01:05:05 INFO mapreduce.Job:  map 25% reduce 0%
16/08/23 01:05:07 INFO mapreduce.Job:  map 100% reduce 0%
16/08/23 01:05:08 INFO mapreduce.Job: Job job_1471882959657_0001 completed successfully
16/08/23 01:05:08 INFO mapreduce.Job: Counters: 30
        File System Counters
                FILE: Number of bytes read=0
                FILE: Number of bytes written=529788
                FILE: Number of read operations=0
                FILE: Number of large read operations=0
                FILE: Number of write operations=0
                HDFS: Number of bytes read=426
                HDFS: Number of bytes written=171
                HDFS: Number of read operations=16
                HDFS: Number of large read operations=0
                HDFS: Number of write operations=8
        Job Counters
                Launched map tasks=4
                Other local map tasks=4
                Total time spent by all maps in occupied slots (ms)=102550
                Total time spent by all reduces in occupied slots (ms)=0
                Total time spent by all map tasks (ms)=102550
                Total vcore-seconds taken by all map tasks=102550
                Total megabyte-seconds taken by all map tasks=105011200
        Map-Reduce Framework
                Map input records=3
                Map output records=3
                Input split bytes=426
                Spilled Records=0
                Failed Shuffles=0
                Merged Map outputs=0
                GC time elapsed (ms)=1227
                CPU time spent (ms)=3640
                Physical memory (bytes) snapshot=390111232
                Virtual memory (bytes) snapshot=3376676864
                Total committed heap usage (bytes)=74018816
        File Input Format Counters
                Bytes Read=0
        File Output Format Counters
                Bytes Written=171
16/08/23 01:05:08 INFO mapreduce.ImportJobBase: Transferred 171 bytes in 57.2488 seconds (2.987 bytes/sec)
16/08/23 01:05:08 INFO mapreduce.ImportJobBase: Retrieved 3 records.
16/08/23 01:05:08 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:05:08 INFO hive.HiveImport: Loading uploaded data into Hive
16/08/23 01:05:19 INFO hive.HiveImport:
16/08/23 01:05:19 INFO hive.HiveImport: Logging initialized using configuration in jar:file:/var/local/hadoop/hive-1.2.1/lib/hive-common-1.2.1.jar!/hive-log4j.properties
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Class path contains multiple SLF4J bindings.
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Found binding in [jar:file:/var/local/hadoop/hadoop-2.6.0/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Found binding in [jar:file:/var/local/hadoop/hbase-1.1.5/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an e                                                                                                                                xplanation.
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
16/08/23 01:05:31 INFO hive.HiveImport: OK
16/08/23 01:05:31 INFO hive.HiveImport: Time taken: 3.481 seconds
16/08/23 01:05:31 INFO hive.HiveImport: Loading data to table default.sqoophook2
16/08/23 01:05:33 INFO hive.HiveImport: Table default.sqoophook2 stats: [numFiles=4, totalSize=171]
16/08/23 01:05:33 INFO hive.HiveImport: OK
16/08/23 01:05:33 INFO hive.HiveImport: Time taken: 1.643 seconds
16/08/23 01:05:35 INFO hive.HiveImport: Hive import complete.
16/08/23 01:05:35 INFO hive.HiveImport: Export directory is contains the _SUCCESS file only, removing the directory.
1 ACCEPTED SOLUTION

Contributor

@Ethan Hsieh

Could you also confirm if the sqoop-site.xml has the rest address for atlas server configured ?

Sample configuration is available here

View solution in original post

17 REPLIES 17

Contributor

@Ethan Hsieh

Could you also confirm if the sqoop-site.xml has the rest address for atlas server configured ?

Sample configuration is available here

Explorer

@ckrishnakumar

After I added atlas.rest.address property to the sqoop-site.xml, the problem is same. I search sqoop_process in the Atlas Web UI and no result was found.

But the Hive hook is work, it can capture the imported hive_table which is shown in the atlas Web UI.

I paste the output on the next answer. And the output doesn't report any error.

``

I remembered that, when I configured the Hive hook, I added some path of JARs for the HIVE_AUX_JARS_PATH. But the configuration process of Sqoop hook is lack of this step.

Is it necessary to add some path of JARs for sqoop? It seems that the SqoopHook Class doesn't work.

Contributor

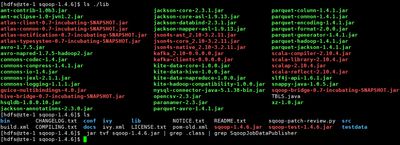

Step 3: Link <atlas-home>/hook/sqoop/*.jar in sqoop lib. should take care of adding the required jar files on the sqoop path.

Explorer

How to link these JARs?

Copy these JARs into <sqoop-home>/lib ?

Or use command: ln -s <atlas-home>/hook/sqoop/* <sqoop-home>/lib/ ?

@Ethan Hsieh

Can you paste the console output for the executed sqoop command here? Also please make sure to add the atlas.rest.address property to the sqoop-site.xml or atlas-application.properties file and run the command to see if there is any difference.

Explorer

@Ayub Pathan

After I added atlas.rest.address property to the sqoop-site.xml, the problem is same. I search sqoop_process in the Atlas Web UI and no result was found.

But the Hive hook is work, it can capture the imported hive_table which is shown in the atlas Web UI.

I paste the output on the next answer. And the output doesn't report any error.

``

I remembered that, when I configured the Hive hook, I added some path of JARs for the HIVE_AUX_JARS_PATH. But the configuration process of Sqoop hook is lack of this step.

Is it necessary to add some path of JARs for sqoop? It seems that the SqoopHook Class doesn't work.

Explorer

@Ayub Pathan

@ckrishnakumar

The sqoop hook still doesn't work. Here is the console output for the executed sqoop command:

sqoop import -connect jdbc:mysql://zte-1:3306/hive -username root -password admin -table TBLS -hive-import -hive-table sqoophook2
Warning: /var/local/hadoop/sqoop-1.4.6/../hcatalog does not exist! HCatalog jobs will fail.
Please set $HCAT_HOME to the root of your HCatalog installation.
Warning: /var/local/hadoop/sqoop-1.4.6/../accumulo does not exist! Accumulo imports will fail.
Please set $ACCUMULO_HOME to the root of your Accumulo installation.
16/08/23 01:04:04 INFO sqoop.Sqoop: Running Sqoop version: 1.4.6
16/08/23 01:04:04 WARN tool.BaseSqoopTool: Setting your password on the command-line is insecure. Consider using -P instead.
16/08/23 01:04:04 INFO tool.BaseSqoopTool: Using Hive-specific delimiters for output. You can override
16/08/23 01:04:04 INFO tool.BaseSqoopTool: delimiters with --fields-terminated-by, etc.
16/08/23 01:04:05 INFO manager.MySQLManager: Preparing to use a MySQL streaming resultset.
16/08/23 01:04:05 INFO tool.CodeGenTool: Beginning code generation
16/08/23 01:04:05 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:04:06 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:04:06 INFO orm.CompilationManager: HADOOP_MAPRED_HOME is /var/local/hadoop/hadoop-2.6.0
Note: /tmp/sqoop-hdfs/compile/2606be5f25a97674311440065aac302d/TBLS.java uses or overrides a deprecated API.
Note: Recompile with -Xlint:deprecation for details.
16/08/23 01:04:09 INFO orm.CompilationManager: Writing jar file: /tmp/sqoop-hdfs/compile/2606be5f25a97674311440065aac302d/TBLS.jar
16/08/23 01:04:09 WARN manager.MySQLManager: It looks like you are importing from mysql.
16/08/23 01:04:09 WARN manager.MySQLManager: This transfer can be faster! Use the --direct
16/08/23 01:04:09 WARN manager.MySQLManager: option to exercise a MySQL-specific fast path.
16/08/23 01:04:09 INFO manager.MySQLManager: Setting zero DATETIME behavior to convertToNull (mysql)
16/08/23 01:04:09 INFO mapreduce.ImportJobBase: Beginning import of TBLS
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/var/local/hadoop/hadoop-2.6.0/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/var/local/hadoop/hbase-1.1.5/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/S     taticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
16/08/23 01:04:10 WARN util.NativeCodeLoader: Unable to load native-hadoop library for your platform... using  builtin-java classes where applicable
16/08/23 01:04:10 INFO Configuration.deprecation: mapred.jar is deprecated. Instead, use mapreduce.job.jar
16/08/23 01:04:11 INFO Configuration.deprecation: mapred.map.tasks is deprecated. Instead, use mapreduce.job. maps
16/08/23 01:04:11 INFO client.RMProxy: Connecting to ResourceManager at zte-1/192.168.136.128:8032
16/08/23 01:04:16 INFO db.DBInputFormat: Using read commited transaction isolation
16/08/23 01:04:16 INFO db.DataDrivenDBInputFormat: BoundingValsQuery: SELECT MIN(`TBL_ID`), MAX(`TBL_ID`) FROM `TBLS`
16/08/23 01:04:17 INFO mapreduce.JobSubmitter: number of splits:4
16/08/23 01:04:17 INFO mapreduce.JobSubmitter: Submitting tokens for job: job_1471882959657_0001
16/08/23 01:04:19 INFO impl.YarnClientImpl: Submitted application application_1471882959657_0001
16/08/23 01:04:19 INFO mapreduce.Job: The url to track the job: http://zte-1:8088/proxy/application_147188295                                                                                                                                9657_0001/
16/08/23 01:04:19 INFO mapreduce.Job: Running job: job_1471882959657_0001
16/08/23 01:04:37 INFO mapreduce.Job: Job job_1471882959657_0001 running in uber mode : false
16/08/23 01:04:37 INFO mapreduce.Job:  map 0% reduce 0%
16/08/23 01:05:05 INFO mapreduce.Job:  map 25% reduce 0%
16/08/23 01:05:07 INFO mapreduce.Job:  map 100% reduce 0%
16/08/23 01:05:08 INFO mapreduce.Job: Job job_1471882959657_0001 completed successfully
16/08/23 01:05:08 INFO mapreduce.Job: Counters: 30
        File System Counters
                FILE: Number of bytes read=0
                FILE: Number of bytes written=529788
                FILE: Number of read operations=0
                FILE: Number of large read operations=0
                FILE: Number of write operations=0
                HDFS: Number of bytes read=426
                HDFS: Number of bytes written=171
                HDFS: Number of read operations=16
                HDFS: Number of large read operations=0
                HDFS: Number of write operations=8
        Job Counters
                Launched map tasks=4
                Other local map tasks=4
                Total time spent by all maps in occupied slots (ms)=102550
                Total time spent by all reduces in occupied slots (ms)=0
                Total time spent by all map tasks (ms)=102550
                Total vcore-seconds taken by all map tasks=102550
                Total megabyte-seconds taken by all map tasks=105011200
        Map-Reduce Framework
                Map input records=3
                Map output records=3
                Input split bytes=426
                Spilled Records=0
                Failed Shuffles=0
                Merged Map outputs=0
                GC time elapsed (ms)=1227
                CPU time spent (ms)=3640
                Physical memory (bytes) snapshot=390111232
                Virtual memory (bytes) snapshot=3376676864
                Total committed heap usage (bytes)=74018816
        File Input Format Counters
                Bytes Read=0
        File Output Format Counters
                Bytes Written=171
16/08/23 01:05:08 INFO mapreduce.ImportJobBase: Transferred 171 bytes in 57.2488 seconds (2.987 bytes/sec)
16/08/23 01:05:08 INFO mapreduce.ImportJobBase: Retrieved 3 records.
16/08/23 01:05:08 INFO manager.SqlManager: Executing SQL statement: SELECT t.* FROM `TBLS` AS t LIMIT 1
16/08/23 01:05:08 INFO hive.HiveImport: Loading uploaded data into Hive
16/08/23 01:05:19 INFO hive.HiveImport:
16/08/23 01:05:19 INFO hive.HiveImport: Logging initialized using configuration in jar:file:/var/local/hadoop/hive-1.2.1/lib/hive-common-1.2.1.jar!/hive-log4j.properties
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Class path contains multiple SLF4J bindings.
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Found binding in [jar:file:/var/local/hadoop/hadoop-2.6.0/share/hadoop/common/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Found binding in [jar:file:/var/local/hadoop/hbase-1.1.5/lib/slf4j-log4j12-1.7.5.jar!/org/slf4j/impl/StaticLoggerBinder.class]
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an e                                                                                                                                xplanation.
16/08/23 01:05:19 INFO hive.HiveImport: SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
16/08/23 01:05:31 INFO hive.HiveImport: OK
16/08/23 01:05:31 INFO hive.HiveImport: Time taken: 3.481 seconds
16/08/23 01:05:31 INFO hive.HiveImport: Loading data to table default.sqoophook2
16/08/23 01:05:33 INFO hive.HiveImport: Table default.sqoophook2 stats: [numFiles=4, totalSize=171]
16/08/23 01:05:33 INFO hive.HiveImport: OK
16/08/23 01:05:33 INFO hive.HiveImport: Time taken: 1.643 seconds
16/08/23 01:05:35 INFO hive.HiveImport: Hive import complete.
16/08/23 01:05:35 INFO hive.HiveImport: Export directory is contains the _SUCCESS file only, removing the directory.

Contributor

It is possible that only certain version of sqoop supports the hook and the output of the command doesn't seem to have hook kafka entry.

would it be possible to provide the output of this command ?

jar tvf sqoop-<version>jar | grep .class | grep SqoopJobDataPublisher

The output should look like

$ jar tvf sqoop-1.4.7-SNAPSHOT.jar | grep .class | grep SqoopJobDataPublisher

3462 Fri Jan 22 12:15:04 IST 2016 org/apache/sqoop/SqoopJobDataPublisher$Data.class

644 Fri Jan 22 12:15:04 IST 2016 org/apache/sqoop/SqoopJobDataPublisher.class

Explorer

@ckrishnakumar

The output of this command is nothing.

This is the result shown in the terminal. I also pasted the screenshot next to it.

[hdfs@zte-1 sqoop-1.4.6]$ ls
bin        CHANGELOG.txt  conf  ivy      lib          NOTICE.txt   README.txt       sqoop-patch-review.py  src
build.xml  COMPILING.txt  docs  ivy.xml  LICENSE.txt  pom-old.xml  sqoop-1.4.6.jar  sqoop-test-1.4.6.jar   testdata
[hdfs@zte-1 sqoop-1.4.6]$  jar tvf sqoop-1.4.6.jar | grep .class | grep SqoopJobDataPublisher
[hdfs@zte-1 sqoop-1.4.6]$


Contributor

@Ethan Hsieh

Looks like this version of sqoop does not support integration with atlas. You may have to upgrade the version to sqoop-1.4.6.2.3.99.1-5.jar sandbox (HDP 2.4.0) or use sqoop-1.4.7 or later from apache.

Do let me know if the upgrade resolve the issue

Explorer

@ckrishnakumar

Thank you very much. But I can find sqoop-1.4.7 in the official webside: http://sqoop.apache.org/

This webside shows that the latest stable release is 1.4.6. It doesn't provide the access for downloading the sqoop-1.4.7.

Could you give me a link to download the 1.4.7 version or send me the jar to my email: dreamcoding@outlook.com

Contributor

@Ethan Hsieh I have sent you the jar file. Also you will be able to build this jar file by cloning the sqoop git repo - https://github.com/apache/sqoop.git

Details of how to compile is provided under - https://github.com/apache/sqoop/blob/trunk/COMPILING.txt

Explorer

@Chethana Krishnakumar

Thank you very much, after imported the 1.4.7.jar package into sqoop1.4.6 does solve the problem. But I am worried that there will be some small problems in the future, so I came up with several solutions:

1. I found that the version of sqoop in HDP is 1.4.6, but as I mentioned before that the sqoop1.4.6 obtained from the official is not complete, I would like to ask you that can give me a full version of the 1.4.6.

2. can you provide me a full version of the sqoop-1.4.7.,not just only the 1.4.7.jar package

3. I even tried the latest release of the sqoop-1.99.7, but the official information only saw the use of it in importing data from the relational database into HDFS, I want to know the operation steps of using it to import datafrom the relational database into Hive.

Contributor

@Ethan Hsieh

1.You will now be able to find the sqoop hook with http://hortonworks.com/tech-preview-hdp-2-5/

2.I could provide you with the full version but that may not be a clean fix.Please build sqoop from latest branch on apache here which would have all the changes.

3. Could you please post this as a different question as this is related to sqoop client

Rising Star

Sqoop hook for atlas is not part of the 2.4.0 release.

@Chethana Krishnakumar

I have the same question.I used ant to compile the project that was downloaded from the github.But when i used the sqoop to import data from mysql to hive,the data could't be imported to hive and the atlas hook didn't work.So i want to know the sqoop project source that the 1.4.7 jar you got from was got from github?


when the job finished,it gived me these messages.But I can't understand it.

Take a Tour of the Community
Don't have an account?
Your experience may be limited. Sign in to explore more.
