This tutorial has been successfully tried on HDP-2.4.0.0 and Ambari 2.2.1.0

.

I have my HDP Cluster Kerberized and Ambari has been configured for SSL.

Note - Steps are same for Ambari with or without SSL.

.

Please follow below steps for Configuring Pig View on Kerberized HDP Cluster.

.

Step 1 - Please configure your Ambari Server for Kerberos with the steps mentioned in below article. Please follow steps 1 to 5.

https://community.hortonworks.com/articles/40635/configure-tez-view-for-kerberized-hdp-cluster.html

.

Step 2 - Please add below properties to core-site.xml via Ambari UI and restart required services.

.

Note - If you are running Ambari Server as root user then add below properties

hadoop.proxyuser.root.groups=*hadoop.proxyuser.root.hosts=*

.

If you are running Ambari server as non-root user then please add below properties in core-site.xml

hadoop.proxyuser.<ambari-server-user>.groups=*hadoop.proxyuser.<ambari-server-user>.hosts=*

Please replace <ambari-server-user> with user running Ambari Server in above example.

.

I'm assuming that your ambari server principal is ambari-server@REALM.COM, if not then please replace 'ambari-server' with your principal's user part.

hadoop.proxyuser.ambari-server.groups=*hadoop.proxyuser.ambari-server.hosts=*

.

Step 3 - Create user directory on hdfs for the user accessing pig view. For e.g. in my case I'm using admin user to access pig view.

.

sudo -u hdfs hadoop fs -mkdir /user/admin sudo -u hdfs hadoop fs -chown admin:hdfs /user/adminsudo -u hdfs hadoop fs -chmod 755/user/admin

.

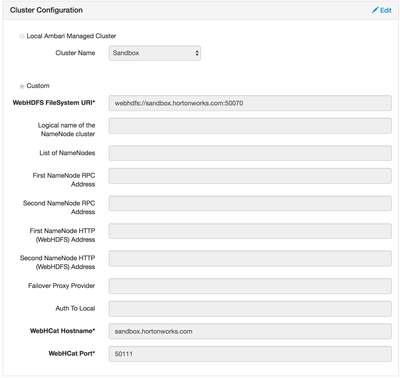

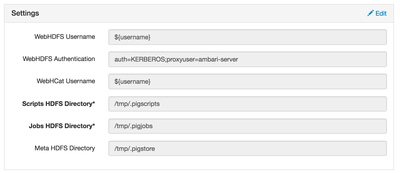

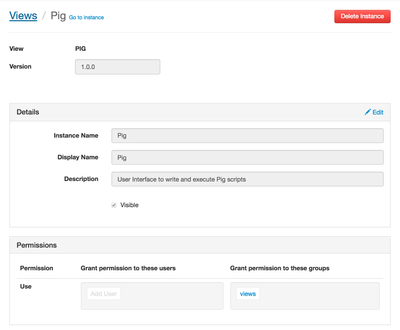

Step 4 - Goto Admin tab --> Click on Manage Ambari --> Views --> Edit Pig view ( Create a new one if it doesn't exist already ) and configure settings as given below

.

Note - You may need to modify values as per your environment settings!

.

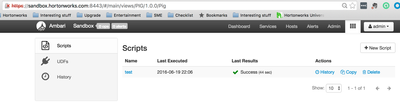

After above steps, you should be able to access your pig view without any issues. If you receive any error(s) then please check /var/log/ambari-server/ambari-server.log for more details and troubleshooting.
