NiFi - Oracle Connect
Processor: ExecuteSQL

1) Prepare Oracle Data (Optional)

Prepare the data, and create the Oracle table:



CREATE TABLE USER_MASTER
(
  USER_ID           VARCHAR2(8) NOT NULL,
  DEPT_NO           VARCHAR2(8),
  USER_NAME         VARCHAR2(32),
  CREATED_ON        DATE DEFAULT SYSDATE,
  MODIFIED_ON       DATE,
   CONSTRAINT pk_USER_MASTER PRIMARY KEY(USER_ID)
);



Insert the data into Oracle Table:



INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 1 Ro','1001','1');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 2 Ro','1001','2');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 3 Ro','1001','3');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 4 Ro','1001','4');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 5 Ro','1001','5');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 6 Ro','1001','6');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 7 Ro','1001','7');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 8 Ro','1001','8');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 9 Ro','1001','9');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 10 Ro','1001','10');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 11 Ro','1001','11');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 12 Ro','1001','12');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 13 Ro','1001','13');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 14 Ro','1001','14');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 15 Ro','1001','15');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 16 Ro','1001','16');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 17 Ro','1001','17');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 18 Ro','1001','18');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 19 Ro','1001','19');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 20 Ro','1001','20');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 21 Ro','1001','21');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 22 Ro','1001','22');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 23 Ro','1001','23');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 24 Ro','1001','24');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 25 Ro','1001','25');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 26 Ro','1001','26');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 27 Ro','1001','27');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 28 Ro','1001','28');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 29 Ro','1001','29');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 30 Ro','1001','30');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 31 Ro','1001','31');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 32 Ro','1001','32');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 33 Ro','1001','33');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 34 Ro','1001','34');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 35 Ro','1001','35');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 36 Ro','1001','36');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 37 Ro','1001','37');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 38 Ro','1001','38');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 39 Ro','1001','39');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 40 Ro','1001','40');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 41 Ro','1001','41');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 42 Ro','1001','42');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 43 Ro','1001','43');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 44 Ro','1001','44');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 45 Ro','1001','45');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 46 Ro','1001','46');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 47 Ro','1001','47');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 48 Ro','1001','48');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 49 Ro','1001','49');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 50 Ro','1001','50');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 51 Ro','1001','51');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 52 Ro','1001','52');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 53 Ro','1001','53');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 54 Ro','1001','54');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 55 Ro','1001','55');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 56 Ro','1001','56');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 57 Ro','1001','57');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 58 Ro','1001','58');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 59 Ro','1001','59');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 60 Ro','1001','60');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 61 Ro','1001','61');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 62 Ro','1001','62');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 63 Ro','1001','63');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 64 Ro','1001','64');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 65 Ro','1001','65');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 66 Ro','1001','66');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 67 Ro','1001','67');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 68 Ro','1001','68');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 69 Ro','1001','69');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 70 Ro','1001','70');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 71 Ro','1001','71');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 72 Ro','1001','72');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 73 Ro','1001','73');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 74 Ro','1001','74');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 75 Ro','1001','75');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 76 Ro','1001','76');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 77 Ro','1001','77');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 78 Ro','1001','78');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 79 Ro','1001','79');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 80 Ro','1001','80');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 81 Ro','1001','81');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 82 Ro','1001','82');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 83 Ro','1001','83');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 84 Ro','1001','84');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 85 Ro','1001','85');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 86 Ro','1001','86');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 87 Ro','1001','87');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 88 Ro','1001','88');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 89 Ro','1001','89');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 90 Ro','1001','90');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 91 Ro','1001','91');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 92 Ro','1001','92');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 93 Ro','1001','93');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 94 Ro','1001','94');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 95 Ro','1001','95');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 96 Ro','1001','96');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 97 Ro','1001','97');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 98 Ro','1001','98');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 99 Ro','1001','99');
INSERT INTO USER_MASTER (USER_NAME, DEPT_NO, USER_ID) VALUES ('Hayashi 100 Ro','1001','100');



2) Add Processor

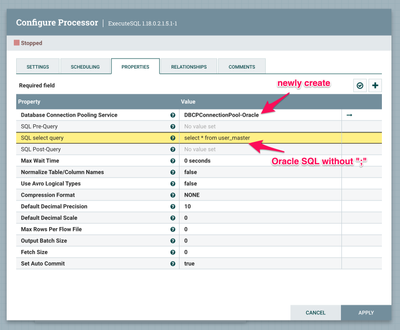

Add an ExecuteSQL Processor :
With the following input parameters:



select * from user_master

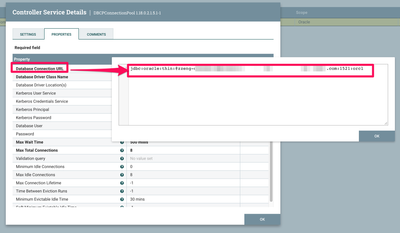

Create the DBCPConnectionPool Controller Service:



jdbc:oracle:thin:@zzeng-*******.com:1521:svcname
oracle.jdbc.driver.OracleDriver
/opt/nifi/jdbc/ojdbc8.jar



Be careful about the "svcname" above, you must input the correct Oracle service name.

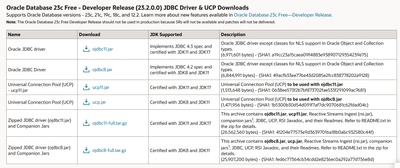

Download JDBC Driver:

To get the ojdbc8.jar,



wget https://download.oracle.com/otn-pub/otn_software/jdbc/219/ojdbc8-full.tar.gz
tar xvf ojdbc8-full.tar.gz
sudo mkdir -p /opt/nifi/jdbc/
sudo chown nifi:nifi /opt/nifi/jdbc/
sudo chmod 755 /opt/nifi/jdbc/
cd /opt/nifi/jdbc/
sudo cp /home/centos/oracle-connect/ojdbc8.jar .

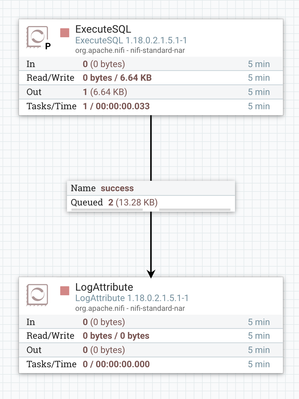

3) Run

Run once:

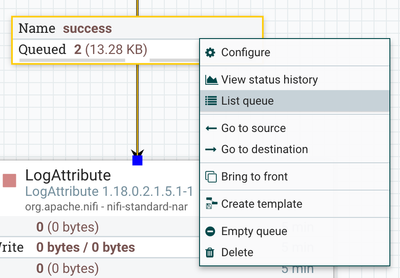

Check Provenance

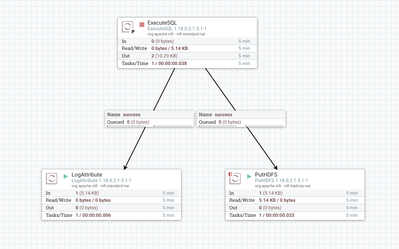

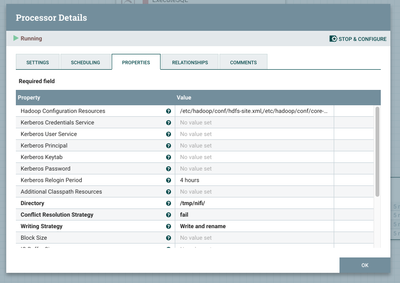

4) Write to HDFS

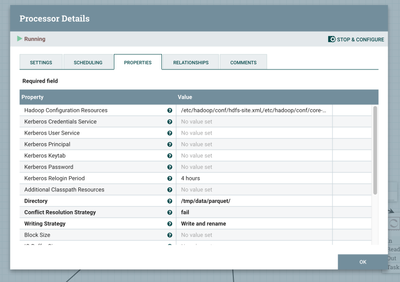

Hadoop Configuration Resources:



/etc/hadoop/conf/hdfs-site.xml,/etc/hadoop/conf/core-site.xml



Directory:



/tmp/nifi/



Check result:



[centos@cdp conf]$ hdfs dfs -ls /tmp/nifi/
Found 2 items
-rw-r--r--   1 nifi supergroup       5268 2023-05-10 04:52 /tmp/nifi/78338e0b-27b4-4b44-b406-c5b1cada12eb
-rw-r--r--   1 nifi supergroup       5268 2023-05-10 05:16 /tmp/nifi/ca5756c4-0e9e-480c-abf5-050b731493fb
[centos@cdp conf]$

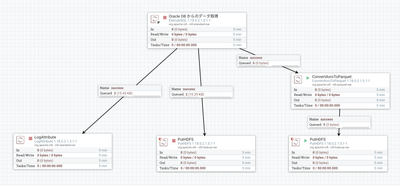

5) Write to Hive External Table




1)Get data from Oracle(Avro Format output)
ExecuteSQL Processor

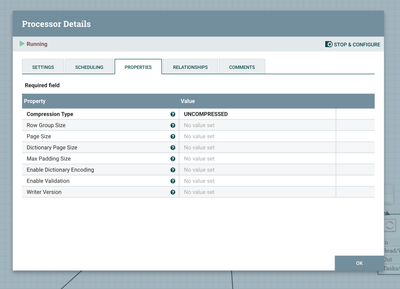

2)Convert from Avro to Parquet

Use  ConvertAvroToParquet Processor
3)Write Parquet data to the external Hive Table

PuTHDFS

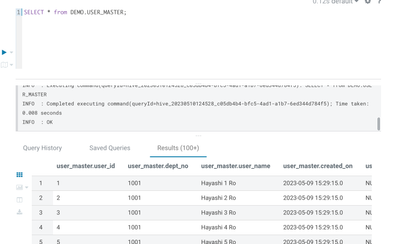

Prepare Hive Table:



CREATE EXTERNAL TABLE DEMO.USER_MASTER
(
  USER_ID           STRING,
  DEPT_NO           STRING,
  USER_NAME         STRING,
  CREATED_ON        STRING ,
  MODIFIED_ON       STRING
)
STORED AS PARQUET
LOCATION '/tmp/data/parquet';






4,260 Views
