Super Guru

We need to ingest C-CDA files, which often have weird names in them. To Compound the naming issues, the Extract C-CDA processor flattens XML to have periods which are not allowed in Apache Avro names.

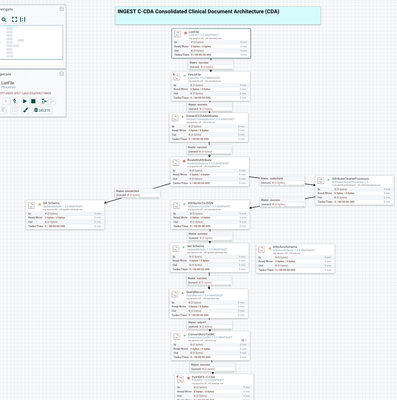

Apache NiFi DataFlow

  • Ingest C-CDA XML Files
  • Extract C-CDA Attributes
  • Route on Attribute
  • AttributeCleaner - my new custom one
  • AttributeToJSON
  • SetSchema
  • QueryRecord
  • ConvertAvroToORC
  • PutHDFS

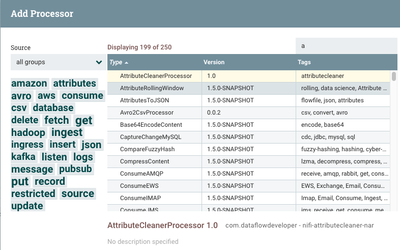

AttributeCleanerProcessor is my new processor to rename all the attributes. This is a very simple version.

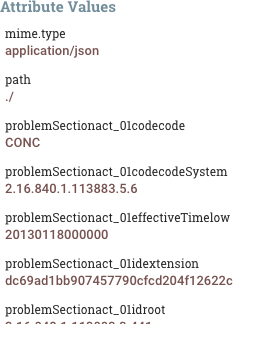

These are the converted file names.

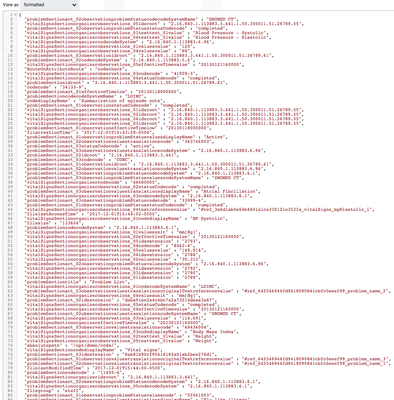

Above is the JSON fields with values.


Route when code field is not null.

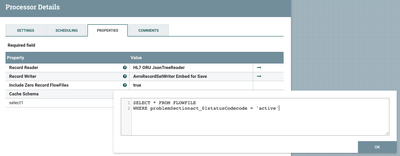

If code is active then convert to Apache ORC for Hive.

SQL Table

CREATE EXTERNAL TABLE IF NOT EXISTS ccda (problemSectionact_02observationproblemStatuscodecodeSystemName STRING, vitalSignsSectionorganizerobservations_05idsroot STRING, problemSectionact_02observationproblemStatusstatusCodecode STRING, vitalSignsSectionorganizerobservations_01texttext_01value STRING, vitalSignsSectionorganizerobservations_04texttext_01value STRING, vitalSignsSectionorganizercodecodeSystem STRING, vitalSignsSectionorganizerobservations_01valuesvalue STRING, vitalSignsSectionorganizerobservations_04valuesvalue STRING, problemSectionact_03observationidroot STRING, problemSectionact_02codecodeSystem STRING, vitalSignsSectionorganizerobservations_05effectiveTimevalue STRING, RouteOnAttributeRoute STRING, vitalSignsSectionorganizerobservations_03codecode STRING, vitalSignsSectionorganizerobservations_04statusCodecode STRING, problemSectionidroot STRING, codecode STRING, problemSectionact_01effectiveTimelow STRING, problemSectioncodecodeSystemName STRING, codedisplayName STRING, problemSectionact_01observationstatusCodecode STRING, vitalSignsSectionorganizerobservations_01idsroot STRING, vitalSignsSectionorganizerobservations_02idsroot STRING, vitalSignsSectionorganizerobservations_04idsroot STRING, vitalSignsSectionorganizerobservations_03idsroot STRING, problemSectionact_01observationeffectiveTimelow STRING, filecreationTime STRING, problemSectionact_01observationproblemStatusvaluesdisplayName STRING, problemSectionact_02observationvaluestranslationscode STRING, problemSectionact_03statusCodecode STRING, problemSectionact_03observationvaluestranslationscodeSystem STRING, problemSectionact_02idroot STRING, problemSectionact_03codecode STRING, problemSectionact_01observationidroot STRING, problemSectionact_02observationvaluestranslationscodeSystem STRING, problemSectionact_03observationproblemStatuscodecodeSystem STRING, problemSectionact_03observationproblemStatusvaluescodeSystemName STRING, vitalSignsSectionorganizercodecode STRING, vitalSignsSectionorganizerobservations_02statusCodecode STRING, problemSectionact_03observationvaluestranslationsdisplayName STRING, vitalSignsSectionorganizerobservations_03codecodeSystem STRING, problemSectionact_03observationproblemStatuscodecode STRING, problemSectionact_01observationproblemStatusstatusCodecode STRING, vitalSignsSectionorganizerobservations_04textreferencevalue STRING, filelastAccessTime STRING, vitalSignsSectionorganizerobservations_01codedisplayName STRING, filesize STRING, problemSectioncodecodeSystem STRING, vitalSignsSectionorganizerobservations_01valuesunit STRING, vitalSignsSectionorganizerobservations_02effectiveTimevalue STRING, vitalSignsSectionorganizerobservations_05idsextension STRING, vitalSignsSectionorganizerobservations_04codecode STRING, vitalSignsSectionorganizerobservations_05valuesvalue STRING, vitalSignsSectionorganizerobservations_04idsextension STRING, vitalSignsSectionorganizerobservations_02valuesvalue STRING, problemSectionact_02observationproblemStatusvaluescodeSystem STRING, vitalSignsSectionorganizerobservations_02idsextension STRING, vitalSignsSectionorganizerobservations_03idsextension STRING, vitalSignsSectionorganizerobservations_01idsextension STRING, problemSectiontitle STRING, vitalSignsSectionorganizerobservations_01codecodeSystemName STRING, problemSectionact_03observationvaluestranslationsoriginalTextreferencevalue STRING, vitalSignsSectionorganizerobservations_04valuesunit STRING, problemSectionact_02idextension STRING, vitalSignsSectionorganizerobservations_05statusCodecode STRING, vitalSignsSectionorganizerobservations_04effectiveTimevalue STRING, problemSectionact_02observationvaluestranslationscodeSystemName STRING, vitalSignsSectionorganizerobservations_03valuesvalue STRING, vitalSignsSectionorganizereffectiveTimevalue STRING, problemSectionact_03observationvaluestranslationscode STRING, vitalSignsSectionorganizerobservations_03codedisplayName STRING, vitalSignsSectionorganizerobservations_02texttext_01value STRING, vitalSignsSectionorganizerobservations_05texttext_01value STRING, absolutepath STRING, vitalSignsSectioncodedisplayName STRING, problemSectionact_03idextension STRING, problemSectionact_01observationvaluestranslationsoriginalTextreferencevalue STRING, problemSectionact_02observationvaluestranslationsoriginalTextreferencevalue STRING, filelastModifiedTime STRING, problemSectioncodecode STRING, vitalSignsSectionorganizeridsroot STRING, problemSectionact_02observationproblemStatuscodecodeSystem STRING, vitalSignsSectionorganizerobservations_05codecodeSystem STRING, filegroup STRING, problemSectionact_01observationproblemStatusvaluescode STRING, problemSectionact_01observationvaluestranslationsdisplayName STRING, problemSectionact_02codecode STRING, idextension STRING, vitalSignsSectioncodecode STRING, problemSectionact_03observationproblemStatuscodecodeSystemName STRING, problemSectionact_01idroot STRING, vitalSignsSectiontitle STRING, problemSectionact_01observationproblemStatuscodecodeSystemName STRING, vitalSignsSectionorganizerobservations_03valuesunit STRING, vitalSignsSectionorganizerobservations_01textreferencevalue STRING, effectiveTime STRING, vitalSignsSectionorganizerobservations_03codecodeSystemName STRING, problemSectionact_03observationstatusCodecode STRING, problemSectionact_02statusCodecode STRING, problemSectionact_02observationidextension STRING, problemSectionact_01idextension STRING, vitalSignsSectionorganizerstatusCodecode STRING, vitalSignsSectionorganizerobservations_05codedisplayName STRING, vitalSignsSectionorganizerobservations_04codecodeSystem STRING, vitalSignsSectionorganizerobservations_02codedisplayName STRING, problemSectionact_01observationvaluestranslationscodeSystemName STRING, vitalSignsSectionorganizerobservations_05codecode STRING, vitalSignsSectionorganizerobservations_04codecodeSystemName STRING, problemSectionact_02observationvaluestranslationsdisplayName STRING, idroot STRING, vitalSignsSectionorganizerobservations_02textreferencevalue STRING, problemSectionact_01observationidextension STRING, problemSectionact_01observationvaluestranslationscodeSystem STRING, problemSectionact_01codecode STRING, problemSectionact_02observationproblemStatusvaluesdisplayName STRING, problemSectionact_01codecodeSystem STRING, codecodeSystemName STRING, vitalSignsSectionorganizerobservations_01effectiveTimevalue STRING, vitalSignsSectionorganizercodedisplayName STRING, vitalSignsSectionorganizerobservations_02codecodeSystemName STRING, vitalSignsSectionorganizerobservations_03textreferencevalue STRING, vitalSignsSectionorganizerobservations_02valuesunit STRING, problemSectionact_03observationproblemStatusvaluesdisplayName STRING, problemSectionact_02observationproblemStatuscodecode STRING, vitalSignsSectionorganizerobservations_03statusCodecode STRING, problemSectionact_03observationproblemStatusvaluescode STRING, problemSectionact_02observationeffectiveTimelow STRING, problemSectionact_03observationvaluestranslationscodeSystemName STRING, vitalSignsSectionorganizerobservations_03texttext_01value STRING, problemSectionact_01observationproblemStatuscodecodeSystem STRING, problemSectionact_03observationproblemStatusvaluescodeSystem STRING, vitalSignsSectionorganizercodecodeSystemName STRING, problemSectionact_03observationidextension STRING, vitalSignsSectionorganizerobservations_01codecode STRING, codecodeSystem STRING, problemSectionact_02effectiveTimelow STRING, problemSectioncodedisplayName STRING, problemSectionact_02observationproblemStatusvaluescode STRING, vitalSignsSectionorganizeridsextension STRING, problemSectionact_02observationstatusCodecode STRING, vitalSignsSectionorganizerobservations_02codecode STRING, title STRING, problemSectionact_03idroot STRING, problemSectionidextension STRING, problemSectionact_03observationproblemStatusstatusCodecode STRING, problemSectionact_03effectiveTimelow STRING, problemSectionact_02observationproblemStatusvaluescodeSystemName STRING, fileowner STRING, vitalSignsSectionorganizerobservations_01statusCodecode STRING, vitalSignsSectionorganizerobservations_05textreferencevalue STRING, filepermissions STRING, vitalSignsSectionorganizerobservations_02codecodeSystem STRING, vitalSignsSectionorganizerobservations_05valuesunit STRING, problemSectionact_01observationvaluestranslationscode STRING, problemSectionact_01statusCodecode STRING, vitalSignsSectionorganizerobservations_05codecodeSystemName STRING, problemSectionact_03codecodeSystem STRING, vitalSignsSectioncodecodeSystem STRING, problemSectionact_01observationproblemStatusvaluescodeSystemName STRING, vitalSignsSectioncodecodeSystemName STRING, problemSectionact_01observationproblemStatuscodecode STRING, problemSectionact_02observationidroot STRING, vitalSignsSectionorganizerobservations_01codecodeSystem STRING, problemSectionact_01observationproblemStatusvaluescodeSystem STRING, vitalSignsSectionorganizerobservations_03effectiveTimevalue STRING, vitalSignsSectionorganizerobservations_04codedisplayName STRING, problemSectionact_03observationeffectiveTimelow STRING) STORED AS ORC
LOCATION '/ccda'

AttributeCleaner

Apache Avro names can't have spaces, dots, dashes or weird symbols. So we remove them.

Dirty Name

problem.section.act_01...

Clean Safe Name

problemSectionact_01observationvaluestranslationsoriginalTextreferencevalue

As we need to remove those periods created when the processor flattens out the XML.


Source Code for Custom Processor

https://github.com/tspannhw/nifi-attributecleaner-processor

References

http://calcite.apache.org/docs/reference.html

Apache NiFi Flow

c-cda-ingest-with-custom-processor.xml
