Since version 2.6, Apache Hadoop has had the ability to encrypt files that are written to special directories called encryption zones. In order for this at-rest encryption to work, encryption keys need to be managed by a Key Management Service (KMS). Apache Ranger 0.5 provided a scalable, open source KMS to provide key management for the Hadoop ecosystem. These features have made it easier to implement business and mission critical applications on Hadoop where security is a concern. These business/mission critical applications have also brought with them the need for fault tolerance and disaster recovery. Using Apache Falcon, it is easy to configure the copying of data from the Production Hadoop cluster to an off-site Disaster Recover (DR) cluster. But what is the best way to handle the encrypted data? Decrypting/encrypting the data to transfer it can hinder performance, but how do you decrypt data on the DR site without the proper keys from the KMS?

In this article, we will investigate 3 different scenarios for managing the encryption keys between two clusters when Ranger KMS is used as the key management infrastructure.

Scenario 1 - Completely Separate KMS Instances

The first scenario is the case where the Prod cluster has a Ranger KMS instance, and the KR cluster has a Ranger KMS instance. Each is completely separate with no copying of keys. This configuration has some advantage from a security perspective. Since there are two distinct KMS instances, the keys generated for encryption will be different even for the same directory within HDFS. This can provide a certain level of protection should the Production KMS instance be compromised, however, the tradeoff is in the performance of the data copy.

To copy the data in this type of environment, use the DistCp command similarly to how you would in a non-encrypted environment. DistCp will take care of the decrypt/encrypt functions automatically:

ProdCluster:~$ hadoop distcp -update hdfs://ProdCluster:8020/data/encrypted/file1.txt   hdfs://DRCluster:8020/data/encrypted/

Scenario 2 - Two KMS instances, one database

In this configuration, the Prod and DR clusters each have a separate KMS Server, but the KMS Servers are both configured to use the same database to store the keys.

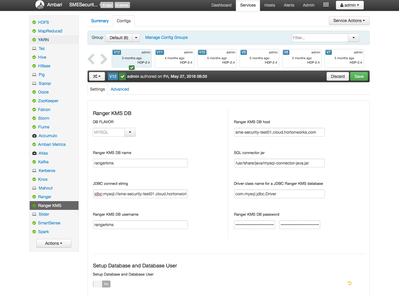

On the Prod cluster, configure the Ranger KMS per the Hadoop Security Guide. Once the KMS database is set up, copy the database configuration to the DR cluster's Ambari config tab. Make sure to turn off the "Setup Database and Database User" option at the bottom of the config page:


Once the KMS instances are both set up and working, creation of the encryption keys in this environment is simpler. Create the encryption key on the Prod cluster using either the Ranger KMS UI (login to Ranger as keyadmin), or via the CLI:

ProdCluster:~$ hadoop key create ProdKey1

Specify which key to use to encrypt the data directory.

On the Prod cluster:

ProdCluster:~$ hdfs crypto -createZone -keyName ProdKey1 -path /data/encrypted

On the DR cluster, use the exact same command (even though it is for the DR cluster):

DRCluster:~$ hdfs crypto -createZone -keyName ProdKey1 -path /data/encrypted

Since both KMS instances use the same keys, the data can be copied using the /.reserved/raw virtual path to avoid decrypting/encrypting the data in transit. Note that it is important to use the -px flag on distcp to ensure that the EDEK (which is saved as an extended attribute) are transferred intact:

ProdCluster~$ hadoop distcp -px    hdfs://ProdCluster:8020/.reserved/raw/data/encrypted/file1.txt    hdfs://DRCluster:8020/.reserved/raw/data/encrypted/

Scenario 3 - Two KMS instances, two databases

In this configuration, the Prod and DR clusters each have a separate KMS Server, and each has it's own database store. In this scenario it is necessary to copy the keys from the Prod KMS database to the DR KMS database.

The Prod and DR KMS instances are setup separately per the Hadoop Security Guide. The keys for the encryption zones are created on the Prod cluster (the same as Scenario 2):

ProdCluster:~$ hadoop key create ProdKey1

Specify which key to use to encrypt the data directory on the Prod cluster:

ProdCluster:~$ hdfs crypto -createZone -keyName ProdKey1 -path /data/encrypted

Once the keys are created on the Prod cluster, a script is used to export the keys so they can be copied to the DR cluster. On the node where the KMS Server runs, execute the following:

ProdCluster:~# cd /usr/hdp/current/ranger-kms
ProdCluster:~# ./exportKeysToJCEKS.sh ProdCluster.keystore
Enter Password for the keystore FILE :
Enter Password for the KEY(s) stored in the keystore:
Keys from Ranger KMS Database has been successfully exported into ProdCluster.keystore

Now, the password protected keystore can be securely copied to the DR cluster node where the KMS Server runs:

ProdCluster:~# scp ProdCluster.keystore DRCluster:/usr/hdp/current/ranger-kms/

Next, import the keys into the Ranger KMS database on the DR cluster. On the Ranger KMS node in the DR cluster, execute the following:

DRCluster:~# cd /usr/hdp/current/ranger-kms
DRCluster:~# ./importJCEKSKeys.sh ProdCluster.keystore jceks
Enter Password for the keystore FILE :
Enter Password for the KEY(s) stored in the keystore:
Keys from ProdCluster.keystore has been successfully exported into RangerDB

The last step is to create the encryption zone on the DR cluster and specify which key to use for encryption:

DRCluster:~$ hdfs crypto -createZone -keyName ProdKey1 -path /data/encrypted

Now date can be copied using the /.reserved/raw/ virtual path to avoid the decryption/encryption steps between the clusters:

ProdCluster~$ hadoop distcp -px    hdfs://ProdCluster:8020/.reserved/raw/data/encrypted/file1.txt    hdfs://DRCluster:8020/.reserved/raw/data/encrypted/

Please note that the key copy procedure will need to be repeated when new keys are created or when keys are rotated within the KMS.
