Pre-requisite :

Remove the incubator-ranger project from eclipse if it's already there and close the eclipse.

  • Clone incubator-ranger repo in the local machine from GitHub. Ignore this step if you have already cloned the required ranger branch. To check out the code from Apache Incubator-ranger GIT repository refer below command.
  • For example :
    git clone https://github.com/apache/incubator-ranger.git
  • Set JAVA_HOME in the environment variable.
For example :
export JAVA_HOME=/usr/lib/jvm/java-1.7.0-openjdk.x86_64
  • Install maven 3.3.9 or higher. Ignore this step if required version of maven is already installed. To get the installed maven version try command : mvn -version
For example :
cd /usr/local
wget http://mirror.fibergrid.in/apache/maven/maven-3/3.3.9/binaries/apache-maven-3.3.9-bin.tar.gz
tar xvf apache-maven-3.3.9-bin.tar.gz

Set maven command line tool in the system path environment variable:

For example :
export M2_HOME=/usr/local/apache-maven-3.3.9
export M2=$M2_HOME/bin
export PATH=$M2:$PATH

Note : vim /etc/profile and add above export path variables there or add them in current user profile i.e .bashrc. Reconnect from the terminal to see changes. Remove older version of maven from machine to avoid maven version conflicts.

  • Build Apache incubator-ranger branch : Go to incubator-ranger directory and execute below command
For example :
mvn clean compile package install assembly:assembly

To add eclipse related config and dependency execute :

For example :
mvn eclipse:eclipse

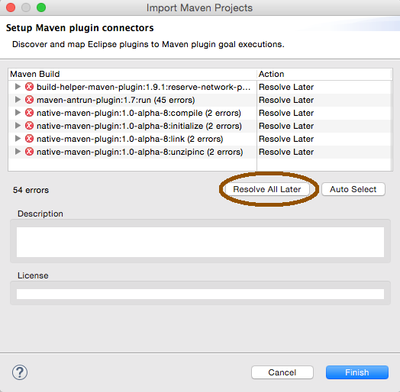

  • Import incubator-ranger project in Eclipse IDE : Open Eclipse Java EE IDE for Web Developers and import incubator-ranger project as a maven project in eclipse.


  • Update Spring libraries version : Change following spring libraries version to 3.1.3.
  1. spring-beans-<version>.jar
  2. spring-context-<version>.jar
  3. spring-core-<version>.jar
  4. spring-web-<version>.jar

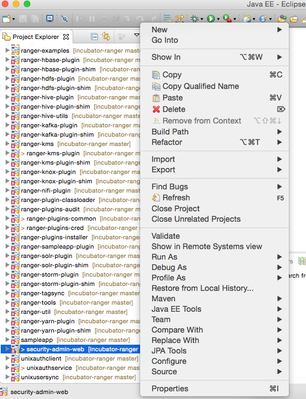

  • Steps to change above mentioned library version in eclipse : Select security-admin-web module then right click and click on properties option.


=> After clicking on properties menu; property window shall appear for the ranger-admin module.

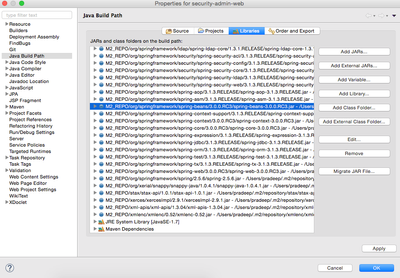

=> On this window click on -> Java Build Path -> Libraries tab as shown below on attached screen, scroll down and select spring library of which version need to be changed. Note : In this article, we shall cover case for the spring-bean library only but you need to change the version of all 4 libraries mentioned in the previous step.


=> After selecting the spring-bean jar click on Edit button which is appearing at the right side of the screen. After clicking on edit button ‘edit variable entry’ prompt window shall appear as shown below on attached screen.

Screen Shot 2016-09-08 at 4.43.16 pm.png

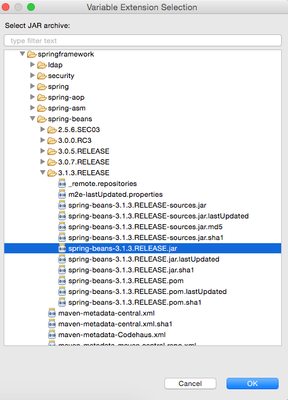

=> Click on Extension... button and select spring-beans-3.1.3.RELEASE.jar library as shown in attached screen below;


=> Click on OK button to confirm and save the changes.

=> Similarly change the version of spring-context, spring-core and spring-web libraries.

  • Update configuration files to start ranger in Eclipse IDE :

agents-common/pom.xml :

Replace :
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
</dependency>
with :
<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>${mysql-connector-java.version}</version>
</dependency>

pom.xml

Remove :
<dependency>
   <groupId>mysql</groupId>
   <artifactId>mysql-connector-java</artifactId>
   <version>${mysql-connector-java.version}</version>
   <scope>test</scope>
</dependency>

security-admin/pom.xml

Remove :
<groupId>org.springframework</groupId>
    <artifactId>spring</artifactId>
    <version>${springframework.spring.version}</version>
</dependency>

security-admin/src/main/resources/conf.dist/ranger-admin-site.xml

Replace:
<property>
<name>ranger.audit.solr.urls</name>
<value>http://##solr_host##:6083/solr/ranger_audits</value>
<description></description>
</property>
with :
<property>
<name>ranger.audit.solr.urls</name>
<value>http://localhost:6083/solr/ranger_audits</value>
<description></description>
</property>
Replace :
<property>
<name>ranger.audit.source.type</name>
<value>db</value>
<description></description>
</property>
With :
<property>
<name>ranger.audit.source.type</name>
<value>solr</value>
<description></description>
</property>

Also make sure ranger admin db is setup and credentials are configured properly in below given properties :

<property>
 <name>ranger.jpa.jdbc.url</name>
 <value>jdbc:log4jdbc:mysql://localhost/ranger</value>
 <description></description>
</property>
<property>
 <name>ranger.jpa.jdbc.user</name>
 <value>rangeradmin</value>
 <description></description>
</property>
<property>
 <name>ranger.jpa.jdbc.password</name>
 <value>rangeradmin</value>
 <description></description>
</property>

security-admin/src/main/webapp/META-INF/applicationContext.xml

Replace :
<value>classpath:core-site.xml</value>
<value>classpath:ranger-admin-default-site.xml</value>
<value>classpath:ranger-admin-site.xml</value>
With :
<value>classpath:conf.dist/core-site.xml</value>
<value>classpath:conf.dist/ranger-admin-default-site.xml</value>
<value>classpath:conf.dist/ranger-admin-site.xml</value>

security-admin/src/main/webapp/WEB-INF/log4j.properties

Add below line after 'log4j.rootLogger = warn,xa_log_appender'
logdir=/tmp

security-admin/src/main/webapp/WEB-INF/web.xml

Replace :
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>META-INF/applicationContext.xml
 WEB-INF/classes/conf/security-applicationContext.xml
 META-INF/scheduler-applicationContext.xml</param-value>
</context-param>
With :
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>META-INF/applicationContext.xml
 WEB-INF/classes/conf/security-applicationContext.xml
 META-INF/scheduler-applicationContext.xml</param-value>
 </context-param>
  • Right click on security-admin-web module and click on ‘Run as’ -> ‘Run on Server’ option of appearing pop up window.
