Prerequisites

1) Service Ambari Infra installed -> Ranger will use Ambari Infra's SolrCloud for Ranger Audit


2) MySQL installed and running (I'll use Hive's Metastore MySQL instance * MySQL is one of the many DB options)


Installing Apache Ranger using Ambari Infra (SolrCloud) for Ranger Audit

1) Find the location of mysql-connector-java.jar (assume /usr/share/java/mysql-connector-java.jar) run the following command on the Ambari server

sudo ambari-server setup --jdbc-db=mysql --jdbc-driver=/usr/share/java/mysql-connector-java.jar

2) In Ambari, click Add Service


3) Choose Ranger and click Next

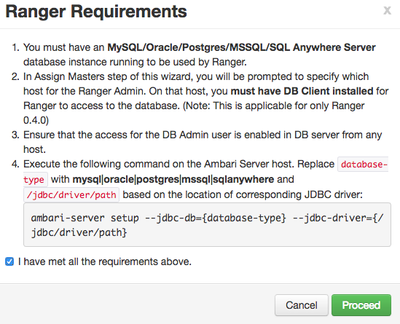

4) Choose "I have met all the requirements above." and click Proceed (this was done in #1 above)


5) Assign master(s) for "Ranger Usersync" and "Ranger Admin" and click Next

6) Assign Slaves and Clients - since we did not install Apache Atlas, Ranger TagSync is not required and click Next

7) Customize Services -> Ranger Audit, click on "OFF" to enable SolrCloud

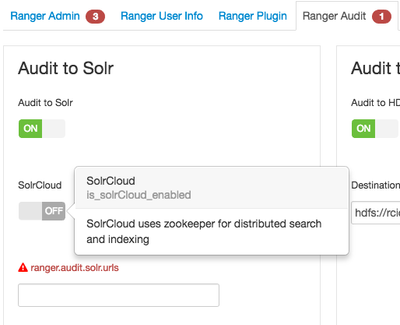

Before clicking:

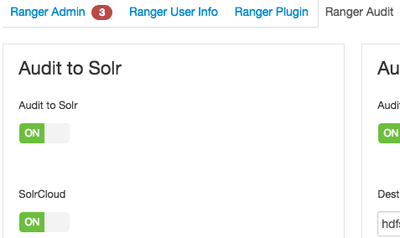

After clicking:

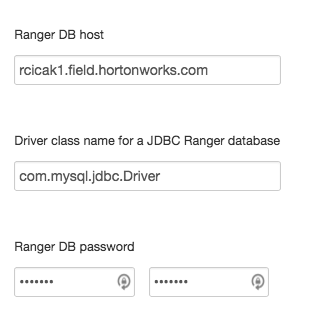

Customize Services -> Ranger Admin, enter "Ranger DB host" the DB you chose (in my case, I chose MySQL) and a password "Ranger DB password" for the user rangeradmin *Ranger will automatically add the user "rangeradmin"

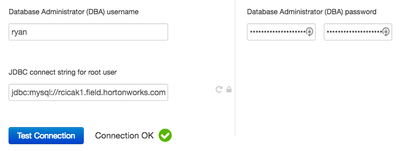

Add the proper credentials for a DB user that has administrator credentials (this administrator will create the user rangeradmin and Ranger tables)

MySQL create an administrator user *Note: rcicak2.field.hortonworks.com is the server where Ranger is being installed

CREATE USER 'ryan'@'rcicak2.field.hortonworks.com' IDENTIFIED BY 'lebronjamesisawesome';

GRANT ALL PRIVILEGES ON *.* TO 'ryan'@'rcicak2.field.hortonworks.com' WITH GRANT OPTION;


Click Next

9) Review -> Click Deploy

* Install, Start and Test will show you the progess of Ranger installing

10) Choose Ranger in Ambari

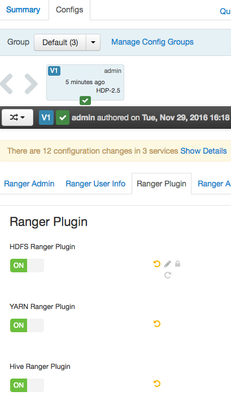

11) Choose "Configs" and "Ranger Plugin" and select the services you'd like Ranger to authorize (You'll need to restart the service after saving changes)
