If there is a necessity for migrating the existing NFS workspace in CML to a new NFS storage, do the following:



  1. Mount the existing NFS directory and the destination NFS directory and manually copy all the data.
  2. Execute the projectCopy.sh script following the instruction in the README file. (Note: The script, by default, will do only the NFS swap. (script and readme files attached))
  3. Modify the NFS mount in the existing helm install:
    1. Save the existing helm values
      helm get values mlx-<namespace-name> -n <namespace-name> -o yaml
      > old.yaml
    2. Modify the NFSServer and ProjectsExport in the old.yaml file.
      Example :
      NFSServer: 10.102.47.132
      ProjectsExport: /eng-ml-nfs-azure/ageorge

      NFSServer: 10.102.47.134
      ProjectsExport: /ageorge-netapp-volume-v3
    3. In my case, I changed NFS server 10.102.47.132:/eng-ml-nfs-azure/ageorge to10.102.47.134:/ageorge-netapp-volume-v3
  4. Get the release name from old.yaml:
    grep GitSHA old.yaml

    Example:
    GitSHA: 2.0.35-b1
  5. Get the release name from old.yaml:
    grep GitSHA old.yaml
  6. Get the release chart cdsw-combined-<GitSHA>.tgz
    1. This is available in ‘dp-mlx-control-plane-app’ pod in the namespace at folder /app/service/resources/mlx-deploy/
    2. Or contact Cloudera support to download the chart.
  7. Delete the jobs and stateful sets (these will get recreated after the helm install)
    1. kubectl --namespace <namespace-name> delete jobs --all
    2. kubectl --namespace <namespace-name> delete statefulsets --all
      example:
      kubectl --namespace ageorgeocbc3 delete jobs --all
      kubectl --namespace ageorgeocbc3 delete statefulsets --all
  8. Do a helm upgrade to the same release
    1. helm upgrade mlx-<namespace-name> ./cdsw-combined-2.0.35-b1.tgz --install -f./old.yaml --wait --namespace <namespace-name> --debug --timeout 1800s
      Example

      helm upgrade mlx-ageorgeocbc3 ./cdsw-combined-2.0.35-b1.tgz --install -f
      ./old.yaml --wait --namespace ageorgeocbc3 --debug --timeout 1800s
  9. After the migration is done, you will need to update the NFS mount information in the CML control plane DB.

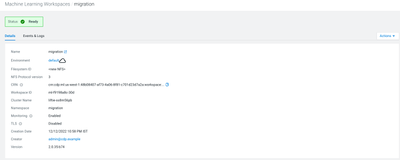

  10. Copy the CRN from the above window.
  11. If using an external DB, skip to the Updating the DB entry section below.
  12. See the existing NFS configuration using the below common:
    select filesystem_id from storage where id = (select storage_id from
    mlx_instance where crn='<workspace CRN>');
    db-mlx=# select filesystem_id from storage where id = (select
    storage_id from mlx_instance where
    crn='crn:cdp:ml:us-west-1:48b08407-af73-4a06-8f81-c701d23d7a2a:work
    space:c3c883dd-3b23-4561-abcd-0cc5f68ed377');
    filesystem_id
    -----------------------------------------

    10.102.47.132:/eng-ml-nfs-azure/ageorge
  13. Update the NFS configuration using the command:
    update storage set filesystem_id='<new NFS>' where id = (select
    storage_id from mlx_instance where crn='<workspace CRN>');
    db-mlx=# update storage set filesystem_id='<new NFS>' where id =
    (select storage_id from mlx_instance where
    crn='crn:cdp:ml:us-west-1:48b08407-af73-4a06-8f81-c701d23d7a2a:work
    space:c3c883dd-3b23-4561-abcd-0cc5f68ed377');
UPDATE 1
db-mlx=# select filesystem_id from storage where id = (select
storage_id from mlx_instance where
crn='crn:cdp:ml:us-west-1:48b08407-af73-4a06-8f81-c701d23d7a2a:work
space:c3c883dd-3b23-4561-abcd-0cc5f68ed377');
filesystem_id
---------------
<new NFS>






.
