Use Case

Before meetups, I wanted to play some music. NiFi seemed like a great choice for streaming free music through my Mac.


MIDI Command Line Player For OSX

brew install timidity

Then you can simply play MIDI files with timidity file.mid.

Microservice to Extract Links from Web Pages

Java 8 Source Code: https://github.com/tspannhw/linkextractor

The Spring Boot REST API accepts a URL, parses out mid files and returns JSON containing linking and descriptions.

Example REST Call to Service

curl -G -v "http://<urL>:8080/extract/url?url=http://www.midiworld.com/classic.htm/&type=mid"

Run the Microservice

java -Xms512m -Xmx2048m -Djava.net.preferIPv4Stack=true -jar target/linkextractor-0.0.1-SNAPSHOT.jar

Java Snippet Using JSoup to extract links from URL (HTML)

pLink = new PrintableLink();
pLink.setLink(link.attr("abs:href"));
pLink.setDescr(trim(link.text(), 100));
linksReturned.add(pLink);

Output

hdfs dfs -ls /music/*.mid
-rw-r--r--   3 tspann hdfs         87 2016-11-07 03:51 /music/2_ase.mid
-rw-r--r--   3 tspann hdfs         99 2016-11-07 03:51 /music/4_mtking.mid
-rw-r--r--   3 tspann hdfs        105 2016-11-07 03:50 /music/EspanjaCaphriccoCatalan.mid
-rw-r--r--   3 tspann hdfs         87 2016-11-07 03:50 /music/EspanjaPrelude.mid
-rw-r--r--   3 tspann hdfs        162 2016-11-07 03:50 /music/J_M_Bach_Auf_lasst_uns_den_Herren_loben.mid
-rw-r--r--   3 tspann hdfs         93 2016-11-07 03:52 /music/adelina.mid
-rw-r--r--   3 tspann hdfs         95 2016-11-07 03:52 /music/aida_ii2.mid
-rw-r--r--   3 tspann hdfs         89 2016-11-07 03:50 /music/al_adagi.mid
-rw-r--r--   3 tspann hdfs         95 2016-11-07 03:52 /music/alborada.mid
-rw-r--r--   3 tspann hdfs         82 2016-11-07 03:52 /music/aquarium.mid
-rw-r--r--   3 tspann hdfs        105 2016-11-07 03:52 /music/barbero.mid
-rw-r--r--   3 tspann hdfs        101 2016-11-07 03:51 /music/barimyst.mid
-rw-r--r--   3 tspann hdfs         80 2016-11-07 03:52 /music/beevar2.mid
-rw-r--r--   3 tspann hdfs        111 2016-11-07 03:50 /music/biz_arls.mid
-rw-r--r--   3 tspann hdfs         94 2016-11-07 03:51 /music/blas1.mid
-rw-r--r--   3 tspann hdfs        114 2016-11-07 03:50 /music/boccher.mid
-rw-r--r--   3 tspann hdfs         78 2016-11-07 03:52 /music/bolero.mid
-rw-r--r--   3 tspann hdfs        100 2016-11-07 03:51 /music/cantique.mid
-rw-r--r--   3 tspann hdfs         88 2016-11-07 03:51 /music/carminab.mid
-rw-r--r--   3 tspann hdfs         96 2016-11-07 03:51 /music/clairdelune.mid
-rw-r--r--   3 tspann hdfs         87 2016-11-07 03:51 /music/cmveder.mid
-rw-r--r--   3 tspann hdfs        108 2016-11-07 03:52 /music/coucou.mid
-rw-r--r--   3 tspann hdfs         99 2016-11-07 03:51 /music/coup8a.mid
-rw-r--r--   3 tspann hdfs         97 2016-11-07 03:51 /music/cpf-bird.mid


2016-11-06 22:57:20.095 ERROR 28694 --- [nio-8080-exec-1] com.dataflowdeveloper.DataController     : Query:http://www.midiworld.com/classic.htm/ mid,IP:192.168.1.2 Browser:nifi-agent
2016-11-06 22:57:20.313 ERROR 28694 --- [nio-8080-exec-3] com.dataflowdeveloper.DataController     : Query:http://www.midiworld.com/classic.htm/ mid,IP:192.168.1.2 Browser:nifi-agent
2016-11-06 22:57:20.500 ERROR 28694 --- [nio-8080-exec-5] com.dataflowdeveloper.DataController     : Query:http://www.midiworld.com/classic.htm/ mid,IP:192.168.1.2 Browser:nifi-agent


ls -lt /opt/demo/midi | more
total 20456
-rw-r--r--  1 tspann  staff  117731 Nov  6 22:58 appspg13.mid
-rw-r--r--  1 tspann  staff   13449 Nov  6 22:58 intrlude.mid
-rw-r--r--  1 tspann  staff    8777 Nov  6 22:58 latalant.mid
-rw-r--r--  1 tspann  staff    1911 Nov  6 22:58 lbvar2.mid
-rw-r--r--  1 tspann  staff    2230 Nov  6 22:58 lbvar4.mid
-rw-r--r--  1 tspann  staff    1458 Nov  6 22:58 lbvar6ep.mid

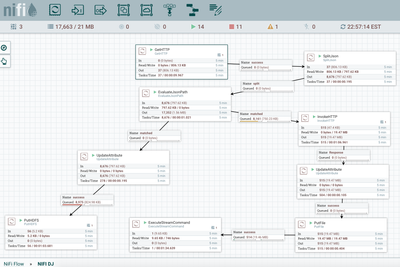

NiFi Flow

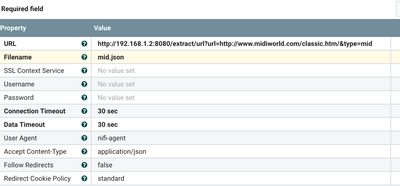

GetHTTP: Call JSoup Microservice that converts HTML page full of MIDI links into JSON file of links and descriptions of MIDI files.

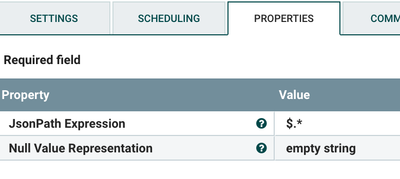

SplitJSON: Split that big JSON file into individual link, description pairs for working with individual songs.

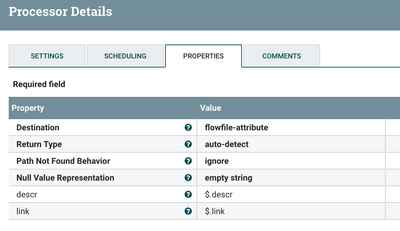

EvaluateJSONPath: Use JSONPATH to pull out link and description as attributes.


InvokeHTTP: Download the MIDI file from the link.

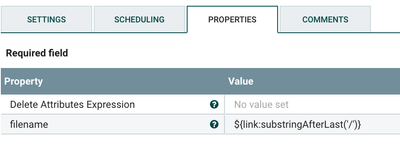

UpdateAttribute: Give it a good file name.


I just want the file name from the link (example http://sdfsdf:8080/test.mid

PutFile: Store the MIDI on the OSX filesystem.

ExecuteStreamCommand: Run the timidity CLI to play the MIDI file.


Pass a link to the stored MIDI file to timidity player.

PutHDFS: Store the MIDI on HDP 2.5 HDFS.

References

http://jsonpath.com/

http://macappstore.org/timidity/
