Additional Use of Color
Color has been added throughout the UI for important messaging and to highlight changes in state/status, such as whether processors are running, stopped, or invalid and whether controller services are disabled or enabled. Here are some sample screenshots:
Status Bar

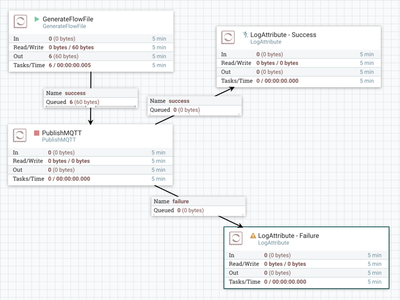

Processors

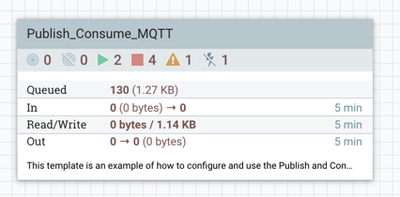

Process Groups

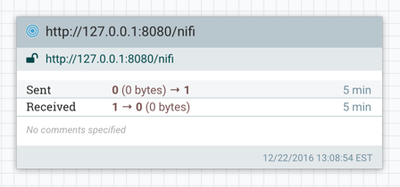

Remote Process Groups

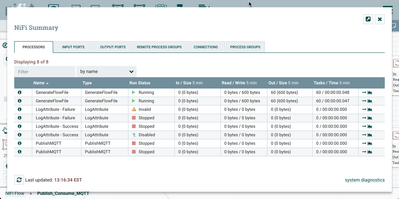

Summary

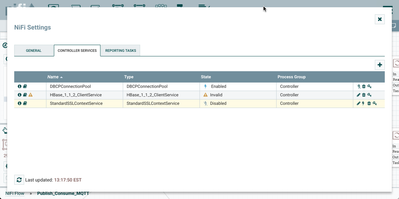

Settings
Customization of Processor Color

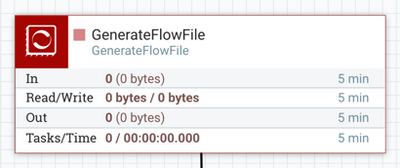

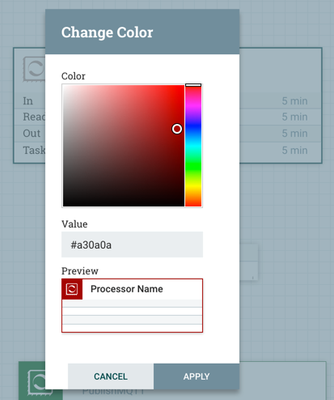

To further highlight when a processor’s color has been customized, the processor icon now appears on a square background of the selected color. Additionally, the processor itself is outlined by the custom color.

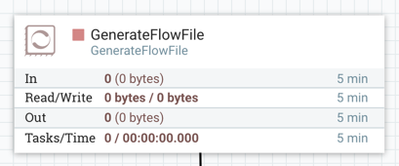

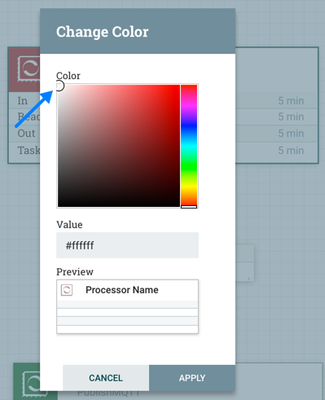

If users wish to return the processor to the default color, they can select the top most left corner of the color palette:
Back Pressure Indicators
Processor connections now visually indicate when back pressure is enabled.

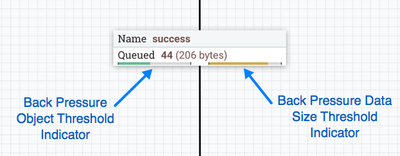

Progress bars appear on the connection label for “Back Pressure Object Threshold" and "Back Pressure Data Size Threshold.”
The progress bars change color based on the queue percentage: Green (0-60%), Yellow (61-85%) and Red (86-100%).

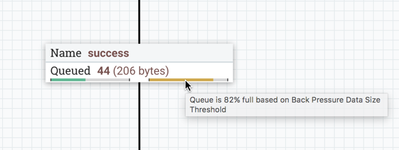

Hovering your mouse over a progress bar displays the queue percentage.

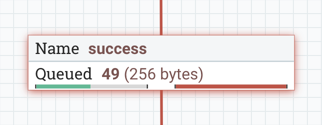

When the queue is completely full, the Connection is highlighted in red.
More information regarding back pressure indicators can be found in the Apache NiFi User Guide:
https://nifi.apache.org/docs/nifi-docs/html/user-guide.html#Connecting_Components
Restricted Components

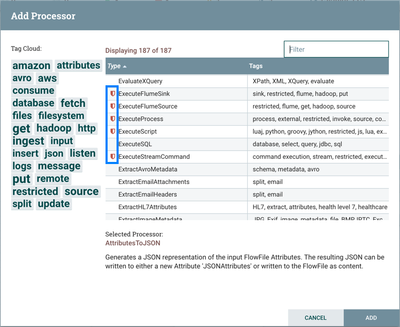

Processors which can directly affect the behavior and/or configuration of NiFi and other services are now marked with a “restricted” icon. This icon is seen when selecting a processor to add to the canvas:

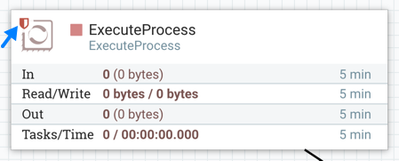

and in the processor itself:
User access to restricted components is managed via the “access restricted components” policy when utilizing multi-tenant authorization.
More information regarding restricted components can be found in the Apache NiFi User Guide:
- https://nifi.apache.org/docs/nifi-docs/html/user-guide.html#adding-components-to-the-canvas
- https://nifi.apache.org/docs/nifi-docs/html/user-guide.html#UI-with-multi-tenant-authorization
User-Centric View of Access Policies

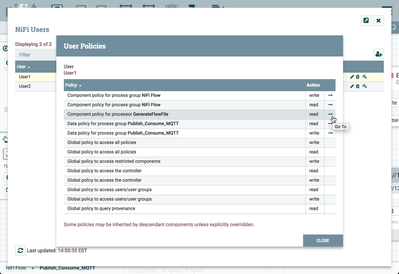

NiFi 1.1 includes a “User Policies” window to view the global and component access policies that a user has been added to.

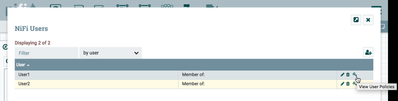

To open this window, select “Users” from the Global Menu. In the “NiFi Users” window, select the key icon for the desired user:

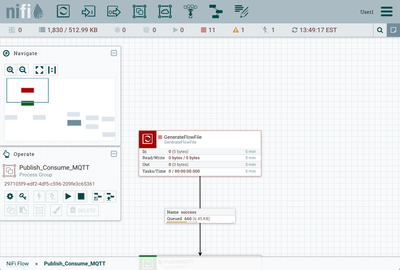

Selecting the arrow icon in a row will navigate to that component in the canvas:
