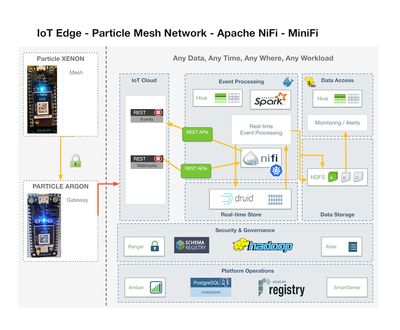

My Example Mesh Network

Argon: Wi-Fi + Mesh Gateway/Repeater

This is to connect to the outside network via WiFi. We connect to Particle Cloud.

Espressif ESP32-D0WD 2.4G Wi-Fi

Nordic Semiconductor nRF52840 SoC for bluetooth and NFC A tag

ARM TrustZone CryptoCell-310 Cryptographic and security module

Thread/BLE, another for Wi-Fi)

Xenon: Mesh + BLE

Nordic Semiconductor nRF52840 SoC for bluetooth and NFC A tag

ARM TrustZone CryptoCell-310 Cryptographic and security module

References
