Implementing Streaming Use Case From REST to Hive with Apache NiFi and Apache Kafka

Part 1

With Apache Kafka 2.0, Apache NiFi 1.8 and many new features and abilities coming out. It's time to put them to the test.


So to plan out what we are going to do, I have a high level architecture diagram. We are going to ingest a number of sources including REST feeds, Social Feeds, Messages, Images, Documents and Relational Data.

We will ingest with NiFi, filter and process and segment it into Kafka topics. Kafka data will be in Apache Avro format with schemas specified in Hortonworks Schema Registry. Kafka Streams, Spark and NiFi will do additional event processing along with machine learning and deep learning. it will be stored in Druid for real-time analytics and summaries. Hive, HDFS and S3 will store for permanent storage. We will do dashboards with Superset and Spark SQL + Zeppelin. We will integrate machine learning with Spark ML, TensorFlow and Apache MXNet.

We will also push back cleaned and aggregated data to subscribers via Kafka and NiFi. We will push to Dockerized applications, message listeners, web clients, Slack channels and to email mailing lists.

To be useful in our enterprise, we will have full authorization, authentication, auditing, data encryption and data lineage via Apache Ranger, Apache Atlas and Apache NiFi. NiFi Registry and github will be used for source code control.

We will have administration capabilities via Apache Ambari.

An example server layout:

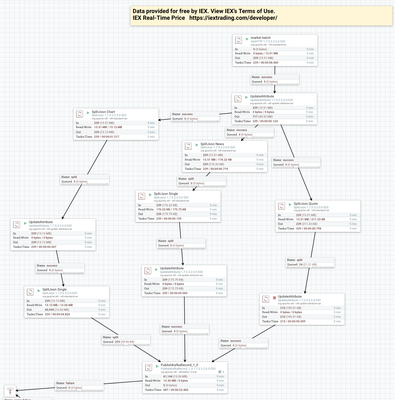

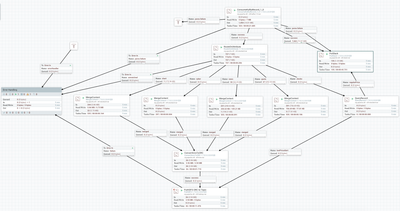

NiFi Flows


Real-time free stock data is available from IEX with no license key. The data streams in very fast, thankfully that's no issue for Apache NiFi and Kafka.


Consume the Different Records from topics and store to HDFS in separate directories and tables.





Let's split up one big REST file into individual records of interest. Our REST feed has quote, chart and news arrays.

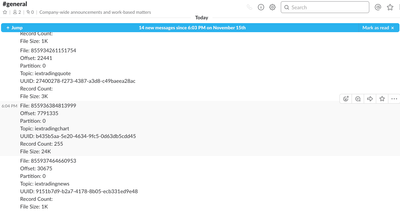

Let's Push Some Messages to Slack

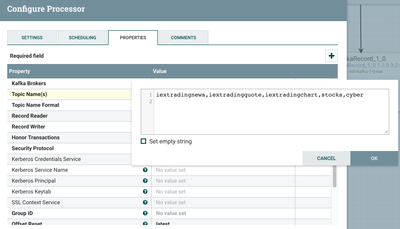

We can easily consume from multiple topics in Apache NiFi.


Querying data is easy as it's in motion, since we have schemas

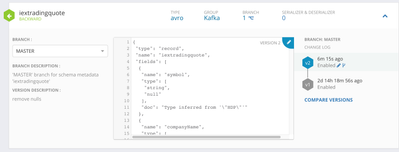

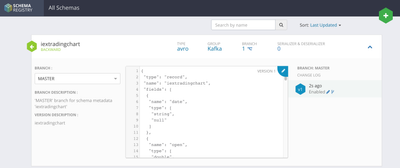

We create schemas for each of our Kafka Topics

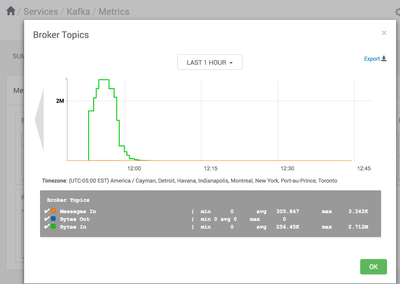

We can monitor all these messages going through Kafka in Ambari (and also in much better detail in Hortonworks SMM).

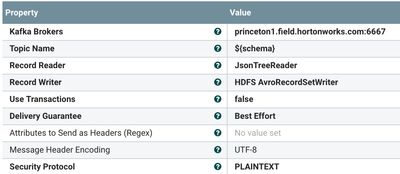

I read in data and then can push it to Kafka 1.0 and 2.0 brokers.

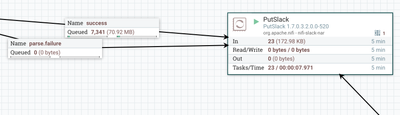

Once data is sent, NiFi let's us know.


Projects Used

  • Apache Kafka
  • Apache Kafka Streams
  • Apache MXNet
  • NLTK
  • Stanford CoreNLP
  • Apache OpenNLP
  • TextBlob
  • SpaCy
  • Apache NiFi
  • Apache Druid
  • Apache Hive on Kafka
  • Apache Hive on Druid
  • Apache Hive on JDBC
  • Apache Zeppelin
  • NLP - Apache OpenNLP and Stanford CoreNLP
  • Hortonworks Schema Registry
  • NiFi Registry
  • Apache Ambari
  • Log Search
  • Hortonworks SMM
  • Hortonworks Data Plane Services (DPS)

Sources

  • REST
  • Twitter
  • JDBC
  • Sensors
  • MQTT
  • Documents


Sinks

  • Apache Hadoop HDFS
  • Apache Kafka
  • Apache Hive
  • Slack
  • S3
  • Apache Druid
  • Apache HBase

Topics

  • iextradingnews
  • iextradingquote
  • iextradingchart
  • stocks
  • cyber

HDFS Directories

hdfs dfs -mkdir -p /iextradingnews

hdfs dfs -mkdir -p /iextradingquote

hdfs dfs -mkdir -p /iextradingchart

hdfs dfs -mkdir -p /stocks

hdfs dfs -mkdir -p /cyber

hdfs dfs -chmod -R 777 /

PutHDFS

  • /${kafka.topic}
  • /iextradingchart/859496561256574.orc
  • /iextradingnews/855935960267509.orc
  • /iextradingquote/859143934804532.orc

Hive Tables

CREATE EXTERNAL TABLE IF NOT EXISTS iextradingchart (`date` STRING, open DOUBLE, high DOUBLE, low DOUBLE, close DOUBLE, volume INT, unadjustedVolume INT, change DOUBLE, changePercent DOUBLE, vwap DOUBLE, label STRING, changeOverTime INT)
STORED AS ORC
LOCATION '/iextradingchart';

CREATE EXTERNAL TABLE IF NOT EXISTS iextradingquote (symbol STRING, companyName STRING, primaryExchange STRING, sector STRING, calculationPrice STRING, open DOUBLE, openTime BIGINT, close DOUBLE, closeTime BIGINT, high DOUBLE, low DOUBLE, latestPrice DOUBLE, latestSource STRING, latestTime STRING, latestUpdate BIGINT, latestVolume INT, iexRealtimePrice DOUBLE, iexRealtimeSize INT, iexLastUpdated BIGINT, delayedPrice DOUBLE, delayedPriceTime BIGINT, extendedPrice DOUBLE, extendedChange DOUBLE, extendedChangePercent DOUBLE, extendedPriceTime BIGINT, previousClose DOUBLE, change DOUBLE, changePercent DOUBLE, iexMarketPercent DOUBLE, iexVolume INT, avgTotalVolume INT, iexBidPrice INT, iexBidSize INT, iexAskPrice INT, iexAskSize INT, marketCap INT, peRatio DOUBLE, week52High DOUBLE, week52Low DOUBLE, ytdChange DOUBLE)
STORED AS ORC
LOCATION '/iextradingquote';

CREATE EXTERNAL TABLE IF NOT EXISTS iextradingnews (`datetime` STRING, headline STRING, source STRING, url STRING, summary STRING, related STRING, image STRING)
STORED AS ORC
LOCATION '/iextradingnews';

Schemas

{ "type": "record", "name": "iextradingchart", "fields": [  {  "name": "date",  "type": [  "string",  "null"  ]  },  {  "name": "open",  "type": [  "double",  "null"  ]  },  {  "name": "high",  "type": [  "double",  "null"  ]  },  {  "name": "low",  "type": [  "double",  "null"  ]  },  {  "name": "close",  "type": [  "double",  "null"  ]  },  {  "name": "volume",  "type": [  "int",  "null"  ]  },  {  "name": "unadjustedVolume",  "type": [  "int",  "null"  ]  },  {  "name": "change",  "type": [  "double",  "null"  ]  },  {  "name": "changePercent",  "type": [  "double",  "null"  ]  },  {  "name": "vwap",  "type": [  "double",  "null"  ]  },  {  "name": "label",  "type": [  "string",  "null"  ]  },  {  "name": "changeOverTime",  "type": [  "int",  "null"  ]  } ]}{ "type": "record", "name": "iextradingquote", "fields": [  {  "name": "symbol",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"HDP\"'"  },  {  "name": "companyName",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"Hortonworks Inc.\"'"  },  {  "name": "primaryExchange",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"Nasdaq Global Select\"'"  },  {  "name": "sector",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"Technology\"'"  },  {  "name": "calculationPrice",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"close\"'"  },  {  "name": "open",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '16.3'"  },  {  "name": "openTime",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542033000568'"  },  {  "name": "close",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.76'"  },  {  "name": "closeTime",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542056400520'"  },  {  "name": "high",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '16.37'"  },  {  "name": "low",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.2'"  },  {  "name": "latestPrice",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.76'"  },  {  "name": "latestSource",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"Close\"'"  },  {  "name": "latestTime",  "type": [  "string",  "null"  ],  "doc": "Type inferred from '\"November 12, 2018\"'"  },  {  "name": "latestUpdate",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542056400520'"  },  {  "name": "latestVolume",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '4012339'"  },  {  "name": "iexRealtimePrice",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.74'"  },  {  "name": "iexRealtimeSize",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '43'"  },  {  "name": "iexLastUpdated",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542056397411'"  },  {  "name": "delayedPrice",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.76'"  },  {  "name": "delayedPriceTime",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542056400520'"  },  {  "name": "extendedPrice",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.85'"  },  {  "name": "extendedChange",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '0.09'"  },  {  "name": "extendedChangePercent",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '0.00571'"  },  {  "name": "extendedPriceTime",  "type": [  "long",  "null"  ],  "doc": "Type inferred from '1542059622726'"  },  {  "name": "previousClose",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '16.24'"  },  {  "name": "change",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '-0.48'"  },  {  "name": "changePercent",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '-0.02956'"  },  {  "name": "iexMarketPercent",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '0.03258'"  },  {  "name": "iexVolume",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '130722'"  },  {  "name": "avgTotalVolume",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '2042809'"  },  {  "name": "iexBidPrice",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '0'"  },  {  "name": "iexBidSize",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '0'"  },  {  "name": "iexAskPrice",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '0'"  },  {  "name": "iexAskSize",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '0'"  },  {  "name": "marketCap",  "type": [  "int",  "null"  ],  "doc": "Type inferred from '1317308142'"  },  {  "name": "peRatio",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '-7.43'"  },  {  "name": "week52High",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '26.22'"  },  {  "name": "week52Low",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '15.2'"  },  {  "name": "ytdChange",  "type": [  "double",  "null"  ],  "doc": "Type inferred from '-0.25696247383444343'"  } ]}{ "type" : "record", "name" : "iextradingchart", "fields" : [ { "name" : "date", "type" :  ["string","null"]  }, { "name" : "open", "type" : ["double","null"]  }, { "name" : "high", "type" : ["double","null"]  }, { "name" : "low", "type" : ["double","null"]  }, { "name" : "close", "type" : ["double","null"]  }, { "name" : "volume", "type" : ["int","null"]  }, { "name" : "unadjustedVolume", "type" : ["int","null"]  }, { "name" : "change", "type" : ["double","null"]  }, { "name" : "changePercent", "type" : ["double","null"]  }, { "name" : "vwap", "type" : ["double","null"]  }, { "name" : "label", "type" :  ["string","null"] }, { "name" : "changeOverTime", "type" : ["int","null"]  } ] }

Messages to Slack

File: ${'filename'}

Offset: ${'kafka.offset'}

Partition: ${'kafka.partition'}

Topic: ${'kafka.topic'}

UUID: ${'uuid'}

Record Count: ${'record.count'}

File Size: ${fileSize:divide(1024)}K

See jsonpath.com

Splits

  • $.*.quote
  • $.*.chart
  • $.*.news


Array to Single

$.*

GETHTTP

URL

https://api.iextrading.com/1.0/stock/market/batch?symbols=hdp&types=quote,news,chart&range=1y&last=2...

FileName

marketbatch.hdp.${'hdp':append(${now():format('yyyymmddHHMMSS'):append(${md5}):append('.json')})}

Data provided for free by IEX. View IEX’s Terms of Use.

IEX Real-Time Price https://iextrading.com/developer/

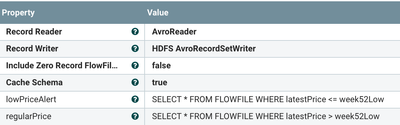

Queries

SELECT * FROM FLOWFILE

WHERE latestPrice > week52Low

SELECT * FROM FLOWFILE

WHERE latestPrice <= week52Low


Example Output

File: 855957937589894

Offset: 22460

Partition: 0

Topic: iextradingquote

UUID: b2a8e797-2249-4689-9a78-4339ddb5ecb4

Record Count:

File Size: 3K

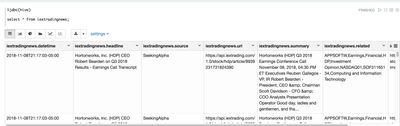

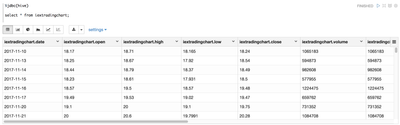

Data Visualization in Apache Zeppelin with Hive and Spark SQL

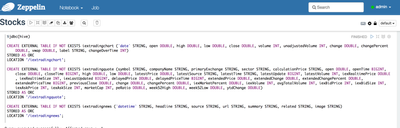

Creating tables on top of Apache ORC files in HDFS is easy.



Push Some Messages to Slack


Resources

https://phoenix.apache.org/hive_storage_handler.html

https://github.com/aol/druid/tree/master/docs/_graphics


Other Data Sources

https://www.kaggle.com/qks1lver/amex-nyse-nasdaq-stock-histories

https://github.com/qks1lver/redtide

Source

https://github.com/tspannhw/stocks-nifi-kafka

stocks-copy.jsonstock-to-kafka.xml
