This tutorial walks you through how to secure a NiFi instance using client certificates, configure access policies in NiFi, and then how to integrate it with a secured NiFi Registry to utilize versioned flows.
A video version of this tutorial can be seen here: https://youtu.be/DSO12fhnZ90
Note: This tutorial assumes you have completed Setting Up a Secure Apache NiFi Registry which resulted in a NiFi Registry instance that has been secured with client certificates for two users: "sys_admin" and "test_user".
This tutorial was tested using the following environment and components:
Download the tarball for the 1.5.0 Apache NiFi release:
Extract the tar:
tar xzvf nifi-1.5.0-bin.tar.gz
From the article
Setting Up a Secure Apache NiFi Registry, the TLS Toolkit was used to generate the following in the
and the following files in the
Copy the keystore, nifi.properties and trustore to the
conf directory of your NiFi install.
Verify that in
nifi.properties, the HTTP and HTTPS web properties are as follows:
nifi.web.http.host= nifi.web.http.port= nifi.web.https.host=localhost nifi.web.https.port=9443
In the same NiFi
conf directory, modify
authorizers.xml in two places. In the userGroupProvider section, add the "sys_admin" DN to the "Initial Admin Identity 1" property:
<property name="Initial User Identity 1">CN=sys_admin, OU=NIFI</property>
Then in the accessPolicyProvider section, add the "sys_admin" DN to the "Initial Admin Identity" property:
<property name="Initial Admin Identity">CN=sys_admin, OU=NIFI</property>
Note: During this step, it is crucial that you specify the exact DN string used when the TLS Toolkit was invoked. A common error is entering "CN=sys_admin,OU=NIFI" which will not work as it has a missing space after the comma.
In a terminal window, navigate to the directory where NiFi was installed and run:
Note: The "sys_admin" and "test_user" .p12 certificates should have already been added to the Keychain.
Navigate to the NiFi UI in your web browser (Chrome used in the following examples):

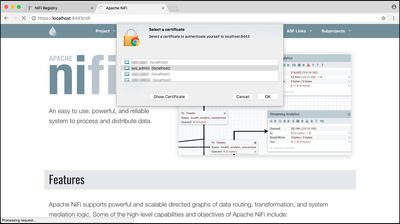

When prompted, select the "sys_admin" cert to add to your browser:
You should now be able to view the NiFi UI as the "CN=sys_admin, OU=NIFI" user:

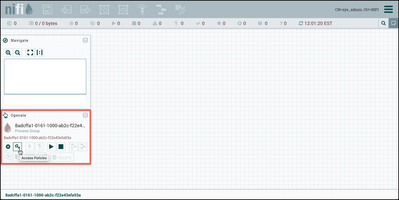

The "sys_admin" user can view the NiFi UI, but has no permissions to make any changes. To correct this, select "Access Policies" (key icon) from the Operate Palette to modify the policies on the Root Process Group:
For the "view the component" policy, select "Create" to create a new policy and add "sys_admin" to the policy:

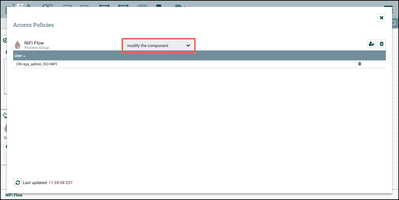

Do the same for the "modify the component" policy:

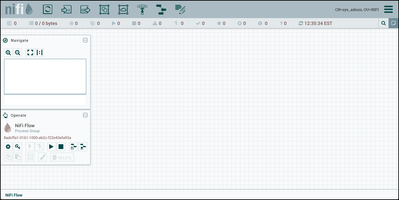

Close the Access Policies window and the NiFi components toolbar is now enabled:
The "test_user" also requires some setup to enable that user to access the NiFi UI.
First go to the Global Menu in the top-right corner of the UI and select "Users":

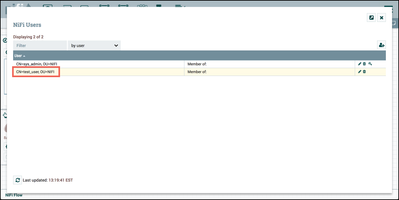

Add "CN=test_user, OU=NIFI" as a NiFi User:

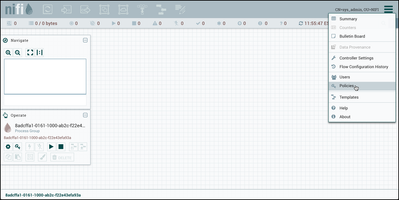

Close the "NiFi Users" dialog and select "Policies" from the Global menu:

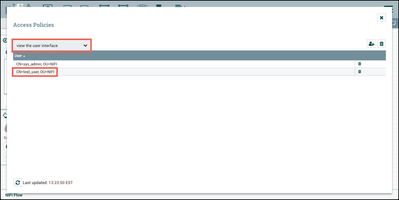

and add "test_user" to the "view the user interface" policy:

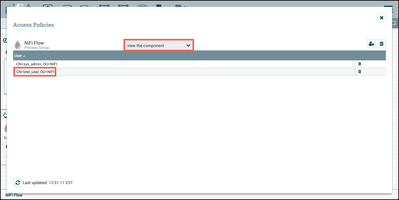

Finally, similar to what was done previously for "sys_admin", select "Access Policies" from the Operate Palette and add "test_user" to the "view the component" policy:

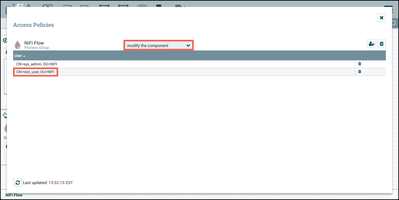

as well as to the "modify the component" policy:
Navigate to the NiFi UI in another web browser (Safari used in the following examples):

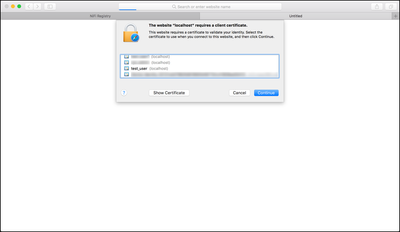

When prompted, select the "test_user" cert to add to your browser:

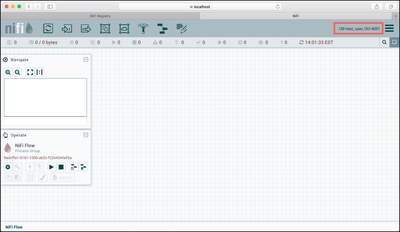

You should now be able to view the NiFi UI as the "CN=test_user, OU=NIFI" user:
Now we will connect our secure Registry to our secure NiFi instance.

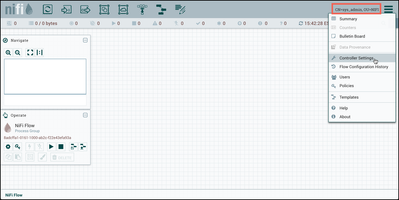

Return to the browser where you are logged into NiFi as the "sys_admin" user. Select "Controller Settings" from the top-right Global menu:

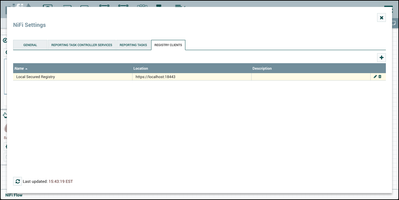

Select the Registry Clients tab and the "+" button to add a new Registry Client. Enter a name and the URL of the Registry instance (https://localhost:18443):

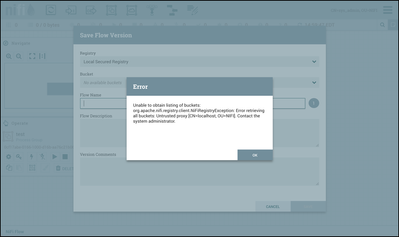

The last configuration step is to add "CN=localhost, OU=NIFI" as a user in the Registry and configure its privileges.
Log in to your secured Registry instance as "sys_admin".
Note: As mentioned at the beginning of this tutorial, it is assumed that you have a secured NiFi Registry instance running already with "sys_admin" and "test_user" users from completing Setting Up a Secure Apache NiFi Registry.

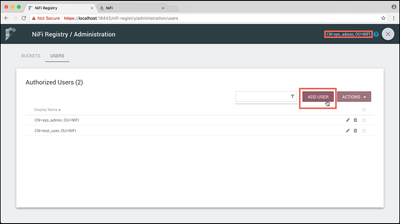

Select the Settings icon ( ) in the top right corner of the screen. Select "Users" at the top and then select the "Add User" button.

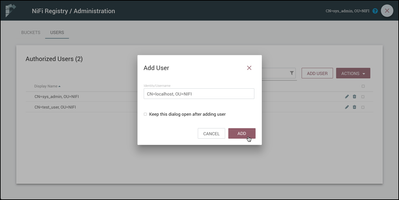

Enter "CN=localhost, OU=NIFI" for the Identity/Username and select "Add":

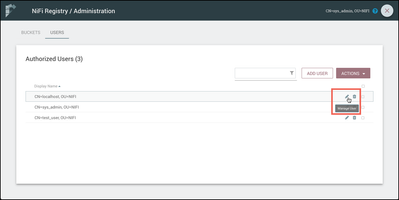

Select the pencil icon ( ) next to the "CN=localhost, OU=NIFI" user:

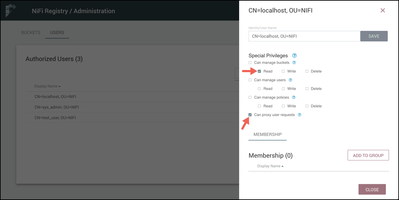

In the side nav that appears, check the privileges "Read" buckets and "Can proxy user requests":
Read to all buckets is necessary because NiFi itself checks the status of all the flows in NiFi to determine if they are in sync with the Registry. For example, checking whether a new version of flow is available for upgrade. Proxy privileges are needed because when versioned flow actions occur, NiFi proxies the end user over to the Registry. For example, when saving a version to the Registry it will be done as the actual user who performed this action in NiFi.
You are now ready to start using NiFi and NiFi Registry together.
Return to the browser where "sys_admin" is the NiFi user. "Sys_admin" has full registry bucket privileges. Create a new process group "PG_SA":

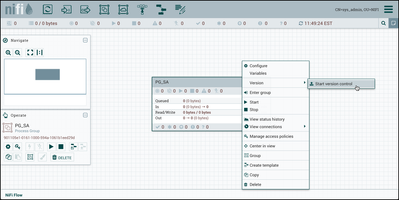

Right click on the process group and select "Version-->Start version control":

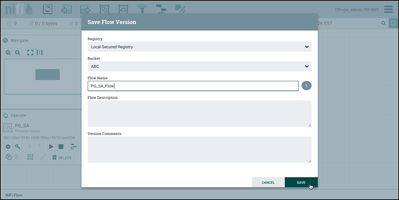

Since "sys_admin" has full privleges to buckets, the bucket "ABC" is is available to save the versioned flow to. Add the flow name "PG_SA_Flow" and select "Save":

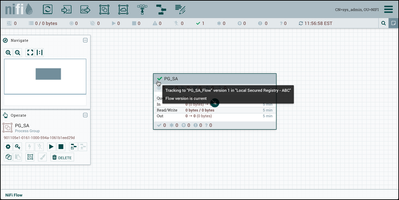

The process group is now under version control as evidenced by the green checkmark icon on the component:
Now go to the browser where "test_user" is the NiFi user. "Test_user" only has read privileges to registry buckets. To demonstrate, create a process group "PG_TU":
Right click on the process group and select "Version-->Start version control". However, in the "Save Flow Version" dialog, you will see that there are no available buckets to save the flow to:

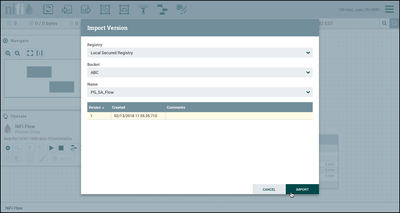

Close the dialog and drag a process group onto the canvas. Select "Import". In the Import Version dialog, the "ABC" bucket is accessible and the "PG_SA_Flow" in that bucket can be imported:

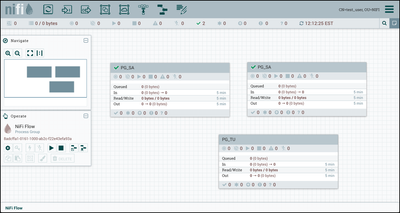

Select Version 1 and then the "Import" button. A copy of "PG_SA_Flow" is added to the canvas:
With the "sys_admin" having full access to the registry settings/administration, you can further explore the effects in NiFi after changing the privileges for "test_user".
If you would like to learn more about NiFi Registry functionality and working with versioned flows in NiFi, see the following articles:
