Use S3 as storage for Zeppelin Notebooks.

Step 1. Use external storage to point to S3 bucket in Cloudbreak advance options. This will use S3access profile and AWS credentials. CB takes care of that set up. In addition to that

Step 2 Change these 3 inzeppelin-env.sh

export ZEPPELIN_NOTEBOOK_S3_BUCKET=yourBucketName

export ZEPPELIN_NOTEBOOK_S3_ENDPOINT="http://s3.amazonaws.com/yourBucketName"

export ZEPPELIN_NOTEBOOK_S3_USER=admin

Step 3 Change this 1 inzeppelin-site.xml

Point zeppelin.notebook.storage to org.apache.zeppelin.notebook.repo.S3NotebookRepo

Detailed Steps below

3. Launch HDP Cluster on AWS using Cloudbreak.

Not all the screenshots are included, only capturing screenshots that focus on some key Advance features that enable the required Zeppelin Storage.

  • a.Use the Advance tab on Cloudbreak.

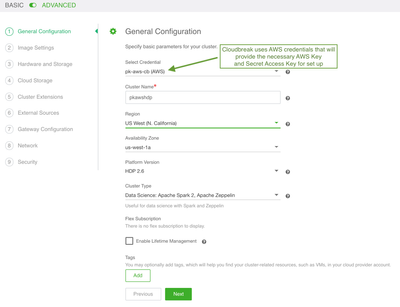

  • b.Cloudbreak uses AWS credentials that will provide the necessary AWS Key and Secrect Access Key for S3 Storage setup.

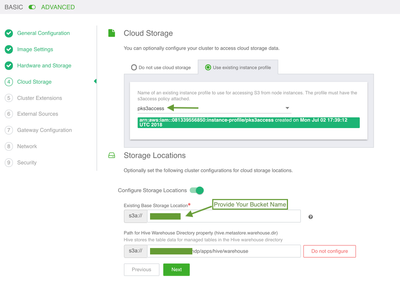

  • a.Provide an instance profile created in AWS that has access to your S3
  • b.Provide your bucket name for base storage


4.Enable Zeppelin Storage on S3.

Once Ambari starts and all services are started we need to make some configuration changes to enable Zeppelin.

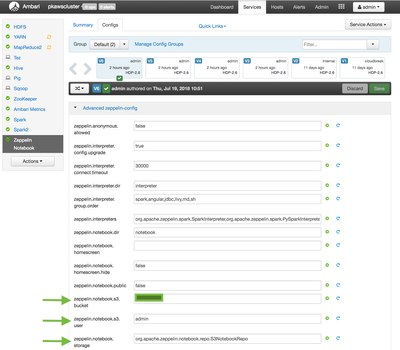

In the zeppelin-config change the following properties:

zeppelin_notebook.s3.bucket

zeppelin_notebook.s3.user

zeppelin_notebook.storage

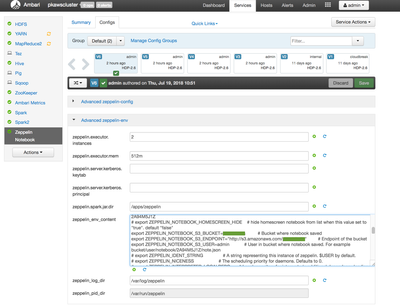

Or you could change them in zeppelin-env:

export ZEPPELIN_NOTEBOOK_S3_BUCKET=bucketName

export ZEPPELIN_NOTEBOOK_S3_ENDPOINT="http://s3.amazonaws.com/bucketName"

export ZEPPELIN_NOTEBOOK_S3_USER=admin


Here is an example path: bucket/user/notebook/2A94M5J1Z/note.json

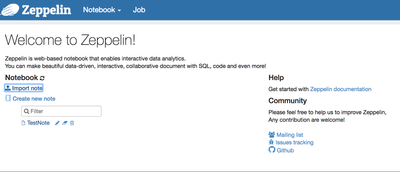

Now when you create and save Notebooks in Zeppelin, it will save in S3.

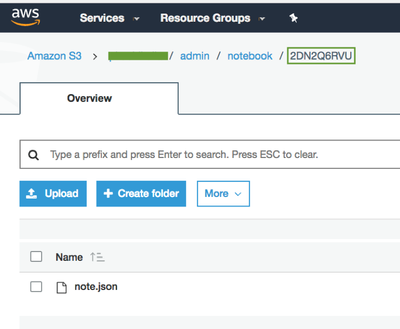

You will be able to see the notebooks in your AWS portal, in your S3 bucket. Zeppelin notebooks use 9 character hash as the name of the folder and note.json file in that folder.
