Vision Thing: Part 2: Processing, Capturing and Displaying Live Image Feeds with Apache NiFi, MiniFi, OpenCV, Python, MXNet

As part of processing live webcam images from devices I want to display the last one ingested to see what's going on. Those same images run through Apache MXNet, NVidia TensorRT and OpenCV for analysis.

I wanted to list all the images that I have stored on my NiFi server sent by Jetson TX1 device. So I went old school and have Apache NiFi server up some simple CGI script. It lists images and wraps them in HTML.

index.sh

ls /opt/demo/images2/ | /opt/demo/buildpage.sh

buildpage.sh

#!/bin/sh
echo '<html><head><meta http-equiv="refresh" content="60"> <title>NiFi List Images</title> </head> <body> <p> <br> <b>List Images</b> <br><br>'
sed 's/^.*/<a target="_new" href="http:\/\/princeton1\.field\.hortonworks\.com\:9099\?img_name\=&">&<\/a><br\/>/'
echo '</body></html>'

This works and is triggered in NiFi by HTTP request calls.

For each listed I use Apache NiFi to display that image:

To Serve Images, You need to pass in ?img_name= which is translated by NiFi into the following attribute:

http.query.param.img_name




Here is one image served:

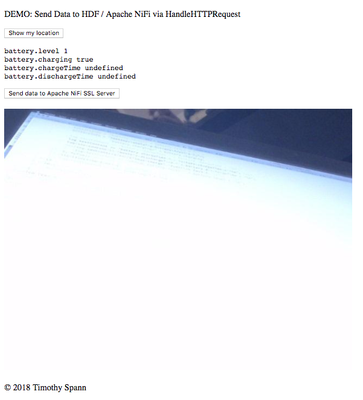

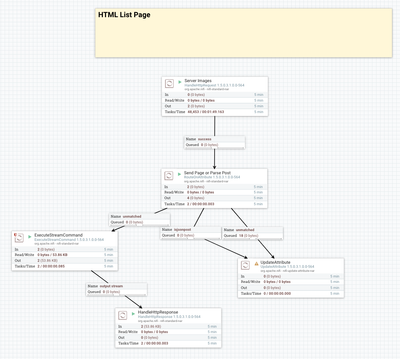

Running the List Page WebSite

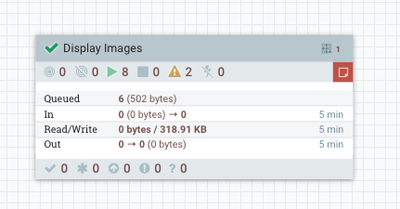

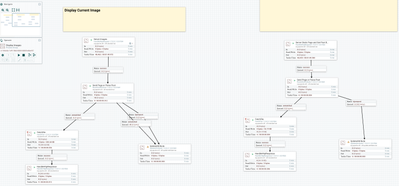

I have three separate HTTP Request Handlers with three separate ports. One shows a web page with the current image. One returns the current image. And the last lists images.

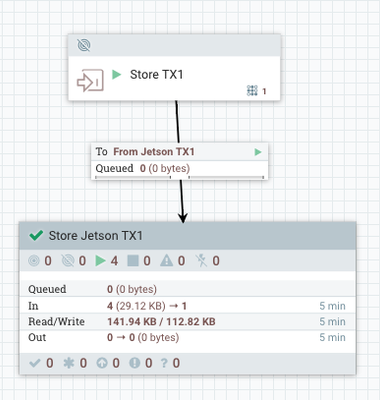

Ingest From NVidia Jetson TX1, Sending the Images for Processing and sending the deep learning analysis elsewhere.






Our Combined Schema

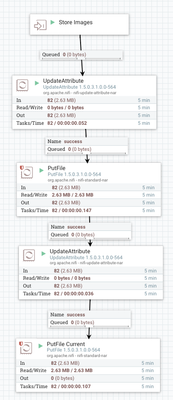

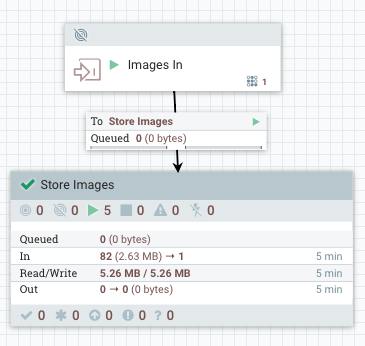

Store Images and Make a copy called current.jpg and overwrite existing one.


Creating an Apache Hive Table for Jetson TX1 Updated Data

%jdbc(hive)

CREATE EXTERNAL TABLE IF NOT EXISTS jetsonscan (filename STRING, top1pct STRING, top5 STRING, top4 STRING, top3 STRING, top2 STRING, top1 STRING, y STRING, host STRING, h STRING, top2pct STRING, cputemp DOUBLE, endtime STRING, ipaddress STRING, imagefilename STRING, top3pct STRING, uuid STRING, facedetect STRING, diskfree STRING, cvfilename STRING, ts STRING, top4pct STRING, gputempf STRING, gputemp STRING, top5pct STRING, w STRING, memory DOUBLE, imagenet STRING, x STRING, cvface STRING, runtime STRING, cputempf STRING) STORED AS ORC
LOCATION '/jetsonscan'

We have added two fields for OpenCV results.

I am using OpenCV to find faces:


Face [[357 62 61 61]]

Source

Make sure you turn your image gray scale before trying OpenCV HaaR Cascade Frontal Face. You need to install the XML file.

# 2017 load pictures and analyze
# https://github.com/tspannhw/mxnet_rpi/blob/master/analyze.py
import time
import sys
import datetime
import subprocess
import urllib2
import os
import datetime
import traceback
import math
import random, string
import base64
import json
import mxnet as mx
import inception_predict
import numpy as np
import cv2
import random, string
import socket
import psutil
from time import sleep
from string import Template
from time import gmtime, strftime

# Time
start = time.time()
currenttime= strftime("%Y-%m-%d %H:%M:%S",gmtime())
host = os.uname()[1]
cpu = psutil.cpu_percent(interval=1)
if 1==1:
    f = open('/sys/class/thermal/thermal_zone0/temp', 'r')
    l = f.readline()
    ctemp = 1.0 * float(l)/1000
usage = psutil.disk_usage("/")
mem = psutil.virtual_memory()
diskrootfree =  "{:.1f} MB".format(float(usage.free) / 1024 / 1024)
mempercent = mem.percent
external_IP_and_port = ('198.41.0.4', 53)  # a.root-servers.net
socket_family = socket.AF_INET

def IP_address():
        try:
            s = socket.socket(socket_family, socket.SOCK_DGRAM)
            s.connect(external_IP_and_port)
            answer = s.getsockname()
            s.close()
            return answer[0] if answer else None
        except socket.error:
            return None
ipaddress = IP_address()

face_cascade_path = '/media/nvidia/96ed93f9-7c40-4999-85ba-3eb24262d0a5/haarcascade_frontalface_default.xml'
face_cascade = cv2.CascadeClassifier(os.path.expanduser(face_cascade_path))

scale_factor = 1.1
min_neighbors = 3
min_size = (30, 30)

cap = cv2.VideoCapture(0)
packet_size=3000

def randomword(length):
 return ''.join(random.choice(string.lowercase) for i in range(length))

#while True:

# Create unique image name
uniqueid = 'mxnet_uuid_{0}_{1}'.format(randomword(3),strftime("%Y%m%d%H%M%S",gmtime()))

ret, frame = cap.read()

imgdir = 'images/'
filename = 'tx1_image_{0}_{1}.jpg'.format(randomword(3),strftime("%Y%m%d%H%M%S",gmtime()))
cv2.imwrite(imgdir + filename, frame)

# Run inception prediction on image
try:
     topn = inception_predict.predict_from_local_file(imgdir + filename, N=5)
except:
     errorcondition = "true"

# CPU Temp
f = open("/sys/devices/virtual/thermal/thermal_zone1/temp","r")
cputemp = str( f.readline() )
cputemp = cputemp.replace('\n','')
cputemp = cputemp.strip()
cputemp = str(round(float(cputemp)) / 1000)
cputempf = str(round(9.0/5.0 * float(cputemp) + 32))
f.close()

# GPU Temp
f = open("/sys/devices/virtual/thermal/thermal_zone2/temp","r")
gputemp = str( f.readline() )
gputemp = gputemp.replace('\n','')
gputemp = gputemp.strip()
gputemp = str(round(float(gputemp)) / 1000)
gputempf = str(round(9.0/5.0 * float(gputemp) + 32))
f.close()

# NVidia Face Detect
p = os.popen('/media/nvidia/96ed93f9-7c40-4999-85ba-3eb24262d0a5/jetson-inference/build/aarch64/bin/facedetect.sh ' + filename).read()
face = p.replace('\n','|')
face = face.strip()

# NVidia Image Net Classify
p2 = os.popen('/media/nvidia/96ed93f9-7c40-4999-85ba-3eb24262d0a5/jetson-inference/build/aarch64/bin/runclassify.sh ' + filename).read()
imagenet = p2.replace('\n','|')
imagenet = imagenet.strip()

# 5 MXNET Analysis
top1 = str(topn[0][1])
top1pct = str(round(topn[0][0],3) * 100)

top2 = str(topn[1][1])
top2pct = str(round(topn[1][0],3) * 100)

top3 = str(topn[2][1])
top3pct = str(round(topn[2][0],3) * 100)

top4 = str(topn[3][1])
top4pct = str(round(topn[3][0],3) * 100)

top5 = str(topn[4][1])
top5pct = str(round(topn[4][0],3) * 100)

# OpenCV

infname = "/media/nvidia/96ed93f9-7c40-4999-85ba-3eb24262d0a5/images" + filename
flags = cv2.CASCADE_SCALE_IMAGE
#image_path = os.path.expanduser(infname)
image = cv2.imread(imgdir + filename)
#frame
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY)
faces = face_cascade.detectMultiScale(gray, scaleFactor = scale_factor, minNeighbors = min_neighbors, minSize = min_size, flags = flags)

# Create Face Images

x = 0
y = 0
w = 0
h = 0
outfilename = filename
outfname = filename
cvface = ''
cvfilename = ''

for( x1, y1, w1, h1 ) in faces:
 cv2.rectangle(image, (x, y), (x + w, y + h), (255, 255, 0), 2)
 outfname = "/media/nvidia/96ed93f9-7c40-4999-85ba-3eb24262d0a5/images/%s.faces.jpg" % os.path.basename(infname)
 cv2.imwrite(os.path.expanduser(outfname), image)
 cvfilename += outfname
 cvface += 'Face {0}'.format(faces)
 outfilename = outfname
 x = x1
 y = y1
 w = w1
 h = h1

endtime= strftime("%Y-%m-%d %H:%M:%S",gmtime())
end = time.time()
row = { 'uuid': uniqueid,  'top1pct': top1pct, 'top1': top1, 'top2pct': top2pct, 'top2': top2,'top3pct': top3pct, 'top3': top3,'top4pct': top4pct,'top4': top4, 'top5pct': top5pct,'top5': top5, 'gputemp': gputemp, 'imagefilename': filename, 'gputempf': gputempf, 'cputempf': cputempf, 'runtime': str(round(end - start)), 'facedetect': face, 'imagenet': imagenet, 'ts': currenttime, 'endtime': endtime, 'host': host, 'memory': mempercent, 'diskfree': diskrootfree, 'cputemp': round(ctemp,2), 'ipaddress': ipaddress, 'x': str(x), 'y': str(y), 'w': str(w), 'h': str(h), 'filename': outfname, 'cvface': cvface, 'cvfilename': cvfilename }

json_string = json.dumps(row)

print (json_string )


See Part 1: https://community.hortonworks.com/content/kbentry/182850/vision-thing.html

You can find all the Python, Shell Scripts and HTML here:


Github: https://github.com/tspannhw/OpenSourceComputerVision/
