Working with Iceberg in CDE Spark Sessions

[#1]

Cloudera Data Engineering

CDE is the Cloudera Data Engineering Service, a containerized managed service for Cloudera Data Platform designed for Large Scale Batch Pipelines with Spark, Airflow and Iceberg. It allows you to submit batch jobs to auto-scaling virtual clusters. As a Cloud-Native service, CDE enables you to spend more time on your applications, and less time on infrastructure.

CDE allows you to create, manage, and schedule Apache Spark jobs without the overhead of creating and maintaining Spark clusters. With CDE, you define virtual clusters with a range of CPU and memory resources, and the cluster scales up and down as needed to run your Spark workloads, helping to control your cloud costs.

Cloudera Data Engineering (CDE) provides a command line interface (CLI) client. You can use the CLI to create and update jobs, view job details, manage job resources, run jobs, and more.

Apache Iceberg

Apache Iceberg is a cloud-native, high-performance open table format for organizing petabyte-scale analytic datasets on a file system or object store. Combined with Cloudera Data Platform (CDP), users can build an open data lakehouse architecture for multi-function analytics and to deploy large scale end-to-end pipelines.

Open data lakehouse on CDP simplifies advanced analytics on all data with a unified platform for structured and unstructured data and integrated data services to enable any analytics use case from ML, BI to stream analytics and real-time analytics. Apache Iceberg is the secret sauce of the open lakehouse.

CDE Sessions

A Cloudera Data Engineering (CDE) Session is an interactive short-lived development environment for running Spark commands to help you iterate upon and build your Spark workloads.

You can use CDE Sessions in CDE Virtual Clusters of type "All Purpose - Tier 2". The following commands illustrate a basic Iceberg Time Travel Example.

Requirements

The following are required in order to reproduce these commands in your CDE environment:

1. A CDE Service on version 1.19.0 or above.
2. A working installation of the CDE CLI. Please follow these instructions to install the CLI.

Steps

Clone this git repository and run the following commands in your terminal.

Create the Session:

% cde session create --name interactiveSession \
--type pyspark \
--executor-cores 2 \
--executor-memory "2g"
{
"name": "interactiveSession",
"creator": "pauldefusco",
"created": "2023-11-28T22:00:47Z",
"type": "pyspark",
"lastStateUpdated": "2023-11-28T22:00:47Z",
"state": "starting",
"interactiveSpark": {
"id": 5,
"driverCores": 1,
"executorCores": 2,
"driverMemory": "1g",
"executorMemory": "2g",
"numExecutors": 1
}
}

Show session metadata:

% cde session describe --name interactiveSession
{
"name": "interactiveSession",
"creator": "pauldefusco",
"created": "2023-11-28T22:00:47Z",
"type": "pyspark",
"lastStateUpdated": "2023-11-28T22:01:16Z",
"state": "available",
"interactiveSpark": {
"id": 5,
"appId": "spark-3fe3bd8905a04eef8805e6b973ec4289",
"driverCores": 1,
"executorCores": 2,
"driverMemory": "1g",
"executorMemory": "2g",
"numExecutors": 1
}
}

Interact via the PySpark Shell from your terminal (the session is running in CDE):

% cde session interact --name interactiveSession
Starting REPL...
Waiting for the session to go into an available state...
Connected to Cloudera Data Engineering...
Press Ctrl+D (i.e. EOF) to exit
Welcome to
____ __
/ __/__ ___ _____/ /__
_\ \/ _ \/ _ `/ __/ '_/
/___/ .__/\_,_/_/ /_/\_\
/_/

Type in expressions to have them evaluated.

>>>

Run some basic Spark SQL operations:

from pyspark.sql.types import Row, StructField, StructType, StringType, IntegerType
rows = [Row(name="John", age=19), Row(name="Smith", age=23), Row(name="Sarah", age=18)]
some_df = spark.createDataFrame(rows)
some_df.printSchema()

>>> from pyspark.sql.types import Row, StructField, StructType, StringType, IntegerType

>>> rows = [Row(name="John", age=19), Row(name="Smith", age=23), Row(name="Sarah", age=18)]

>>> some_df = spark.createDataFrame(rows)

>>> some_df.printSchema()
root
|-- name: string (nullable = true)
|-- age: long (nullable = true)
>>>

Notice that we didn't need to create a Spark Session. The Spark Context is already running inside the CDE Session.

Here are all the confs the session is running with. Notice that Iceberg dependencies have already been accounted for:

>>> def printConfs(confs):
for ele1,ele2 in confs:
print("{:<14}{:<11}".format(ele1,ele2))

>>> printConfs(confs)
spark.eventLog.enabledtrue
spark.driver.hostinteractivesession-b7d65d8c1d6005a9-driver-svc.dex-app-58kqsms2.svc
spark.kubernetes.executor.annotation.created-bylivy
spark.kubernetes.memoryOverheadFactor0.1
spark.sql.catalog.spark_catalogorg.apache.iceberg.spark.SparkSessionCatalog
spark.kubernetes.container.imagecontainer.repository.cloudera.com/cloudera/dex/dex-livy-runtime-3.3.0-7.2.16.3:1.19.3-b29
spark.kubernetes.executor.label.nameexecutor
spark.kubernetes.driver.connectionTimeout60000
spark.hadoop.yarn.resourcemanager.principalpauldefusco
...
spark.yarn.isPythontrue
spark.kubernetes.submission.connectionTimeout60000
spark.kryo.registrationRequiredfalse
spark.sql.catalog.spark_catalog.typehive
spark.kubernetes.driver.pod.nameinteractivesession-b7d65d8c1d6005a9-driver

Load a CSV file from Cloud Storage:

>>> cloudPath = "s3a://go01-demo/datalake/pdefusco/cde119_workshop"

>>> car_installs = spark.read.csv(cloudPath + "/car_installs_119.csv", header=True, inferSchema=True)

>>> car_installs.show()
+-----+-----+----------------+--------------------+
| id|model| VIN| serial_no|
+-----+-----+----------------+--------------------+
|16413| D|433248UCGTTV245J|5600942CL3R015666...|
|16414| D|404328UCGTTV965J|204542CL4R0156661...|
|16415| B|647168UCGTTV8Z5J|6302942CL2R015666...|
|16416| B|454608UCGTTV7H5J|4853942CL1R015666...|
|16417| D|529408UCGTTV6R5J|2428342CL9R015666...|
|16418| B|362858UCGTTV7A5J|903142CL2R0156661...|
|16419| E|609158UCGTTV245J|3804142CL7R015666...|
|16420| D| 8478UCGTTV825J|6135442CL7R015666...|
|16421| B|539488UCGTTV4R5J|306642CL6R0156661...|
|16422| B|190928UCGTTV6A5J|5466242CL1R015666...|
|16423| B|316268UCGTTV4M5J|4244342CL5R015666...|
|16424| B|298898UCGTTV3Y5J|3865742CL4R015666...|
|16425| B| 28688UCGTTV9T5J|6328542CL5R015666...|
|16426| D|494858UCGTTV295J|463642CL5R0156661...|
|16427| D|503338UCGTTV5Y5J|4358642CL2R015666...|
|16428| D|167128UCGTTV2H5J|3809342CL1R015666...|
|16429| D|547178UCGTTV7M5J|2768042CL3R015666...|
|16430| B|503998UCGTTV4Q5J|2568142CL6R015666...|
|16431| D|433998UCGTTV9Y5J|6338642CL6R015666...|
|16432| B|378548UCGTTV7V5J|2648942CL1R015666...|
+-----+-----+----------------+--------------------+

Create a Hive Managed Table with Spark:

>>> username = "pauldefusco"

>>> spark.sql("DROP DATABASE IF EXISTS MYDB_{} CASCADE".format(username))

>>> spark.sql("CREATE DATABASE IF NOT EXISTS MYDB_{}".format(username))

>>> car_installs.write.mode("overwrite").saveAsTable('MYDB_{0}.CAR_INSTALLS_{0}'.format(username), format="parquet")

Migrate the table to Iceberg Table Format:

spark.sql("ALTER TABLE MYDB_{0}.CAR_INSTALLS_{0} UNSET TBLPROPERTIES ('TRANSLATED_TO_EXTERNAL')".format(username))

spark.sql("CALL spark_catalog.system.migrate('MYDB_{0}.CAR_INSTALLS_{0}')".format(username))

You can query Iceberg Metadata tables to track Iceberg Snapshots, History, Partitions, etc:

>>> spark.read.format("iceberg").load("spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}.history".format(username)).show(20, False)
+-----------------------+-------------------+---------+-------------------+
|made_current_at |snapshot_id |parent_id|is_current_ancestor|
+-----------------------+-------------------+---------+-------------------+
|2023-11-29 23:58:43.427|6191572403226489858|null |true |
+-----------------------+-------------------+---------+-------------------+

>>> spark.read.format("iceberg").load("spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}.snapshots".format(username)).show(20, False)
+-----------------------+-------------------+---------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|committed_at |snapshot_id |parent_id|operation|manifest_list |summary |
+-----------------------+-------------------+---------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|2023-11-29 23:58:43.427|6191572403226489858|null |append |s3a://go01-demo/warehouse/tablespace/external/hive/mydb_pauldefusco.db/car_installs_pauldefusco/metadata/snap-6191572403226489858-1-bf191e06-38cd-4d6e-9757-b8762c999177.avro|{added-data-files -> 2, added-records -> 82066, added-files-size -> 1825400, changed-partition-count -> 1, total-records -> 82066, total-files-size -> 1825400, total-data-files -> 2, total-delete-files -> 0, total-position-deletes -> 0, total-equality-deletes -> 0}|
+-----------------------+-------------------+---------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

Insert some data. Notice that Iceberg provides a PySpark API to create, append, and overwrite data in an Iceberg table from a Spark Dataframe. In this case we will append some data that we sample from the same table:

# PRE-INSERT TIMESTAMP
>>> from datetime import datetime

>>> now = datetime.now()

>>> timestamp = datetime.timestamp(now)

>>> print("PRE-INSERT TIMESTAMP: ", timestamp)
PRE-INSERT TIMESTAMP: 1701302029.338524

# PRE-INSERT COUNT
>>> spark.sql("SELECT COUNT(*) FROM spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}".format(username)).show()
+--------+
|count(1)|
+--------+
| 82066|
+--------+

>>> temp_df = spark.sql("SELECT * FROM spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}".format(username)).sample(fraction=0.1, seed=3)

>>> temp_df.writeTo("spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}".format(username)).append()

Check the new count Post insert:

# POST-INSERT COUNT
>>> spark.sql("SELECT COUNT(*) FROM spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}".format(username)).show()
+--------+
|count(1)|
+--------+
| 90276|
+--------+

Notice that the table history and snapshots have been updated:

>>> spark.sql("SELECT * FROM spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}.history".format(username)).show(20, False)
+-----------------------+-------------------+-------------------+-------------------+
|made_current_at |snapshot_id |parent_id |is_current_ancestor|
+-----------------------+-------------------+-------------------+-------------------+
|2023-11-29 23:58:43.427|6191572403226489858|null |true |
|2023-11-30 00:00:15.263|1032812961485886468|6191572403226489858|true |
+-----------------------+-------------------+-------------------+-------------------+

>>> spark.sql("SELECT * FROM spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}.snapshots".format(username)).show(20, False)
+-----------------------+-------------------+-------------------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|committed_at |snapshot_id |parent_id |operation|manifest_list |summary |
+-----------------------+-------------------+-------------------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
|2023-11-29 23:58:43.427|6191572403226489858|null |append |s3a://go01-demo/warehouse/tablespace/external/hive/mydb_pauldefusco.db/car_installs_pauldefusco/metadata/snap-6191572403226489858-1-bf191e06-38cd-4d6e-9757-b8762c999177.avro|{added-data-files -> 2, added-records -> 82066, added-files-size -> 1825400, changed-partition-count -> 1, total-records -> 82066, total-files-size -> 1825400, total-data-files -> 2, total-delete-files -> 0, total-position-deletes -> 0, total-equality-deletes -> 0} |
|2023-11-30 00:00:15.263|1032812961485886468|6191572403226489858|append |s3a://go01-demo/warehouse/tablespace/external/hive/mydb_pauldefusco.db/car_installs_pauldefusco/metadata/snap-1032812961485886468-1-142965b8-67ea-4b53-b76d-558ab5e74e1f.avro|{spark.app.id -> spark-93d1909a680948fea5303b55986704ac, added-data-files -> 1, added-records -> 8210, added-files-size -> 183954, changed-partition-count -> 1, total-records -> 90276, total-files-size -> 2009354, total-data-files -> 3, total-delete-files -> 0, total-position-deletes -> 0, total-equality-deletes -> 0}|
+-----------------------+-------------------+-------------------+---------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------+-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+

Time travel to pre-insert table state:

# TIME TRAVEL AS OF PREVIOUS TIMESTAMP
>>> df = spark.read.option("as-of-timestamp", int(timestamp*1000)).format("iceberg").load("spark_catalog.MYDB_{0}.CAR_INSTALLS_{0}".format(username))

# POST TIME TRAVEL COUNT
>>> print(df.count())
82066

Finally, drop the database:

>>> spark.sql("DROP DATABASE IF EXISTS MYDB_{} CASCADE".format(username))

Exit the Spark Shell (Ctrl+D). List commands that were run in the session. Notice that this could be a lot, so the example below only includes a few initial commands.

% cde session statements --name interactiveSession
+--------------------------------+------------------------------------------+
| CODE | OUTPUT |
+--------------------------------+------------------------------------------+
| print("hello Spark") | hello Spark |
+--------------------------------+------------------------------------------+
| from pyspark.sql.types import | |
| Row, StructField, StructType, | |
| StringType, IntegerType | |
+--------------------------------+------------------------------------------+
| rows = [Row(name="John", | |
| age=19), Row(name="Smith", | |
| age=23), Row(name="Sarah", | |
| age=18)] | |
+--------------------------------+------------------------------------------+
| some_df = | |
| spark.createDataFrame(rows) | |
+--------------------------------+------------------------------------------+
| some_df.printSchema() | root |-- name: string |
| | (nullable = true) |-- age: |
| | long (nullable = true) |
+--------------------------------+------------------------------------------+

List all sessions:

% cde session list
+---------------------------+-----------+---------+-------------+----------------------+----------------------+-------------+
| NAME | STATE | TYPE | DESCRIPTION | CREATED | LAST UPDATED | CREATOR |
+---------------------------+-----------+---------+-------------+----------------------+----------------------+-------------+
| francetemp | killed | pyspark | | 2023-11-16T15:59:35Z | 2023-11-16T16:02:16Z | jmarchand |
| IcebergSession | available | pyspark | | 2023-11-29T21:24:27Z | 2023-11-29T21:56:56Z | pauldefusco |
| interactiveSession | killed | pyspark | | 2023-11-28T22:00:47Z | 2023-11-28T22:01:16Z | pauldefusco |
| interactiveSessionIceberg | available | pyspark | | 2023-11-29T23:17:58Z | 2023-11-29T23:56:06Z | pauldefusco |
| myNewSession | killed | pyspark | | 2023-11-28T21:58:38Z | 2023-11-28T21:59:06Z | pauldefusco |
| mySparkSession | killed | pyspark | | 2023-11-28T21:44:30Z | 2023-11-28T21:45:01Z | pauldefusco |
| TA-demo | killed | pyspark | | 2023-11-13T10:12:12Z | 2023-11-13T10:13:41Z | glivni |
+---------------------------+-----------+---------+-------------+----------------------+----------------------+-------------+

Kill session:

% cde session kill --name interactiveSession

Summary and Next Steps

Cloudera Data Engineering (CDE) provides a command line interface (CLI) client. You can use the CLI to create and update jobs, view job details, manage job resources, run jobs, and so on.

In this article we have reviewed some advanced use cases for the CLI. If you are using the CDE CLI you might also find the following articles and demos interesting:

• Installing the CDE CLI
• Simple Introduction to the CDE CLI
• CDE CLI Demo
• CDE Concepts
• CDE CLI Command Reference
• CDE CLI Spark Flag Reference
• CDE CLI Airflow Flag Reference
• CDE CLI list command syntax reference
• CDE Jobs API Reference

[#2]

Share my memo on setting up the .cde/config.yaml:

user:(my user in CDP, not the email address)

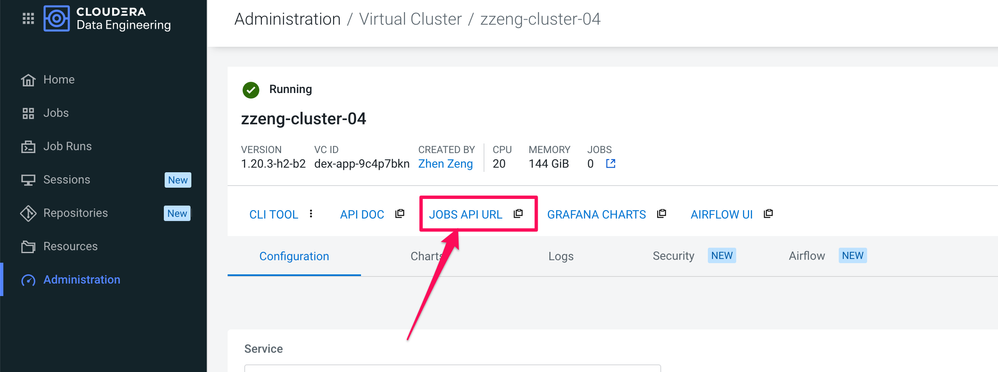

vcluster-endpoint: (find it in the Adminitration -> Virtual Cluster details -> JOBS API URL)
