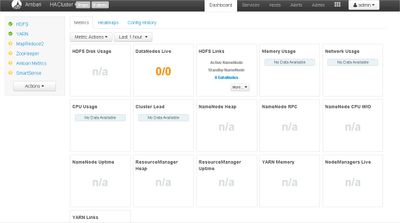

HA Cluster Blueprint displays 0 datanodes

Solved Go to solution
Highlighted

HA Cluster Blueprint displays 0 datanodes

Explorer

Hello I have the following files:

  • cluster_configuration.json
{
  "Blueprints": {
    "stack_name": "HDP",
    "stack_version": "2.6"
  },
  "host_groups": [
    {
      "name": "namenode1",
      "cardinality" : "1",
      "components": [
        { "name" : "HST_AGENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZKFC" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "HST_SERVER" },
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "NAMENODE" },
        { "name" : "APP_TIMELINE_SERVER" },
        { "name" : "METRICS_GRAFANA" }
      ]
    },
    {
      "name": "namenode2",
      "cardinality" : "1",
      "components": [
        { "name" : "ACTIVITY_EXPLORER" },
        { "name" : "HST_AGENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZKFC" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "HISTORYSERVER" },
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "NAMENODE" },
        { "name" : "METRICS_COLLECTOR" }
      ]
    },
    {
      "name": "namenode3",
      "cardinality" : "1",
      "components": [
        { "name" : "ACTIVITY_ANALYZER" },
        { "name" : "HST_AGENT" },
        { "name" : "MAPREDUCE2_CLIENT" },
        { "name" : "YARN_CLIENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "RESOURCEMANAGER" }
      ]
    },
    {
      "name": "hosts_group",
      "cardinality" : "3",
      "components": [
        { "name" : "NODEMANAGER" },
        { "name" : "HST_AGENT" },
        { "name" : "MAPREDUCE2_CLIENT" },
        { "name" : "YARN_CLIENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "DATANODE" },
        { "name" : "METRICS_MONITOR" },
        { "name" : "ZOOKEEPER_CLIENT" }
      ]
    }
  ],
  "configurations": [
    {
      "core-site": {
        "properties" : {
          "fs.defaultFS" : "HACluster",
          "ha.zookeeper.quorum": "%HOSTGROUP::namenode1%:2181,%HOSTGROUP::namenode2%:2181,%HOSTGROUP::namenode3%:2181",
          "hadoop.proxyuser.yarn.hosts": "%HOSTGROUP::namenode2%,%HOSTGROUP::namenode3%"
      }}
    },
    { "hdfs-site": {
        "properties" : {
          "dfs.client.failover.proxy.provider.mycluster" : "org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider",
          "dfs.ha.automatic-failover.enabled" : "true",
          "dfs.ha.fencing.methods" : "shell(/bin/true)",
          "dfs.ha.namenodes.HACluster" : "nn1,nn2",
          "dfs.namenode.http-address" : "%HOSTGROUP::namenode1%:50070",
          "dfs.namenode.http-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:50070",
          "dfs.namenode.http-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:50070",
          "dfs.namenode.https-address" : "%HOSTGROUP::namenode1%:50470",
          "dfs.namenode.https-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:50470",
          "dfs.namenode.https-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:50470",
          "dfs.namenode.rpc-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:8020",
          "dfs.namenode.rpc-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:8020",
          "dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",
          "dfs.nameservices" : "HACluster"
      }}
    },
    { "yarn-site": {
        "properties": {
          "yarn.resourcemanager.ha.enabled": "true",
          "yarn.resourcemanager.ha.rm-ids": "rm1,rm2",
          "yarn.resourcemanager.hostname.rm1": "%HOSTGROUP::namenode2%",
          "yarn.resourcemanager.hostname.rm2": "%HOSTGROUP::namenode3%",
          "yarn.resourcemanager.webapp.address.rm1": "%HOSTGROUP::namenode2%:8088",
          "yarn.resourcemanager.webapp.address.rm2": "%HOSTGROUP::namenode3%:8088",
          "yarn.resourcemanager.webapp.https.address.rm1": "%HOSTGROUP::namenode2%:8090",
          "yarn.resourcemanager.webapp.https.address.rm2": "%HOSTGROUP::namenode3%:8090",
          "yarn.resourcemanager.recovery.enabled": "true",
          "yarn.resourcemanager.store.class": "org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore",
          "yarn.resourcemanager.zk-address": "%HOSTGROUP::namenode1%:2181,%HOSTGROUP::namenode2%:2181,%HOSTGROUP::namenode3%:2181",
          "yarn.client.failover-proxy-provider": "org.apache.hadoop.yarn.client.ConfiguredRMFailoverProxyProvider",
          "yarn.resourcemanager.cluster-id": "yarn-cluster",
          "yarn.resourcemanager.ha.automatic-failover.zk-base-path": "/yarn-leader-election"
        }
      }
    }
  ]
}
  • hdputils-repo.json
{
   "Repositories":{
      "base_url":"http://public-repo-1.hortonworks.com/HDP-UTILS-1.1.0.21/repos/ubuntu16",
      "verify_base_url":true
   }
}
  • hostmap.json
{
  "blueprint":"HACluster",
  "default_password":"admin",
  "host_groups": [
    {
      "name": "namenode1",
      "hosts":
      [
        { "fqdn": "namenode1" }
      ]
    },
    {
      "name": "namenode2",
      "hosts":
      [
        { "fqdn": "namenode2" }
      ]


    },
    {
      "name": "namenode3",
      "hosts":
      [
        { "fqdn": "namenode3" }
      ]
    },
    {
      "name": "hosts_group",
      "hosts":
      [
        { "fqdn": "datanode1" },
        { "fqdn": "datanode2" },
        { "fqdn": "datanode3" }
      ]
    }
  ]
}
  • repo.json
{
   "Repositories":{
      "base_url":"http://public-repo-1.hortonworks.com/HDP/ubuntu16/2.x/updates/2.6.3.0/",
      "verify_base_url":true
   }
}

Then I launch this blue print this way:

$ curl -i -H "X-Requested-By: ambari" -X POST -u admin:admin http://ambariserver:8080/api/v1/blueprints/HACluster -d @cluster_configuration.json
$ curl -i -H "X-Requested-By: ambari" -X PUT -u admin:admin http://ambariserver:8080/api/v1/stacks/HDP/versions/2.6/operating_systems/ubuntu16/repositories/HDP-... -d @repo.json
$ curl -i -H "X-Requested-By: ambari" -X PUT -u admin:admin http://ambariserver:8080/api/v1/stacks/HDP/versions/2.6/operating_systems/ubuntu16/repositories/HDP-... -d @hdputils-repo.json
$ curl -i -H "X-Requested-By: ambari" -X POST -u admin:admin http://ambariserver:8080/api/v1/clusters/HACluster -d @hostmap.json

I am trying to create a 3 namenode and 3 datanode structure with HA HDFS.

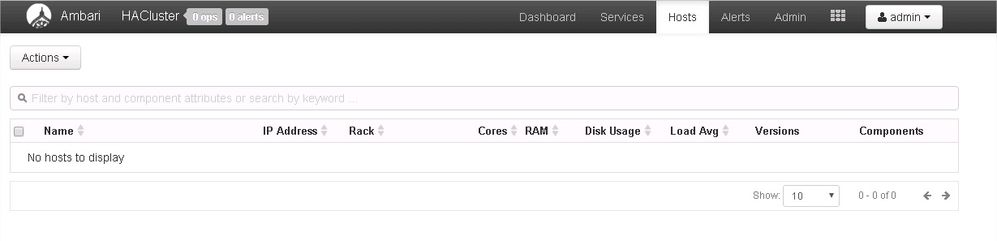

When I launch the blue print, no errors are displayed but then hosts are not registered as you can see on the attached screenshots.

I get the following error at /var/log/ambari-server/ambari-server.log

java.lang.IllegalArgumentException: Unable to match blueprint host group token to a host group: namenode1:8485;
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.getHostStrings(BlueprintConfigurationProcessor.java:1248)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.access$700(BlueprintConfigurationProcessor.java:63)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor$MultipleHostTopologyUpdater.updateForClusterCreate(BlueprintConfigurationProcessor.java:1870)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.doUpdateForClusterCreate(BlueprintConfigurationProcessor.java:355)
        at org.apache.ambari.server.topology.ClusterConfigurationRequest.process(ClusterConfigurationRequest.java:152)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:79)
        at org.apache.ambari.server.security.authorization.internal.InternalAuthenticationInterceptor.invoke(InternalAuthenticationInterceptor.java:45)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:45)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
        at java.lang.Thread.run(Thread.java:745)
01 Dec 2017 12:51:15,602  INFO [ambari-client-thread-32] TopologyManager:963 - TopologyManager.processAcceptedHostOffer: queue tasks for host = namenode1 which responded ACCEPTED
01 Dec 2017 12:51:15,603  INFO [ambari-client-thread-32] TopologyManager:988 - TopologyManager.processAcceptedHostOffer: queueing tasks for host = namenode1
01 Dec 2017 12:51:15,603  INFO [ambari-client-thread-32] TopologyManager:863 - TopologyManager.processRequest: host name = datanode1 is mapped to LogicalRequest ID = 1 and will be removed from the reserved hosts.
01 Dec 2017 12:51:15,603  INFO [ambari-client-thread-32] TopologyManager:876 - TopologyManager.processRequest: offering host name = datanode1 to LogicalRequest ID = 1
01 Dec 2017 12:51:15,608  INFO [ambari-client-thread-32] LogicalRequest:101 - LogicalRequest.offer: attempting to match a request to a request for a reserved host to hostname = datanode1
01 Dec 2017 12:51:15,608  INFO [ambari-client-thread-32] LogicalRequest:110 - LogicalRequest.offer: request mapping ACCEPTED for host = datanode1
01 Dec 2017 12:51:15,608  INFO [ambari-client-thread-32] LogicalRequest:113 - LogicalRequest.offer returning response, reservedHost list size = 0
01 Dec 2017 12:51:15,617  INFO [ambari-client-thread-32] TopologyManager:886 - TopologyManager.processRequest: host name = datanode1 was ACCEPTED by LogicalRequest ID = 1 , host has been removed from available hosts.
01 Dec 2017 12:51:15,618  INFO [ambari-client-thread-32] ClusterTopologyImpl:158 - ClusterTopologyImpl.addHostTopology: added host = datanode1 to host group = hosts_group
01 Dec 2017 12:51:15,634  INFO [ambari-client-thread-32] TopologyManager:963 - TopologyManager.processAcceptedHostOffer: queue tasks for host = datanode1 which responded ACCEPTED
01 Dec 2017 12:51:15,638  INFO [ambari-client-thread-32] TopologyManager:988 - TopologyManager.processAcceptedHostOffer: queueing tasks for host = datanode1
01 Dec 2017 12:51:15,638  INFO [ambari-client-thread-32] TopologyManager:904 - TopologyManager.processRequest: not all required hosts have been matched, so adding LogicalRequest ID = 1 to outstanding requests
01 Dec 2017 12:51:15,640  INFO [ambari-client-thread-32] AmbariManagementControllerImpl:1624 - Received a updateCluster request, clusterId=null, clusterName=HACluster, securityType=null, request={ clusterName=HACluster, clusterId=null, provisioningState=INSTALLED, securityType=null, stackVersion=HDP-2.6, desired_scv=null, hosts=[] }
01 Dec 2017 12:51:16,594  WARN [pool-20-thread-1] BlueprintConfigurationProcessor:1546 - The property 'dfs.namenode.secondary.http-address' is associated with the component 'SECONDARY_NAMENODE' which isn't mapped to any host group. This may affect configuration topology resolution.
01 Dec 2017 12:51:16,598 ERROR [pool-20-thread-1] ConfigureClusterTask:116 - Could not determine required host groups
java.lang.IllegalArgumentException: Unable to match blueprint host group token to a host group: namenode1:8485;
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor$MultipleHostTopologyUpdater.getRequiredHostGroups(BlueprintConfigurationProcessor.java:2037)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.getRequiredHostGroups(BlueprintConfigurationProcessor.java:303)
        at org.apache.ambari.server.topology.ClusterConfigurationRequest.getRequiredHostGroups(ClusterConfigurationRequest.java:126)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.getTopologyRequiredHostGroups(ConfigureClusterTask.java:113)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:71)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41.CGLIB$call$1(<generated>)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41$$FastClassByGuice$$a8ae8ea0.invoke(<generated>)
        at com.google.inject.internal.cglib.proxy.$MethodProxy.invokeSuper(MethodProxy.java:228)
        at com.google.inject.internal.InterceptorStackCallback$InterceptedMethodInvocation.proceed(InterceptorStackCallback.java:72)
        at org.apache.ambari.server.security.authorization.internal.InternalAuthenticationInterceptor.invoke(InternalAuthenticationInterceptor.java:45)
        at com.google.inject.internal.InterceptorStackCallback$InterceptedMethodInvocation.proceed(InterceptorStackCallback.java:72)
        at com.google.inject.internal.InterceptorStackCallback.intercept(InterceptorStackCallback.java:52)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41.call(<generated>)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:45)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
        at java.lang.Thread.run(Thread.java:745)
01 Dec 2017 12:51:16,598  INFO [pool-20-thread-1] ConfigureClusterTask:78 - All required host groups are complete, cluster configuration can now begin
01 Dec 2017 12:51:16,598  INFO [pool-20-thread-1] BlueprintConfigurationProcessor:579 - Config recommendation strategy being used is NEVER_APPLY)
01 Dec 2017 12:51:16,598  INFO [pool-20-thread-1] BlueprintConfigurationProcessor:598 - No recommended configurations are applied. (strategy: NEVER_APPLY)
01 Dec 2017 12:51:16,829  INFO [pool-4-thread-1] AsyncCallableService:92 - Task ConfigureClusterTask exception during execution
java.lang.IllegalArgumentException: Unable to match blueprint host group token to a host group: namenode1:8485;
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.getHostStrings(BlueprintConfigurationProcessor.java:1248)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.access$700(BlueprintConfigurationProcessor.java:63)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor$MultipleHostTopologyUpdater.updateForClusterCreate(BlueprintConfigurationProcessor.java:1870)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.doUpdateForClusterCreate(BlueprintConfigurationProcessor.java:355)
        at org.apache.ambari.server.topology.ClusterConfigurationRequest.process(ClusterConfigurationRequest.java:152)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:79)
        at org.apache.ambari.server.security.authorization.internal.InternalAuthenticationInterceptor.invoke(InternalAuthenticationInterceptor.java:45)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:45)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
        at java.lang.Thread.run(Thread.java:745)
01 Dec 2017 12:51:17,845  WARN [pool-20-thread-1] BlueprintConfigurationProcessor:1546 - The property 'dfs.namenode.secondary.http-address' is associated with the component 'SECONDARY_NAMENODE' which isn't mapped to any host group. This may affect configuration topology resolution.
01 Dec 2017 12:51:17,852 ERROR [pool-20-thread-1] ConfigureClusterTask:116 - Could not determine required host groups
java.lang.IllegalArgumentException: Unable to match blueprint host group token to a host group: namenode1:8485;
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor$MultipleHostTopologyUpdater.getRequiredHostGroups(BlueprintConfigurationProcessor.java:2037)
        at org.apache.ambari.server.controller.internal.BlueprintConfigurationProcessor.getRequiredHostGroups(BlueprintConfigurationProcessor.java:303)
        at org.apache.ambari.server.topology.ClusterConfigurationRequest.getRequiredHostGroups(ClusterConfigurationRequest.java:126)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.getTopologyRequiredHostGroups(ConfigureClusterTask.java:113)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:71)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41.CGLIB$call$1(<generated>)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41$$FastClassByGuice$$a8ae8ea0.invoke(<generated>)
        at com.google.inject.internal.cglib.proxy.$MethodProxy.invokeSuper(MethodProxy.java:228)
        at com.google.inject.internal.InterceptorStackCallback$InterceptedMethodInvocation.proceed(InterceptorStackCallback.java:72)
        at org.apache.ambari.server.security.authorization.internal.InternalAuthenticationInterceptor.invoke(InternalAuthenticationInterceptor.java:45)
        at com.google.inject.internal.InterceptorStackCallback$InterceptedMethodInvocation.proceed(InterceptorStackCallback.java:72)
        at com.google.inject.internal.InterceptorStackCallback.intercept(InterceptorStackCallback.java:52)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask$$EnhancerByGuice$$3479de41.call(<generated>)
        at org.apache.ambari.server.topology.tasks.ConfigureClusterTask.call(ConfigureClusterTask.java:45)
        at java.util.concurrent.FutureTask.run(FutureTask.java:266)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.access$201(ScheduledThreadPoolExecutor.java:180)
        at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run(ScheduledThreadPoolExecutor.java:293)
        at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
        at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
        at java.lang.Thread.run(Thread.java:745)
01 Dec 2017 12:51:17,860  INFO [pool-20-thread-1] ConfigureClusterTask:78 - All required host groups are complete, cluster configuration can now begin
01 Dec 2017 12:51:17,860  INFO [pool-20-thread-1] BlueprintConfigurationProcessor:579 - Config recommendation strategy being used is NEVER_APPLY)
01 Dec 2017 12:51:17,860  INFO [pool-20-thread-1] BlueprintConfigurationProcessor:598 - No recommended configurations are applied. (strategy: NEVER_APPLY)
01 Dec 2017 12:51:18,000  INFO [pool-4-thread-1] AsyncCallableService:92 - Task ConfigureClusterTask exception during execution


What I am missing? How can I register the hosts?? Can someone please help me? Thanks.



1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Re: HA Cluster Blueprint displays 0 datanodes

@Jon Udaondo,

Edit this line in cluster_configuration.json

( %) is missing

"dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",

to

"dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1%:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",

Thanks,

Aditya

View solution in original post

2 REPLIES 2
Highlighted

Re: HA Cluster Blueprint displays 0 datanodes

@Jon Udaondo,

Edit this line in cluster_configuration.json

( %) is missing

"dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",

to

"dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1%:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",

Thanks,

Aditya

View solution in original post

Highlighted

Re: HA Cluster Blueprint displays 0 datanodes

Explorer

Thanks @Aditya Sirna !!! It worked!! I didn´t reallize of that small detail! Thanks a lot!
