HBase blueprint configuration not working

Solved Go to solution
Highlighted

HBase blueprint configuration not working

Explorer


Hello I have the following blueprint:

  • cluster_configuration.json
{
  "Blueprints": {
    "stack_name": "HDP",
    "stack_version": "2.6"
  },
  "host_groups": [
    {
      "name": "namenode1",
      "cardinality" : "1",
      "components": [
        { "name" : "HST_AGENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZKFC" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "HST_SERVER" },
        { "name" : "HBASE_CLIENT"},
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "HBASE_MASTER"},
        { "name" : "NAMENODE" },
        { "name" : "APP_TIMELINE_SERVER" },
        { "name" : "METRICS_GRAFANA" }
      ]
    },
    {
      "name": "namenode2",
      "cardinality" : "1",
      "components": [
        { "name" : "ACTIVITY_EXPLORER" },
        { "name" : "HST_AGENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZKFC" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "HBASE_CLIENT"},
        { "name" : "HISTORYSERVER" },
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "HBASE_MASTER"},
        { "name" : "NAMENODE" },
        { "name" : "METRICS_COLLECTOR" }
      ]
    },
    {
      "name": "namenode3",
      "cardinality" : "1",
      "components": [
        { "name" : "ACTIVITY_ANALYZER" },
        { "name" : "HST_AGENT" },
        { "name" : "MAPREDUCE2_CLIENT" },
        { "name" : "YARN_CLIENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "ZOOKEEPER_SERVER" },
        { "name" : "HBASE_CLIENT"},
        { "name" : "METRICS_MONITOR" },
        { "name" : "JOURNALNODE" },
        { "name" : "RESOURCEMANAGER" }
      ]
    },
    {
      "name": "hosts_group",
      "cardinality" : "3",
      "components": [
        { "name" : "NODEMANAGER" },
        { "name" : "HST_AGENT" },
        { "name" : "MAPREDUCE2_CLIENT" },
        { "name" : "YARN_CLIENT" },
        { "name" : "HDFS_CLIENT" },
        { "name" : "HBASE_REGIONSERVER"},
        { "name" : "DATANODE" },
        { "name" : "HBASE_CLIENT"},
        { "name" : "METRICS_MONITOR" },
        { "name" : "ZOOKEEPER_CLIENT" }
      ]
    }
  ],
  "configurations": [
    {
      "core-site": {
        "properties" : {
          "fs.defaultFS" : "hdfs://HACluster",
          "ha.zookeeper.quorum": "%HOSTGROUP::namenode1%:2181,%HOSTGROUP::namenode2%:2181,%HOSTGROUP::namenode3%:2181",
          "hadoop.proxyuser.yarn.hosts": "%HOSTGROUP::namenode2%,%HOSTGROUP::namenode3%"
        }
      }
    },
    { "hdfs-site": {
        "properties" : {
          "dfs.client.failover.proxy.provider.HACluster" : "org.apache.hadoop.hdfs.server.namenode.ha.ConfiguredFailoverProxyProvider",
          "dfs.ha.automatic-failover.enabled" : "true",
          "dfs.ha.fencing.methods" : "shell(/bin/true)",
          "dfs.ha.namenodes.HACluster" : "nn1,nn2",
          "dfs.namenode.http-address" : "%HOSTGROUP::namenode1%:50070",
          "dfs.namenode.http-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:50070",
          "dfs.namenode.http-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:50070",
          "dfs.namenode.https-address" : "%HOSTGROUP::namenode1%:50470",
          "dfs.namenode.https-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:50470",
          "dfs.namenode.https-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:50470",
          "dfs.namenode.rpc-address.HACluster.nn1" : "%HOSTGROUP::namenode1%:8020",
          "dfs.namenode.rpc-address.HACluster.nn2" : "%HOSTGROUP::namenode2%:8020",
          "dfs.namenode.shared.edits.dir" : "qjournal://%HOSTGROUP::namenode1%:8485;%HOSTGROUP::namenode2%:8485;%HOSTGROUP::namenode3%:8485/mycluster",
          "dfs.nameservices" : "HACluster"
        }
      }
    },
    { "yarn-site": {
        "properties": {
          "yarn.resourcemanager.ha.enabled": "true",
          "yarn.resourcemanager.ha.rm-ids": "rm1,rm2",
          "yarn.resourcemanager.hostname.rm1": "%HOSTGROUP::namenode2%",
          "yarn.resourcemanager.hostname.rm2": "%HOSTGROUP::namenode3%",
          "yarn.resourcemanager.webapp.address.rm1": "%HOSTGROUP::namenode2%:8088",
          "yarn.resourcemanager.webapp.address.rm2": "%HOSTGROUP::namenode3%:8088",
          "yarn.resourcemanager.webapp.https.address.rm1": "%HOSTGROUP::namenode2%:8090",
          "yarn.resourcemanager.webapp.https.address.rm2": "%HOSTGROUP::namenode3%:8090",
          "yarn.resourcemanager.recovery.enabled": "true",
          "yarn.resourcemanager.store.class": "org.apache.hadoop.yarn.server.resourcemanager.recovery.ZKRMStateStore",
          "yarn.resourcemanager.zk-address": "%HOSTGROUP::namenode1%:2181,%HOSTGROUP::namenode2%:2181,%HOSTGROUP::namenode3%:2181",
          "yarn.client.failover-proxy-provider": "org.apache.hadoop.yarn.client.ConfiguredRMFailoverProxyProvider",
          "yarn.resourcemanager.cluster-id": "yarn-cluster",
          "yarn.resourcemanager.ha.automatic-failover.zk-base-path": "/yarn-leader-election"
        }
      }
    },
    {
      "hdfs-site" : {
        "properties_attributes" : { },
          "properties" : {
            "dfs.datanode.data.dir" : "/mnt/secondary1,/mnt/secondary2"
          }
      }
    },
    {
      "hadoop-env" : {
        "properties_attributes" : { },
          "properties" : {
            "namenode_heapsize" : "2048m"
          }
      }
    },
    {
      "activity-zeppelin-shiro": {
        "properties": {
          "users.admin": "admin"
        }
      }
    },
    {
      "hbase-site" : {
        "properties" : {
          "hbase.rootdir" : "hdfs://HACluster/apps/hbase/data"
        }
      }
   }
  ]
}
  • hostmap.json
{
  "blueprint":"HACluster",
  "default_password":"admin",
  "host_groups": [
    {
      "name": "namenode1",
      "hosts":
      [
        { "fqdn": "namenode1" }
      ]
    },
    {
      "name": "namenode2",
      "hosts":
      [
        { "fqdn": "namenode2" }
      ]


    },
    {
      "name": "namenode3",
      "hosts":
      [
        { "fqdn": "namenode3" }
      ]
    },
    {
      "name": "hosts_group",
      "hosts":
      [
        { "fqdn": "datanode1" },
        { "fqdn": "datanode2" },
        { "fqdn": "datanode3" }
      ]
    }
  ]
}

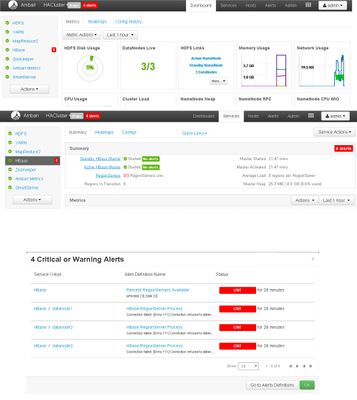

When I launch this configuration, HBase is the only service that doesn´t work. I get the following errors (screeshot attached).

What I am missing?

Thank you.


1 ACCEPTED SOLUTION

Accepted Solutions
Highlighted

Re: HBase blueprint configuration not working

Explorer
@Aditya Sirna

I found the error... By default "hbase_regionserver_heapsize" was set to 4096m, greater than my server, therefore, regionservers were not able to start.

I Changed that value to 1024 and everything went ok!

"hbase_regionserver_heapsize" : "4096m",

"hbase_regionserver_heapsize" : "1024",

View solution in original post

5 REPLIES 5
Highlighted

Re: HBase blueprint configuration not working

@Jon Udaondo,

Can you please attach the region server logs located under (/var/log/hbase/hbase-hbase-regionserver-{hostname}.log)

Thanks,

Aditya

Highlighted

Re: HBase blueprint configuration not working

Explorer

@Aditya Sirna

This is the output:

$ cat /var/log/hbase/hbase-hbase-regionserver-namenode1.log

2017-12-05 12:11:29,525 INFO  [timeline] availability.MetricSinkWriteShardHostnameHashingStrategy: Calculated collector shard namenode2 based on hostname: namenode1
2017-12-05 12:15:09,962 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=29, evicted=0, evictedPerRun=0.0
2017-12-05 12:20:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=59, evicted=0, evictedPerRun=0.0
2017-12-05 12:25:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=89, evicted=0, evictedPerRun=0.0
2017-12-05 12:30:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=119, evicted=0, evictedPerRun=0.0
2017-12-05 12:35:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=149, evicted=0, evictedPerRun=0.0
2017-12-05 12:40:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=179, evicted=0, evictedPerRun=0.0
2017-12-05 12:45:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=209, evicted=0, evictedPerRun=0.0
2017-12-05 12:50:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=239, evicted=0, evictedPerRun=0.0
2017-12-05 12:55:09,961 INFO  [LruBlockCacheStatsExecutor] hfile.LruBlockCache: totalSize=1.67 MB, freeSize=1.59 GB, max=1.59 GB, blockCount=0, accesses=0, hits=0, hitRatio=0, cachingAccesses=0, cachingHits=0, cachingHitsRatio=0,evictions=269, evicted=0, evictedPerRun=0.0

$ cat /var/log/hbase/hbase-hbase-regionserver-datanode1.log

Tue Dec  5 12:08:28 CET 2017 Starting regionserver on datanode1
core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 13671
max locked memory       (kbytes, -l) 64
max memory size         (kbytes, -m) unlimited
open files                      (-n) 32000
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) 8192
cpu time               (seconds, -t) unlimited
max user processes              (-u) 16000
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited
Tue Dec  5 12:18:37 CET 2017 Starting regionserver on datanode1
core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 13671
max locked memory       (kbytes, -l) 64
max memory size         (kbytes, -m) unlimited
open files                      (-n) 32000
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) 8192
cpu time               (seconds, -t) unlimited
max user processes              (-u) 16000
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited
Tue Dec  5 12:21:20 CET 2017 Starting regionserver on datanode1
core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 13671
max locked memory       (kbytes, -l) 64
max memory size         (kbytes, -m) unlimited
open files                      (-n) 32000
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) 8192
cpu time               (seconds, -t) unlimited
max user processes              (-u) 16000
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited
Tue Dec  5 12:46:37 CET 2017 Starting regionserver on datanode1
core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 13671
max locked memory       (kbytes, -l) 64
max memory size         (kbytes, -m) unlimited
open files                      (-n) 32000
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) 8192
cpu time               (seconds, -t) unlimited
max user processes              (-u) 16000
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited
Highlighted

Re: HBase blueprint configuration not working

@Jon Udaondo,

I do not see any errors in the above logs. Can you do a tail on these logs and restart the region servers to see if there are any ERROR logs printed. That would be helpful for debugging.

Highlighted

Re: HBase blueprint configuration not working

Explorer
@Aditya Sirna

When region servers are restarted just the following is displayed when tail (same as obove) :(:

Tue Dec  5 13:11:53 CET 2017 Starting regionserver on datanode2
core file size          (blocks, -c) 0
data seg size           (kbytes, -d) unlimited
scheduling priority             (-e) 0
file size               (blocks, -f) unlimited
pending signals                 (-i) 13671
max locked memory       (kbytes, -l) 64
max memory size         (kbytes, -m) unlimited
open files                      (-n) 32000
pipe size            (512 bytes, -p) 8
POSIX message queues     (bytes, -q) 819200
real-time priority              (-r) 0
stack size              (kbytes, -s) 8192
cpu time               (seconds, -t) unlimited
max user processes              (-u) 16000
virtual memory          (kbytes, -v) unlimited
file locks                      (-x) unlimited


Highlighted

Re: HBase blueprint configuration not working

Explorer
@Aditya Sirna

I found the error... By default "hbase_regionserver_heapsize" was set to 4096m, greater than my server, therefore, regionservers were not able to start.

I Changed that value to 1024 and everything went ok!

"hbase_regionserver_heapsize" : "4096m",

"hbase_regionserver_heapsize" : "1024",

View solution in original post
