HDP 3.0 Cloudbreak Deployment possible?

Solved Go to solution

HDP 3.0 Cloudbreak Deployment possible?

New Contributor

Hi,

I just got a Cloudbreak 2.7.1 deployer server running. The press release for HDP 3.0 mentioned that is was possible to deploy 3.0 using Cloudbreak but HDP 3.0 isn't an available option under 2.7.1 (HDP 2.6 only). Do I need to upgrade Cloudbreak, add an MPack or how should I deploy HDP 3.0 via Cloudbreak?

Paul

1 ACCEPTED SOLUTION

Accepted Solutions

Re: HDP 3.0 Cloudbreak Deployment possible?

Rising Star

Paul,

I ran into the same issue with CB 2.7.1. I'm sure there must be a better way to get it resolved, but here are the steps I used to create an HDP3.0 blueprint first, then further create an HDP 3.0 cluster by using CB 2.7.1:

Step1: Click 'Blueprints' on the left navigation pane, then click 'CREATE BLUEPRINT', input the name, for instance 'HDP 3.0 - Data Science: Apache Spark 2, Apache Zeppelin'


Step2: Add the following JSON into the 'Text' field, and click 'CREATE'

{
  "Blueprints": {
    "blueprint_name": "hdp30-data-science-spark2-v4",
    "stack_name": "HDP",
    "stack_version": "3.0"
  },
  "settings": [
    {
      "recovery_settings": []
    },
    {
      "service_settings": [
        {
          "name": "HIVE",
          "credential_store_enabled": "false"
        }
      ]
    },
    {
      "component_settings": []
    }
  ],
  "configurations": [
    {
      "core-site": {
        "fs.trash.interval": "4320"
      }
    },
    {
      "hdfs-site": {
        "dfs.namenode.safemode.threshold-pct": "0.99"
      }
    },
    {
      "hive-site": {
        "hive.exec.compress.output": "true",
        "hive.merge.mapfiles": "true",
        "hive.server2.tez.initialize.default.sessions": "true",
        "hive.server2.transport.mode": "http"
      }
    },
    {
      "mapred-site": {
        "mapreduce.job.reduce.slowstart.completedmaps": "0.7",
        "mapreduce.map.output.compress": "true",
        "mapreduce.output.fileoutputformat.compress": "true"
      }
    },
    {
      "yarn-site": {
        "yarn.acl.enable": "true"
      }
    }
  ],
  "host_groups": [
    {
      "name": "master",
      "configurations": [],
      "components": [
        {
          "name": "APP_TIMELINE_SERVER"
        },
        {
          "name": "HDFS_CLIENT"
        },
        {
          "name": "HISTORYSERVER"
        },
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "HIVE_METASTORE"
        },
        {
          "name": "HIVE_SERVER"
        },
        {
          "name": "JOURNALNODE"
        },
        {
          "name": "MAPREDUCE2_CLIENT"
        },
        {
          "name": "METRICS_COLLECTOR"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NAMENODE"
        },
        {
          "name": "RESOURCEMANAGER"
        },
        {
          "name": "SECONDARY_NAMENODE"
        },
        {
          "name": "LIVY2_SERVER"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "SPARK2_JOBHISTORYSERVER"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "YARN_CLIENT"
        },
        {
          "name": "ZEPPELIN_MASTER"
        },
        {
          "name": "ZOOKEEPER_CLIENT"
        },
        {
          "name": "ZOOKEEPER_SERVER"
        }
      ],
      "cardinality": "1"
    },
    {
      "name": "worker",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "DATANODE"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    },
    {
      "name": "compute",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    }
  ]
}

Step3: You now should be able to see the newly added HDP3.0 blueprint, and create a cluster off it



Hope it helps!

If you found it resolved the issue, please "accept" the answer, thanks.

14 REPLIES 14

Re: HDP 3.0 Cloudbreak Deployment possible?

Rising Star

Paul,

I ran into the same issue with CB 2.7.1. I'm sure there must be a better way to get it resolved, but here are the steps I used to create an HDP3.0 blueprint first, then further create an HDP 3.0 cluster by using CB 2.7.1:

Step1: Click 'Blueprints' on the left navigation pane, then click 'CREATE BLUEPRINT', input the name, for instance 'HDP 3.0 - Data Science: Apache Spark 2, Apache Zeppelin'


Step2: Add the following JSON into the 'Text' field, and click 'CREATE'

{
  "Blueprints": {
    "blueprint_name": "hdp30-data-science-spark2-v4",
    "stack_name": "HDP",
    "stack_version": "3.0"
  },
  "settings": [
    {
      "recovery_settings": []
    },
    {
      "service_settings": [
        {
          "name": "HIVE",
          "credential_store_enabled": "false"
        }
      ]
    },
    {
      "component_settings": []
    }
  ],
  "configurations": [
    {
      "core-site": {
        "fs.trash.interval": "4320"
      }
    },
    {
      "hdfs-site": {
        "dfs.namenode.safemode.threshold-pct": "0.99"
      }
    },
    {
      "hive-site": {
        "hive.exec.compress.output": "true",
        "hive.merge.mapfiles": "true",
        "hive.server2.tez.initialize.default.sessions": "true",
        "hive.server2.transport.mode": "http"
      }
    },
    {
      "mapred-site": {
        "mapreduce.job.reduce.slowstart.completedmaps": "0.7",
        "mapreduce.map.output.compress": "true",
        "mapreduce.output.fileoutputformat.compress": "true"
      }
    },
    {
      "yarn-site": {
        "yarn.acl.enable": "true"
      }
    }
  ],
  "host_groups": [
    {
      "name": "master",
      "configurations": [],
      "components": [
        {
          "name": "APP_TIMELINE_SERVER"
        },
        {
          "name": "HDFS_CLIENT"
        },
        {
          "name": "HISTORYSERVER"
        },
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "HIVE_METASTORE"
        },
        {
          "name": "HIVE_SERVER"
        },
        {
          "name": "JOURNALNODE"
        },
        {
          "name": "MAPREDUCE2_CLIENT"
        },
        {
          "name": "METRICS_COLLECTOR"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NAMENODE"
        },
        {
          "name": "RESOURCEMANAGER"
        },
        {
          "name": "SECONDARY_NAMENODE"
        },
        {
          "name": "LIVY2_SERVER"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "SPARK2_JOBHISTORYSERVER"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "YARN_CLIENT"
        },
        {
          "name": "ZEPPELIN_MASTER"
        },
        {
          "name": "ZOOKEEPER_CLIENT"
        },
        {
          "name": "ZOOKEEPER_SERVER"
        }
      ],
      "cardinality": "1"
    },
    {
      "name": "worker",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "DATANODE"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    },
    {
      "name": "compute",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    }
  ]
}

Step3: You now should be able to see the newly added HDP3.0 blueprint, and create a cluster off it



Hope it helps!

If you found it resolved the issue, please "accept" the answer, thanks.

Re: HDP 3.0 Cloudbreak Deployment possible?

New Contributor

Thanks dsun, that has worked for me. Note I used Dominika's blueprint below but don't know if it makes any difference.

Re: HDP 3.0 Cloudbreak Deployment possible?

Rising Star
@Paul NorrisGlad it helped. If you look at the JSON contents, both Dominika & I are referring to the same blueprint.

Re: HDP 3.0 Cloudbreak Deployment possible?

@Paul Norris It is possible to use Cloudbreak 2.7.1 to deploy HDP 3.0; However, Cloudbreak 2.7.1 does not include any default blueprints for HDP 3.0 and so if you want to use HDP 3.0 you must first:

1) create an HDP 3.0 blueprint. Here is an example:

{
  "Blueprints": {
    "blueprint_name": "hdp30-data-science-spark2-v4",
    "stack_name": "HDP",
    "stack_version": "3.0"
  },
  "settings": [
    {
      "recovery_settings": []
    },
    {
      "service_settings": [
        {
          "name": "HIVE",
          "credential_store_enabled": "false"
        }
      ]
    },
    {
      "component_settings": []
    }
  ],
  "configurations": [
    {
      "core-site": {
        "fs.trash.interval": "4320"
      }
    },
    {
      "hdfs-site": {
        "dfs.namenode.safemode.threshold-pct": "0.99"
      }
    },
    {
      "hive-site": {
        "hive.exec.compress.output": "true",
        "hive.merge.mapfiles": "true",
        "hive.server2.tez.initialize.default.sessions": "true",
        "hive.server2.transport.mode": "http"
      }
    },
    {
      "mapred-site": {
        "mapreduce.job.reduce.slowstart.completedmaps": "0.7",
        "mapreduce.map.output.compress": "true",
        "mapreduce.output.fileoutputformat.compress": "true"
      }
    },
    {
      "yarn-site": {
        "yarn.acl.enable": "true"
      }
    }
  ],
  "host_groups": [
    {
      "name": "master",
      "configurations": [],
      "components": [
        {
          "name": "APP_TIMELINE_SERVER"
        },
        {
          "name": "HDFS_CLIENT"
        },
        {
          "name": "HISTORYSERVER"
        },
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "HIVE_METASTORE"
        },
        {
          "name": "HIVE_SERVER"
        },
        {
          "name": "JOURNALNODE"
        },
        {
          "name": "MAPREDUCE2_CLIENT"
        },
        {
          "name": "METRICS_COLLECTOR"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NAMENODE"
        },
        {
          "name": "RESOURCEMANAGER"
        },
        {
          "name": "SECONDARY_NAMENODE"
        },
        {
          "name": "LIVY2_SERVER"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "SPARK2_JOBHISTORYSERVER"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "YARN_CLIENT"
        },
        {
          "name": "ZEPPELIN_MASTER"
        },
        {
          "name": "ZOOKEEPER_CLIENT"
        },
        {
          "name": "ZOOKEEPER_SERVER"
        }
      ],
      "cardinality": "1"
    },
    {
      "name": "worker",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "DATANODE"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    },
    {
      "name": "compute",
      "configurations": [],
      "components": [
        {
          "name": "HIVE_CLIENT"
        },
        {
          "name": "TEZ_CLIENT"
        },
        {
          "name": "SPARK2_CLIENT"
        },
        {
          "name": "METRICS_MONITOR"
        },
        {
          "name": "NODEMANAGER"
        }
      ],
      "cardinality": "1+"
    }
  ]
}

2) Upload the blueprint to Cloudbreak (you can paste it under the Blueprints menu item).

3) When creating a cluster:

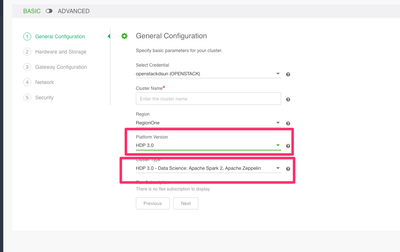

- Under General Configuration, select Platform Version > HDP-3.0 and then your blueprint should appear under Cluster Type

- Under Image Settings, specify Ambari 2.7 and HDP 3.0 public repos (you can find them in Ambari 2.7 docs: https://docs.hortonworks.com/HDPDocuments/Ambari-2.7.0.0/bk_ambari-installation/content/ch_obtaining....

Re: HDP 3.0 Cloudbreak Deployment possible?

New Contributor

Thanks, Dominika, I used your Blueprint and it didn't seem to need me to add the repo's, it had the correct information there automatically.

Re: HDP 3.0 Cloudbreak Deployment possible?

Great! I wasn't sure if Cloudbreak would do it correctly.

Re: HDP 3.0 Cloudbreak Deployment possible?

New Contributor

Hello Dominika, The blueprint in the example given was for Data Science: Apache Spark 2, Apache Zeppelin.

Do you have a sample blueprint for HDP 3.0 - EDW-ETL: Apache Hive, Apache Spark 2 which I can run on Cloudbreak 2.7.x?

Re: HDP 3.0 Cloudbreak Deployment possible?

@Pushpak Nandi I do not have any EDW-ETL blueprint for HDP 3.1. Last time I heard the plan was to only ship EDW-Analytics with HDP 3.1.
