[KERBEROS] Failed to kinit as the KDC administrator user, admin/[email protected]

[#1]

Hallo,

When to enable Kerberos via ambari, I am facing the following window popup at the time of Testing client after client installation saying

in my log ambari-server listed below

2024-06-04 06:27:43,380  WARN [agent-report-processor-2] ActionManager:162 - The task 76 is not in progress, ignoring update
2024-06-04 06:27:43,861  INFO [ambari-client-thread-6248] AmbariManagementControllerImpl:4086 - Received action execution request, clusterName=hadoop, request=isCommand :true, action :null, command :KERBEROS_SERVICE_CHECK, inputs :{HAS_RESOURCE_FILTERS=true}, resourceFilters: [RequestResourceFilter{serviceName='KERBEROS', componentName='null', hostNames=[]}], exclusive: false, clusterName :hadoop
2024-06-04 06:27:44,149  WARN [ambari-client-thread-6248] KDCKerberosOperationHandler:329 - Failed to kinit as the KDC administrator user, admin/[email protected]:
	ExitCode: 1
	STDOUT:
	STDERR: kinit: Server not found in Kerberos database while getting initial credentials

2024-06-04 06:27:44,151 ERROR [ambari-client-thread-6248] KerberosHelperImpl:2507 - Cannot validate credentials: org.apache.ambari.server.serveraction.kerberos.KerberosAdminAuthenticationException: Invalid KDC administrator credentials.
The KDC administrator credentials must be set as a persisted or temporary credential resource.This may be done by issuing a POST (or PUT for updating) to the /api/v1/clusters/:clusterName/credentials/kdc.admin.credential API entry point with the following payload:
{
  "Credential" : {
    "principal" : "(PRINCIPAL)", "key" : "(PASSWORD)", "type" : "(persisted|temporary)"}
  }
}
2024-06-04 06:27:44,152 ERROR [ambari-client-thread-6248] CreateHandler:80 - Bad request received: Invalid KDC administrator credentials.
The KDC administrator credentials must be set as a persisted or temporary credential resource.This may be done by issuing a POST (or PUT for updating) to the /api/v1/clusters/:clusterName/credentials/kdc.admin.credential API entry point with the following payload:
{
  "Credential" : {
    "principal" : "(PRINCIPAL)", "key" : "(PASSWORD)", "type" : "(persisted|temporary)"}
  }
}
2024-06-04 06:27:44,578  WARN [agent-report-processor-1] ActionManager:162 - The task 75 is not in progress, ignoring update

can anyone help me, please..

[#2]

Hi @rizalt , Have you tried logging in with "kinit admin/[email protected]" from one of your cluster nodes or ambari server to see if krb5.conf is fine and can find this user/principal in the KDC server with the given password?

[#3]

@Former Member  im my cluster master1,slave1 & slave2 kinit logged in fine without errors, listed below

root@master1:~# kinit admin/[email protected]
Password for admin/[email protected]:
root@master1:~# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: admin/[email protected]

Valid starting       Expires              Service principal
06/05/2024 07:17:16  06/05/2024 17:17:16  krbtgt/[email protected]
        renew until 06/05/2024 07:17:16
root@master1:~#

root@slave1:~# kinit admin/[email protected]
Password for admin/[email protected]:
root@slave1:~# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: admin/[email protected]

Valid starting       Expires              Service principal
06/05/2024 07:19:26  06/05/2024 17:19:26  krbtgt/[email protected]
        renew until 06/05/2024 07:19:26
root@slave1:~#

root@slave2:~# kinit admin/[email protected]
Password for admin/[email protected]:
root@slave2:~# klist
Ticket cache: FILE:/tmp/krb5cc_0
Default principal: admin/[email protected]

Valid starting       Expires              Service principal
06/05/2024 07:20:19  06/05/2024 17:20:19  krbtgt/[email protected]
        renew until 06/05/2024 07:20:19
root@slave2:~#

[#4]

@rizalt

There are a couple of things to validate.
Step 1 Pre-requisites

• Kerberos Server: Ensure you have a Kerberos Key Distribution Center (KDC) and an administrative server set up.
• DNS: Proper DNS setup is required for both forward and reverse lookups.
  NTP: Time synchronization across all nodes using Network Time Protocol (NTP).
• HDP Cluster: A running Hortonworks Data Platform (HDP) cluster.

Step 2:  Check your /etc/host file ensure your KDC host is assigned the domain HADOOP.COM to match your KDC credentials

Spoiler

# hostname -f

Step 3: Once that matches then edit the Kerberos configuration file (/etc/krb5.conf) on all nodes to point to your KDC you can scramble the sensitive info and share

Spoiler

[libdefaults]
default_realm = HADOOP.COM
dns_lookup_realm = false
dns_lookup_kdc = false

[realms]
HADOOP.COM = {
kdc = kdc.hadoop.com
admin_server = admin.hadoop.com
}

[domain_realm]
.hadoop.com = HADOOP.COM
hadoop.com = HADOOP.COM

Step 4: Locate your kadm5.acl file and ensure it looks like this

Spoiler

*/[email protected] *

Step 5: Restart the KDC and admin servers as root or with sudo

Spoiler

# systemctl restart krb5kdc

# systemctl restart kadmin

Step 6: Check Kerberos Ticket: Ensure that the Kerberos ticket is obtained correctly.

Spoiler

kinit -kt /etc/security/keytabs/hdfs.keytab hdfs/[email protected]
klist

If your setup is correct you will see an output like below

Spoiler

Ticket cache: FILE:/tmp/krb5cc_1000
Default principal: hdfs/[email protected]

Valid starting Expires Service principal
06/05/2024 09:50:21 06/06/2024 09:50:21 krbtgt/[email protected]
renew until 06/05/2024 09:50:21
06/05/2024 09:50:22 06/06/2024 09:50:21 HTTP/[email protected]
renew until 06/05/2024 09:50:21

Hope that helps

[#5]

@Shelton
/etc/host

Spoiler

root@master1:~# hostname -f
master1.hadoop.com

/etc/hosts

Spoiler

127.0.0.1 localhost
192.168.122.10 master1.hadoop.com
192.168.122.11 slave1.hadoop.com
192.168.122.12 slave2.hadoop.com
# The following lines are desirable for IPv6 capable hosts
::1 ip6-localhost ip6-loopback
fe00::0 ip6-localnet
ff00::0 ip6-mcastprefix
ff02::1 ip6-allnodes
ff02::2 ip6-allrouters

/etc/krb5.conf

Spoiler

[libdefaults]
renew_lifetime = 7d
forwardable = true
default_realm = HADOOP.COM
ticket_lifetime = 24h
dns_lookup_realm = false
dns_lookup_kdc = false
default_ccache_name = /tmp/krb5cc_%{uid}
#default_tgs_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5
#default_tkt_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5

[logging]
default = FILE:/var/log/krb5kdc.log
admin_server = FILE:/var/log/kadmind.log
kdc = FILE:/var/log/krb5kdc.log

[realms]
HADOOP.COM = {
admin_server = master1.hadoop.com
kdc = master1.hadoop.com
}

kadm5.acl

Spoiler

*/[email protected] *

event create ticket show error

root@master1:~# systemctl restart krb5-kdc
root@master1:~# systemctl restart krb5-admin-server
root@master1:~# kinit -kt /etc/security/keytabs/hdfs.keytab hdfs/[email protected]
kinit: Client 'hdfs/[email protected]' not found in Kerberos database while getting initial credentials

[#6]

Hi @rizalt , You want to verify if the principal exists in the KDC admin database ?

kadmin: listprincs hdfs*

[#7]

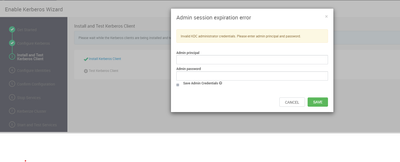

@Majeti . my issue is  when Ambari tests Kerberos client always shows a dialog box like this

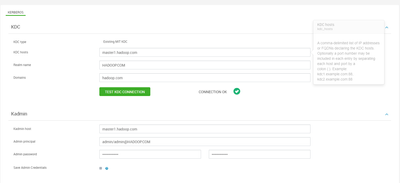

My previous settings were like this

I have the principal admin/[email protected] and the password is correct,

root@master1:~# kadmin -p admin/admin
Authenticating as principal admin/admin with password.
Password for admin/[email protected]:
kadmin:  listprincs
HTTP/[email protected]
K/[email protected]
admin/[email protected]
admin/[email protected]
hdfs/[email protected]
kadmin/[email protected]
kadmin/[email protected]
krbtgt/[email protected]

Any suggestions for this issue?

[#8]

Hi @rizalt , I am not sure if you are hitting this known issue https://docs.cloudera.com/runtime/7.1.2/release-notes/topics/rt-known-issues-ambari.html . You can try the workaround mentioned here for now.

[#9]

@rizalt
Did you see the same entry in the krb5.conf that I suggested you add?

[domain_realm]
  .hadoop.com = HADOOP.COM
  hadoop.com = HADOOP.COM

In the Kerberos setup UI you should also include

HADOOP.COM , . HADOOP.COM

 Check a solution I offered
Error while enabling Kerberos on ambari
Hope that helps

[#10]

@rizalt
Make a backup of your krb5.conf and modify it like below

Spoiler

# Configuration snippets may be placed in this directory as well
includedir /etc/krb5.conf.d/

[logging]
default = FILE:/var/log/krb5libs.log
kdc = FILE:/var/log/krb5kdc.log
admin_server = FILE:/var/log/kadmind.log

[libdefaults]
dns_lookup_realm = false
ticket_lifetime = 24h
renew_lifetime = 7d
forwardable = true
ticket_lifetime = 24h
dns_lookup_realm = false
dns_lookup_kdc = false
default_ccache_name = /tmp/krb5cc_%{uid}
#default_tgs_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5
#default_tkt_enctypes = aes des3-cbc-sha1 rc4 des-cbc-md5

[realms]
HADOOP.COM = {
admin_server = master1.hadoop.com
kdc = master1.hadoop.com
}

[domain_realm]
.master1.hadoop.com = HADOOP.COM
master1.hadoop.com = HADOOP.COM

Then restart the KDC and retry
