MiNiFi java not starting

avatar
Contributor

Hi,



I'm trying to deploy a minifi instance in Windows Server. The process deployed basically waits for a file, read it and send the content to the Nifi instance in other server in the same network.



Template's transformation finished OK and none changes have been made



D:\minifi-1.14.0\minifi-toolkit-1.14.0\bin>config.bat transform Captura_Log_de_Errrores_Remotos.xml Captura_Log_de_Errrores_Remotos.yml
No validation errors found in converted configuration.



My problem is that MiNiFi is not starting with the following exception:



c:\minifi\bin>run-minifi.bat
SLF4J: Class path contains multiple SLF4J bindings.
SLF4J: Found binding in [jar:file:/C:/minifi/lib/bootstrap/logback-classic-1.2.3.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: Found binding in [jar:file:/C:/minifi/lib/logback-classic-1.2.3.jar!/org/slf4j/impl/StaticLoggerBinder.class]
SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
SLF4J: Actual binding is of type [ch.qos.logback.classic.util.ContextSelectorStaticBinder]
Exception in thread "main" java.io.IOException: Unable to successfully transform the provided configuration
        at org.apache.nifi.minifi.bootstrap.RunMiNiFi.performTransformation(RunMiNiFi.java:1703)
        at org.apache.nifi.minifi.bootstrap.RunMiNiFi.start(RunMiNiFi.java:1180)
        at org.apache.nifi.minifi.bootstrap.RunMiNiFi.main(RunMiNiFi.java:244)
Caused by: java.io.IOException: org.yaml.snakeyaml.error.YAMLException: java.nio.charset.MalformedInputException: Input length = 1
        at org.apache.nifi.minifi.commons.schema.serialization.SchemaLoader.loadYamlAsMap(SchemaLoader.java:64)
        at org.apache.nifi.minifi.commons.schema.serialization.SchemaLoader.loadConvertableSchemaFromYaml(SchemaLoader.java:79)
        at org.apache.nifi.minifi.bootstrap.util.ConfigTransformer.transformConfigFile(ConfigTransformer.java:94)
        at org.apache.nifi.minifi.bootstrap.RunMiNiFi.performTransformation(RunMiNiFi.java:1693)
        ... 2 more
Caused by: org.yaml.snakeyaml.error.YAMLException: java.nio.charset.MalformedInputException: Input length = 1
        at org.yaml.snakeyaml.reader.StreamReader.update(StreamReader.java:200)
        at org.yaml.snakeyaml.reader.StreamReader.peek(StreamReader.java:146)
        at org.yaml.snakeyaml.scanner.ScannerImpl.scanPlain(ScannerImpl.java:2000)
        at org.yaml.snakeyaml.scanner.ScannerImpl.fetchPlain(ScannerImpl.java:1046)
        at org.yaml.snakeyaml.scanner.ScannerImpl.fetchMoreTokens(ScannerImpl.java:401)
        at org.yaml.snakeyaml.scanner.ScannerImpl.checkToken(ScannerImpl.java:226)
        at org.yaml.snakeyaml.parser.ParserImpl$ParseBlockMappingKey.produce(ParserImpl.java:557)
        at org.yaml.snakeyaml.parser.ParserImpl.peekEvent(ParserImpl.java:157)
        at org.yaml.snakeyaml.parser.ParserImpl.checkEvent(ParserImpl.java:147)
        at org.yaml.snakeyaml.composer.Composer.composeMappingNode(Composer.java:224)
        at org.yaml.snakeyaml.composer.Composer.composeNode(Composer.java:155)
        at org.yaml.snakeyaml.composer.Composer.composeSequenceNode(Composer.java:199)
        at org.yaml.snakeyaml.composer.Composer.composeNode(Composer.java:153)
        at org.yaml.snakeyaml.composer.Composer.composeValueNode(Composer.java:246)
        at org.yaml.snakeyaml.composer.Composer.composeMappingChildren(Composer.java:237)
        at org.yaml.snakeyaml.composer.Composer.composeMappingNode(Composer.java:225)
        at org.yaml.snakeyaml.composer.Composer.composeNode(Composer.java:155)
        at org.yaml.snakeyaml.composer.Composer.composeSequenceNode(Composer.java:199)
        at org.yaml.snakeyaml.composer.Composer.composeNode(Composer.java:153)
        at org.yaml.snakeyaml.composer.Composer.composeValueNode(Composer.java:246)
        at org.yaml.snakeyaml.composer.Composer.composeMappingChildren(Composer.java:237)
        at org.yaml.snakeyaml.composer.Composer.composeMappingNode(Composer.java:225)
        at org.yaml.snakeyaml.composer.Composer.composeNode(Composer.java:155)
        at org.yaml.snakeyaml.composer.Composer.composeDocument(Composer.java:122)
        at org.yaml.snakeyaml.composer.Composer.getSingleNode(Composer.java:105)
        at org.yaml.snakeyaml.constructor.BaseConstructor.getSingleData(BaseConstructor.java:120)
        at org.yaml.snakeyaml.Yaml.loadFromReader(Yaml.java:450)
        at org.yaml.snakeyaml.Yaml.load(Yaml.java:381)
        at org.apache.nifi.minifi.commons.schema.serialization.SchemaLoader.loadYamlAsMap(SchemaLoader.java:55)
        ... 5 more
Caused by: java.nio.charset.MalformedInputException: Input length = 1
        at java.nio.charset.CoderResult.throwException(CoderResult.java:281)
        at sun.nio.cs.StreamDecoder.implRead(StreamDecoder.java:339)
        at sun.nio.cs.StreamDecoder.read(StreamDecoder.java:178)
        at java.io.InputStreamReader.read(InputStreamReader.java:184)
        at org.yaml.snakeyaml.reader.UnicodeReader.read(UnicodeReader.java:123)
        at java.io.Reader.read(Reader.java:140)
        at org.yaml.snakeyaml.reader.StreamReader.update(StreamReader.java:184)
        ... 33 more

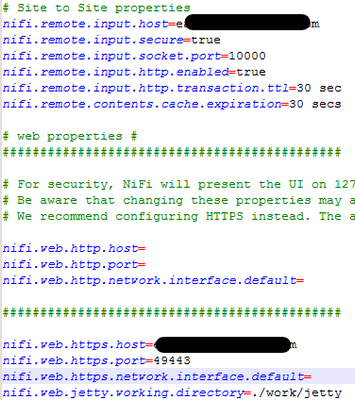

Nifi's configuration is:




Port 10000 is up on Nifi's server and can be accessed from MiniFi's  server...



I'll appreciate your help

4 REPLIES 4

avatar
Super Guru

@templarian ,



If you could provide the converted YAML configuration, it could help understanding what the problem is.



Cheers,

André



--
Was your question answered? Please take some time to click on "Accept as Solution" below this post.
If you find a reply useful, say thanks by clicking on the thumbs up button.

avatar
Contributor

Hi André,



Yaml file here



Thanks.

avatar
Super Guru

@templarian ,



Your file has the characters "ú" and "í", which are not valid in an UTF-8 encoded file.

Try replacing them with either "u" and "i", or with the proper UTF-8 encoding sequences "\xFA" and "\xED", respectively. For example:

Extraer \xFAltimas 10 l\xEDneas del log



Cheers,

André



--
Was your question answered? Please take some time to click on "Accept as Solution" below this post.
If you find a reply useful, say thanks by clicking on the thumbs up button.

avatar
Contributor

Hi André,



It works, however I'm still facing problems to start the MiNiFi, now I'm seeing the following errors in the nifi-app.log





2022-04-02 17:25:56,124 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 22, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,140 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 75, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,140 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 126, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,140 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 177, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 212, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 242, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 277, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 359, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 407, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,155 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 446, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,171 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 486, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,171 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 549, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,171 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 612, col 29: cvc-complex-type.2.4.a: Invalid content was found starting with element 'maxConcurrentTasks'. One of '{bundle}' is expected.
2022-04-02 17:25:56,191 WARN [main] org.apache.nifi.util.FlowParser Schema validation error parsing Flow Configuration at line 680, col 28: cvc-complex-type.2.4.a: Invalid content was found starting with element 'networkInterface'. One of '{inputPort, outputPort}' is expected.
2022-04-02 17:25:56,311 INFO [main] o.a.nifi.headless.HeadlessNiFiServer Loading Flow...
2022-04-02 17:25:56,343 WARN [main] o.a.nifi.headless.HeadlessNiFiServer Failed to start headless server... shutting down.
java.lang.Exception: Unable to load flow due to: java.lang.IllegalArgumentException: NiFi Sensitive Properties Key [nifi.sensitive.props.key] is required
	at org.apache.nifi.headless.HeadlessNiFiServer.start(HeadlessNiFiServer.java:166)
	at org.apache.nifi.minifi.MiNiFi.<init>(MiNiFi.java:163)
	at org.apache.nifi.minifi.MiNiFi.<init>(MiNiFi.java:64)
	at org.apache.nifi.minifi.MiNiFi.main(MiNiFi.java:265)
Caused by: java.lang.IllegalArgumentException: NiFi Sensitive Properties Key [nifi.sensitive.props.key] is required
	at org.apache.nifi.encrypt.PropertyEncryptorFactory.getPropertyEncryptor(PropertyEncryptorFactory.java:42)
	at org.apache.nifi.headless.HeadlessNiFiServer.start(HeadlessNiFiServer.java:125)
	... 3 common frames omitted
2022-04-02 17:25:56,343 INFO [Thread-1] org.apache.nifi.minifi.MiNiFi Initiating shutdown of MiNiFi server...
2022-04-02 17:25:56,343 WARN [Thread-1] o.a.nifi.headless.HeadlessNiFiServer Problem occurred ensuring flow controller or repository was properly terminated due to java.lang.NullPointerException
2022-04-02 17:25:56,343 ERROR [Thread-1] org.apache.nifi.BootstrapListener Failed to communicate with Bootstrap. Bootstrap may be unable to issue or receive commands from MiNiFi
2022-04-02 17:25:56,343 INFO [Thread-1] org.apache.nifi.minifi.MiNiFi MiNiFi server shutdown completed (nicely or otherwise).





  • About the warnings I could not find which processors in the flow has the maxconcurrentask unset, all have one as value (1).
  • About the network interface, input and output ports warnings I suppose that it refers to the remote process group. In this point, I understand that, at least the network interface, is an optional parameter.
  • The final error, nifi.sensitive.props.key. I seted this property but when minifi try to starts set the value to empty again and then fails.

Thanks again.
