Question

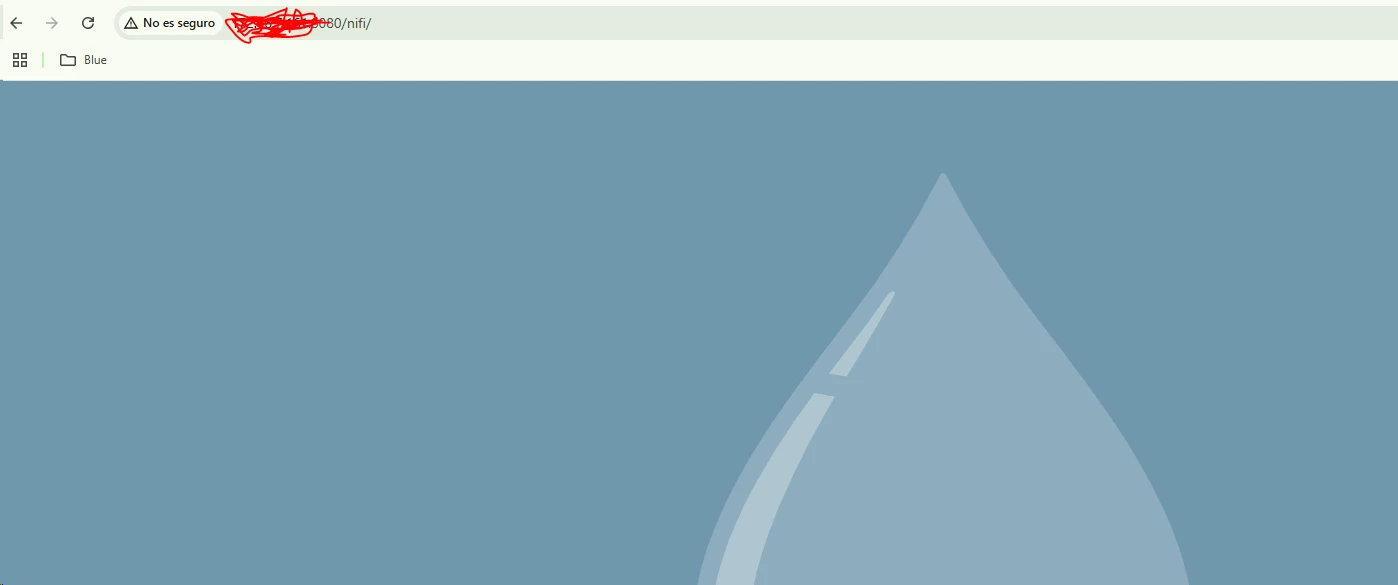

UI nifi 1-16-3 not enable with processor. Error nifi-web-error-1.16.3.war

3 replies
2794 views
Translate All

Greetings everyone, thanking you in advance for your support. I installed Nifi version 1.16.3 in cluster format, with ZooKeeper apache-zookeeper-3.6.3 separately, on a Linux AWS instance to upgrade from 1.11.4 because I need to work with a more recent API for BigQuery uploads. However, when I complete the process and launch the Nifi service, the processor bar doesn't appear in the UI. The Java version I have is: OpenJDK version "1.8.0_382" OpenJDK Runtime Environment (build 1.8.0_382-b05) OpenJDK 64-Bit Server VM (build 25.382-b05, mixed mode). I need some guidance on this. If anyone can help, please.

nifi-app.log

2025-04-24 19:17:53,449 INFO [main] o.e.jetty.server.handler.ContextHandler Started o.e.j.w.WebAppContext@756b2d90{nifi-error,/,file:///home/bxnifi/nifi-1.16.3/work/jetty/nifi-web-error-1.16.3.war/webapp/,AVAILABLE}{./work/nar/extensions/nifi-server-nar-1.16.3.nar-unpacked/NAR-INF/bundled-dependencies/nifi-web-error-1.16.3.war}

Apache NiFi

Shrink

Silver ⭐️⭐️⭐️

Hello Bern,
I could not able to see log file.
Thanks.

Translate

MattWho

Titanium ⭐️⭐️⭐️

@Bern

There is not enough information provided to make any suggestions yet.
Apache NiFi 1.16 is still an almost 5 year old version. I'd encourage you to use the latest 1.x release available to make sure you have all the latest bug fixes and security fixes.

The log line shared is incomplete and is also just an "INFO" level log message which is not going to tell us anything about and issue. I'd suggest looking at the logs on all the nodes for ERROR log messages.

Re-check all yoru nifi.properties file configuration (hopefully you did NOT copy the config files from your 1.11 to 1.16 but rather used your 1.11 to set the appropriate configurations in the newer config files of 1.16.

Beyond the above you'll need to inspect the a serous of Nifi thread dumps to see if the "main" thread is progressing (changing in each dump) or always has the same dump output.

Please help our community grow. If you found any of the suggestions/solutions provided helped you with solving your issue or answering your question, please take a moment to login and click "Accept as Solution" on one or more of them that helped.

Thank you,
Matt

Translate

BernAuthor

Gold ⭐️

Ok, to put it in context, we're currently using version 1.11.4, which has worked fairly well for us, but sometimes the nodes become desynchronized and won't reconnect. I restarted the cluster to fix this issue. However, now we're forced to change the version because we're uploading to BigQuery. When we run and activate the extraction processors "ExecuteSQL -> avroToJson" to release the queues, the BQ batch processor gives us this error, "Exceeded rated limit big query: too many table update operations for this table." This is because this NIFI is operating with the old version of the API, which is deprecated. GCP recommended we switch to the new API, and I understand that it's already using it since 1.16.3. Yesterday I tried it this way: OS: Cluster: 3 nodes on EC2 AWS instances, the instances are: Operating System: Amazon Linux 2 CPE OS Name: cpe:2.3:o:amazon:amazon_linux:2 Kernel: Linux 4.14.322-246.539.amzn2.x86_64 Architecture: x86-64 Nifi Productive 1. Current Nifi Version 1.11.4, with Java 1.8.0.382.b05 1.amzn2.0.1.x86_64, Apache-Zookeeper-3.6.3-bin Nifi Tested: 2. First Nifi Tested Version 1.16.3, with Java 1.8.0.382.b05 1.amzn2.0.1.x86_64, Apache-Zookeeper-3.6.3-bin 3. Second Nifi Version 1.28.1, with Java 11 Version java-11-amazon-corretto-headless, apache-zookeeper-3.6.3-bin For points 2 and 3, I created this thread. Now I'm at point 3 and I have the same problem. I inferred that it could be the Java version, but it isn't. However, I had to rollback and go back to 1.11.4, since we don't have a test environment, only a production one, and I couldn't stop the operation. It works without problems. I copied the configurations from my nodes to the others. I tried to solve but the logs did not tell me much, I only cut the most visible org.apache.nifi.web.server.jettyserver loading war ver-nar-1.16.3.nar-unpacked / nar-inf / bundled-dependencies / nifi-web-error-1.16.3.war, I checked the app, the user and the boopstrap, I did a search for error specifically for each log and nothing appeared, yesterday I checked the cluster was running with its 3 nodes and the status of nifi and they were running, also communication of the nodes was seen. To resume the subject I would have to wait for a problem to occur with the nodes to try again:

nifi.properties, nodo 1:

# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

# Core Properties #
nifi.flow.configuration.file=./conf/flow.xml.gz
nifi.flow.configuration.json.file=./conf/flow.json.gz
nifi.flow.configuration.archive.enabled=true
nifi.flow.configuration.archive.dir=./conf/archive/

nifi.flow.configuration.archive.max.time=5 days
nifi.flow.configuration.archive.max.storage=500 MB
nifi.flow.configuration.archive.max.count=
nifi.flowcontroller.autoResumeState=true
nifi.flowcontroller.graceful.shutdown.period=10 sec
nifi.flowservice.writedelay.interval=500 ms
nifi.administrative.yield.duration=60 sec
# If a component has no work to do (is "bored"), how long should we wait before checking again for work?
nifi.bored.yield.duration=10 millis
nifi.queue.backpressure.count=10000
nifi.queue.backpressure.size=1 GB

nifi.authorizer.configuration.file=./conf/authorizers.xml
nifi.login.identity.provider.configuration.file=./conf/login-identity-providers.xml
nifi.templates.directory=./conf/templates
nifi.ui.banner.text=
nifi.ui.autorefresh.interval=30 sec
nifi.nar.library.directory=./lib
nifi.nar.library.autoload.directory=./extensions
nifi.nar.working.directory=./work/nar/
nifi.documentation.working.directory=./work/docs/components
nifi.nar.unpack.uber.jar=false

####################
# State Management #
####################
nifi.state.management.configuration.file=./conf/state-management.xml
# The ID of the local state provider
nifi.state.management.provider.local=local-provider
# The ID of the cluster-wide state provider. This will be ignored if NiFi is not clustered but must be populated if running in a cluster.
nifi.state.management.provider.cluster=zk-provider
# Specifies whether or not this instance of NiFi should run an embedded ZooKeeper server
nifi.state.management.embedded.zookeeper.start=false
# Properties file that provides the ZooKeeper properties to use if <nifi.state.management.embedded.zookeeper.start> is set to true
nifi.state.management.embedded.zookeeper.properties=./conf/zookeeper.properties

# Database Settings
#nifi.database.directory=./database_repository
nifi.database.directory=/data/database_repository

# Repository Encryption properties override individual repository implementation properties
nifi.repository.encryption.protocol.version=
nifi.repository.encryption.key.id=
nifi.repository.encryption.key.provider=
nifi.repository.encryption.key.provider.keystore.location=
nifi.repository.encryption.key.provider.keystore.password=

# FlowFile Repository
nifi.flowfile.repository.implementation=org.apache.nifi.controller.repository.WriteAheadFlowFileRepository
nifi.flowfile.repository.wal.implementation=org.apache.nifi.wali.SequentialAccessWriteAheadLog
# nifi.flowfile.repository.directory=./flowfile_repository
nifi.flowfile.repository.directory=/data/flowfile_repository
nifi.flowfile.repository.checkpoint.interval=2 mins
nifi.flowfile.repository.always.sync=false
nifi.flowfile.repository.retain.orphaned.flowfiles=true

nifi.swap.manager.implementation=org.apache.nifi.controller.FileSystemSwapManager
nifi.queue.swap.threshold=20000

# Content Repository
nifi.content.repository.implementation=org.apache.nifi.controller.repository.FileSystemRepository
nifi.content.claim.max.appendable.size=1 MB
#nifi.content.repository.directory.default=./content_repository
nifi.content.repository.directory.default=/data/content_repository
nifi.content.repository.archive.max.retention.period=12 hours
nifi.content.repository.archive.max.usage.percentage=50%
nifi.content.repository.archive.enabled=true
nifi.content.repository.always.sync=false
nifi.content.viewer.url=../nifi-content-viewer/

# Provenance Repository Properties
nifi.provenance.repository.implementation=org.apache.nifi.provenance.WriteAheadProvenanceRepository

# Persistent Provenance Repository Properties
#nifi.provenance.repository.directory.default=./provenance_repository
nifi.provenance.repository.directory.default=/data/provenance_repository
nifi.provenance.repository.max.storage.time=12 hours
nifi.provenance.repository.max.storage.size=50 GB
nifi.provenance.repository.rollover.time=10 mins
nifi.provenance.repository.rollover.size=100 MB
nifi.provenance.repository.query.threads=2
nifi.provenance.repository.index.threads=2
nifi.provenance.repository.compress.on.rollover=true
nifi.provenance.repository.always.sync=false
# Comma-separated list of fields. Fields that are not indexed will not be searchable. Valid fields are:
# EventType, FlowFileUUID, Filename, TransitURI, ProcessorID, AlternateIdentifierURI, Relationship, Details
nifi.provenance.repository.indexed.fields=EventType, FlowFileUUID, Filename, ProcessorID, Relationship
# FlowFile Attributes that should be indexed and made searchable. Some examples to consider are filename, uuid, mime.type
nifi.provenance.repository.indexed.attributes=
# Large values for the shard size will result in more Java heap usage when searching the Provenance Repository
# but should provide better performance
nifi.provenance.repository.index.shard.size=500 MB
# Indicates the maximum length that a FlowFile attribute can be when retrieving a Provenance Event from
# the repository. If the length of any attribute exceeds this value, it will be truncated when the event is retrieved.
nifi.provenance.repository.max.attribute.length=65536
nifi.provenance.repository.concurrent.merge.threads=2

# Volatile Provenance Respository Properties
nifi.provenance.repository.buffer.size=100000

# Component and Node Status History Repository
nifi.components.status.repository.implementation=org.apache.nifi.controller.status.history.VolatileComponentStatusRepository

# Volatile Status History Repository Properties
#nifi.components.status.repository.buffer.size=1440
nifi.components.status.repository.buffer.size=2880
nifi.components.status.snapshot.frequency=5 min
# QuestDB Status History Repository Properties
nifi.status.repository.questdb.persist.node.days=7
nifi.status.repository.questdb.persist.component.days=1
nifi.status.repository.questdb.persist.location=/data/status_repository

# Site to Site properties
nifi.remote.input.host=node-1
nifi.remote.input.secure=false
nifi.remote.input.socket.port=10000
nifi.remote.input.http.enabled=true
nifi.remote.input.http.transaction.ttl=30 sec
nifi.remote.contents.cache.expiration=30 secs

# web properties #
#############################################

# For security, NiFi will present the UI on 127.0.0.1 and only be accessible through this loopback interface.
# Be aware that changing these properties may affect how your instance can be accessed without any restriction.
# We recommend configuring HTTPS instead. The administrators guide provides instructions on how to do this.

nifi.web.http.host=node-1
nifi.web.http.port=8080
nifi.web.http.network.interface.default=

#############################################

nifi.web.https.host=
nifi.web.https.port=
nifi.web.https.network.interface.default=
nifi.web.https.application.protocols=http/1.1
nifi.web.jetty.working.directory=./work/jetty
nifi.web.jetty.threads=200
nifi.web.max.header.size=16 KB
nifi.web.proxy.context.path=
nifi.web.proxy.host=
nifi.web.max.content.size=
nifi.web.max.requests.per.second=30000
nifi.web.max.access.token.requests.per.second=25
nifi.web.request.timeout=60 secs
nifi.web.request.ip.whitelist=
nifi.web.should.send.server.version=true
nifi.web.request.log.format=%{client}a - %u %t "%r" %s %O "%{Referer}i" "%{User-Agent}i"

# Filter JMX MBeans available through the System Diagnostics REST API
nifi.web.jmx.metrics.allowed.filter.pattern=

# Include or Exclude TLS Cipher Suites for HTTPS
nifi.web.https.ciphersuites.include=
nifi.web.https.ciphersuites.exclude=

# security properties #
nifi.sensitive.props.key=1234567890ab
nifi.sensitive.props.key.protected=
nifi.sensitive.props.algorithm=NIFI_PBKDF2_AES_GCM_256
nifi.sensitive.props.additional.keys=

nifi.security.autoreload.enabled=false
nifi.security.autoreload.interval=10 secs
nifi.security.keystore=
nifi.security.keystoreType=
nifi.security.keystorePasswd=
nifi.security.keyPasswd=
nifi.security.truststore=
nifi.security.truststoreType=
nifi.security.truststorePasswd=
nifi.security.user.authorizer=single-user-authorizer
nifi.security.allow.anonymous.authentication=false
nifi.security.user.login.identity.provider=single-user-provider
nifi.security.user.jws.key.rotation.period=PT1H
nifi.security.ocsp.responder.url=
nifi.security.ocsp.responder.certificate=

# OpenId Connect SSO Properties #
nifi.security.user.oidc.discovery.url=
nifi.security.user.oidc.connect.timeout=5 secs
nifi.security.user.oidc.read.timeout=5 secs
nifi.security.user.oidc.client.id=
nifi.security.user.oidc.client.secret=
nifi.security.user.oidc.preferred.jwsalgorithm=
nifi.security.user.oidc.additional.scopes=
nifi.security.user.oidc.claim.identifying.user=
nifi.security.user.oidc.fallback.claims.identifying.user=
nifi.security.user.oidc.claim.groups=groups
nifi.security.user.oidc.truststore.strategy=JDK
nifi.security.user.oidc.token.refresh.window=60 secs

# Apache Knox SSO Properties #
nifi.security.user.knox.url=
nifi.security.user.knox.publicKey=
nifi.security.user.knox.cookieName=hadoop-jwt
nifi.security.user.knox.audiences=

# SAML Properties #
nifi.security.user.saml.idp.metadata.url=
nifi.security.user.saml.sp.entity.id=
nifi.security.user.saml.identity.attribute.name=
nifi.security.user.saml.group.attribute.name=
nifi.security.user.saml.request.signing.enabled=false
nifi.security.user.saml.want.assertions.signed=true
nifi.security.user.saml.signature.algorithm=http://www.w3.org/2001/04/xmldsig-more#rsa-sha256
nifi.security.user.saml.authentication.expiration=12 hours
nifi.security.user.saml.single.logout.enabled=false
nifi.security.user.saml.http.client.truststore.strategy=JDK
nifi.security.user.saml.http.client.connect.timeout=30 secs
nifi.security.user.saml.http.client.read.timeout=30 secs

# Identity Mapping Properties #
# These properties allow normalizing user identities such that identities coming from different identity providers
# (certificates, LDAP, Kerberos) can be treated the same internally in NiFi. The following example demonstrates normalizing
# DNs from certificates and principals from Kerberos into a common identity string:
#
# nifi.security.identity.mapping.pattern.dn=^CN=(.*?), OU=(.*?), O=(.*?), L=(.*?), ST=(.*?), C=(.*?)$
# nifi.security.identity.mapping.value.dn=$1@$2
# nifi.security.identity.mapping.transform.dn=NONE
# nifi.security.identity.mapping.pattern.kerb=^(.*?)/instance@(.*?)$
# nifi.security.identity.mapping.value.kerb=$1@$2
# nifi.security.identity.mapping.transform.kerb=UPPER

# Group Mapping Properties #
# These properties allow normalizing group names coming from external sources like LDAP. The following example
# lowercases any group name.
#
# nifi.security.group.mapping.pattern.anygroup=^(.*)$
# nifi.security.group.mapping.value.anygroup=$1
# nifi.security.group.mapping.transform.anygroup=LOWER

# Listener Bootstrap properties #
# This property defines the port used to listen for communications from NiFi Bootstrap. If this property
# is missing, empty, or 0, a random ephemeral port is used.
nifi.listener.bootstrap.port=0

# cluster common properties (all nodes must have same values) #
nifi.cluster.protocol.heartbeat.interval=20 sec
nifi.cluster.protocol.heartbeat.missable.max=8
nifi.cluster.protocol.is.secure=false

# cluster node properties (only configure for cluster nodes) #
nifi.cluster.is.node=true
nifi.cluster.node.address=node-1
nifi.cluster.node.protocol.port=9089
nifi.cluster.node.protocol.max.threads=150
nifi.cluster.node.event.history.size=25
nifi.cluster.node.connection.timeout=90 sec
nifi.cluster.node.read.timeout=90 sec
nifi.cluster.node.max.concurrent.requests=100
nifi.cluster.firewall.file=
nifi.cluster.flow.election.max.wait.time=5 mins
nifi.cluster.flow.election.max.candidates=

# cluster load balancing properties #
nifi.cluster.load.balance.host=node-1
nifi.cluster.load.balance.port=6342
nifi.cluster.load.balance.connections.per.node=4
nifi.cluster.load.balance.max.thread.count=8
nifi.cluster.load.balance.comms.timeout=30 sec

# zookeeper properties, used for cluster management #
nifi.zookeeper.connect.string=node-1:2181,node-2:2181,node-3:2181
nifi.zookeeper.connect.timeout=60 secs
nifi.zookeeper.session.timeout=60 secs
nifi.zookeeper.root.node=/nifi
nifi.zookeeper.client.secure=false
nifi.zookeeper.security.keystore=
nifi.zookeeper.security.keystoreType=
nifi.zookeeper.security.keystorePasswd=
nifi.zookeeper.security.truststore=
nifi.zookeeper.security.truststoreType=
nifi.zookeeper.security.truststorePasswd=
nifi.zookeeper.jute.maxbuffer=

# Zookeeper properties for the authentication scheme used when creating acls on znodes used for cluster management
# Values supported for nifi.zookeeper.auth.type are "default", which will apply world/anyone rights on znodes
# and "sasl" which will give rights to the sasl/kerberos identity used to authenticate the nifi node
# The identity is determined using the value in nifi.kerberos.service.principal and the removeHostFromPrincipal
# and removeRealmFromPrincipal values (which should align with the kerberos.removeHostFromPrincipal and kerberos.removeRealmFromPrincipal
# values configured on the zookeeper server).
nifi.zookeeper.auth.type=
nifi.zookeeper.kerberos.removeHostFromPrincipal=
nifi.zookeeper.kerberos.removeRealmFromPrincipal=

# kerberos #
nifi.kerberos.krb5.file=

# kerberos service principal #
nifi.kerberos.service.principal=
nifi.kerberos.service.keytab.location=

# kerberos spnego principal #
nifi.kerberos.spnego.principal=
nifi.kerberos.spnego.keytab.location=
nifi.kerberos.spnego.authentication.expiration=12 hours

# external properties files for variable registry
# supports a comma delimited list of file locations
nifi.variable.registry.properties=

# analytics properties #
nifi.analytics.predict.enabled=false
nifi.analytics.predict.interval=3 mins
nifi.analytics.query.interval=5 mins
nifi.analytics.connection.model.implementation=org.apache.nifi.controller.status.analytics.models.OrdinaryLeastSquares
nifi.analytics.connection.model.score.name=rSquared
nifi.analytics.connection.model.score.threshold=.90

# runtime monitoring properties
nifi.monitor.long.running.task.schedule=
nifi.monitor.long.running.task.threshold=

# Enable automatic diagnostic at shutdown.
nifi.diagnostics.on.shutdown.enabled=false

# Include verbose diagnostic information.
nifi.diagnostics.on.shutdown.verbose=false

# The location of the diagnostics folder.
nifi.diagnostics.on.shutdown.directory=./diagnostics

# The maximum number of files permitted in the directory. If the limit is exceeded, the oldest files are deleted.
nifi.diagnostics.on.shutdown.max.filecount=10

# The diagnostics folder's maximum permitted size in bytes. If the limit is exceeded, the oldest files are deleted.
nifi.diagnostics.on.shutdown.max.directory.size=10 MB

# Performance tracking properties
## Specifies what percentage of the time we should track the amount of time processors are using CPU, reading from/writing to content repo, etc.
## This can be useful to understand which components are the most expensive and to understand where system bottlenecks may be occurring.
## The value must be in the range of 0 (inclusive) to 100 (inclusive). A larger value will produce more accurate results, while a smaller value may be
## less expensive to compute.
## Results can be obtained by running "nifi.sh diagnostics <filename>" and then inspecting the produced file.
nifi.performance.tracking.percentage=0

# NAR Provider Properties #
# These properties allow configuring one or more NAR providers. A NAR provider retrieves NARs from an external source
# and copies them to the directory specified by nifi.nar.library.autoload.directory.
#
# Each NAR provider property follows the format:
# nifi.nar.library.provider.<identifier>.<property-name>
#
# Each NAR provider must have at least one property named "implementation".
#
# Example HDFS NAR Provider:
# nifi.nar.library.provider.hdfs.implementation=org.apache.nifi.flow.resource.hadoop.HDFSExternalResourceProvider
# nifi.nar.library.provider.hdfs.resources=/path/to/core-site.xml,/path/to/hdfs-site.xml
# nifi.nar.library.provider.hdfs.storage.location=hdfs://hdfs-location
# nifi.nar.library.provider.hdfs.source.directory=/nars
# nifi.nar.library.provider.hdfs.kerberos.principal=nifi@NIFI.COM
# nifi.nar.library.provider.hdfs.kerberos.keytab=/path/to/nifi.keytab
# nifi.nar.library.provider.hdfs.kerberos.password=
#
# Example NiFi Registry NAR Provider:
# nifi.nar.library.provider.nifi-registry.implementation=org.apache.nifi.registry.extension.NiFiRegistryNarProvider
# nifi.nar.library.provider.nifi-registry.url=http://localhost:18080

Translate

nifi-app.log

Sign up

Please use your Cloudera account.

Login to the community

Please use your Cloudera account.
