consuming data from multiple kafka topic and publishing to multiple topics - one to one mapping

avatar
Contributor

I want to create a flow In NIFI where i want to consumer data from 3 Kafka topics and produce that data into 3 different Kafka topics . each topic should produce data into unique topic . for example -

kafka topics 1  -->  produce to topic A
kafka topics 2 --> produce to topic B
kafka topics 3 --> produce to topic C

i want to use only one Consumer processor and one producer processor . Right now i am using 3 produce Kafka processor .

Can anyone suggest better approach to do so and in more optimized way.

Help me to reduce three publish processors to 1 , but it should be still able to consume from multiple topics and produce to multiple topics but dynamically , like topic1 produces data to topic A only and topic 2 to topic B and so on .



i tried using expression language . kafka.topic is the attribute which contains consumer topics. so i added if else condition for different consumer topic but the output was not the producer topic but whole string mentioned below

in update attribute added a property customerKafkaTopic=${kafka.topic:contains('alerts'):ifElse('${kafkaTopic1}',${kafka.topic:contains('events'):ifElse('${kafkaTopic2}',${kafka.topic:contains('ack'):ifElse('${kafkatopic3}','Not_found')}))}}

and passed this property customerKafkaTopic in publish kafka but it is not working .

Please help with a working approach.

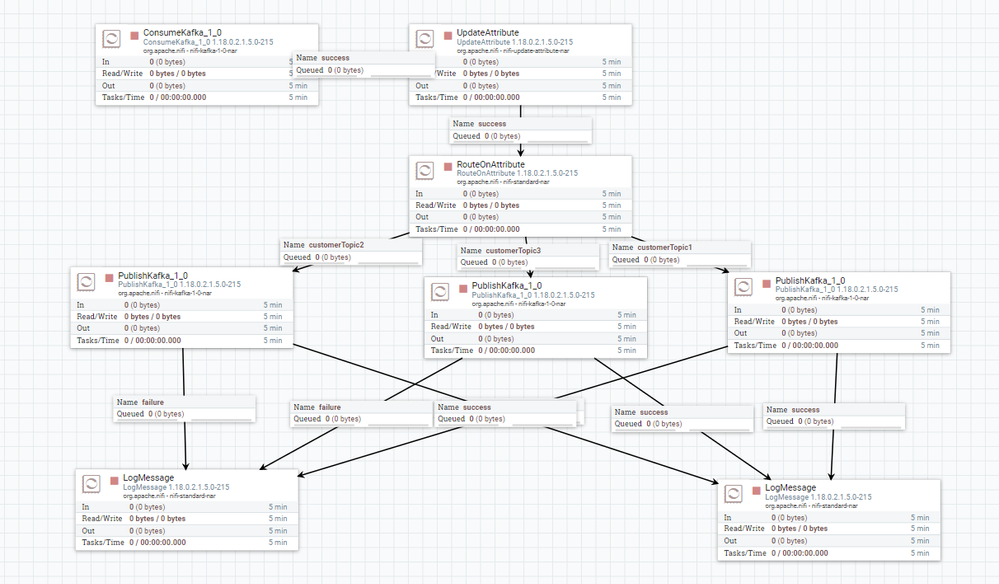

direct kafka .png

1 ACCEPTED SOLUTION

avatar
Super Collaborator

What's wrong with 1:1 relationship? If you're concerned with performance, then leveraging "Message Demarcator" for the Consume and Publish will provide the best throughput.

View solution in original post

1 REPLY 1

avatar
Super Collaborator

What's wrong with 1:1 relationship? If you're concerned with performance, then leveraging "Message Demarcator" for the Consume and Publish will provide the best throughput.
